AEM TestPro CV100 Multifunction Cable Certifier

Descriptions of AEM TestPro CV100

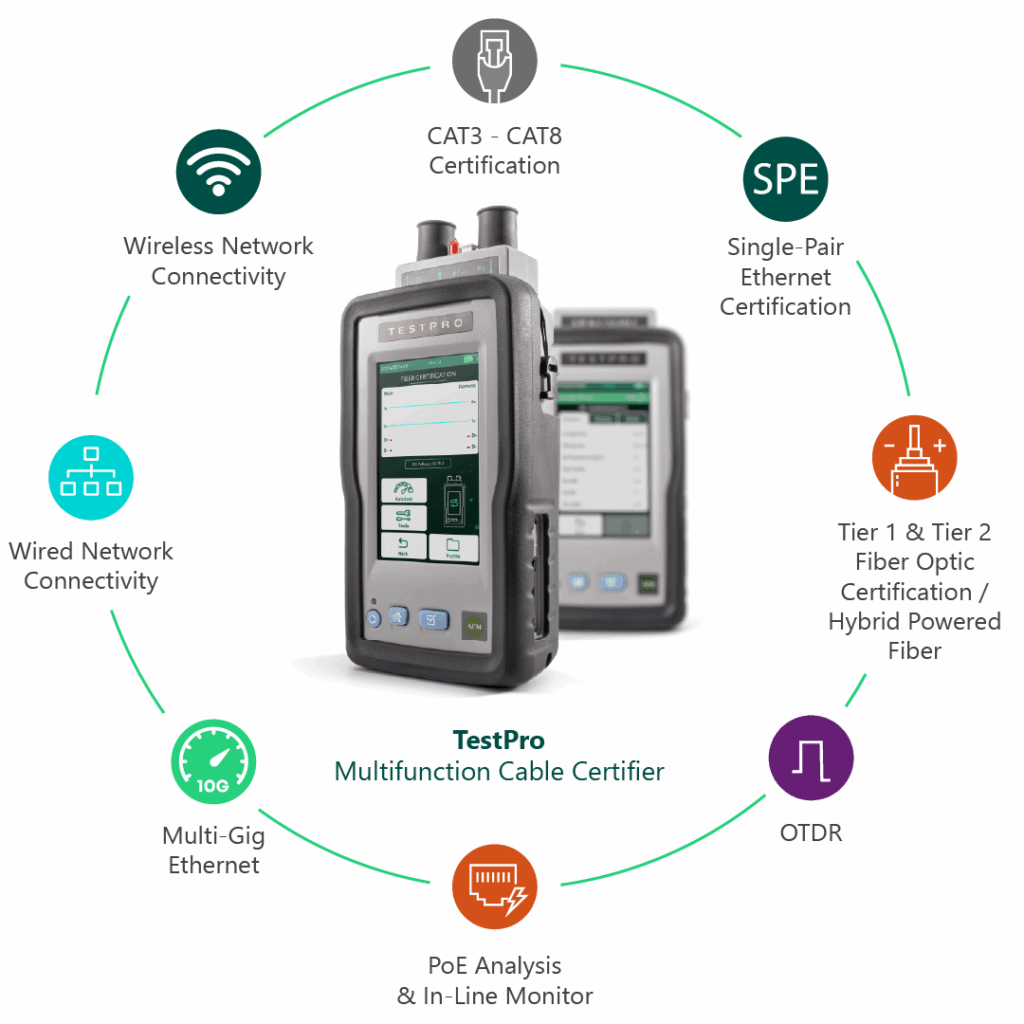

TestPro Multifunction Cable Certifier is a versatile, purpose-built solution designed to quickly and easily ensure infrastructure readiness across smart building technologies in a cost-effective way. Recognized by Cabling Installation & Maintenance Magazine, TestPro replaces multiple pieces of equipment by offering the industry’s most expansive feature set for testing from installation to implementation using hot-swappable adapters.

UNIQUE PLATFORM FLEXIBILITY

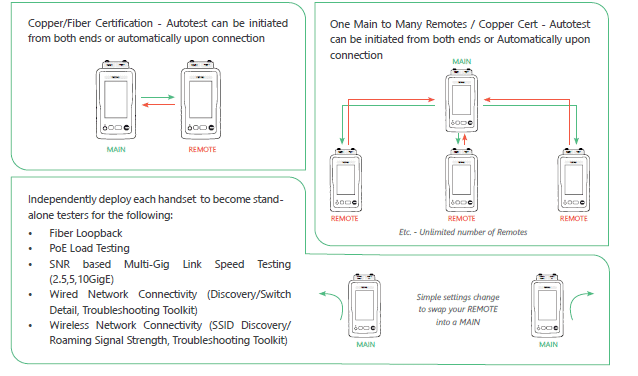

AEM dual handset product kits contain two full function test platforms, that can each be configured as a Main or a Remote. This means, that both handsets can be independently deployed, giving you double the test equipment during end device implementation phase for wired and wireless network connectivity troubleshooting.

When certifying copper and/or fiber optic, technicians at both ends can see full test results, aiding in problem identification and remediation.

Test can be initiated from either end, cutting down on the time it takes to run back and forth in half, when only one technician is on the job.

Need to throw manpower at the job to get it done fast? If you have two or more TestPro product kits, configure one platform as the Main, and all others as Remotes. Technicians out in the office area can leapfrog each other, while one technicians stays at the MDF simply moving from port to port and connecting with each remote as it sees them through live Wiremap, and then can initiate the autotest.

During implementation phase and troubleshooting switch connectivity, link speed and PoE load, test platforms can be independently deployed, giving you double the test equipment to get the job done fast.

Troubleshooting Wi-Fi issues, both units can be independently deployed.

Independently deploy each handset to become stand-alone testers for the following:

• Fiber Loopback
• PoE Load Testing
• SNR based Multi-Gig Link Speed Testing (2.5, 5, 10GigE)
• Wired Network Connectivity (Discovery/Switch Detail, Troubleshooting Toolkit)
• Wireless Network Connectivity (SSID Discovery/Roaming Signal Strength, Troubleshooting Toolkit)

Capabilities of AEM TestPro CV100

Copper Twisted Pair

Copper Certification Autotest

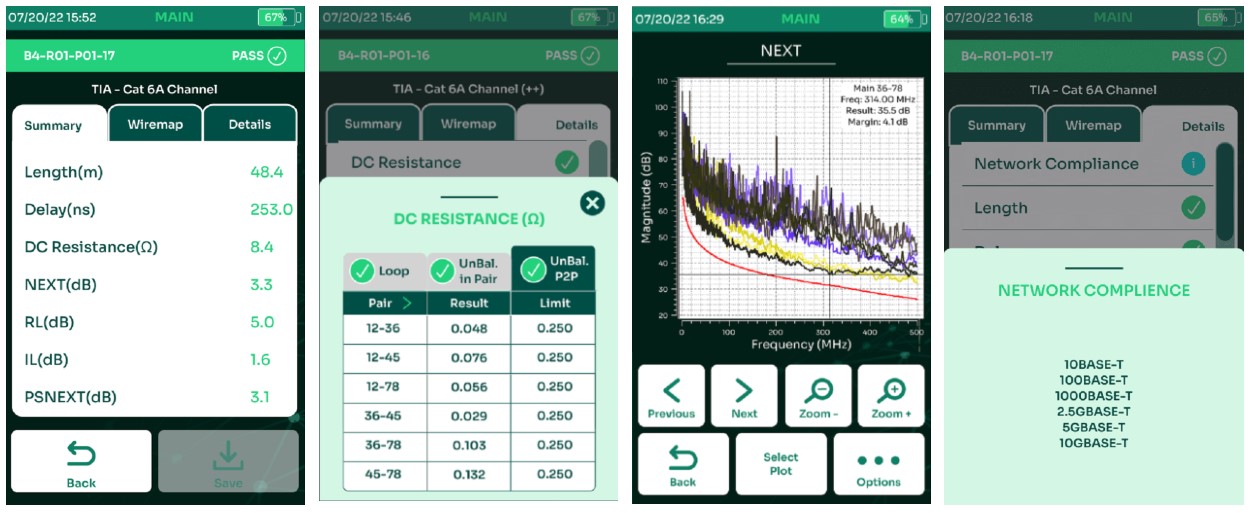

The TestPro Copper Certification Autotest is a one‑button operation that performs all tests required for TIA/ISO standards compliance, including additional parameters such as DC Resistance Unbalance, TCL, and ELTCTL. The comprehensive DC measurements include both pair‑to‑pair and wire‑to‑wire resistance unbalance tests. The Autotest also provides distance‑to‑fault reporting for Shield Discontinuity, NEXT, and Return Loss using time‑domain measurements. Test results are automatically saved to memory and can be transferred to the included TestDataPro results management software or TestDataPro Cloud for collaboration, documentation, and reporting.

TestPro supports CAT5e through CAT8 out of the box for both Channel and Permanent Link configurations. CAT6A Patch Cord Adapter is included in select Smart Building Test kits to support MPTL testing, with CAT5e and CAT6 Patch Cord Adapters available separately.

The 6-second Autotest fully characterizes DC loop resistance, pair-to-pair and wire-to-wire resistance unbalance (critical for PoE), as well as TCL and ELTCTL for EMI immunity assessment — all without additional test time. For industrial or campus links beyond 100 m, TestPro supports long cable testing up to 1,000 m with RF measurements down to 100 kHz.

Single-Pair Ethernet

TestPro is the first and only cable certifier enabling testing of Single‑Pair Ethernet (SPE) systems, supporting limits based on the TIA 568.5 SPE standard and IEEE 10BASE‑T1L specifications. SPE certification testing is fully compliant with tester requirements outlined in TIA 5071 and includes:

• Dual‑ended testing with frequency range from 100 kHz to 20 MHz and step size of 20 kHz
• Wiremap, DC Resistance, Return Loss, Insertion Loss, and optionally TCL
• Length measurement up to 1,500 m and delay measurement
• PASS/FAIL results with detailed reporting via TestDataPro software

Available test adapters include IEC 63171‑1 (LC type), IEC 63171‑6, breakout adapter for GG45, TE MATENet, Rosenberger, and various automotive SPE variants.

Live Wiremap

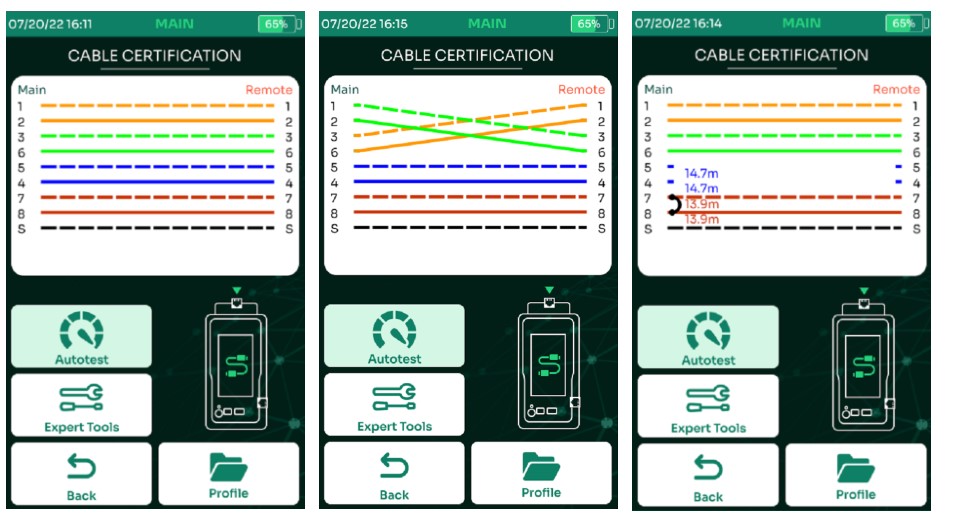

TestPro graphically reports end‑to‑end wiremap instantaneously when a connection is detected, providing immediate visibility into wiring faults. Technicians can locate the fault by clicking the wiremap picture, and after resolving the issue, Live Wiremap reporting verifies the fix instantly. This feature significantly improves productivity, complementing the 6‑second CAT6A Autotest.

Advanced Fault Locators (RL, NEXT & Shield TDR)

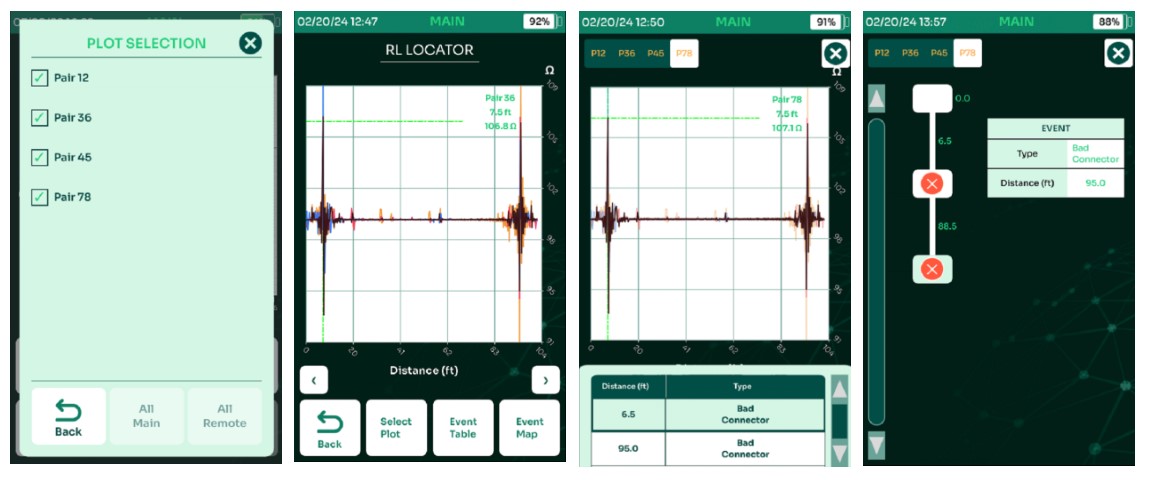

When a link fails certification, TestPro’s built‑in TDR‑based locators pinpoint the exact distance to the fault, saving hours of troubleshooting:”

• RL Locator – identifies impedance mismatches, bad connectors, shorts, and opens.
• NEXT Locator – pinpoints crosstalk failures caused by poor terminations, split pairs, or damaged cable.
• Shield Locator – unique to AEM, detects shield discontinuities (including partial breaks) with distance‑to‑fault indication

MPTL (Modular Plug Terminated Link)

Traditional enterprise cabling uses a permanent link with jacks at both ends and patch cords to connect devices. Increasingly, networking endpoints such as IP security cameras have built‑in jacks, requiring a different topology. MPTL (Modular Plug Terminated Link) is a standard‑approved variation where one end is terminated with a plug.

Important: MPTL cabling must NOT be tested using Channel Adapters, as they do not characterize the modular plug, defeating the purpose of MPTL testing. The only accurate method is to use a Patch Cord Adapter with MPTL test limit settings. Patch Cord Adapters must match the category of the cabling system under test.

Optional adapters needed: AD‑5E‑PCORD, AD‑6A‑PCORD, and AD‑6‑PCORD adapter pairs.

Fiber Certification and OTDR

Fiber Certification Autotest

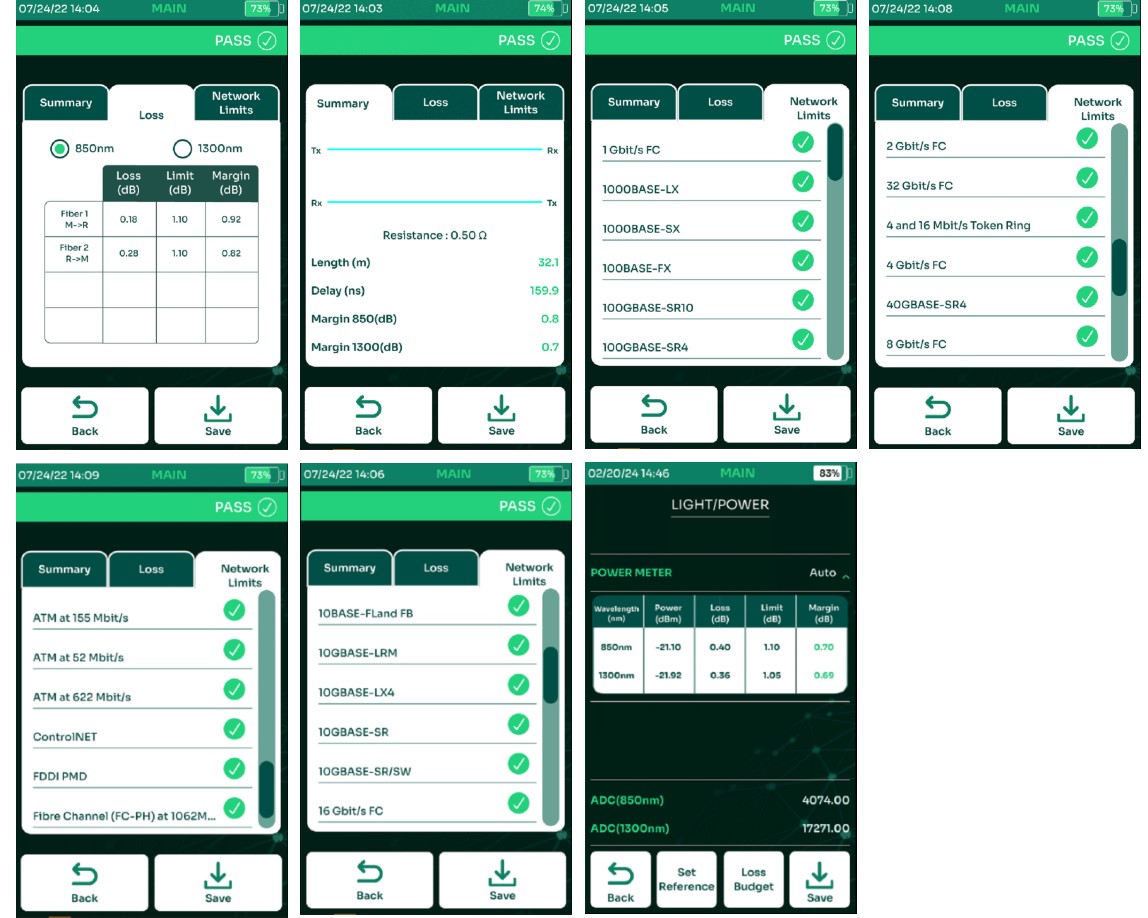

TestPro’s fiber optic test option provides Tier‑1 certification according to industry standards with customizable limits for both Multimode and Singlemode premises cabling. The fiber adapters include an integrated Visual Fault Locator (VFL) for quick break detection and a copper connection port for measuring voltage and DC loop resistance on hybrid powered fiber. New simplex (single fiber) Autotest functionality allows saving Optical Loss Test results on single‑strand fiber links.

For hybrid powered fiber deployments, this unique capability allows technicians to confirm copper pair integrity after installation and verify input voltage reaching remote devices such as cameras, Wireless Access Points, or PoE extenders. Combined with TestPro’s PoE load measurement capability (using the AD‑NET‑CABLE adapter), it delivers a comprehensive solution for verification and troubleshooting across multiple network topology points. All TestPro Enhanced Kits (K11E, K51E, K61E) include a Fiber Inspection Scope.

OTDR

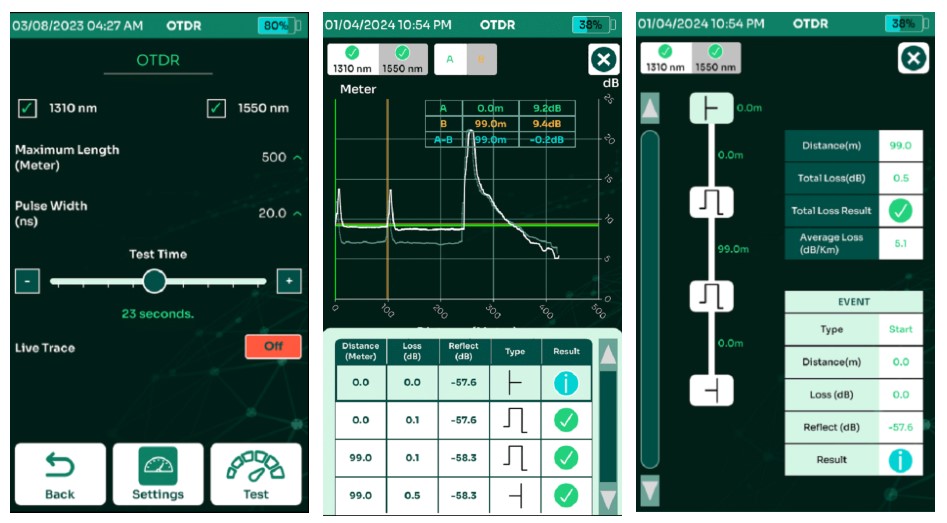

AEM’s OTDR test adapters provide additional troubleshooting functionality and Tier‑2 certification capability when combined with TestPro’s Optical Loss Test Set. The OTDR enables technicians to pinpoint the exact location of broken fibers or loss events causing optical loss test failures.

OTDR Test Adapters are available in Multimode and Singlemode versions and can be added to any TestPro kit:

• AD‑OTDR‑MM – Multimode wavelengths 850/1300 nm
• AD‑OTDR‑U‑1310_1550 – Singlemode wavelengths 1310/1550 nm
• AD‑OTDR‑U‑1310_1625 – Singlemode wavelengths 1310/1625 nm

Fiber End Face Inspection

Dirty connectors are a major cause of high connector loss and reflectance in fiber optics. TestPro features built‑in USB Video Class (UVC) drivers, supporting any USB Fiber Inspection Scope or microscope that uses the UVC driver. This allows technicians to inspect fiber connectors for contaminants before testing and installation, ensuring accurate and reliable optical measurements.

Advanced Multifunction Capabilities

Multi-Gig Link Speed Qualification

TestPro validates cabling links for high‑performance Ethernet standards including 1, 2.5, 5, and 10GBASE‑T. End‑to‑end Signal‑to‑Noise Ratio (SNR) measurement provides quick, objective assessment of link performance under network load conditions.

Wireless access points (802.11ac Wave 2) require 2.5 and 5 GigE backbone speeds for maximum performance and are often PoE‑powered. TestPro delivers a complete solution by:

• Certifying cabling infrastructure per TIA standards
• Verifying link speed per IEEE 802.3bz (1/2.5/5/10GigE)
• Measuring end‑to‑end Signal‑to‑Noise Ratio (SNR) under network load

The Autotest feature provides the simplest way to confirm that a cabling link supports the desired network rate.

Power over Ethernet (PoE)

TestPro and Network Service Assistant (NSA) provide comprehensive PoE verification up to 90W, supporting all standards including IEEE 802.3af/at/bt and UPoE. The PoE source is tested with actual load connection, with the unique ability to perform sustained internal and external load testing over time to validate maximum power the link can support.

Key PoE test parameters include:

• PSE detection, PSE Type (1-2 to 4), and PD Class (0-8)
• Voltage, current, allocated/real power (internal & external load), and PoE cable pairs

The tester also characterizes cabling links for DC Resistance Unbalance per TIA 1152A standards, either as a one‑off test or included in full certification (6‑second CAT6A Autotest for TestPro).

For PoE testing, a remote tester is not required – configure the TestPro Remote as a Main under Settings/Device Type and deploy each tester independently.

Optional AD‑NET‑PASSTHRU adapter enables in‑line monitoring between the switch and an active device (e.g., PoE camera), providing real‑time SNR, negotiated speed, and PoE voltage/current/power draw during normal operation, with log capture for extended troubleshooting.

Network & Wi‑Fi Connectivity Testing

TestPro connects to live networks via the built‑in 10/100/1000 port, the AD‑NET‑CABLE adapter (included in K60/K61 kits), or wirelessly using an optional Edimax Wi‑Fi USB adapter (EW‑7822ULC). Auto‑discovery displays connected devices on the network.

Key features include:

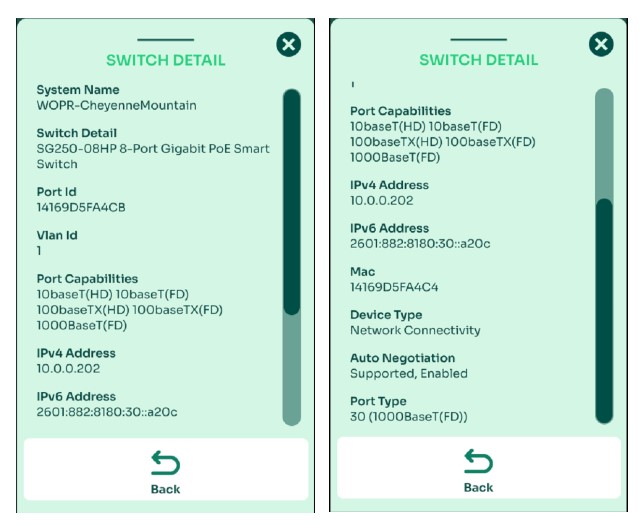

• Switch Detail – Port/VLAN, switch name, make/model, port capabilities, MAC/IPv4/IPv6, and VLAN usage (wired Ethernet only)
• IP & MAC address discovery – identifies unknown devices on the network
• Ping – verify connectivity and latency to any device or internet URL
• Traceroute – determine if latency issues are local or beyond
• Network Autotest – includes network discovery, connected devices, network map, ping, and LAN speed
• Wi‑Fi SSID/RSSI discovery – signal strength test with Auto Connect, Wi‑Fi Handoff with editable RSSI threshold for locating weak spots and verifying handoff behavior

Note: Wi‑Fi functionality requires a region‑specific USB adapter (sold separately).

Coax Certification Autotest

TestPro supports coax certification for both 50 Ohm and 75 Ohm coaxial cables using Coax Test Adapters. The Autotest completes in under 15 seconds and supports both dual‑ended and single‑ended testing.

• Fault location: Length, distance to open, distance to short
• Test results: Length, Propagation Delay, Insertion Loss (IL), Return Loss (RL)
• Supported limits: 75 Ohm (TIA‑568‑4‑D 1/3GHz, SCTE 1GHz) and 50 Ohm (1/2GHz, IEEE 802.3 10Base2 185m)

Test Adapter Kits (pair of adapters):

• AD‑COAX‑TYPE‑F – for 75 Ohm cable with type F connectors, includes F‑BNC between‑series adapters
• AD‑COAX‑TYPE‑N – for 50 Ohm cable with type N connectors, includes N‑BNC between‑series adapters

Test Results Management

TestDataPro – PC or Mac

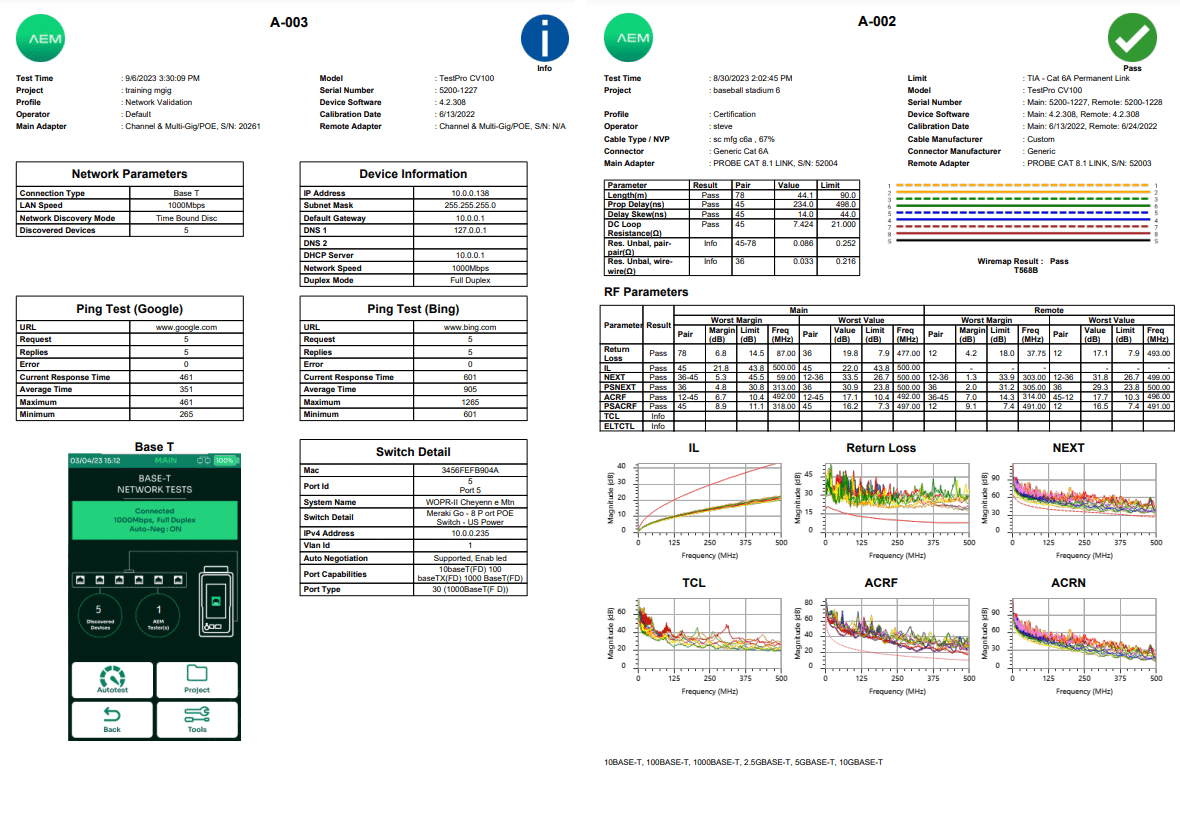

TestDataPro is standard with all TestPro and Network Service Assistant models, enabling project definition, result categorization, collaboration, and PDF reporting. Users can combine multiple Autotests into single reports (Copper & Fiber, Multi‑Gig SNR/PoE, Network Discovery).

Key capabilities:

• Recertification – change test limits without retesting (e.g., Cat5e/Cat6 to Cat6A, Cat6A to ISO/IEC Class EA). Optional parameters (DC unbalance, TCL, ELTCTL) are already included in the original 6‑second Autotest – unique to AEM.
• Analytics – graphical trend analysis of test groups with filtering by Operator, Project, or Test Profile. Drill down to detailed results for any parameter (NEXT, IL, RL, loss margins, length).
• Multi‑project support – open multiple project files in separate tabs for comparison and combined reporting.

Results can be uploaded via USB cable, USB drive, or TestDataPro Cloud (wired/wireless).

TestDataPro Cloud

Managers gain real‑time visibility into project progress with this free cloud service. Test results can be uploaded via wired or wireless connection (including cell phone hotspots).

Cloud features include:

• View/print/download individual results or single PDF reports
• Email PDF reports and test files directly from the Cloud
• Analytics functionality
• Detailed measurement plots & RL/NEXT/Shield TDR traces – ideal for remote supervisor assistance
• Logical hierarchical view of test results
• Export data to .CSV format
• Recertification capability

Note: Wireless connection requires Edimax EW‑7822ULC USB‑WiFi adapter (purchased separately).

Video AEM TestPro CV100

The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.

The video demonstrates the copper cable certification and advanced troubleshooting process using the AEM TestPro tester.

Technical specifications AEM TestPro CV100

Test Standards Compliance & Conformity

TestPro Platform (All Versions)

Each platform in a kit comes with a Certificate of Calibration traceable to NIST.

Accessories for AEM TestPro CV100

Model	Description	Photo
AD-OTDR-U-850_1300	Multimode OTDR Test Adapter for use with TestPro or Network Service Assistant, 850/1300nm. Kit contains: AD-OTDR-U-850_1300 1 each Multimode SC to SC and SC to LC Test Reference cord for use as “connector savers” 1 each SC and LC coupler 1 set of connector cleaners
AD-OTDR-U-1310_1550	Multimode OTDR Test Adapter for use with TestPro or Network Service Assistant, 1310/1550nm. Kit contains: AD-OTDR-U-1310_1550 1 each Singlemode SC to SC and SC to LC Test Reference cord for use as “connector savers” 1 each SC and LC coupler 1 set of connector cleaners
AD-OTDR-U-1310_1625	Singlemode OTDR Test Adapter for use with TestPro or Network Service Assistant, 1310/1625nm wavelengths. Kit contains: AD-OTDR-U-1310_1625 1 each Singlemode SC to SC and SC to LC Test Reference cord for use as “connector savers” 1 each SC and LC coupler 1 set of connector cleaners
SM-LC-LC-CORD-150M	LC-LC LAUNCH CORD, 150M SINGLEMODE
SM-SC-LC-CORD-150M	SC-LC LAUNCH CORD, 150M SINGLEMODE
SM-SC-SC-CORD-150M	SC-SC LAUNCH CORD, 150M SINGLEMODE
MM-LC-LC-CORD-150M	LC-LC LAUNCH CORD, 150M MULTIMODE
MM-SC-LC-CORD-150M	SC-LC LAUNCH CORD, 150M MULTIMODE
MM-SC-SC-CORD-150M	SC-SC LAUNCH CORD, 150M MULTIMODE
AD-SM-K01E	Singlemode Fiber Adapter Test Kit. Kit contains: Carry case Pair of Singlemode fiber adapters with dual wavelength light source 1310/1550nm and integrated visual fault locator and volt-ohm meter Interchangeable FC connectors for the transmit ports FC-LC launch cords for connecting the transmit port to the fiber link under test Interchangeable LC adapters for the receive ports Pair of LC-LC reference cords for the receive side One LC-LC duplex coupler for setting reference Certificate of calibration 1 Set of Connector Cleaners Carry case
AD-MM-K01E	Multimode Fiber Adapter Test Kit Kit contains: Carry case Pair of Multimode fiber adapters with dual wavelength light source 850/1300nm and integrated visual fault locator and volt meter Interchangeable FC adapter for the transmit ports Pair of FC-LC launch cords for connecting the transmit port to the fiber link under test Interchangeable LC adapters for the receive ports Pair of LC-LC reference cords for the receive side One LC-LC duplex coupler for setting reference Certificate of calibration Sticklers cleaning kit Carry case
AD-NET-PASSTHRU	Gigabit Ethernet PoE Pass-Thru Adapter provides in-line network testing capability for “real world” evaluation of link performance with a connected device in use.
AD-NET-CABLE	A pair of Multi-gig SNR testing and PoE testing adapter for TestPro CV100.
AD-CAT8.1-CH	A pair of CAT8.1 channel test adapter for TestPro CV100.
AD-COAX-TYPE-F	A pair of Coax adapters for TestPro CV100. The adapter supports 75 Ohm testing. Kit includes two Coax test adapters, two F to BNC connector adapters, two patch cords with F type connectors used for setting reference and testing.
AD-COAX-TYPE-N	A pair of Coax adapters for TestPro CV100. The adapter supports 50 Ohm RF testing. Kit includes two Coax test adapters, two N to BNC connector adapters, patch cord with BNC type connectors used for setting reference and testing.
AD-CAT8.1-PL	A pair of CAT8.1 permanent link adapter for TestPro CV100
AD-M12-D	A pair of M12 D-coded adapters for TestPro CV100.
AD-M12-X	A pair of M12 X-coded adapters for TestPro CV100
AD-5E-PCORD	A pair of patch-cord test adapters for testing CAT5e patch-cords using TestPro CV100
AD-6-PCORD	A pair of patch-cord test adapters for testing CAT6 patch-cords using TestPro CV100
AD-6A-PCORD	A pair of patch-cord test adapters for testing CAT6A patch-cords using TestPro CV100
AD-4P-BAREWIRE-TB	Adapter provides terminal block connection points for testing a non-terminated cable.
AD-8.2-TERACH	A pair of CAT 8.2 TERA channel adapters for TestPro CV100
AD-8.2-TERAPL	A pair of CAT 8.2 TERA permanent link adapters for TestPro CV100
AD-8.2-GG45CH	A pair of CAT 8.2 GG45 channel adapter for TestPro CV100
AD-8.2-GG45PL	A pair of CAT 8.2 GG45 permanent link adapters for TestPro CV100
AD-SPE-IEC-63171-1	Single Pair Ethernet Adapter with LC type connector interface.
AD-SPE-IEC-63171-6	Single Pair Ethernet Adapter with RPP type connector interface.
AD-SPE-BAREWIRE-TB	Adapter provides terminal block connection points for testing a non-terminated cable.
OP-CERT	CAT6A cable certification testing license upgrade for TestPro CV100 K05, K11, K30.
ACC-POWER-AD	2 Pack of power supplies with interchangeable plugs for worldwide use.
ACC-SOFT-CASE	SOFT CARRY CASE FOR TESTPRO
ACC-HARD-CASE	HARD CARRY CASE FOR TESTPRO
