AEM TESTPRO-K11E-SM Enhanced Fiber Certification Kit for Singlemode

Description of AEM TESTPRO-K11E-SM

The K11E-SM is used by Cable Contractors. This kit provides Fiber Optic certification for Singlemode fiber. Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.

The TestPro CV100 Platform:

The TestPro CV100 is a modular fiber certification platform built on a 9-channel dual-ended measurement engine with a 0.1–3000 MHz frequency range. For fiber applications, it delivers a rapid 4-second Autotest that performs dual-ended bi-directional loss, length, and optical power meter measurements. The platform features a 5-inch capacitive touchscreen, hot-swappable fiber adapters, and dual full-function handsets that can operate together for end-to-end certification or independently as standalone fiber validators. Each unit includes USB interfaces and TestDataPro cloud/PC integration for automated reporting.

The TestPro K11E-SM is a purpose‑built fiber certification solution tailored for network infrastructure professionals who work exclusively with singlemode fiber optic cabling systems and need reliable Tier 1 (insertion loss) measurements. The package comes fully equipped with singlemode fiber adapter kit, a video inspection probe, reference grade test cords, connector interfaces, and end‑face cleaning tools. Multimode fiber support can be added later by purchasing the AD-MM-K01E Multimode Fiber Test kit.

Key Features:

• SM Tier 1 Fiber Certification – insertion loss testing for singlemode fiber.
• Hybrid Powered Fiber Resistance & Voltage Test – built‑in visual fault locator (VFL) and voltmeter.
• 100/1000BASE‑T SNR Testing – integrated 1 Gbps Ethernet port for signal‑to‑noise ratio measurements.
• BASE‑T Network Connectivity – network discovery, ping, traceroute, and device detection.
• Wireless Network Connectivity – Wi‑Fi analysis, AP availability, signal strength, and ping (requires optional Edimax USB adapter, sold separately).
• TestDataPro Results Management – PC‑based and cloud storage for test reports.
• PROBE‑FIBER‑INSP Inspection Scope – visual inspection of connector end‑faces to ensure cleanliness.
• Support for LC and SC terminated fiber – includes all necessary adapters and reference cords for these connector types.
• Expandable to multimode fiber – optional AD-MM-K01E kit available for future multimode testing requirements.
• Singlemode‑focused design – optimized for contractors working primarily with singlemode deployments, eliminating unnecessary multimode hardware.
• Future‑ready expansion – multimode capability can be added when project requirements evolve by purchasing the AD-MM-K01E adapter kit.

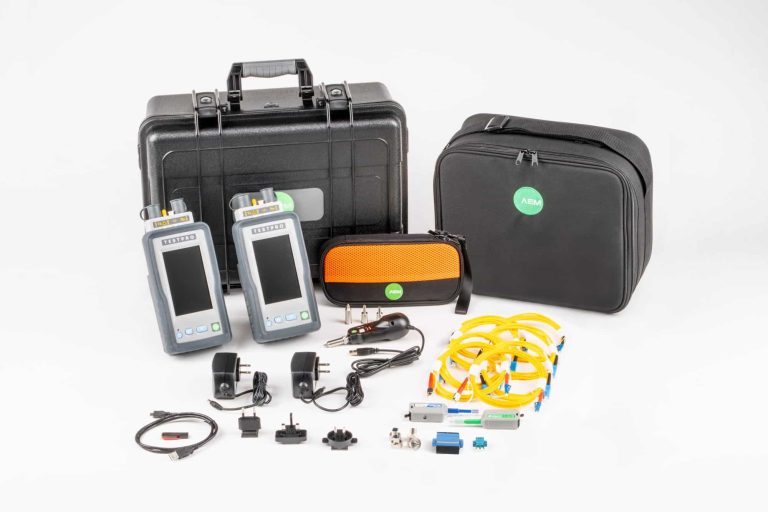

Package Contents AEM TESTPRO-K11E-SM

Kit contains:

Platforms and Calibration:

• Two TestPro CV100 platforms with capacitive touch display
• Certificates of calibration for each TestPro platform and fiber adapters

Fiber Test Adapter:

• AD-SM-01 Singlemode fiber adapter kit with dual wavelength light source 1310/1550nm and integrated visual fault locator and volt meter
• Interchangeable FC connectors for the transmit ports

Reference Cords, Connectors and Couplers:

• Pair of FC-LC test reference cords for connecting the transmit port to the fiber link under test
• Interchangeable LC connectors for the receive ports
• Pair of LC-LC test reference cords for the receive side
• One LC-LC duplex coupler for setting reference

SC Interface and Inspection:

• One SM-SC-K01 for testing SC terminated fiber
• One PROBE FIBER INSP inspection scope
• Connector cleaning kits for 1.25mm and 2.5mm

Accessories and Documentation:

• Two hanging straps
• Quick start guide
• USB cable
• USB flash drive with TestDataPro results management software
• Two AC power adapters
• Soft carry cases

Video AEM TESTPRO-K11E-SM

The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
