AEM TESTPRO-K71E Enhanced Smart Building PRO Kit for Copper, Fiber, PoE, Multi-Gigabit with SM/MM OTDR

Description of AEM TESTPRO-K71E

The K71E is the ultimate Smart Building PRO kit used by System Integrators, Network Owners, and Cable Contractors looking to offer the most comprehensive service portfolio. This kit provides complete Copper and Fiber Optic certification (both Tier 1 and Tier 2 via OTDR), PoE load testing, and Multi-Gigabit link speed testing. Wired network testing is supported via the included AD-NET-CABLE adapter, while wireless testing requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.

The TestPro CV100 Platform:

The TestPro CV100 is a powerful modular cable certification platform built on a 9-channel dual-ended measurement engine with a 0.1–3000 MHz frequency range. For copper applications, it delivers rapid certification of Cat 3 through Cat 8 cabling with detailed printed reports. For fiber applications, it performs both Tier 1 insertion loss testing and Tier 2 OTDR troubleshooting. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and dual full-function handsets that can operate together for end-to-end certification or independently as standalone network testers. Each handset includes a built-in 1 Gbps Ethernet port for 100/1000BASE-T SNR testing, USB interfaces, and TestDataPro cloud/PC integration for automated reporting.

The TestPro K71E is the most comprehensive, all-in-one Smart Building test kit available, combining every physical layer and active network validation tool a modern contractor could need. Unlike standard kits, the K71E includes both Tier 1 fiber adapters and Tier 2 SM/MM OTDR adapters — complete with 150m launch cords — enabling immediate distance-to-fault troubleshooting. Combined with CAT8.1 copper certification, PoE load validation, Multi-Gigabit SNR testing, and MPTL support, the K71E covers the entire deployment lifecycle from physical layer certification to active network service validation and advanced fiber troubleshooting.

Key Features:

• Ultimate converged‑infrastructure coverage – combines CAT8.1 copper, Tier 1 SM/MM fiber, Tier 2 SM/MM OTDR, PoE load, and Multi‑Gig SNR testing in a single kit.
• OTDR launch cords included – ships with 150m SM and MM SC‑LC launch cords for immediate Tier 2 distance‑to‑fault troubleshooting.
• Active network & PoE validation – AD‑NET‑CABLE delivers real‑world PoE load (up to 90W, 802.3af/at/bt/UPoE) and 2.5/5/10G SNR under live traffic and power.
• MPTL support included – validates Cat6A Modular Plug Terminated Links for Wi‑Fi 6/6E and IP cameras via the included adapter.
• CAT3–CAT8 Channel and Permanent Link Certification with detailed printed reports.
• MM and SM Tier 1 Fiber Certification – insertion loss testing with Encircled Flux compliant MM source and Fabry‑Perot SM laser.
• MM and SM OTDR (Tier 2) – distance‑to‑fault diagnostics to pinpoint broken fibers or loss events.
• Hybrid Powered Fiber Resistance & Voltage Test – built‑in VFL and voltmeter.
• DC Resistance Unbalance & Copper Wiremap with Distance to Fault.
• 100/1000BASE‑T SNR Testing and BASE‑T Network Connectivity – network discovery, switch detail, ping, traceroute via AD‑NET‑CABLE.
• Wireless Network Connectivity – Wi‑Fi analysis, AP discovery, signal strength (requires optional Edimax USB adapter).
• TestDataPro Results Management – PC and cloud storage for combined copper, fiber, OTDR, PoE, and network reports.

This kit is available in the following ordering options:

• TESTPRO-K71E – Standard option (1 kit, standard warranty).
• TESTPRO-K71E-ECB – Extended Care Bundle (1 kit + 1 Year of Extended Care included). ECB combines Product Kit and 1 year Extended Care for easier ordering.

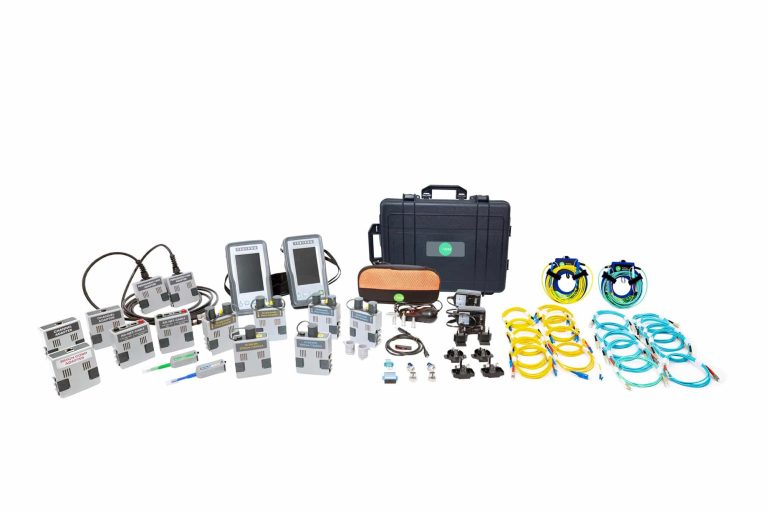

Package Contents AEM TESTPRO-K71E

Kit contains:

Platforms and Calibration:

• Two TestPro CV100 platforms with capacitive touch display
• Certificates of calibration for each TestPro platform and fiber adapters

Copper Test Adapters:

• Pair of AD-CAT8.1-CH Channel Adapters
• Pair of AD-CAT8.1-PLE Permanent Link Adapters

Network, PoE and Multi-Gig Adapters:

• Pair of AD-NET-CABLE Adapters for PoE Load testing, 2.5/5/10G SNR testing, and Network Test/Discovery
• One CAT6A Patch Cord Adapter for Cat6A MPTL testing

Fiber Test Adapters (Tier 1):

• AD-SM-01 Singlemode fiber adapter test kit with dual wavelength light source 1310/1550nm and integrated visual fault locator and volt meter
• AD-MM-01 Multimode fiber adapter test kit with dual wavelength light source 850/1300nm and integrated visual fault locator and volt meter

OTDR Test Adapters (Tier 2):

• One 1310nm/1550nm Singlemode OTDR Test Adapter with SC/UPC interface (AD-OTDR-SM)
• One Multimode 850nm/1300nm OTDR Test Adapter with SC/UPC interface (AD-OTDR-MM)

Reference Cords, Connectors and Couplers (Tier 1):

• Interchangeable FC connectors for the transmit ports
• Pair of FC-LC test reference cords for connecting the transmit port to the fiber link under test
• Interchangeable LC connectors for the receive ports
• Interchangeable LC adapters for the receive ports
• Pair of LC-LC test reference cords for the receive side
• Two LC-LC duplex couplers for setting reference

SC Interface and Inspection:

• One MM-SC-K01 for testing SC terminated fiber
• One SM-SC-K01 for testing SC terminated fiber
• One PROBE FIBER INSP inspection scope
• Connector cleaning kits for 1.25mm and 2.5mm

OTDR Reference Cords and Launch Cords:

• 1 SC coupler
• 1 each MM and SM 2m SC-LC Test Reference Cord
• 1 each MM and SM 150m Launch Cord, SC-LC

Accessories and Documentation:

• Two hanging straps
• Quick start guide
• USB cable
• USB flash drive with TestDataPro results management software
• Two AC power adapters
• Hard carry case for TestPro
• Soft carry cases for fiber adapters

Video AEM TESTPRO-K71E

The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.

The video demonstrates the copper cable certification and advanced troubleshooting process using the AEM TestPro tester.
