Key Components:
Purpose: Field‑ready OTDR troubleshooting kit optimized for Multimode fiber in LAN and data center environments. Pinpoints broken fibers and loss‑inducing events via distance‑to‑fault diagnostics (measurement up to 35 km at 1300 nm). Includes native 1 Gbps SNR testing and network discovery.
Made in USA. brand AEM, model TESTPRO-K21E-MM
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 3 500 €
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The K21E-MM is used by Cable Contractors. This kit provides Multimode OTDR Fiber Optic testing. Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a modular fiber testing platform built on a 9-channel dual-ended measurement engine. For OTDR applications, it provides advanced troubleshooting capability to easily pinpoint the location of broken fiber or other loss-inducing events that cause optical loss tests to fail. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and a full-function handset that can operate as a standalone fiber validator. The unit includes USB interfaces and TestDataPro cloud/PC integration for automated reporting.

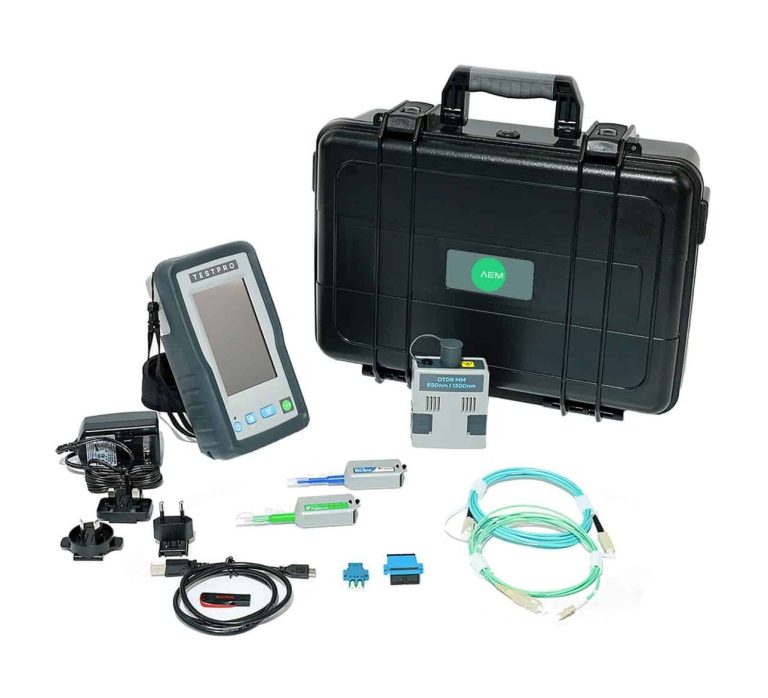

The TestPro K21E-MM is a purpose‑built OTDR testing solution specifically designed for contractors working exclusively with multimode fiber infrastructure such as LANs and data centers. The package comes equipped with a multimode (850/1300nm) OTDR test adapter, reference cords for use as connector savers, and end‑face cleaning tools. The kit includes a small hard carry case to keep your test equipment safe and secured.
Key Features:
Kit contains:
Platform and Calibration:
OTDR Test Adapter:
Reference Cords and Cleaning:
Accessories and Documentation:
Note: OTDR Launch Cords not included.
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
| Device Type | Multifunction Fiber OTDR Test Kit |
| Supported Fiber Types | Multimode (MM) |
| Fiber Optic Testing | Certification for Multimode – distance-to-fault diagnostics, event loss analysis, and troubleshooting of broken fiber or loss-inducing events |
| Connector Support | SC/UPC interface on OTDR adapter; SC-SC and SC-LC test reference cords included as connector protectors |
| Wired Network Testing | 100/1000BASE‑T SNR, network discovery, ping, traceroute (via built‑in 1 GbE port) |
| Wireless Network Testing | Wi‑Fi analysis, AP discovery, signal strength, ping (requires optional Edimax EW-7822ULC USB adapter) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li‑Ion, 13,200 mAh) |
| Multimode OTDR Adapter (AD-OTDR-MM) | 850/1300nm wavelengths; Dynamic Range: 25dB (850nm) / 27dB (1300nm); Event Dead Zone: 1m typical; Attenuation Dead Zone: 2.5m (850nm) / 4.5m (1300nm); Max Distance: 40km setting, up to 35km measurement (1300nm); Reflectance: -14 to -62dB |
| Pulse Width | 3, 5, 10, 15,…,24995, 25000 nsec |
| Compliance (Fiber) | TIA‑568.3‑E, ISO/IEC 14763‑3 Ed 2.1 |
| Calibration | Certificate of Calibration traceable to NIST included |
| Kit Includes | One TestPro CV100 platform, AD-OTDR-MM multimode OTDR adapter, MM SC-SC and SC-LC reference cords (2m), click-cleaners for LC & SC, small hard carry case, hanging strap, USB cable, USB flash drive, AC power adapter, quick start guide |
| Ordering Models | TESTPRO‑K21E‑MM |
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K21E-MM using the special form.
You can buy AEM TESTPRO-K21E-MM in Latvia at a price starting from 3500 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. AEM TESTPRO-K21E-MM price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
