Key Components:
Purpose: Field‑ready OTDR troubleshooting kit with dual SM/MM adapters for pinpointing broken fibers and loss‑inducing events via distance‑to‑fault diagnostics (SM up to 130 km, MM up to 35 km). Includes native 1 Gbps SNR testing and network discovery. OTDR launch cords are not included and are available as optional accessories.
Made in USA. brand AEM, model TESTPRO-K21E-QD
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 4 900 €
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The K21E-QD is used by Cable Contractors. This kit provides Singlemode and Multimode OTDR Fiber Optic testing (Tier 2 certification). Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a modular fiber testing platform built on a 9-channel dual-ended measurement engine. For OTDR applications, it provides advanced troubleshooting capability to easily pinpoint the location of broken fiber or other loss-inducing events that cause optical loss tests to fail. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and a full-function handset that can operate as a standalone fiber validator. The unit includes USB interfaces and TestDataPro cloud/PC integration for automated reporting.
The TestPro K21E-QD is a purpose‑built OTDR testing solution. The package comes equipped with both singlemode (1310/1550nm) and multimode (850/1300nm) OTDR test adapters, reference cords for use as connector savers, and end‑face cleaning tools.
Important Note: OTDR Launch Cords are not included and must be ordered separately.
Key Features:
Kit contains:
Platform and Calibration:
OTDR Test Adapters:
Reference Cords and Cleaning:
Accessories and Documentation:
Note: OTDR Launch Cords not included.
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
| Device Type | Multifunction Fiber OTDR Test Kit |
| Supported Fiber Types | Singlemode (SM) and Multimode (MM) |
| Fiber Optic Testing | Tier 2 (OTDR) certification for both SM and MM – distance-to-fault diagnostics, event loss analysis, and troubleshooting of broken fiber or loss-inducing events |
| Connector Support | SC/UPC interface on both OTDR adapters; SC-SC and SC-LC test reference cords included as connector protectors |
| Wired Network Testing | 100/1000BASE‑T SNR, network discovery, ping, traceroute (via built‑in 1 GbE port) |
| Wireless Network Testing | Wi‑Fi analysis, AP discovery, signal strength, ping (requires optional Edimax EW-7822ULC USB adapter) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li‑Ion, 13,200 mAh) |
| Multimode OTDR Adapter (AD-OTDR-MM) | 850/1300nm wavelengths; Dynamic Range: 25dB (850nm) / 27dB (1300nm); Event Dead Zone: 1m typical; Attenuation Dead Zone: 2.5m (850nm) / 4.5m (1300nm); Max Distance: 40km setting, up to 35km measurement (1300nm); Reflectance: -14 to -62dB |
| Singlemode OTDR Adapter (AD-OTDR-SM) | 1310/1550nm wavelengths; Dynamic Range: 29dB (1310nm) / 27dB (1550nm); Event Dead Zone: 0.6m typical; Attenuation Dead Zone: 3.6m (1310nm) / 3.7m (1550nm); Max Distance: 130km setting, up to 130km measurement (1550nm); Reflectance: -14 to -65dB |
| Pulse Width | 3, 5, 10, 15,…,24995, 25000 nsec (both adapters) |
| Compliance (Fiber) | TIA‑568.3‑E, ISO/IEC 14763‑3 Ed 2.1 |
| Calibration | Certificate of Calibration traceable to NIST included |

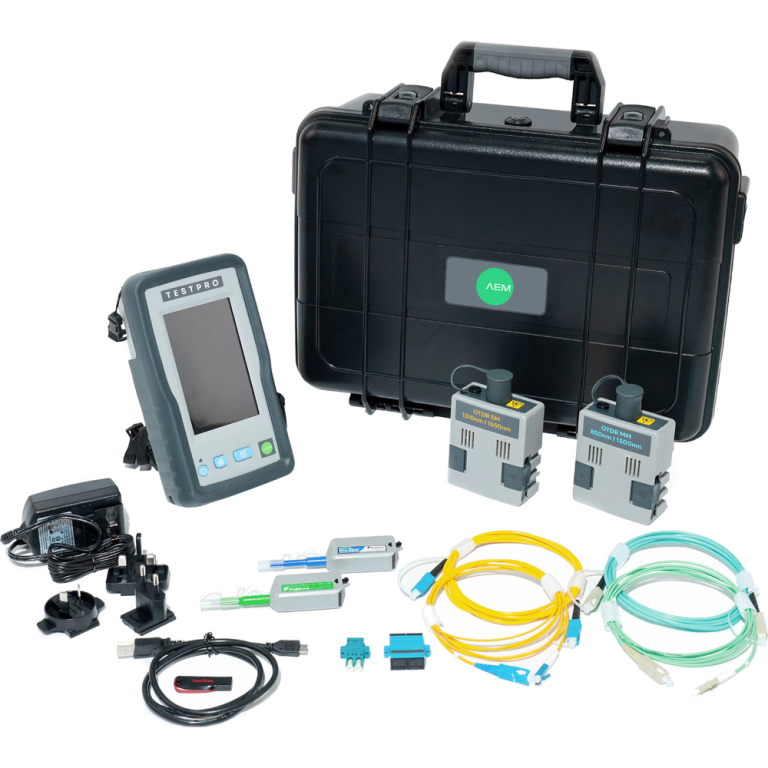

| Kit Includes | One TestPro CV100 platform, AD-OTDR-SM and AD-OTDR-MM adapters, SM and MM SC-SC / SC-LC reference cords, click-cleaners for LC & SC, small hard carry case, hanging strap, USB cable, USB flash drive, AC power adapter, quick start guide |
| Ordering Models | TESTPRO‑K21E‑QD |
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K21E-QD using the special form.
