AEM TESTPRO-K61E Enhanced Smart Building Test Kit for Copper, Fiber, PoE, Multi-Gigabit

Description of AEM TESTPRO-K61E

The K61E is used by System Integrators, Network Owners, and Cable Contractors looking to add new service offerings. This kit provides both Copper and Fiber Optic certification (Tier 1), PoE load testing, and Multi-Gigabit link speed testing. Wired network testing is supported via the included AD-NET-CABLE adapter, while wireless testing requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.

The TestPro CV100 Platform:

The TestPro CV100 is a powerful modular cable certification platform built on a 9-channel dual-ended measurement engine with a 0.1–3000 MHz frequency range. For copper applications, it delivers rapid certification of Cat 3 through Cat 8 cabling with detailed printed reports. For fiber applications, it performs Tier 1 insertion loss testing. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and dual full-function handsets that can operate together for end-to-end certification or independently as standalone network testers. Each handset includes a built-in 1 Gbps Ethernet port for 100/1000BASE-T SNR testing, USB interfaces, and TestDataPro cloud/PC integration for automated reporting.

The TestPro K61E is the most comprehensive Smart Building test kit for converged infrastructure, combining everything a modern contractor needs in a single solution: CAT8.1 copper certification, Tier 1 Singlemode/Multimode fiber certification, PoE load validation, and Multi-Gigabit (2.5/5/10G) link speed testing. With the included fiber inspection scope, MPTL adapter, and network connectivity adapters, the K61E covers the complete deployment lifecycle — from physical layer certification to active network service validation — making it the optimal choice for teams working across copper, fiber, and powered network devices without requiring Tier 2 (OTDR) troubleshooting.

Key Features:

• CAT3–CAT8 Channel and Permanent Link Certification with Detailed Printed Reports.
• MM and SM Tier 1 Fiber Certification – insertion loss testing with Encircled Flux compliant MM source and Fabry‑Perot SM laser.
• Hybrid Powered Fiber Resistance & Voltage Test – built‑in VFL and voltmeter.
• PoE Load and Validation Testing – up to 90W, 802.3af/at/bt/UPoE, PSE detection, PD class, sustained load monitoring.
• Multi‑Gig Autotest & Multi‑Gig (2.5/5/10G) SNR – validates link speed under traffic and PoE load.
• MPTL Testing – Cat6A Modular Plug Terminated Link validation.
• DC Resistance Unbalance & Copper Wiremap with Distance to Fault.
• 100/1000BASE‑T SNR Testing – integrated 1 Gbps Ethernet port.
• BASE‑T Network Connectivity – discovery, switch detail, ping, traceroute via AD‑NET‑CABLE.
• Wireless Network Connectivity – Wi‑Fi analysis, AP discovery, signal strength (requires optional Edimax adapter).
• TestDataPro Results Management – PC and cloud storage for combined reports.

Benefits:

• Complete converged‑infrastructure coverage – one kit covers copper, fiber, PoE, and Multi‑Gig, eliminating the need for separate testers.
• Active network validation included – AD‑NET‑CABLE delivers real‑world PoE and Multi‑Gig testing under live traffic and power.
• Fiber‑ready with inspection – Tier 1 adapters, inspection scope, and full LC/SC reference sets included for immediate fiber compliance.
• MPTL support included – saves time and extra purchases for Wi‑Fi 6/6E and camera deployments.

This kit is available in the following ordering options:

• TESTPRO-K61E – Standard option (1 kit, standard warranty).
• TESTPRO-K61E-ECB – Extended Care Bundle (1 kit + 1 Year of Extended Care included). ECB combines Product Kit and 1 year Extended Care for easier ordering.

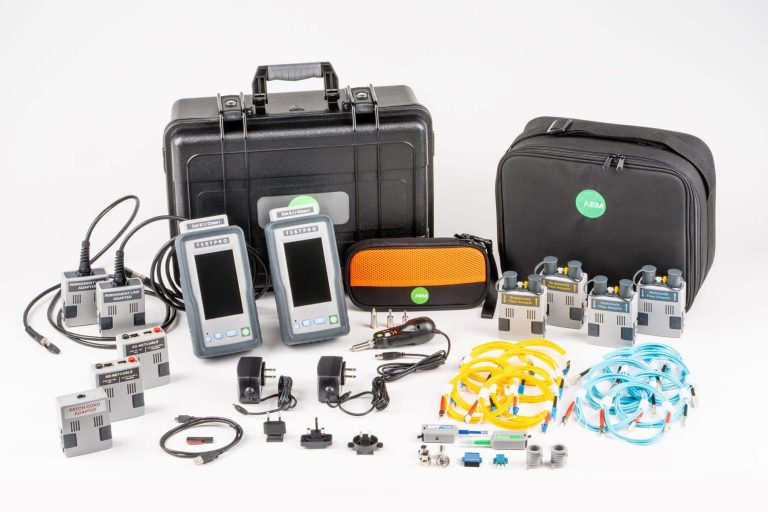

Package Contents AEM TESTPRO-K61E

Kit contains:

Platforms and Calibration:

• Two TestPro CV100 platforms with capacitive touch display
• Certificates of calibration for each TestPro platform and fiber adapters

Copper Test Adapters:

• Pair of AD-CAT8.1-CH Channel Adapters
• Pair of AD-CAT8.1-PLE Permanent Link Adapters

Network, PoE and Multi-Gig Adapters:

• Pair of AD-NET-CABLE Adapters for PoE Load testing, 2.5/5/10G SNR testing, and Network Test/Discovery
• One CAT6A Patch Cord Adapter for Cat6A MPTL testing

Fiber Test Adapters (Tier 1):

• AD-SM-01 Singlemode fiber adapter test kit with dual wavelength light source 1310/1550nm and integrated visual fault locator and volt meter
• AD-MM-01 Multimode fiber adapter test kit with dual wavelength light source 850/1300nm and integrated visual fault locator and volt meter

Reference Cords, Connectors and Couplers:

• Interchangeable FC connectors for the transmit ports
• Pair of FC-LC test reference cords for connecting the transmit port to the fiber link under test
• Interchangeable LC connectors for the receive ports
• Interchangeable LC adapters for the receive ports
• Pair of LC-LC test reference cords for the receive side
• Two LC-LC duplex couplers for setting reference

SC Interface and Inspection:

• One MM-SC-K01 for testing SC terminated fiber
• One SM-SC-K01 for testing SC terminated fiber
• One PROBE FIBER INSP inspection scope
• Connector cleaning kits for 1.25mm and 2.5mm

Accessories and Documentation:

• Two hanging straps
• Quick start guide
• USB cable
• USB flash drive with TestDataPro results management software
• Two AC power adapters
• Hard carry case for TestPro
• Soft carry cases for fiber adapters

Video AEM TESTPRO-K61E

The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.

The video demonstrates the copper cable certification and advanced troubleshooting process using the AEM TestPro tester.
