Key Components:
Purpose: The ultimate all-in-one Tier 1 + Tier 2 fiber certification kit, combining 4-second bi-directional insertion loss testing (SM/MM) with OTDR troubleshooting up to 130 km (SM) / 40 km (MM) in a single field-ready solution. Ships with 150m OTDR Launch Cords — enabling immediate Tier 2 testing out of the box, unlike basic OTDR kits. Includes Encircled Flux compliant OM5 multimode source, Hybrid Powered Fiber validation, and native 1G SNR testing for end-to-end physical and logical link verification.
Made in USA. brand AEM, model TESTPRO-K41E
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 14 300 €
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The K41E is used by Cable Contractors. This kit provides complete Fiber Optic certification — both Tier 1 (insertion loss) and Tier 2 (OTDR) — for Singlemode and Multimode fiber. Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a modular fiber certification platform built on a 9-channel dual-ended measurement engine. For fiber applications, it delivers a rapid 4-second Autotest that performs dual-ended bi-directional loss, length, and optical power meter measurements. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and dual full-function handsets that can operate together for end-to-end certification or independently as standalone fiber validators. Each unit includes USB interfaces and TestDataPro cloud/PC integration for automated reporting.
The TestPro K41E is the ultimate all-in-one fiber certification solution, combining Tier 1 loss testing and Tier 2 OTDR troubleshooting in a single, field-ready kit. Unlike basic fiber or OTDR-only kits, the K41E ships with everything a fiber specialist needs — including OTDR launch cords, a fiber inspection scope, and a soft carry cases — eliminating the need for multiple purchases and ensuring full Tier 1 + Tier 2 compliance from day one.
Key Features:
Kit contains:
Platforms and Calibration:
Fiber Test Adapters (Tier 1):
OTDR Test Adapters (Tier 2):
Reference Cords, Connectors and Couplers (Tier 1):
SC Interface and Inspection:
OTDR Reference Cords and Launch Cords:
Accessories and Documentation:
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
| Device Type | Multifunction Fiber Certification & OTDR Kit (Tier 1 + Tier 2) |
| Supported Fiber Types | Singlemode (SM) and Multimode (MM) |
| Fiber Optic Certification | Tier 1 (insertion loss) + Tier 2 (OTDR) for both SM and MM – complete fiber acceptance testing with distance-to-fault diagnostics |
| Built-in Test Functions | Visual Fault Locator (VFL), Voltmeter, Inspection Probe (PROBE-FIBER-INSP), Encircled Flux compliant MM source |
| Connector Support | LC and SC (Tier 1 adapters with reference cords); SC/UPC interface on OTDR adapters |
| Wired Network Testing | 100/1000BASE-T SNR, network discovery, ping, traceroute (via built-in 1 GbE port) |
| Wireless Network Testing | Wi-Fi analysis, AP discovery, signal strength, ping (requires optional Edimax EW-7822ULC USB adapter) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Typical 9 hours (Li-Ion, 13,200 mAh) |
| Test Time | Fiber Autotest: 4 sec (dual-ended bi-directional) |
| Multimode Tier 1 Adapter (AD-MM-01) | 850/1300nm LED source; Encircled Flux compliant (IEC-61280-1-4); supports OM5/OM4/OM3/OM2 (50/125 µm, 62.5/125 µm); length up to 2 km (max 10 dB loss); loss measurement 0 to -10 dB |
| Singlemode Tier 1 Adapter (AD-SM-01) | 1310/1550nm Fabry-Perot laser (-2dBm typical transmit power); length up to 20 km (max 20 dB loss); loss measurement 0 to -20 dB |

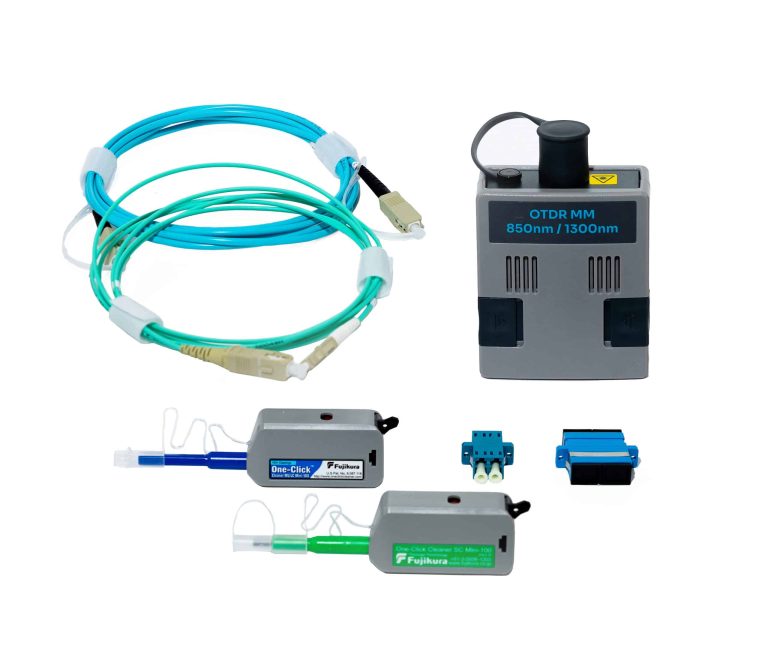

| Multimode OTDR Adapter (AD-OTDR-MM) | 850/1300nm wavelengths; Dynamic Range: 25dB (850nm) / 27dB (1300nm); Event Dead Zone: 1m typical; Attenuation Dead Zone: 2.5m (850nm) / 4.5m (1300nm); Max Distance: 40km setting, up to 35km measurement; Reflectance: -14 to -62dB |
| Singlemode OTDR Adapter (AD-OTDR-SM) | 1310/1550nm wavelengths; Dynamic Range: 29dB (1310nm) / 27dB (1550nm); Event Dead Zone: 0.6m typical; Attenuation Dead Zone: 3.6m (1310nm) / 3.7m (1550nm); Max Distance: 130km setting, up to 130km measurement; Reflectance: -14 to -65dB |
| Pulse Width | 3, 5, 10, 15,…,24995, 25000 nsec (both OTDR adapters) |
| VFL / Hybrid Fiber Meter | 650nm VFL; 0-60V DC and 0-100 Ω measurement for hybrid powered fiber |
| Fiber Network Compliance | 100GBASE-LR4, 40GBASE-LR4, Fibre Channel |
| Compliance (Fiber) | TIA-568.3-E, ISO/IEC 14763-3 Ed 2.1 |
| Calibration | Certificate of Calibration traceable to NIST included for each platform and adapter |

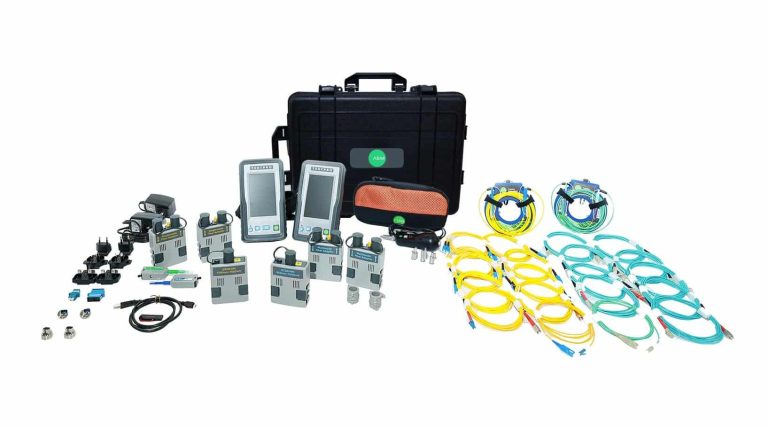

| Kit Includes | Two TestPro CV100 platforms, AD-SM-01 and AD-MM-01 Tier 1 adapters, AD-OTDR-U-1310_1550 and AD-OTDR-U-850_1300 Tier 2 adapters, PROBE-FIBER-INSP inspection scope, SM and MM reference cords, SM and MM 150m SC-LC launch cords, connector cleaning kits for 1.25mm and 2.5mm, soft carry cases, hanging straps, USB cable, USB flash drive, AC power adapters, quick start guide |
| Important Note | OTDR Launch Cords INCLUDED (150m SM and MM SC-LC) – ready for Tier 2 testing out of the box |
| Ordering Models | TESTPRO-K41E |
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K41E using the special form.
You can buy AEM TESTPRO-K41E in Latvia at a price starting from 14300 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. AEM TESTPRO-K41E price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
