Key Components:
Purpose: Hybrid Qualification+ kit combining ANSI/TIA-1152-A compliant Certi-Lite copper testing (CAT3–CAT6A) with PoE load validation and Multi-Gig SNR qualification up to 10G — plus professional link identification: the noise-filtering tone probe blocks power noise and harmonics to trace wires and faults in dense, electrically noisy environments. Available in 50Hz and 60Hz versions to match regional power grids.
Made in USA. brand AEM, model NSA-K60E
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 3 185 €
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The NSA-K60E is an Enhanced Certi-Lite/Identifier Test Kit used by System Integrators, Cable Contractors, and IT departments who need standards-based copper qualification plus professional wire tracing and link identification. The kit supports Certi-Lite single-ended cable testing, PoE load testing for 802.3af/at/bt and UPoE, SNR-based Multi-Gigabit link speed testing up to 10GigE, and wired and wireless network connectivity testing. In addition to the standard NSA components, the K60E includes the Link Identifier Kit with Remote IDs #2–#8 and the Tempo Communications brand Noise Filtering Tone Probe (50Hz or 60Hz, based on model ordered). Wireless testing requires an optional Edimax EW-7822ULC Wi-Fi dual band USB Adapter (region specific, purchased separately).
The NSA Platform:
The Network Service Assistant (NSA) is an award-winning Multifunction Qualification+ Tester — a hybrid solution that bridges the divide between qualification and certification. The platform features an impact-resistant 5″ capacitive touchscreen, hot-swappable test adapters, Live Wiremap with audible connection indication, a built-in kickstand, and an RJ-45 Ethernet port that supports 10/100/1000 BASE-T testing with no test adapter needed. Test results can be sent to TestDataPro Cloud via wired or wireless connection, or saved for the PC-based TestDataPro software.
Certi-Lite + Professional Link Identification:
Certi-Lite performs ANSI/TIA-1152-A compliant, single-ended channel testing of CAT3–CAT6A with a clear Pass/Fail indication and in-depth test reports, using a small passive termination at the remote end to significantly reduce equipment cost compared to traditional certifiers. The K60E adds a complete tracing and identification toolkit: smart, Certi-Lite capable Remote IDs #2–#8 (Advanced Link Identification) and the Tempo Communications Noise Filtering Tone Probe, whose selectable filter blocks power noise and harmonics (50Hz or 60Hz, based on model ordered), allowing the technician to pick up and hear the signal even in the noisiest environments.
Key Features:
Important Note: Certi-Lite is single-ended Qualification+ testing and does not qualify for cable manufacturer warranty approval; results are not considered certification. For certification testing refer to the TestPro CV100 Multifunction Cable Certifier. This kit does not include fiber optic adapters or a fiber inspection probe; these can be added with optional hot-swappable adapters.
This kit is available in the following ordering options:

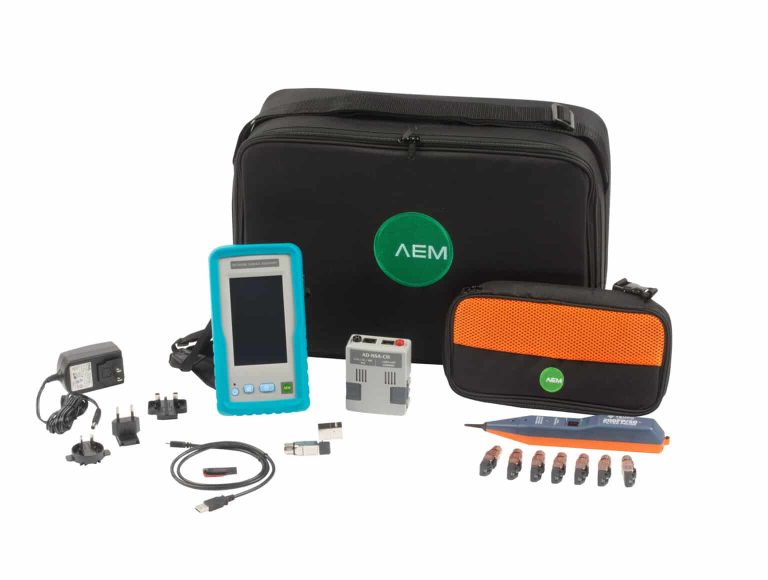

Kit contains:
Platform and Remote:
Test Adapter:
Link Identifier Kit (50Hz or 60Hz, based on model ordered):
Accessories and Documentation:
The video shows the functionality of the AEM Test Network Service Assistant (NSA) network tester.
| Device Type | Multifunction Qualification+ Tester with Certi‑Lite and Advanced Link Identification |
| Supported Cable Types | 4‑pair twisted‑pair copper cabling, CAT3 through CAT6A |
| Copper Testing (Certi‑Lite) | ANSI/TIA‑1152‑A compliant single‑ended channel testing CAT3–CAT6A with clear Pass/Fail indication and detailed printed reports |
| Certi‑Lite Autotest Time | CAT6A: 13 sec – includes Length, Delay, DC Loop Resistance, DC Resistance Unbalance P2P, IL, RL, NEXT, PSNEXT, ACRF, ACRN, PSACRN, Impedance, RL/NEXT/Shield Locator TDR |
| Built‑in Test Functions | Live Wiremap with Distance to Fault (TDR 0–100 m), DC Loop Resistance & P2P (0–100 Ω), Tone Generator (730/1440 Hz) |
| PoE Testing | Load test up to 90W; IEEE 802.3af/at/bt and UPoE; PSE detection/type, PD class, PoE pair identification, sustained power load monitoring |
| Multi‑Gig Testing | Multi‑Gig Autotest and SNR 2.5/5/10G under simultaneous traffic and PoE load; IEEE 802.3 up to 10GBASE‑T |
| Wired Network Testing | 100/1000BASE‑T SNR, network discovery, switch detail (slot/port/VLAN), traceroute, ping, traffic generator – via built‑in RJ‑45 10/100/1000 BASE‑T port (no test adapter needed) |
| Wireless Network Testing | Wi‑Fi discovery (SSID, RSSI, channel), roaming signal strength, ping (requires optional Edimax EW‑7822ULC USB adapter, sold separately) |
| Advanced Link Identification (ALI) | Includes Link Identifier Kit with NSA Remote Pack #2–#8 (smart, Certi‑Lite capable numbered remote IDs) and noise filtering Tone Probe with selectable filter (50Hz or 60Hz depending on model) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li‑Ion, 3.7V / 13,200 mAh) |
| Measurement Engine | 9‑channel dual‑ended mixed‑mode RF and DC engine, 0.1–3,000 MHz frequency range |
| Compliance | Copper: ANSI/TIA‑568.2‑D, ISO 11801, ANSI/TIA‑1152‑A; PoE: IEEE 802.3 af/at/bt, UPoE; Multi‑Gig: IEEE 802.3 up to 10GBASE‑T; Wired Network: CDP, LLDP; Wireless: IEEE 802.11N & 802.11AC |
| Calibration | Certificate of Calibration traceable to NIST included |
| Warranty | 2 years standard; extends to 5 years upon product registration |
| Kit Includes | NSA Test Platform, AD‑NSA Test Adapter, NSA Remote #1, Link Identifier Kit (Remote Pack #2–#8 + Tone Probe 50Hz or 60Hz), CAT6A RJ‑45 Coupler, Power Supply, Shoulder Strap, Large Carry Case, USB Cable, USB flash drive with TestDataPro |
| Important Note | Certi‑Lite is single‑ended Qualification+ testing and does not qualify for cable manufacturer warranty approval; results are not considered certification. For certification testing refer to the TestPro CV100 Multifunction Cable Certifier. |
| Frequency Variants | NSA‑K60E‑50HZ – Tone Probe with 50Hz filter NSA‑K60E‑60HZ – Tone Probe with 60Hz filter |
| Not Included (Optional Upgrades) | MM/SM Loopback fiber testing, MM/SM OTDR, Hybrid Powered Fiber voltage test – can be added with hot‑swappable adapters |
| Ordering Models | NSA‑K60E‑50HZ, NSA‑K60E‑60HZ |
| Model | Description | Price |
|---|---|---|
| NSA-K60E-50HZ Certi-Lite/Identifier Kit 50Hz |
|
3 185 |
| NSA-K60E-60HZ Certi-Lite/Identifier Kit 60Hz |
|
3 185 |
You can request the necessary certificates, documentation, instructions and user guide for AEM NSA-K60E using the special form.
You can buy AEM NSA-K60E in Latvia at a price starting from 3185 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. AEM NSA-K60E price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
