Key Components:
Purpose: Designed for system integrators, cable contractors, and IT departments that need copper qualification and fiber validation in a single portable kit. Combines Certi-Lite testing (CAT3–CAT6A) with SM/MM loopback fiber loss testing, hybrid powered fiber voltage measurement, PoE load validation, and Multi-Gig SNR up to 10GigE – at a fraction of the cost of a traditional certifier.
Made in USA. brand AEM, model NSA-K31E
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 7 145 €
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

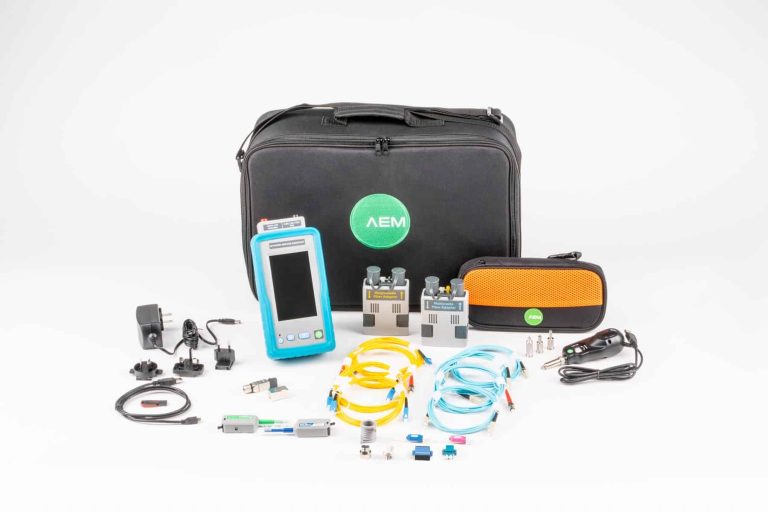

The NSA-K31E is an Enhanced Certi-Lite/Fiber Test Kit used by System Integrators, Cable Contractors, and IT departments who need copper cable qualification and fiber optic testing in a single solution. The kit supports Certi-Lite standards-based single-ended cable testing, PoE load testing for 802.3af/at/bt and UPoE, SNR-based Multi-Gigabit link speed testing up to 10GigE, Loopback Fiber Optic Testing for both Singlemode and Multimode, fiber inspection, and wired and wireless network connectivity testing. Wireless testing requires an optional Edimax EW-7822ULC Wi-Fi dual band USB Adapter (region specific, purchased separately).
The NSA Platform:
The Network Service Assistant (NSA) is an award-winning Multifunction Qualification+ Tester — a hybrid solution that bridges the divide between qualification and certification. The platform features an impact-resistant 5″ capacitive touchscreen, hot-swappable test adapters, Live Wiremap with audible connection indication, a built-in kickstand, and an RJ-45 Ethernet port that supports 10/100/1000 BASE-T testing with no test adapter needed. Test results can be sent to TestDataPro Cloud via wired or wireless connection, or saved for the PC-based TestDataPro software.
Certi-Lite + Loopback Fiber Testing:
Certi-Lite provides ANSI/TIA-1152-A compliant, single-ended channel testing of CAT3–CAT6A with a clear Pass/Fail indication and in-depth test reports, performed using a small passive terminator at the far end to significantly reduce equipment cost compared to traditional certifiers. The K31E adds Loopback optical loss testing for Singlemode (AD-NSA-SM-01, 1310/1550nm, up to 20 km) and Multimode (AD-MM-01, 850/1300nm EF-compliant, up to 2 km) fiber with integrated VFL and Hybrid Powered Fiber voltage measurement, plus the PROBE-FIBER-INSP inspection scope for connector end-face verification. With the included SC interface kits and loopback adapters, the K31E supports both SC and LC fiber testing right out of the box.
Key Features:
Important Note: Certi-Lite is single-ended Qualification+ testing and does not qualify for cable manufacturer warranty approval; results are not considered certification. For certification testing refer to the TestPro CV100 Multifunction Cable Certifier.
Kit contains:
Platforms and Remote:
Copper Test Adapter:

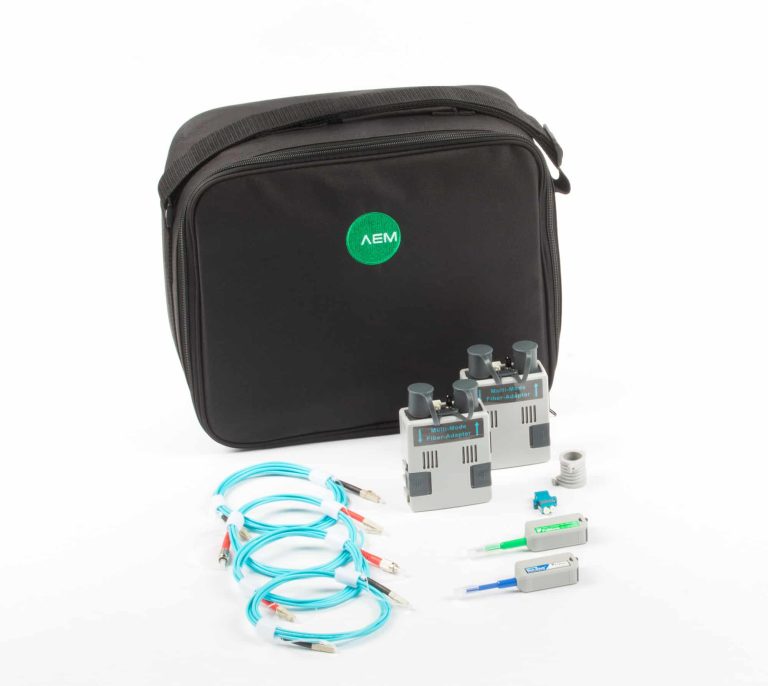

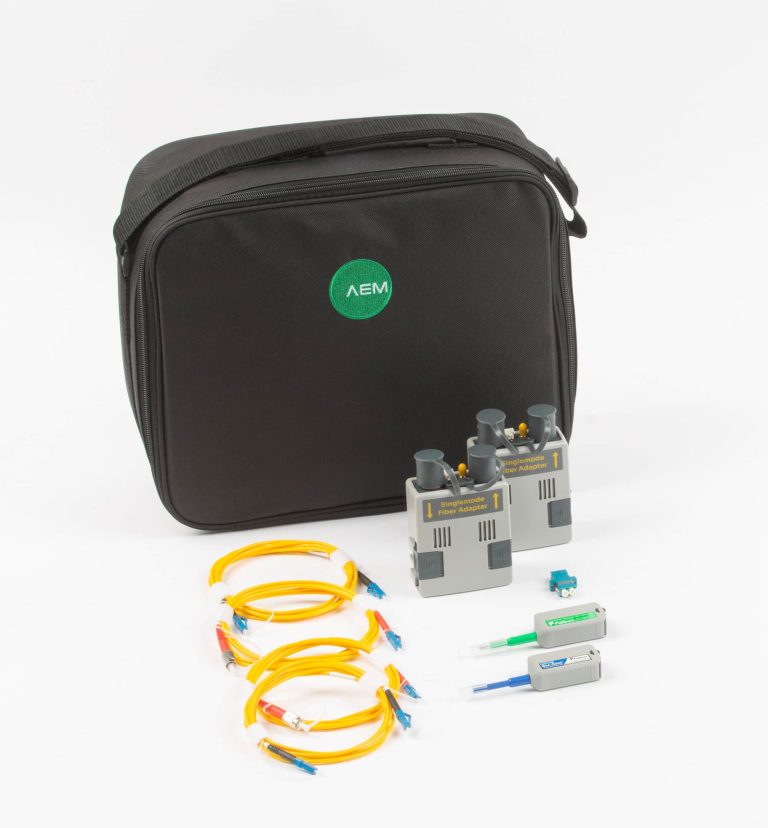

Fiber Test Kits and Inspection:
SC Interface and Loopback Adapters:
Accessories and Documentation:
The video shows the functionality of the AEM Test Network Service Assistant (NSA) network tester.
| Device Type | Multifunction Qualification+ Connectivity+ Tester with Certi-Lite and Loopback Fiber Optic Testing |
| Supported Cable Types | 4-pair twisted-pair copper cabling, CAT3 through CAT6A; Singlemode and Multimode fiber |
| Copper Testing (Certi-Lite) | ANSI/TIA-1152-A compliant single-ended channel testing CAT3–CAT6A with clear Pass/Fail indication and detailed printed reports |
| Certi-Lite Autotest Time | CAT6A: 13 sec – includes Length, Delay, DC Loop Resistance, DC Resistance Unbalance P2P, IL, RL, NEXT, PSNEXT, ACRF, ACRN, PSACRN, Impedance, RL/NEXT/Shield Locator TDR |
| Built-in Test Functions | Live Wiremap with Distance to Fault (TDR 0–100 m), DC Loop Resistance & P2P (0–100 Ω), Tone Generator (730/1440 Hz) |
| Fiber Optic Testing (Loopback) | Loopback optical loss testing for Singlemode and Multimode: length, delay, margin, loss, and network compatibility; TIA-568.3-E and ISO/IEC 14763-3 Ed 2.1 |
| Fiber Adapters Included | AD-NSA-SM-01 (1310/1550nm Fabry-Perot laser, up to 20 km, loopback loss 0 to -20 dB) and AD-NSA-MM-01 (850/1300nm EF-compliant LED, up to 2 km, loopback loss 0 to -10 dB), with integrated VFL (650nm) |
| Hybrid Powered Fiber | Voltage measurement 0–60V DC on electrical conductors |
| Fiber Inspection | PROBE-FIBER-INSP visual inspection probe via USB port |
| Connector Support | LC and SC out of the box: SC interface adapters for Tx/Rx ports, FC-SC and SC-SC reference cords, SC and LC couplers, NSA-MM-SC-K01 / NSA-SM-SC-K01 kits, and MM/SM SC loopbacks included |
| PoE Testing | Load test up to 90W; IEEE 802.3af/at/bt and UPoE; PSE detection/type, PD class, PoE pair identification, sustained power load monitoring |
| Multi-Gig Testing | Multi-Gig Autotest and SNR 2.5/5/10G under simultaneous traffic and PoE load; IEEE 802.3 up to 10GBASE-T |
| Wired Network Testing | 100/1000BASE-T SNR, network discovery, switch detail (slot/port/VLAN), traceroute, ping, traffic generator – via built-in RJ-45 10/100/1000 BASE-T port (no test adapter needed) |
| Wireless Network Testing | Wi-Fi discovery (SSID, RSSI, channel), roaming signal strength, ping (requires optional Edimax EW-7822ULC USB adapter) |
| Advanced Link Identification (ALI) | Smart Certi-Lite capable numbered remote IDs (NSA Remote #1 included) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li-Ion, 3.7V / 13,200 mAh) |
| Measurement Engine | 9-channel dual-ended mixed-mode RF and DC engine, 0.1–3,000 MHz frequency range |
| Compliance | Copper: ANSI/TIA-568.2-D, ISO 11801, ANSI/TIA-1152-A; Fiber: TIA-568.3-E, ISO/IEC 14763-3 Ed 2.1; PoE: IEEE 802.3 af/at/bt, UPoE; Multi-Gig: IEEE 802.3 up to 10GBASE-T |
| Calibration | Certificate of Calibration traceable to NIST included |
| Warranty | 2 years standard; extends to 5 years upon product registration |
| Kit Includes | NSA platform, AD-NSA adapter, NSA Remote #1, AD-NSA-SM-01 and AD-NSA-MM-01 fiber kits, PROBE-FIBER-INSP, SC interface kits (MM/SM), MM/SM SC loopbacks, SC and LC couplers, reference cords, connector cleaning kits, CAT6A RJ-45 coupler, power supply, shoulder strap, large carry case, USB cable, USB flash drive with TestDataPro |
| Not Included (Optional Upgrades) | MM/SM OTDR adapters, NSA Remote Pack #2–#8, Link Identifier Kit – can be added with hot-swappable adapters |
| Ordering Models | NSA-K31E (Extended Care options: NSA-K31E-1YS, NSA-K31E-3YS) |
You can request the necessary certificates, documentation, instructions and user guide for AEM NSA-K31E using the special form.
