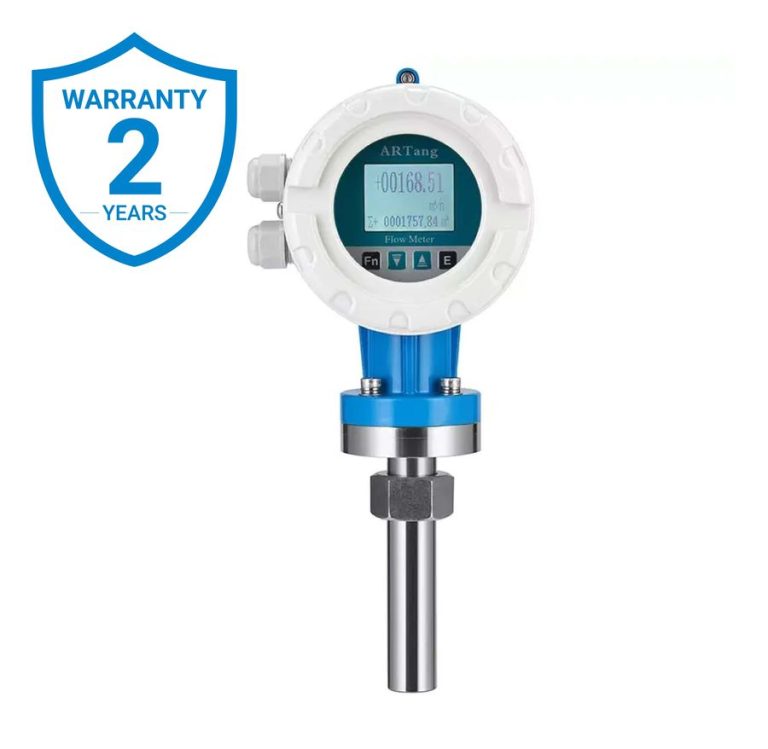

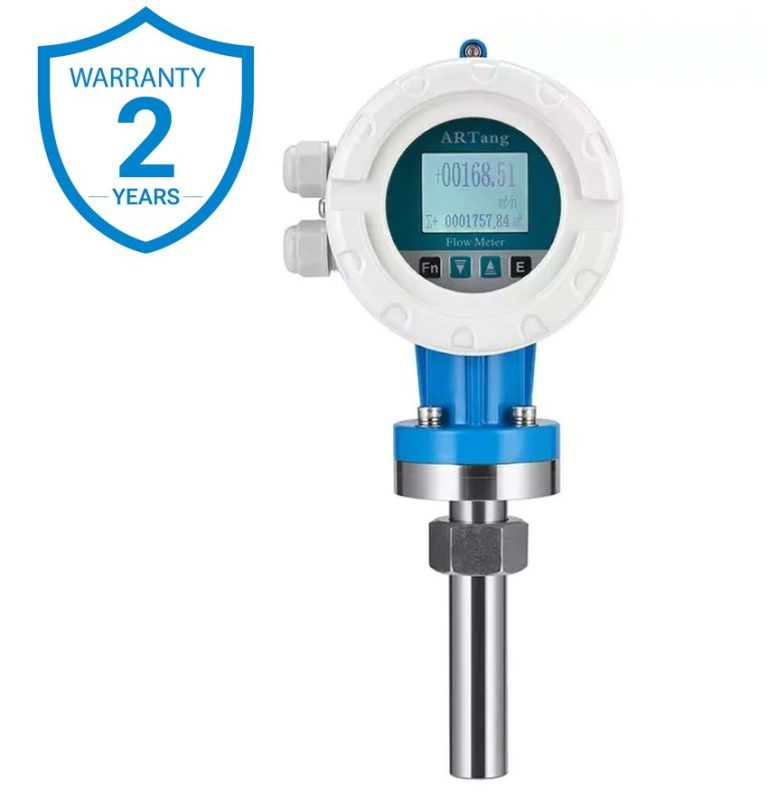

ARTANG AIMAG I Insertion Type Electromagnetic Flow Meter

ARTANG AIMAG I Insertion Type Electromagnetic Flow Meter
  • Measurement is unaffected by changes in fluid density, viscosity, temperature, pressure, and conductivity.
  • No flow-retarding parts, no pressure loss, low straight pipe section requirement, unique adaptability to slurry measurement.
  • Series nominal diameter DN4 ~ DN3000, lining and electrode different configurations can measure strong corrosive and strong wear-resistant media.
  • With self-test and self-diagnostic function, zero point stability, high accuracy
  • High-definition backlit LCD display, full Chinese menu operation, simple and easy to understand.
  • Insertion type electromagnetic flowmeter, construction of small quantities, can not flow with pressure installation, with absolute installation and price advantage;

Artang’s Exclusive Offer: 2-YEAR WARRANTY. That’s twice the industry standard for electromagnetic flowmeters!

			int(2410)
NULL

Made in China. brand ARTANG, model AIMAG I

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Download the questionnaire
Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Description of ARTANG AIMAG I

Engineered to break the limitations of traditional fluid measurement, the ARTang Insertion Electromagnetic Flow Meter delivers unmatched versatility with a measurement range from DN25 to DN2200.

Setting a new industry benchmark, ARTang is currently the only Chinese manufacturer offering an insertion mag meter capable of measuring pipes as small as DN25.

Beyond its expansive compatibility, it achieves an exceptional ±1.0% accuracy—significantly outperforming competitor brands in the insertion category.

Backed by officially certified calibration reports, it is the ultimate highly-reliable, cost-effective solution for both municipal networks and industrial plants.

Features of Insertion Electromagnetic Flowmeter

  • Non-stop installation & maintenance: Supports online hot tapping, allowing installation, removal, inspection, or replacement without stopping flow or production.
  • Lower overall cost: Uses less material than full-bore meters, reducing purchase and installation costs while maintaining good performance.
  • Ideal for large pipelines: Especially suitable for DN300 and above, such as municipal water supply, wastewater treatment, and circulating water systems.
  • Easy upgrades & retrofits: Ideal for adding flow measurement to aging pipelines without major modifications.
  • In addition to the benefits of standard electromagnetic flowmeters, insertion types are compact, lightweight, easy to install, and cost-effective—making them the best choice for large-diameter pipes.

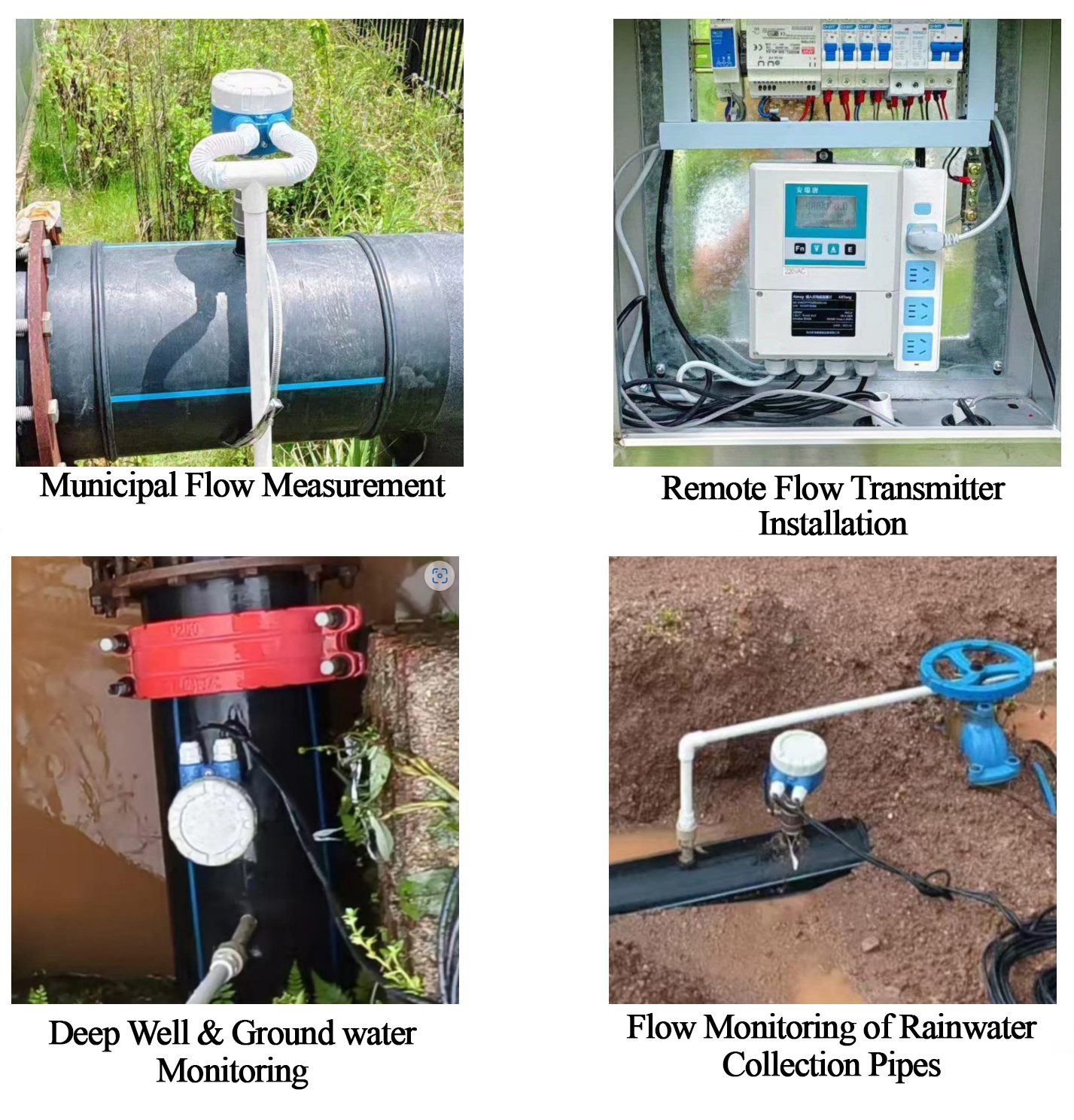

Field Installation of Insertion Electromagnetic Flow Meter

Real on-site installation examples of ARTang insertion electromagnetic flow meters used for outdoor water pipeline flow measurement, remote monitoring, and municipal water distribution systems.

Applications

Designed for large pipeline flow measurement from DN25 to DN2200, the ARTang insertion electromagnetic flow meter provides a cost-effective solution for new installations, pipeline retrofits, and network upgrades.

With hot-tap installation, the flow meter can be installed under pressure without shutting down the pipeline, helping reduce downtime, excavation work, and installation cost.

  • Pipeline Retrofits & Network Upgrades – Seamlessly install flow meters on aging water mains and industrial pipelines using rapid hot-tap (under-pressure) technology, bypassing heavy excavation.
  • Industrial HVAC & Cooling Water – Accurately measure chilled water flow in facility cooling loops without requiring costly system shutdowns or pipe drainage.

Technical specifications of ARTANG AIMAG I

Model Aimag I
Nominal Diameter DN25 ~ DN2200
Accuracy ±0.5% / ±0.2%
Electrode Material Stainless Steel 316L; Hastelloy B; Hastelloy C; Platinum; Tantalum; Titanium
Lining Material PTFE; Neoprene; Hard Rubber; Polyurethane; PFA; FEP
Process Temperature 0℃～80℃, Neoprene
-20℃～65℃, Polyurethane
-40℃～130℃, PTFE
-20℃～150℃, PFA
-20℃～180℃, PFA high temperature
Ambient Temperature -20℃~60℃, with display
-40℃~60℃, without display
Measuring Range 0.1m/s~10m/s
Conductivity ≥5 μs/cm
Output Signal 4~20mA / Frequency / Pulse
Communication Modbus RS485(Standard), HART(Optional), GPRS/GSM (Optional)
Explosion Certification NEPSI Ex db eb ia IIC T3…T6 Gb
Certification CE, EAC，NEPSI
Protection Grade IP67 / IP68(optional)
Expand Table
