SUTO S305 Dew Point Monitor for Desiccant and Fridge Dryers

Description of SUTO S305

The SUTO S305 Dew Point Monitor is a simple and inexpensive all‑in‑one solution for dew point measurement and display, designed for desiccant and refrigerant dryers. It features an optical red backlight that blinks when an alarm is triggered, plus two alarm relays that can connect to external lights and sirens, with two programmable alarm levels (pre‑alarm and main alarm).

The monitor is available in two measurement ranges: Option 1 from –60 °C Td to +20 °C Td, and Option 2 from –20 °C Td to +50 °C Td. Connection to the compressed air network is via a 6 mm quick‑connector and corresponding hose, and a 4…20 mA output allows integration with a PLC or SCADA system.

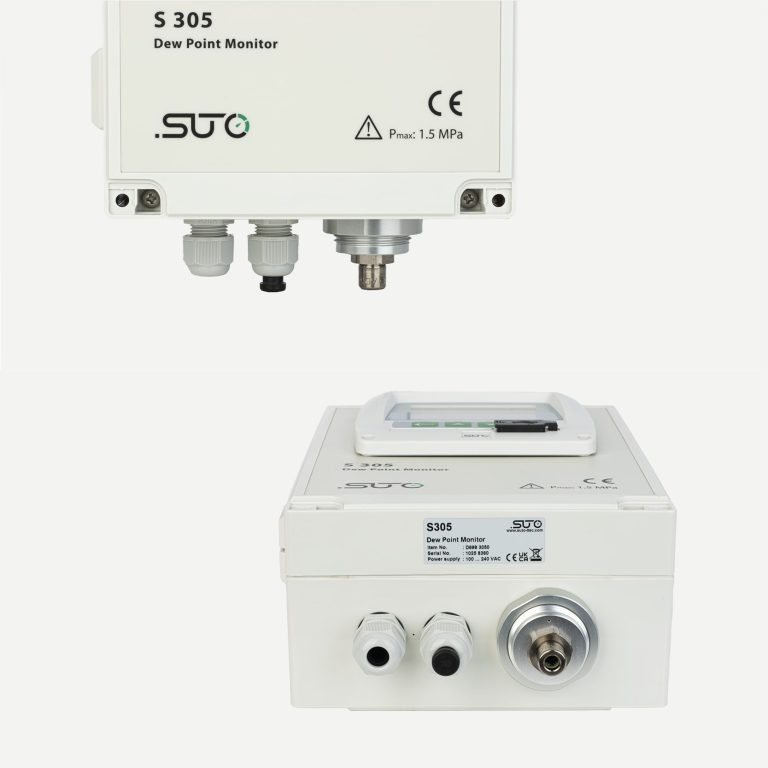

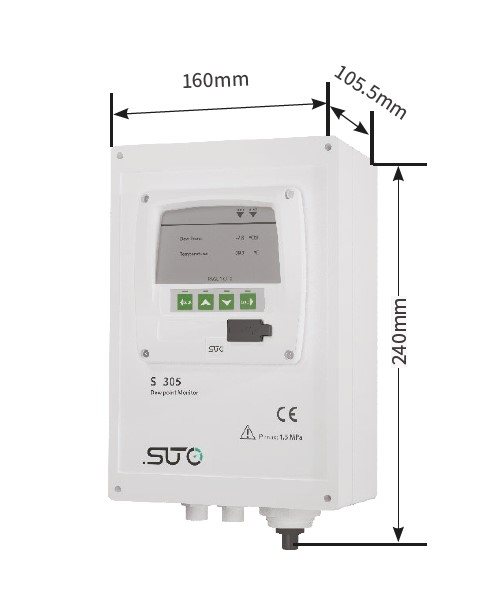

The entire measuring unit, including a reliable polymer dew point sensor with an integrated measuring chamber for accurate readings and fast response, is housed together with the display in a rugged IP65‑rated enclosure, available as a panel or wall‑mounted variant. Installation is plug‑and‑play—no complicated setup required.

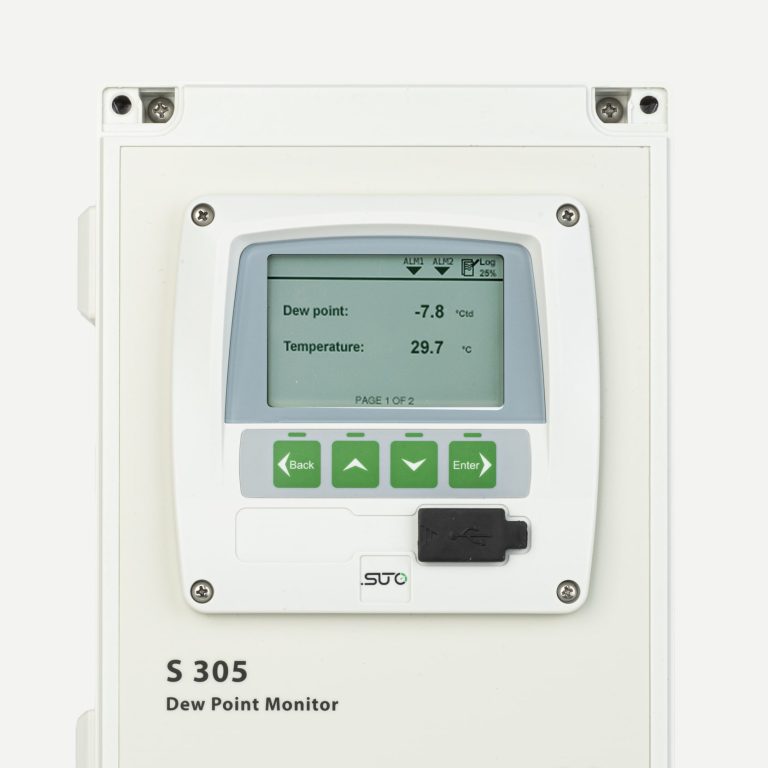

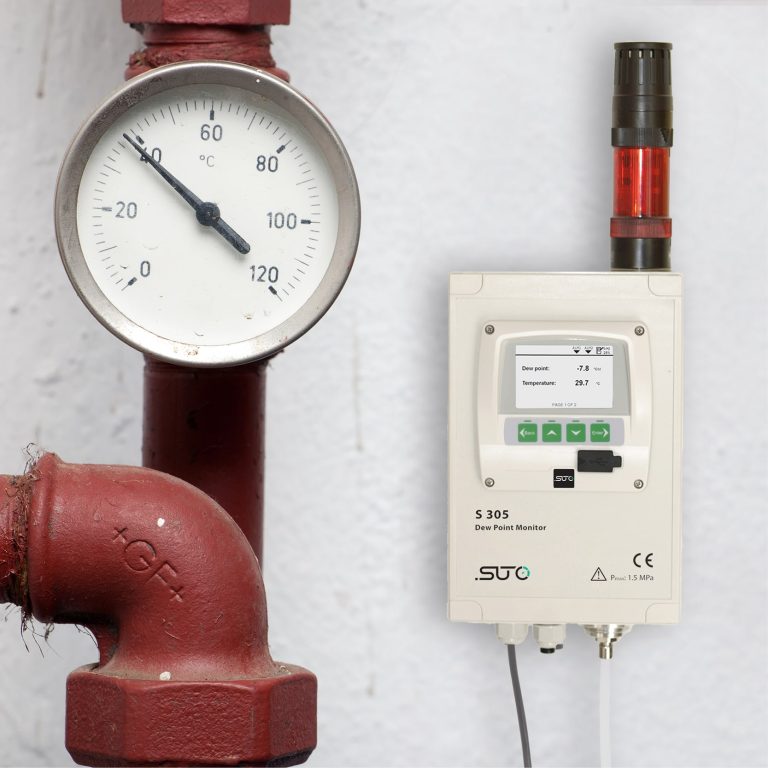

An optional alarm unit offers a wall‑mounted housing with a large display for dew point, temperature, and humidity, featuring a 360° visible LED and buzzer for reliable alarm indication; it can be mounted on the wall or directly on the main housing.

The S305 provides advanced monitoring with programmable pre‑alarm and main alarm for increased sensitivity, and customizable alarm notifications via visual indicators or separate relay outputs for seamless integration into wider alarm systems.

Refrigeration dryers are the most commonly used dryers in compressed air systems worldwide; if the required drying is not achieved, wet air can cause rust in pipes, machine breakdowns, and negative impacts on product quality. The S305 addresses this by giving an alarm whenever drying values fall outside the desired range.

Additionally, SUTO’s exchange calibration service eliminates downtime and enables users to maintain a seamless record of their dew point measurements.

Benefits

• Plug and play solution with easy setup and installation
• 6mm hose connection with quick coupling for easy installation
• Two ranges available for increased flexibility Wall-mountable housing with large display and optional alarm unit
• Easy connection with 4 … 20 mA output Alarms set up for pre-alarm and main alarm

Application

• Monitor fridge and desiccant driers
• Simple after-market installation
• Monitoring of process humidity and notification in case of alarms
• Control dew point temperature at a single glance

Features

• Plug & Play solution for easy installation and usage
• Precise measurement with ± 2 °C Td accuracy
• Fast response time for time-efficient measurements
• Alarm indication with internal relays or alarm units
• -60 … +50 °C Td depending on the model
• Easy process connection via 6 mm quick connect
• 4 … 20 mA signal output to PLC or SCADA system
• Operating pressure of 0.3 … 1.5 MPa

Technical specifications of SUTO S305

Stated accuracy under following conditions:

• Ambient temperature 23 °C ±3 °C
• Process temperature 23 °C ±3 °C
• Ambient humidity < 95 %, no condensation Airflow > 2 l/min at sensor tip
