The Series PFT Insertion Paddlewheel Flowmeters are used to monitor liquid flow rates in pipes from 1-1/2 to 40″ and is available in brass or 316 SS body. The unit outputs a frequency proportional pulsed or 4 to 20 mA output. The pulse models are a square wave output signal with frequency proportional to the flow velocity and the 4 to 20 mA models have a linear output of the velocity with 4 mA equal to 0 ft/s and 20 mA equal to 25 ft/s.
Retail price from $602,15
Available
The Series UFB Ultrasonic Flowmeter Set utilizes the transit-time difference for measuring flow rates in pipes non-invasively. This is the permanent model, allowing the user to mount the converter on a surface or pipe. The easy-to-use compact and lightweight design is intended for mechanical devices using ideally homogeneous liquids that contain no air pockets. The Series UFB comes with a sturdy IP65 rating, protecting it from dust and direct water contact. The Series UFB has 4 to 20 mA and pulse output capabilities.
Retail price from $6514,3
Available
The Series PUB & PUF Portable Ultrasonic Flowmeter Kits utilize the transit-time difference for measuring flow rates in pipes non-invasively. They are compact and lightweight instruments incorporating the latest electronics and signal processing technologies, realizing high performance and easy operation. These devices are perfect for on-the-go flow monitoring, capable of 20 hours continuous operation with built-in, rechargeable battery. The PUB comes with a rugged carrying case with molded foam inserts while the PUF boasts an IP67 rated case to hold and protect all equipment conveniently. Their screens offer easy to read text with convenient backlight for visual comfort. The efficient layout of the function keys adds to these units’ easy to use programming. These series offer analog as well as a pulsed outputs.
Retail price from $8540,8
Available
The Series HF In-Line Flow Monitors are ruggedly constructed and ideal for direct measurement for a range of compatible gases, oil or water based liquids. This Series is designed based on a floating orifice disk and variable area flow measurement. Flowing media forces linear motion of the orifice disk and a ring shaped magnet which ride on a tapered center shaft. The transfer magnet drives a clearly visible magnet follower located outside the flow tube, and a ring on the magnet follower indicates flow rate on the direct reading scale.
Retail price from $423,1
Available
The Series TUF Ultrasonic Energy Meter is a highly accurate and stable energy meter that utilizes ultrasonic technology to measure heating and cooling energy consumption. The Series TUF is a compact meter with a flowmeter and energy calculator in one, making it great for installation on chillers and boilers.
Retail price from $641,9
Available
The Series PE Orifice Plate Flowmeter offers one-piece PVC construction incorporating a unique holder or carrier ring containing metering taps and integral gaskets. Unlike a standard orifice plate, the Series PE is a true primary element including the various components for differential pressure measurement. It was designed for use wherever there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness. The Series PE is available in line sizes from 1/2″ to 24″ and used for air and most gases. It meets or exceeds ASME, AGA & ISO standards.
Retail price from $359,15
Available
Temperature & pressure compensation vortex flowmeter adopts Karman vortex street principle, and the sensor has built-in piezoelectric crystal and integrated temperature and pressure measurement function, which can measure gas temperature and pressure, ensure more accurate volume or mass flow.
price by request
Available
Flow element, also known as differential pressure flow meter, consists of a primary detection piece (flow element) and a secondary device (differential pressure transmitter and flow indicator). Flow element is the most stable and reliable of all flow meters, which has a history of more than 100 years. Its wide applicability, high reliability and accurate accuracy make it widely used in the measurement of gas, liquid and vapor.
price by request
Available
Asameters model C-G…38/39 all made of stainless steel are designed for medium and high flow rates for every kind of gas (mod. C) and liquid (mod. G) also aggressive, at extreme operating and environmental conditions (high pressures and/or low or high temperatures).
price by request
Available
LGY compact orifice plate flow meter is composed of flow element, differential pressure transmitter, three-way manifold, temperature sensor and pressure sensor, which can measure liquid, gas, vapor and other medium.
price by request
Available
Asameters model C/G …47 _ 50 all made of stainless steel are designed for applications in potentially explosive areas thanks to their flameproof design, certified ATEX Ex ia IIC T4, T6… Zone 0 and Zone 1 (on request).
price by request
Available
The Series IEF Insertion Electromagnetic Flow Transmitter is an adjustable insertion flowmeter featuring electromagnetic technology that accurately and reliably measures fluid velocity in addition to providing several continuous signal outputs. This series is specifically designed to offer superior performance paired with simple installation and use. One unit is adjustable to fit pipe sizes from 4 to 36″ (102 to 914 mm), and offers several output options including selectable BACnet MS/TP or Modbus® RTU communications protocol over 2-wire RS-485 in addition to the standard analog, frequency and alarm outputs.
price by request
Available
LGXS wedge flow meter is a new type of flow element which has been widely used in recent years. Wedge flow meter is very suitable for low Reynolds number fluid flow measurement, especially when measuring the high viscosity fluid, solid particle fluid and slurry fluid.
price by request
Available
Asameters model L…38 _ 39 all made of stainless steel are designed for low flow rates with any type of gas or liquid also aggressive, at extreme process and environmental conditions (high pressures and/or low or high temperatures).
price by request
Available
LGV V-cone flow meter is the second generation inner cone flow meter. It is a good performance differential pressure flow meter developed by Dandong Top Electronics Instrument (Group) Co., Ltd in cooperation with Tianjin University. The unique support and taper angle design enables it to measure the flow rate of various medium such as gas, liquid and vapor under very short straight pipe section conditions.
price by request
Available
The Series GFM2 Gas Mass Flow Meter is an ideal choice for the measurement of flow rates of a wide variety of gases. Unit can be calibrated for a variety of gases with user selectable 0 to 5 VDC or 4 to 20 mA and two relay outputs and programmable totalizer that indicates total gas quantity.
price by request
Available
LGP balanced flow meter is a flow element developed on the basis of standard orifice plate. Its sensor is a porous disk throttling rectifier mounted on the section of the pipe. Size and distribution of each hole are customized based on test data and become function holes. The balanced flow meter sensor can realize the fluid balance measurement skillfully, obviously reduces the eddy current formation, reduces the dead effect and the fluid kinetic energy loss.
price by request
Available
Operating principle of LGB Annubar Flow Meter is the same as that of other kinds of differential pressure flow meters, Annubar Flow Meter is superior to other differential pressure flow meters because of its unique structure.
price by request
Available
UFM ultrasonic flow meter is widely used in the long-term on-line measurement of various liquids, suitable for all dense pipes. The sensor of flow meter is divided into external clamp type, plug-in type and pipe section type, in which the external clamp type and plug-in type can be continuously and uninterrupted flow installation. The main engine can be installed in the indoor, instrument cabinet, the sensor is installed on the pipe, the main engine and sensor are connected by custom cable, the flow rate can be measured, and the ration temperature sensor can realize the heat measurement.
price by request
Available

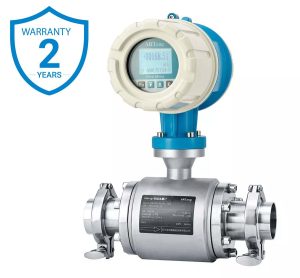

The Sanitary Electromagnetic Flowmeter is also called hygienic magnetic flow meter and tri-clamp magnetic flow meter. It is a food grade flow mter and ideal for food, beverages, beer, milk and pharmaceutical industries. Sanitary flow meter can meet the hygienic demand and achieve accurate and reliable flow measurement.
price by request
Available
NBLB target flow meter is a new generation of flow meter developed by our company. It adopts a new force-torque tube-corner conversion mechanism, transfers the angle through the torque tube, then measures the angle through the high precision Hall sensor and outputs the voltage signal corresponding to the flow change and outputs the standard 4 mA~20 mA square (linear) current analog signal. The instrument has the modern popular enclosure design, the shape is beautiful and each working chamber is isolated, uses the non-contact angle measurement technology to avoid the strain sensor force deformation, safe and reliable.
price by request
Available

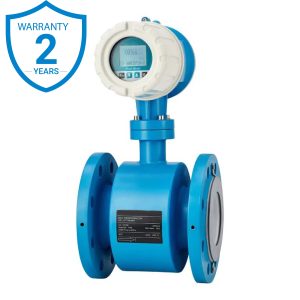

Aimag A electromagnetic flow meters is a products that developed for sewage, water, wastewater flow measurement. Widely used in metering and custody transfer. And can display both instantaneous and cumulative flow, and supports analog output, communication output and relay control functions. The diameter of the electromagnetic flowmeter ranges from DN6 to DN3000.
price by request
Available
The Series IS/PX/TX Insite™ Air/Liquid In-Line Flowmeter is available in a variety of materials including PVC, Aluminum, Brass, or 316 stainless steel. The variety of optional materials allows the flowmeters to be used in many different applications. The Series INSITE Flowmeters are also available with an optional field adjustable reed switch for high and low alarms.
price by request
Available
MTF variable area flow meter for micro flow can measure tiny liquid or gas, which has the characteristics of stable and reliable measurement and wide application range. The instrument is equipped with a fine-tuning valve to facilitate the user’s setting of a specific flow rate. Instrument is based on the float measurement principle. According to the flow direction of the medium, it can be divided into side in and out, bottom in and out of two types. According to the display mode, it is divided into mechanical pointer type and liquid crystal display with 4-20 mA current output type.
price by request
Available
