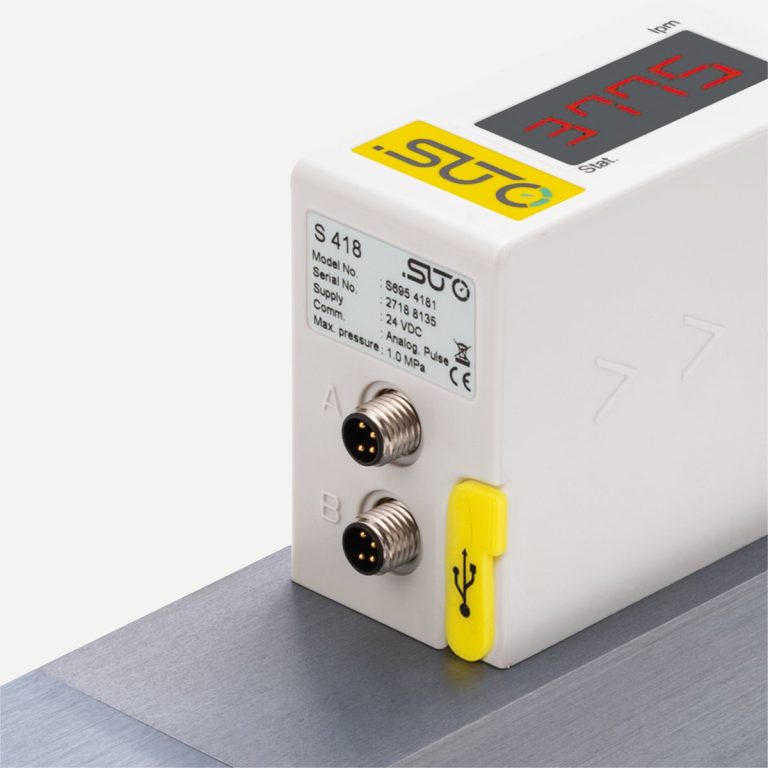

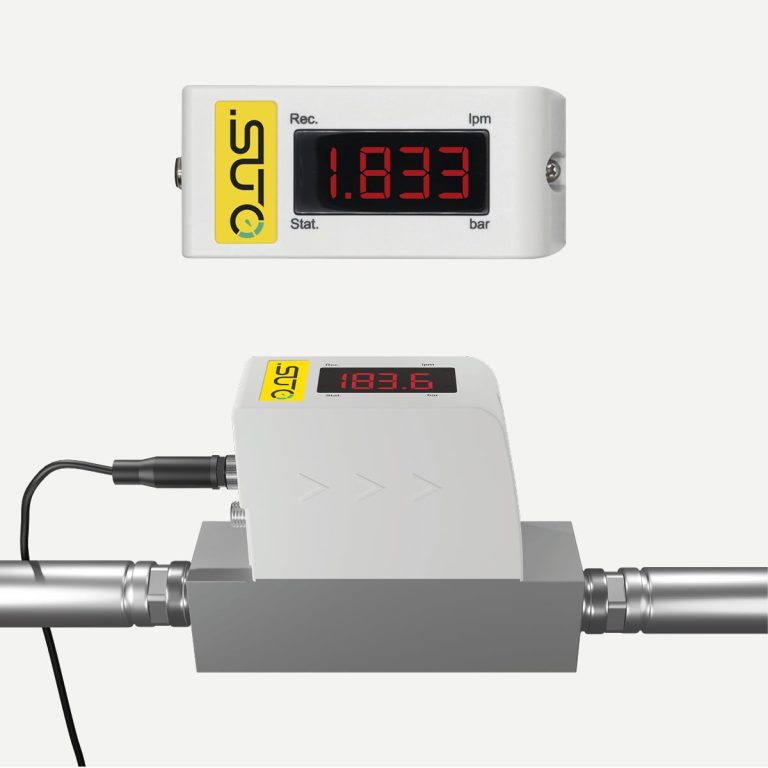

The S418 Compact Flow Sensor provides compressed air flow and gas monitoring directly where it is needed. The seamless integration into a compressed air and gas system makes it an affordable and easy to install flow measurement solution.
Made in Germany. brand SUTO, model S418
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 880 €
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

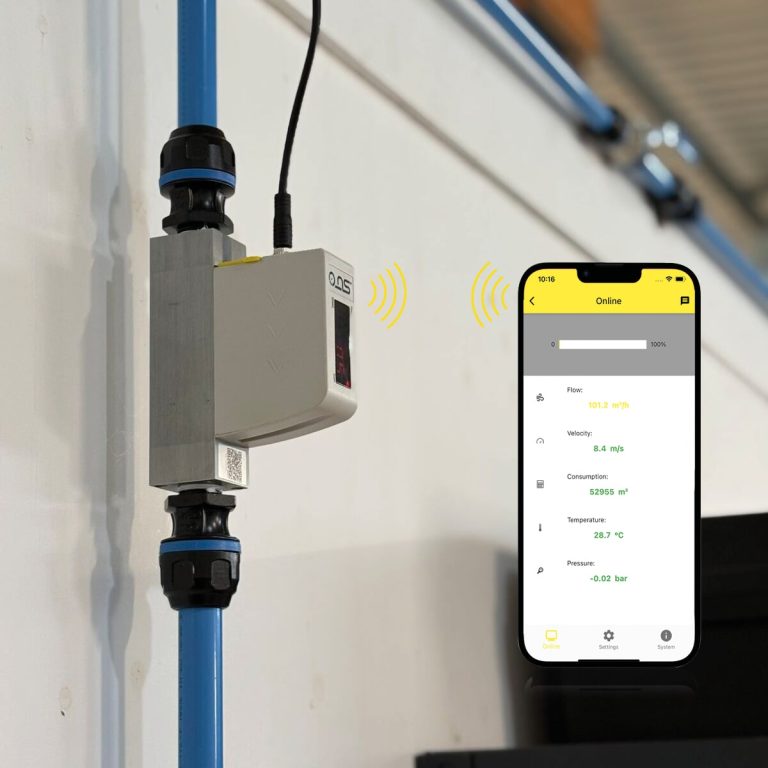

The compact S418 flow meter provides accurate measurement of compressed air and gas consumption and costs directly at the point of use, helping to improve system efficiency and keep operating costs under control. Thanks to its seamless integration into existing piping, the device is easy to install and ready for immediate use. Settings can be managed and current readings monitored remotely via the free S4C-FS mobile app: the wireless interface allows changes to be made directly on-site without interrupting the process or accessing the control panel.
Thermal mass flow technology makes the device virtually immune to fluctuations in pressure and ambient temperature, ensuring stable measurement accuracy without the need for additional compensation sensors. The device records flow rate, consumption, pressure, and temperature in a single housing, allowing the potential for optimizing the compressor network to be identified quickly and clearly.

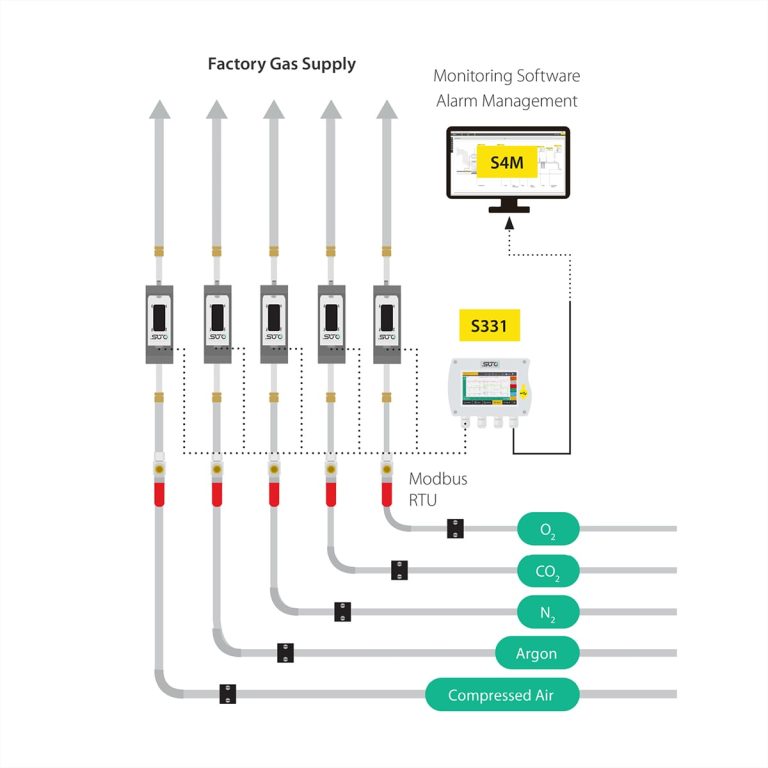

All collected data is automatically recorded in the built-in data logger. If necessary, the measurement history can be exported via the Modbus interface to third-party analytics systems—this enables the creation of detailed reports, tracking of long-term trends, rapid identification of consumption anomalies, and the discovery of new opportunities for cost reduction.
Application
Features
The video provides an overview of the application and capabilities of a compact, built-in flow meter for measuring compressed air and other gases.
| MEASUREMENT | |
| Flow | |
| Accuracy | 1.5 % o.RDG ±0.3 % FS |
| Selectable units | l/min, cfm, kg/h, m3/h |
| Measuring range | see table on the previous page |
| Repeatability | 0.5 % o.RDG |
| Sensor | Thermal mass flow sensor |
| Sampling rate | 10/sec |
| Turndown ratio | 100:1 |
| Response time (t90) | 0.5 sec |
| Consumption | |
| Selectable units | m³, ft³, l, kg |
| Pressure | |
| Accuracy | 0.5 % FS |
| Selectable units | bar, psi |
| Measuring range | 0 … 16 bar(g) |
| Sensor | Piezo resistive sensor |
| Reference conditions | |
| Selectable conditions | 20 °C 1000 mbar (ISO1217), 0 °C 1013 mbar (DIN1343) freely adjustable |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA (4-wire), isolated |
| Scaling | 0 … max flow |
| Load | Max 250 Ω freely adjustable |
| Update rate | 3/sec |
| Pulse output | |
| Signal | Switch output, normally open, max 30 VDC, 200 mA |
| Scaling | 1 pulse per consumption unit |
| Fieldbus | |
| Protocol | Modbus/RTU |
| Supply | |
| Voltage supply | 15 … 30 VDC |
| Current consumption | 120 mA @ 24 VDC |
| Data interface | |
| Connection | USB micro |
| GENERAL DATA | |
| Configuration | |
| Wireless | S4C-FS App for mobile phones |
| PC Software | S4A PC software for download and data analyzes |
| Display | |
| Integrated | 4 digit LED |
| Data Logger | |
| Storage | 8 Mio. values |
| Material | |
| Process connection | Aluminum alloy or Stainless steel SUS316L/1.4404 |
| Housing | PC + ABS |
| Sensor | Ceramic, glass coated |
| Metal parts | Aluminum alloy or Stainless steel SUS316L/1.4404 |
| Miscellaneous | |
| Electrical connection | 2 x M8 (4 pole) |
| Protection class | IP54 |
| Approvals | CE, RoHS, FCC |
| Process connection | G-thread |
| Weight | 0.45 … 1.3 kg (depends on model) |
| Operating conditions | |
| Medium | Air, N2, O2, CO2 and other gases |
| Medium quality | ISO 8573: 4.4.3 or better |
| Medium temperature | 0 … 50 °C |
| Medium humidity | < 90 % rH, no condensation |
| Operating pressure | 0 … 16 bar(g) |
| Ambient temperature | 0 … 50 °C |
| Ambient humidity | < 95 % rH |
| Storage temperature | -30 … 70 °C |
| Transport temperature | -30 … 70 °C |
| Pipe sizes | DN8, DN15, DN20, DN25, DN32, DN40, DN50 |
| MEASURING RANGES | |||||||
| Process connection | DN8 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Standard range (S) | 250 | 1000 | 2000 | 3500 | 6000 | 10000 | 14000 |
| Low range (L) | 50 | 200 | 400 | 700 | 1200 | 2000 | 2800 |
| Model | Description | Price |
| S695 4180 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN8, data logger | 880 |
| S695 4181 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN15, data logger | 900 |
| S695 4182 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN20, data logger | 910 |
| S695 4183 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN25, data logger | 930 |
| S695 4184 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN32, data logger | 1010 |
| S695 4197 | S418 CoMPact Thermal Mass Flow Meter Aluminium (Pro-Inline), DN40, data logger | 1190 |
| S695 4198 | S418 CoMPact Thermal Mass Flow Meter Aluminium (Pro-Inline), DN50, data logger | 1250 |
| S695 4185 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN8-P, with integrated pressure sensor, data logger | 1040 |
| S695 4186 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN15-P, with integrated pressure sensor, data logger | 1060 |
| S695 4187 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN20-P, with integrated pressure sensor, data logger | 1070 |
| S695 4188 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN25-P, with integrated pressure sensor, data logger | 1080 |
| S695 4189 | S418 Compact Thermal Mass Flow Meter (Pro-Inline), DN32-P, with integrated pressure sensor, data logger | 1150 |
| S695 4199 | S418 CoMPact Thermal Mass Flow Meter Aluminium (Pro-Inline), DN40-P, with integrated pressure sensor, data logger | 1340 |
| S695 4209 | S418 CoMPact Thermal Mass Flow Meter Aluminium (Pro-Inline), DN50-P, with integrated pressure sensor, data logger | 1400 |
| S695 0418 | S418 CoMPact Thermal Mass Flow Meter Stainless Steel (Pro-Inline), DN8, data logger | 1070 |
| S695 1418 | S418 CoMPact Thermal Mass Flow Meter Stainless Steel (Pro-Inline), DN15, data logger | 1090 |
| S695 2418 | S418 CoMPact Thermal Mass Flow Meter Stainless Steel (Pro-Inline), DN20, data logger | 1100 |
| S695 3418 | S418 CoMPact Thermal Mass Flow Meter Stainless Steel (Pro-Inline), DN25, data logger | 1120 |
| S695 4418 | S418 CoMPact Thermal Mass Flow Meter Stainless Steel (Pro-Inline), DN8-P, with integrated pressure sensor 16 bar(g), data logger | 1230 |
| S695 5418 | S418 CoMPact Thermal Mass Flow Meter Stainless Steel (Pro-Inline), DN15-P, with integrated pressure sensor 16 bar(g), data logger | 1250 |
| S695 6418 | S418 CoMPact Thermal Mass Flow Meter Stainless Steel (Pro-Inline), DN20-P, with integrated pressure sensor 16 bar(g), data logger | 1260 |
| S695 7418 | S418 CoMPact Thermal Mass Flow Meter Stainless Steel (Pro-Inline), DN25-P, with integrated pressure sensor 16 bar(g), data logger | 1280 |
| A1003 | Option: Flow Medium: No 2nd Gas | On request |
| A1007 | Option: Flow medium Air | On request |
| A1008 | Option: Flow medium CO2 | On request |
| A1009 | Option: Flow medium O2 (cleaning for oil and grease-free) | 81 |
| A1010 | Option: Flow medium N2 | On request |
| A1011 | Option: Flow medium N2O | On request |
| A1012 | Option: Flow medium Argon | On request |
| A1013 | Option: Flow medium Natural Gas | On request |
| A1014 | Option: Flow medium H2 (For real gas calibration. Please consult manufacturer for this option in advance) | 360 |
| A1015 | Option: Other gas (specify gas or gas mix) | On request |
| A1016 | Option: Flow medium He (real gas calibration) | 490 |
| A1017 | Option: Flow medium Propane C3H8 | On request |
| A1041 | Option, flow medium O2, Ar, CO2 (real gas calibration). Please specify flow medium! | 360 |
| A1042 | Option: Flow medium CH4, NG, N2O (real gas calibration, please consult with manufacturer for this option in advance) | 420 |
| A1453 | S415/S418: Low range | On request |
| A1455 | S418/S418-V: 4 … 20 mA + pulse output | 100 |
| A1456 | S418/S418-V: Modbus/RTU output | 80 |
| A1457 | S418/S418-V: M-Bus digital output | 100 |
| A1459 | S418/S418-V: Imperial units instead of SL units | On request |
| A1461 | S418/S418-V: Reverse display direction | On request |
| A1463 | S418/S418-V: Standard display direction (left to right) | On request |
| A1465 | S418/S418-V: Standard range version | On request |
| A1467 | S418/S418-V: With SI units | On request |
| A553 0128 | S415/S418: Sensor cable 2m with M8 connector, 4-pole, straight type with open wires on one end | 30 |
| A553 0136 | Sensor cable 5m with M8 connector, 4-pole, straight type with open wires on one end | 30 |
| A553 0137 | Connection cable to S551, M8/ODU, 5 m, only for S415, S418 and S418-V Modbus | 40 |
| A553 0161 | M8 female to M12 male converter cable for T-Splitter | 30 |
| A553 0171 | Cable to connect power bank, 1.8 m, USB-C connector for power bank, M8 connector | 40 |
| A554 0109 | Mains power supply 100-240 VAC / 24 VDC, 0.5 A, 2m power cable with M8 connector | 80 |
| A554 3310 | RS-485 splitter T, with 3 x M12 connectors to connect RS-485 devices to a bus | 70 |
| C219 0206 | M8 connector, 4-pole, straight, soldering type | 20 |
| M599 7020 | S4A Data Analysis Software | On request |
Accessories
| Model | Description | Price, € |
| C190 0605A | Thread Adapter for S415/418, G1/4“ inner thread to NPT1/4“ inner thread | 20 |
| C190 0605B | Thread Adapter for S415/S418, G1/2″ inner thread to NPT1/2″ inner thread | 20 |
| C190 0605C | Thread Adapter for S415/S418, G3/4″ inner thread to NPT3/4″ inner thread | 20 |
| C190 0605D | Thread Adapter for S415/S418, G1″ inner thread to NPT1″ inner thread | 30 |
| C190 0605E | Thread Adapter for S415/S418, G1-1/4″ inner thread to NPT1-1/4″ inner thread | 40 |
| C190 0605F | Thread Adapter for S415/S418, G1-1/2″ inner thread to NPT1-1/2″ inner thread | 60 |
| C190 0605G | Thread Adapter for S415/S418, G2″ inner thread to NPT2″ inner thread | 90 |
You can request the necessary certificates, documentation, instructions and user guide for SUTO S418 using the special form.
You can buy SUTO S418 in Latvia at a price starting from 880 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. SUTO S418 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
