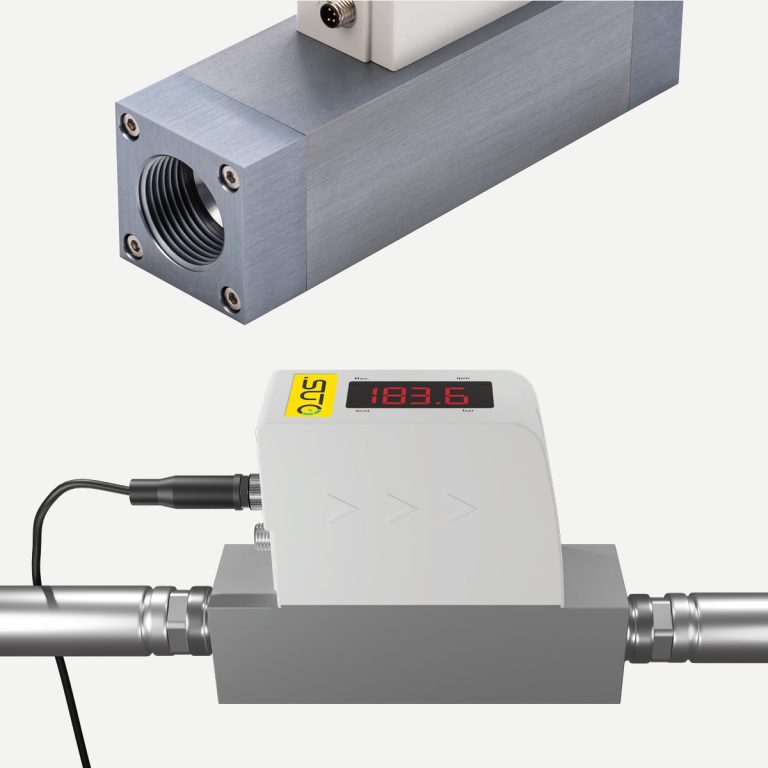

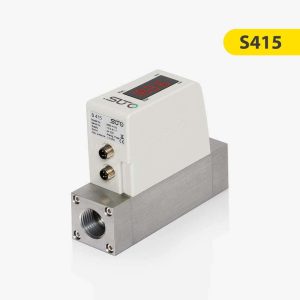

The SUTO S415 Compact Flow Meter offers compressed air flow and consumption measurements directly at the point of use. It is designed to be seamlessly integrated into your compressed air system or in nitrogen gas applications.
Made in Germany. brand SUTO, model S415
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 380 €
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

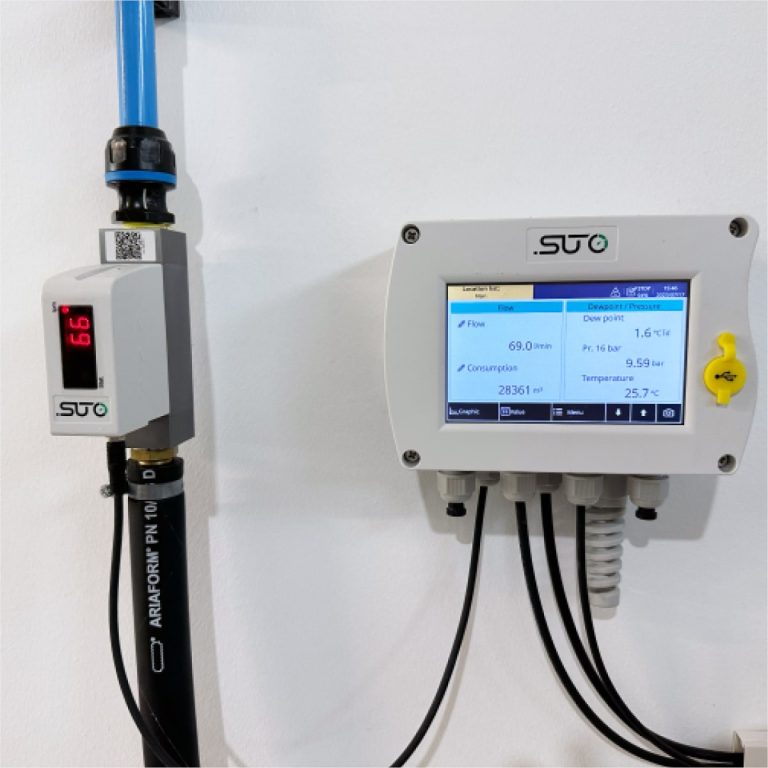

The compact S415 flow meter provides reliable and cost-effective measurement of compressed air flow and consumption directly at the point of use, helping to improve system efficiency and reduce operating costs. The flow meter is equipped with a wireless interface for remote configuration and real-time monitoring of readings via the free S4C-FS mobile app. Settings are protected from unauthorized access by a unique QR code for each device.
The S415 model is ideal for applications requiring cost-effective, large-scale monitoring of compressed air and nitrogen consumption on individual machines and processes. All parameters (gas type, units of measurement, reference standards) can be pre-configured at the factory according to your requirements.
Application
Features
| MEASUREMENT | |
| Flow | |
| Accuracy | 3 % o.RDG ±0.3 % FS |
| Selectable units | l/min, cfm, kg/h, m3/h |
| Measuring range | see table on the previous page |
| Repeatability | 1 % o.RDG |
| Sensor | Thermal mass flow sensor |
| Sampling rate | 3/sec |
| Turndown ratio | 50:1 |
| Response time (t90) | 2 sec |
| Consumption | |
| Selectable units | m³, ft3, l, kg |
| Reference conditions | |
| Selectable conditions | 20 °C 1000 mbar (ISO1217) 0 °C 1013 mbar (DIN1343) freely adjustable |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA, isolated |
| Scaling | 0 … max flow |
| Load | 250R |
| Update rate | 3/sec |
| Pulse output | |
| Signal | Max 30 V, 200 mA |
| Scaling | 1 pulse per consumption unit |
| Fieldbus | |
| Interface/Protocol | RS-485/Modbus/RTU M-Bus |
| Supply | |
| Voltage supply | 15 … 30 VDC |
| Current consumption | 120 mA @ 24 VDC |
| GENERAL DATA | |
| Configuration | |
| Wireless | S4C-FS App for mobile phones |
| Display | |
| Integrated | 4 digit LED |
| Material | |
| Process connection | Aluminium alloy or Stainless steel SUS316L/1.4404 |
| Housing | PC + ABS |
| Sensor | Glass coated resistive sensor |
| Metal parts | Aluminium alloy or Stainless steel SUS316L/1.4404 |
| Miscellaneous | |
| Electrical connection | 2 x M8 (4 pole) |
| Protection class | IP54 |
| Approvals | CE, RoHS, FCC |
| Process connection | G-thread |
| Weight | 0.45 … 1.3 kg (depends on model) |
| Operating conditions | |
| Medium | Air, N2 |
| Medium quality | ISO 8573: 4.4.3 or better |
| Medium temperature | 0 … 50 °C |
| Medium humidity | < 90 % rH, no condensation |
| Operating pressure | 0 … 10 bar(g) |
| Ambient temperature | 0 … 50 °C |
| Ambient humidity | < 95 % rH |
| Storage temperature | -30 … 70 °C |
| Transport temperature | -30 … 70 °C |
| Pipe sizes | DN8, DN15, DN20, DN25, DN32, DN40, DN50 |
| MEASUREMENT RANGE IN AIR (L/MIN) | |||||
| Process connection | DN8 | DN15 | DN20 | DN25 | DN32 |
| Standard range (S) | 250 | 1000 | 2000 | 3500 | 6000 |
| Low range (L) | 50 | 200 | 400 | 700 | 1200 |
| Model | Description | Price, € |
| S695 4150 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN8 | 380 |
| S695 4151 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN15 | 400 |
| S695 4152 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN20 | 410 |
| S695 4153 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN25 | 420 |
| S695 4154 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN32 | 540 |
| S695 4155 | S415 CoMPact Thermal Mass Flow Meter Aluminium (Eco-Inline), DN40 | 610 |
| S695 4156 | S415 CoMPact Thermal Mass Flow Meter Aluminium (Eco-Inline), DN50 | 760 |
| S695 0415 | S415 CoMPact Thermal Mass Flow Meter Stainless Steel (Eco-Inline), DN8 | 530 |
| S695 1415 | S415 CoMPact Thermal Mass Flow Meter Stainless Steel (Eco-Inline), DN15 | 570 |
| S695 2415 | S415 CoMPact Thermal Mass Flow Meter Stainless Steel (Eco-Inline), DN20 | 580 |
| S695 3415 | S415 CoMPact Thermal Mass Flow Meter Stainless Steel (Eco-Inline), DN25 | 600 |
| A1007 | Option: Flow medium Air | On request |
| A1010 | Option: Flow medium N2 | On request |
| A1450 | S415: 4 … 20 mA + pulse output | On request |
| A1451 | S415: Modbus/RTU output | On request |
| A1452 | S415: M-Bus digital output | On request |
| A1453 | S415/S418: Low range | On request |
| A1458 | S415: Imperial units instead of SL units | On request |
| A1460 | S415: Reverse display direction | On request |
| A1462 | S415: Standard display direction (left to right) | On request |
| A1464 | S415/S418: Standard range version | On request |
| A1466 | S415: With SI Units | On request |
| A553 0128 | S415/S418: Sensor cable 2m with M8 connector, 4-pole, straight type with open wires on one end | 30 |
| A553 0136 | Sensor cable 5m with M8 connector, 4-pole, straight type with open wires on one end | 30 |
| A553 0137 | Connection cable to S551, M8/ODU, 5 m, only for S415, S418 and S418-V Modbus | 40 |
| A553 0161 | M8 female to M12 male converter cable for T-Splitter | 30 |
| A554 0109 | Mains power supply 100-240 VAC / 24 VDC, 0.5 A, 2m power cable with M8 connector | 80 |
| C219 0206 | M8 connector, 4-pole, straight, soldering type | 20 |
Accessories
| Model | Description | Price, € |
| A553 0171 | Cable to connect power bank, 1.8 m, USB-C connector for power bank, M8 connector | 40 |
| A554 3310 | RS-485 splitter T, with 3 x M12 connectors to connect RS-485 devices to a bus | 70 |
| A553 0136 | Sensor cable 5m with M8 connector, 4-pole, straight type with open wires on one end | 30 |
| C190 0605A | Thread Adapter for S415/418, G1/4“ inner thread to NPT1/4“ inner thread | 20 |
| C190 0605B | Thread Adapter for S415/S418, G1/2″ inner thread to NPT1/2″ inner thread | 20 |
| C190 0605C | Thread Adapter for S415/S418, G3/4″ inner thread to NPT3/4″ inner thread | 20 |
| C190 0605D | Thread Adapter for S415/S418, G1″ inner thread to NPT1″ inner thread | 30 |
| C190 0605E | Thread Adapter for S415/S418, G1-1/4″ inner thread to NPT1-1/4″ inner thread | 40 |
| C190 0605F | Thread Adapter for S415/S418, G1-1/2″ inner thread to NPT1-1/2″ inner thread | 60 |
| C190 0605G | Thread Adapter for S415/S418, G2″ inner thread to NPT2″ inner thread | 90 |
You can request the necessary certificates, documentation, instructions and user guide for SUTO S415 using the special form.
You can buy SUTO S415 in Latvia at a price starting from 380 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. SUTO S415 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
