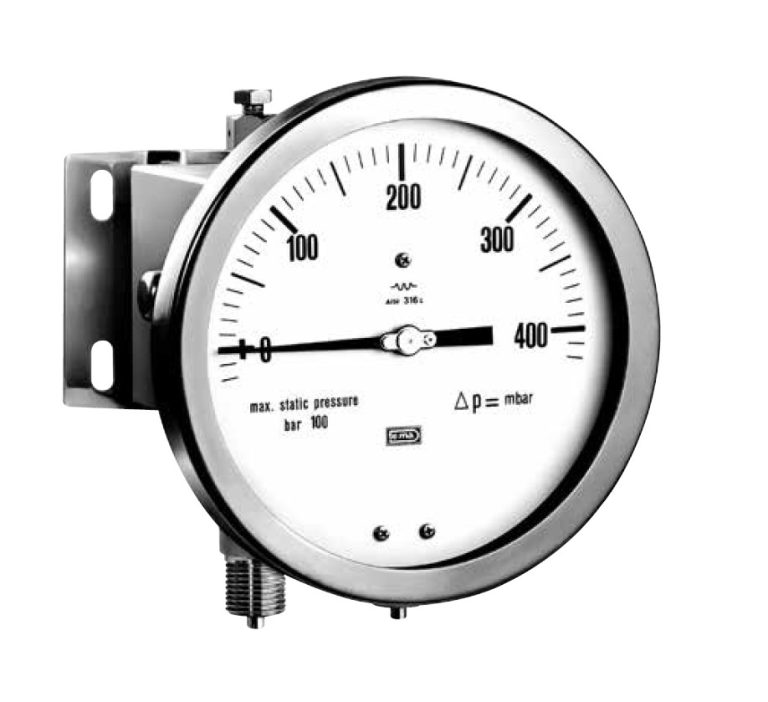

Made in Italy. brand TE.MA., model MDS1200
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Diameters | 150 mm (100 mm as option) |
| Case and ring | st. st. 304, bayonet type ring |
| Protection degree | IP55 (EN60529/IEC529) |
| Window | glass, thickness 4 mm, gasket in neoprene |
| Movement | st. st., reinforced |
| Dial | aluminium with black numerals on white background |
| Pointer | aluminium, black painted, micrometric adjustable |
| Filling plug | EPDM, upper |
| Sensing element | Bellow |
| Element material | st.st. 316 |
| Process connection material | st.st. 316 |
| Shaft | st.st. 316 with O-Ring gasket in VITON |
| Gasket to the pivot | polychloroprene |
| Connection dimension | ½”NPTM or BSP |
| Mounting | surface mounting with bracket type 1205 |
| Flush mounting | 3 holes front flange type 1207 |
| Ranges | see table |
| Accuracy | kl 2,5 acc. to EN837 (1,6 option) |
| Scale amplitude | 180° |
| Ambient temperature limit | -25/+65°C (-60/+60°C for filled version see options) |
| Fluid temperature limit | max 100°C |
| Temperature error | 0,08%/°C in range 10/30°C |
| Construction acc. to ATEX directive 2014/34/EU | CE Ex II 2G Ex h IIC T6.. T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request) |
| Construction according to PED directive 2014/68/EU | (on request) |
Ranges
| Differential pressure | mBar | 0-25 | 0-40 | 0-60 | 0-100 | 0-160 | 0-250 | 0-400 | 0-600 |
| Static pressure on both side or only on side “+” | mBar | 50 | 80 | 400 | 1 | 1 | 1 | 1 | 2 |
| Static pressure on side “-” | mBar | 250 | 400 | 1 | 2 | 2 | 4 | 6 | 10 |
Mounting Type
Type 1205: Surface mounting with back bracket. Weight kg 1,6

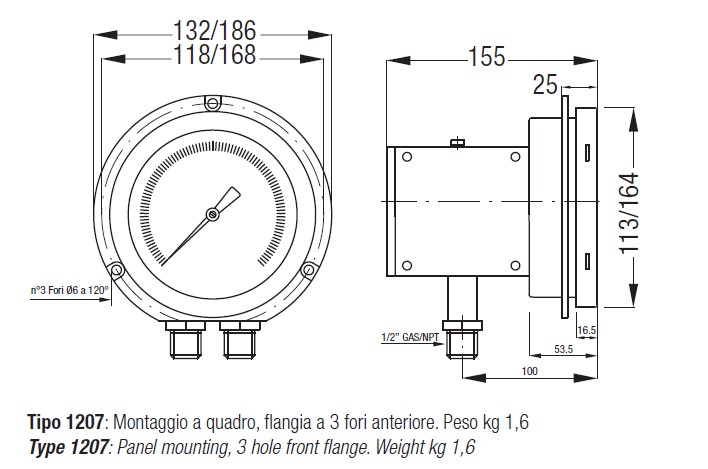

Type 1207: Panel mounting, 3 hole front flange. Weight kg 1,6
Options and accessories
How to order: Please specify: model, range, type and dimensions connection, options if any.
Example: model MDS1205, 0/2,5Bar, 2x½”NPTM
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MDS1200 using the special form.
