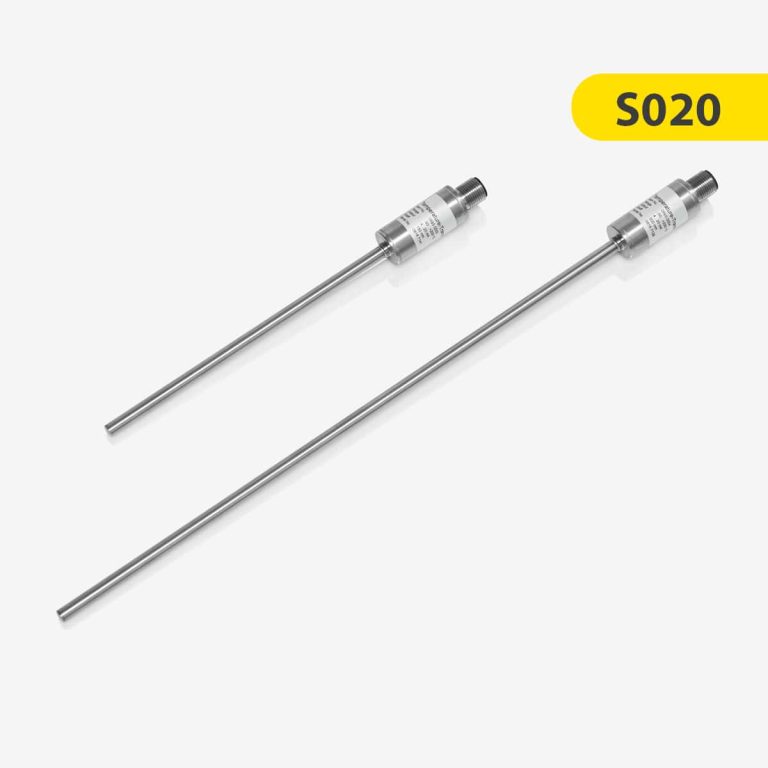

The S020 temperature sensor is a simple and affordable solution for monitoring the temperature of compressed air and gases, suitable for measuring liquids, steam, compressed air, and gases in industrial applications, including inlet/outlet temperature monitoring for dryers and compressor outlets.
Made in Germany. brand SUTO, model S020
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The temperature sensor is designed to measure the temperature of liquid, vapor, compressed air and gases within the permissible operating parameters.
Key Features:
| MEASUREMENT | |
| Temperature | |
| Accuracy | 0.5 % o.RGD + 0.2 % FS |
| Measuring range | -50 … +200 °C |
| Sensor | PT1000 Class A |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA, (2 wire loop powered) |
| Scaling | 4 mA = -50 °C, 20 mA = +200 °C |
| Load | Max 250 Ohm |
| Supply | |
| Voltage supply | 16 … 30 VDC |
| Current consumption | Max. 20 mA |
| Data interface | |
| Connection | M12 connector |
| GENERAL DATA | |
| Material | |
| Process connection | Stainless steel 1.4571 |
| Housing | Stainless steel 1.4571 |
| Metal parts | Stainless steel 1.4571 |
| Miscellaneous | |
| Electrical connection | M12 connector |
| Protection class | IP67 |
| Approvals | CE |
| Process connection | 6 mm Fitting |
| Weight | 0.08 kg |
| Operating conditions | |
| Ambient temperature | -40 … +90 °C |
| Model | Description | Price |
| S693 0003 | S020 Temperature Transmitter, -50 … +200 °C, 4 … 20 mA output loop powered, 6 x 150 mm sensor tube | On request |
| S693 0004 | S020 Temperature transmitter, -50 … +200 °C, 4 … 20 mA output loop powered, 6 x 300 mm sensor tube | On request |
You can request the necessary certificates, documentation, instructions and user guide for SUTO S020 using the special form.
You can buy SUTO S020 in Latvia at a price starting from price by request € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. SUTO S020 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
