This flowmeter measures accurate flow rate with a precise sensor and provides various weir and plume measurement formulas, making it easy to use according to the user’s environment.
Made in South Korea. brand ISTEC, model SF-500S
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

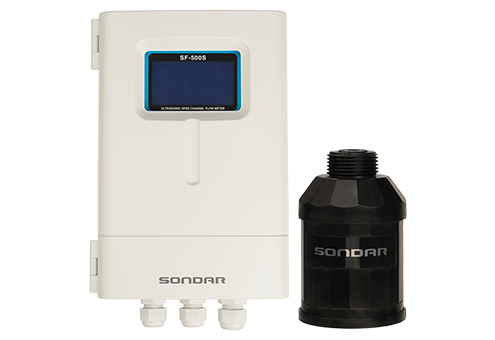

The SF-500S is an ultrasonic open-channel flow meter designed to measure flow rate in open channels. It calculates flow rate using water level data measured at specific weirs or flumes, converting level values through flow equations. Accurate level measurement is essential for precise flow readings.
The SF-500S not only measures water levels with high-precision sensors, but also supports multiple weir and flume calculation formulas to adapt to various field conditions. Measured flow data is stored in substantial internal memory and can be conveniently downloaded via USB for efficient flow trend analysis.
Features
| Controller SF-500S | ||
| Measuring Method | Non-contact ultrasonic measurement | |
| Measuring Range | 0.00m³/h ~ 200,000.00m³/h | |
| Accuracy | 0.2% of F.S | |
| Resolution | 1mm | |
| Response Speed | 0.1m/min ~ 100m/min, adjustable | |
| Data Logging | 16,128 logs (max 672 days at 1hr interval) | |
| Output | Analog | 2 channels, 4~20mA, max 750Ω isolated |
| Relay | 3 or 6 relays | |
| Digital Communication | RS232, RS485, Modbus | |
| Display: Illuminated Graphic LCD | ||
| Protection Rating | IP65 | |
| Operating Temperature | -20℃ to 60℃ | |
| Material | Polycarbonate | |

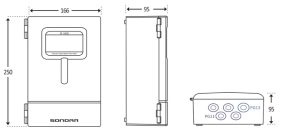

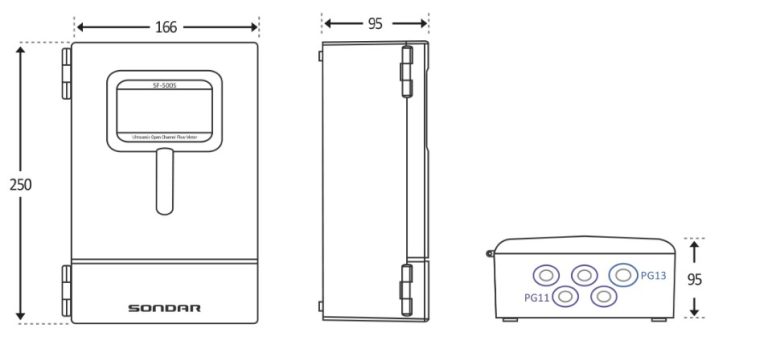

| Dimensions | 166(W)×250(H)×95(D) mm | |
| Weight | Approx 2kg | |
| Power Supply | AC | 100-230V AC±15%, 50/60Hz, 29VA(12W) Fuse: 250V T1.0A |
| DC | DC 9-30V, Max 8W | |
| Sensor LXD-04 | ||
| Measuring Distance | 0.3-4m | |
| Beam Angle | 8° | |
| Mounting Specification | 1″ PF | |
| Weight | Approx 1.0kg | |
| Sensor Material | PP, PVDF | |
| Temperature Compensation | Built-in temperature sensor (external temperature sensor optional) | |
| Protection Rating | IP68 | |
| Cable | 2-core shielded cable (18AWG) | |
| Certification | CE, FCC | |
| SF-500S Ordering Code | |
|---|---|
| Sensor Channel | |
| 1 | 1xSENSOR, LXD-04 |
| Power Supply | |
| A | AC 100 to 230V (Standard) |
| B | DC 9 to 30V |
| Communication Type | |
| N | none |
| A | RS232 (Standard) |
| B | RS485 |
| C | RS232 on Modbus |
| D | RS485 on Modbus |
| Relay | |
| 3 | 3xRelay |
| SF500S- | |
You can request the necessary certificates, documentation, instructions and user guide for ISTEC SF-500S using the special form.
You can buy ISTEC SF-500S in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. ISTEC SF-500S price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
