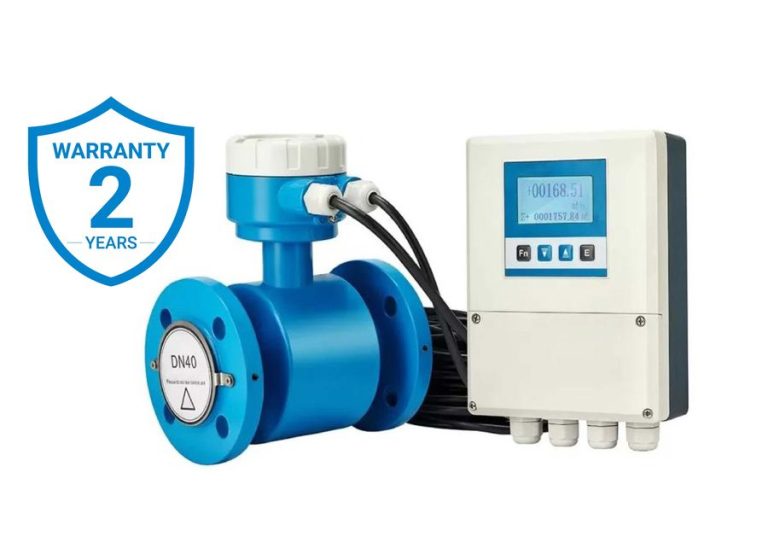

Aimag C Electromagnetic flowmeter is specailly designed for corrosive liquid, such as acid, sulfuric acid, acetic acid, niteric ascid, brine, sea water, alcohol, ammonia liquid ect. Aimag C flow meter use chemical resistant electrodes and liner, and can withstand 40Mpa high pressure flow meter.
Aimag C is best chemical-resistant flow meter for corrosive liquid. The diameter of the electromagnetic flowmeter ranges from DN6 to DN3000.
Made in China. brand ARTANG, model AIMAG C
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
● Wide variety of wetted materials.
● No moving parts, maintenance-free.
● Compact and remote version are available.
● Max. process pressure up to 26MPa.
● Meet GB3836 explosion-proof standards.
The accuracy of Aimag C electromagnetic flowmeter is up to 0.2%, which can effectively guarantees the accuracy of the measurement process. The maximum process pressure is up to 26MPa, which is especially suitable for the applications of high-pressure water injection and polymer injection in oil field development.
| Model Number | Aimag C |
| Application | Chemical Industry |
| Nominal Diameter | DN15 ~ DN600 |
| Structure Type | Remote |
| Electrode Material | Stainless Steel, Hastelloy, Tantalum, Titanium, Platinum |
| Lining Material | PU, PTFE, PFA, CR |
| Process connection | Flange: GB, ANSI, DIN, JIS |
| Process Pressure | PN16 ~ 40 / CLASS 150/300 / JIS 10K/20K |
| Accuracy | ± 0.5% / ±0.2% |
| Output Signal | 4~20mA Frequency / Pulse |

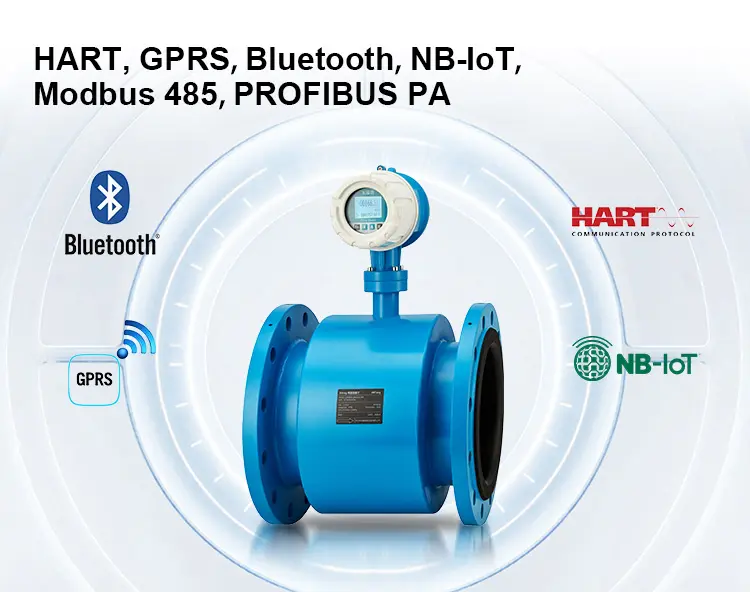

| Communication | HART, Modbus RS485, PROFIBUS DP |
| Explosion Certification | CQEx |
| Certification | CE, SIL |
| Protection Grade | IP67 / IP68(optional) |
You can request the necessary certificates, documentation, instructions and user guide for ARTANG AIMAG C using the special form.
You can buy ARTANG AIMAG C in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. ARTANG AIMAG C price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
