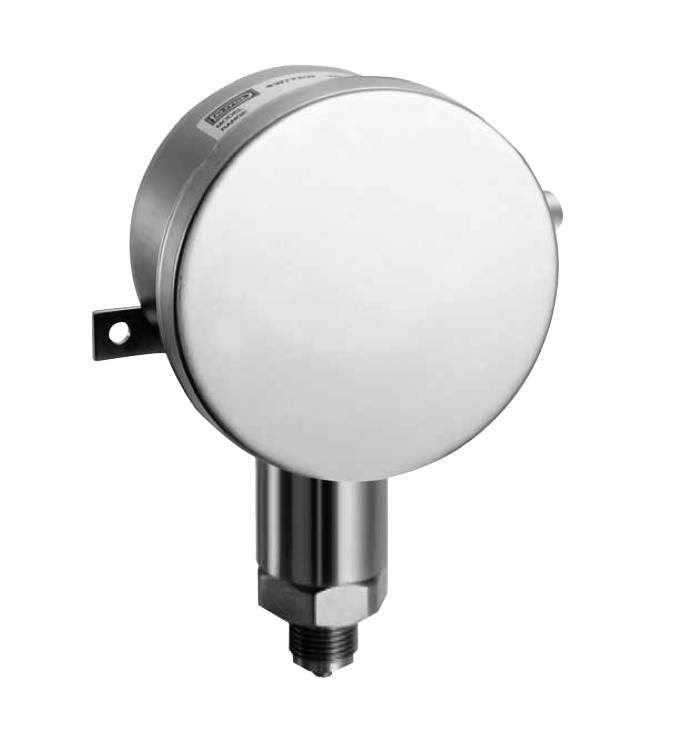

Pressure switches series PBS8 are particularly suitable to be installed on every chemical, petrochemical plants, onshore and offshore applications and machinery, food and pharmaceutical industry or however where is mandatory the use of all Stainless Steel instruments in presence of medium-high pressure.
Made in Italy. brand TE.MA., model PBS8
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Case and cover | st. st. series 300, bayonet type cover |
| Protection degree | IP65 (EN60529/IEC529), NEMA 4 |
| Electrical wiring | internal terminal board |
| Ground terminal | 1 internal and 1 external |
| Internal parts material | st. st. |
| Blow out | neoprene |
| Sensing element | Bourbon tube type, with “C” shape for pressure ≤ 60 Bar, helical wound for pressure≥ 60 Bar |
| Element material | st. st. 316 + viton o-ring up to range 0/2,5 Bar; zinc steel coated with st. st. 316 for ranges from 0/4 Bar to 0/25 Bar |
| Process connection material | st. st. 316 |
| Connection dimension | ½”NPTM or BSP ; ½” NPTF |
| Cable entry | ½”NPTF, ½”BSPF, M20x1,5 |
| Mounting | direct on tap, wall or 2” pipe mounting (optional bracket) |
| Ranges | see table B |
| Microswitch | 1 SPDT or 2 independent SPDT with fixed differential or with adjustable dead band according to table A |
| Set point adjustment | internal micrometric screw |
| Repeatability | better than 1% f.s. |
| Ambient temperature limit | -30/+90°C |
| Fluid temperature limit | -30/+150°C |
| Thermal drift | ≤ 0,05%/°C |
| Construction acc.to ATEX directive 2014/34/EU | for intrinsically Safe Circuits (on request) |
| Construction according to | PED directive 2014/68/EU |
Microswitches
| TYPE OF CONTACT | 1 microswitch | 2 microswitches | Electric rating (resistive load) |
|---|---|---|---|
| In air, silver contacts | C | O | 15 A 380 Vac – 2A 24 Vdc |
| Splash proof silver contact | D | M | 15 A 380 Vac – 2A 24 Vdc |
| In air, golden plated contacts | Q | T | 1 A 125 Vac – 0.5A 24 Vdc |
| Silver contacts, sealed in inert gas | R | U | 15 A 380 Vac – 2A 24 Vdc |
| Gold plated contacts, sealed in inert gas | S | Z | 1 A 125 Vac – 0.5A 24 Vdc |
| In air, silver contacts with adjustable dead band | V | 20 A 380 Vac – 2A 30 Vdc | |
Ranges
Pressure (Bar)
| Setting range | 0-10 | 0-16 | 0-25 | 0-40 | 0-60 | 0-100 | 0-160 | 0-250 | 0-400 | 0-600 |
| Proof pressure | 15 | 25 | 35 | 60 | 80 | 135 | 210 | 350 | 500 | 800 |
| Dead band 1 micro (1) | 0,20 | 0,25 | 0,25 | 0,70 | 1,5 | 2 | 2,5 | 3 | 5 | 7 |
| Dead band 2 micro (1) | 0,30 | 0,50 | 0,50 | 1 | 2 | 2,5 | 3,5 | 4,5 | 7 | 8 |
(1) For gold plated contacts, values are to be multiplied 3 times
Dead band adjustement for micro with adjustable dead band from 10 to 50% of range.

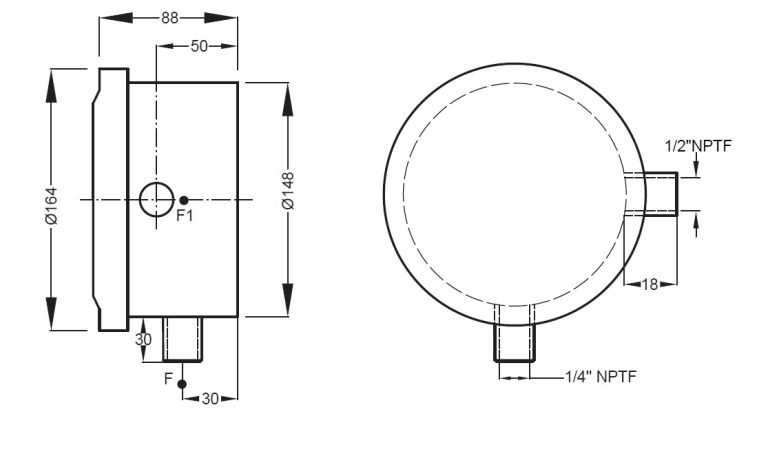

F = PROCESS CONNECTION
| Type | Code |
| 1/2” GAS / M | G05 |
| 1/2” NPT / M | G06 |
| 1/2“ NPT / F | G07 |
| Other | G99 |
F1 = CABLE ENTRY
| Type | Code |
| 1/2” GAS / F | C01 |
| 1/2” NPT / F | C02 |
| M20x1,5 | C03 |
| Other | C99 |
Options and accessories
| Description | Code |
| Case and cover in st. st. 316 | H8 |
| Element and connection in MONEL 400 | E25 |
| Cable gland in PVC | C17 |
| MIL specification cable gland | C19 |
| Wall mounting bracket | T20 |
| 2” pipe mounting bracket | T21 |
| Degreasing for O2 service | D13 |
| Version for Intr. Safe circuits | 130 |
| Tropicalization | D10 |
| Vacuum protection | V50 |
| Overpressure protection | V51 |
| Accessories (siphons, valves, chemical seals) | Z1 |
How to order: Please specify: code, setting range, options and accessories.
Example: model PBS8-0/25Bar – C – C01 – G05 – I30
