TE.MA. MV600 Glass tube type pressure gauge

The pressure gauges series MV600 are manufactured in 3 versions type MV601, differential, armoured, with high resistance tempered glass tubes, type MV602, differential, with calibrated glass tubes type MV603, glass tube pressure gauges for accurate measurements

			int(23641)
NULL

Made in Italy. brand TE.MA., model MV600

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. MV600

Mounting	vertical
Dial	aluminium with black numerals on white background
Element material	tempered glass tube
Measuring liquid	water, organic liquids
Support material	st. st., black painted
Connection dimension	3/8” or ¼ “ NPTM o BSPM
Mounting	wall mounting
Ranges	see table
Accuracy	class 1, acc. to EN837 at 20°C
Ambient temperature limit	0/+60°C.

Expand Table

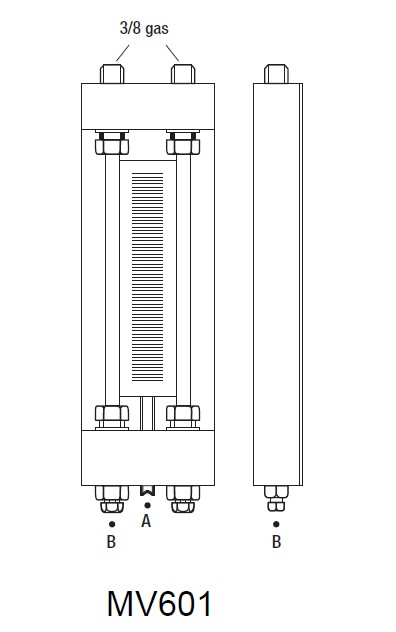

MV601 – Ranges

Differential pressure	mm	100-0-100	200-0-200	400-0-400	500-0-500	750-0-750	1000-0-1000	1500-0-1500	2000-0-2000
Static pressure	Bar	50	50	50	50	50	50	50	50

Expand Table

A – Range micrometer adjustable
B – Draining plugs

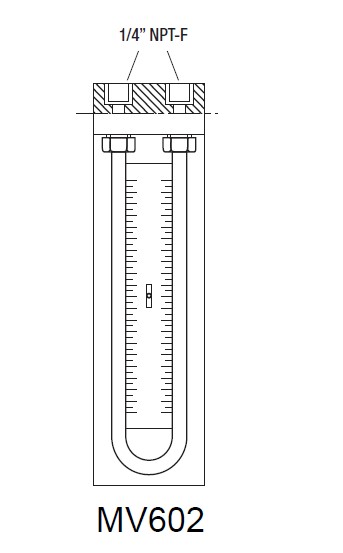

MV602 – Ranges

Differential pressure	mm	100-0-100	200-0-200	300-0-300	400-0-400	500-0-500	600-0-600	800-0-800	1000-0-1000	1500-0-1500
Static pressure	Bar	6	6	6	6	6	6	6	6	6

Expand Table

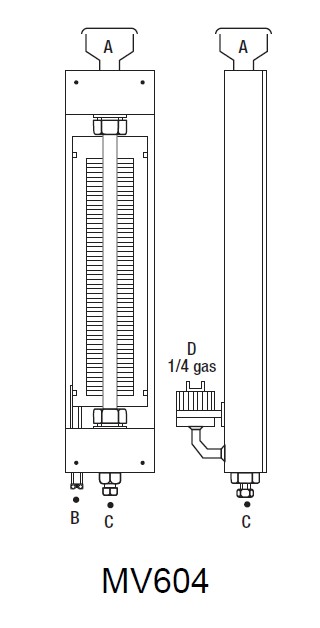

MV604 – Ranges

Pressure

0-200

0-400

0-500

0-800

0-1000

0-1500

Expand Table

A – Collection trap
B – Range micrometer adjustable
C – Draining plug
D – Pressure iniet

How to order: model, case diameter, range, type and dimensions connection.
Example: model MV603, 0/200mm, ¼“GM.

User Guide and Instruction manual for TE.MA. MV600

Data Sheet TE.MA. MV600

You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MV600 using the special form.
