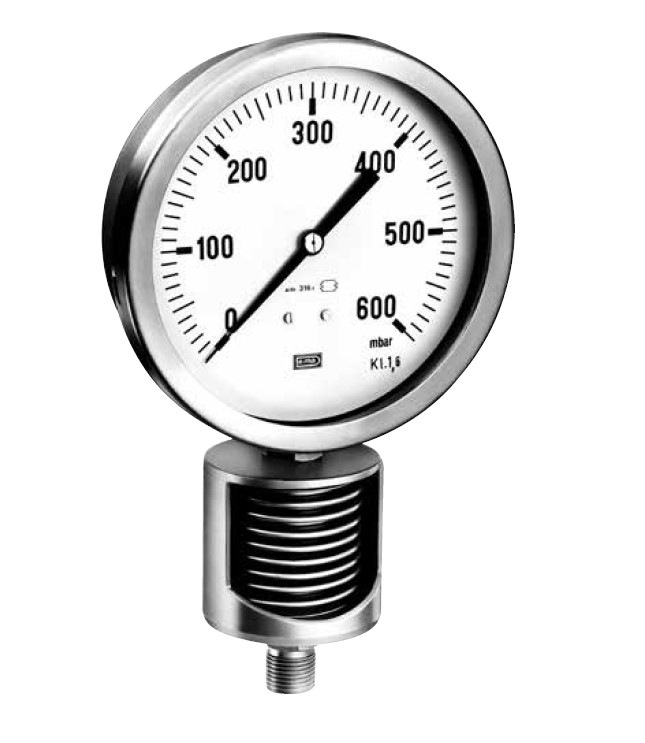

Realized for use in low pressure with gas or non crystallizing liquids according to EN837-3
Diameters: 100-150-200 mm; Range: 0-600 mBar
Made in Italy. brand TE.MA., model MS1000
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Diameters | 100-150-200 mm |
| Case and ring | st. st. 304, bayonet type ring |
| Protection degree | IP55 (EN60529/IEC529) |
| Window | glass, thickness 4 mm, gasket in neoprene |
| Movements | st. st. |
| Dial | aluminium with black numerals on white background |
| Pointer | aluminium, black painted, micrometric adjustable |
| Blow out plug | neoprene, back |
| Measuring chamber material | st. st. 304 |
| Socket | st. st. AISI 316 |
| Sensing element | bellow in st. st. 316 |
| Gasket between socket and bellow | non present, T.I.G. welded |
| Connection dimension | threaded ½”NPTM or BSP/M |
| Mounting | direct, lower connection type 1001 direct, eccentric rear connection type 1004 panel front flange eccentric rear connection type 1007 |
| Ranges | see table |
| Overpressure | +30 F.S. for range up to 60 Bar |
| Accuracy | class 1,6 acc. to EN837 at 20°C |
| Ambient temperature limit | -25/+65°C |
| Fluid temperature limit | max 100°C |
| Construction acc. to ATEX directive 2014/34/EU | CE Ex II 2G Ex h IIC T6.. T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request) |
| Construction according to PED directive 2014/68/EU | (on request). |
Ranges
Pressure
| mBar | 0-25 | 0-40 | 0-60 | 0-100 | 0-160 | 0-250 | 0-400 | 0-600 |
Available on request double scale: Bar/psi – Bar/kPa – psi/kg/cm2 – kPa/psi
Vacuum and compound
| mBar | -60-0 | -100-0 | -160-0 | -250-0 | -400-0 | -600-0 | -40-20 | -60-40 | -100-60 | -150-100 | -250-150 | -400-200 |
Available on request double scale: Bar/in Hg-psi – Bar/kPa – in Hg-psi/kg/cm2 – kPa/in Hg-psi
Mounting Type

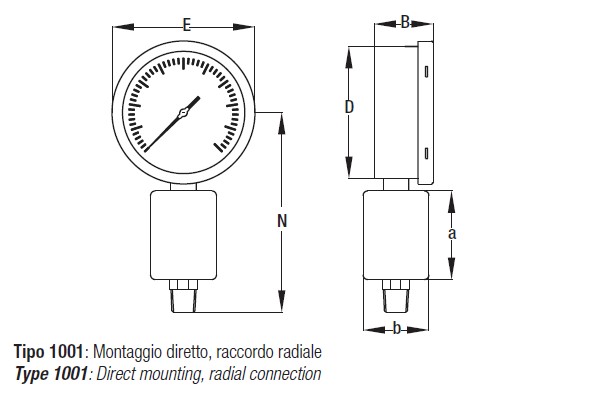

Type 1001: Direct mounting, radial connection

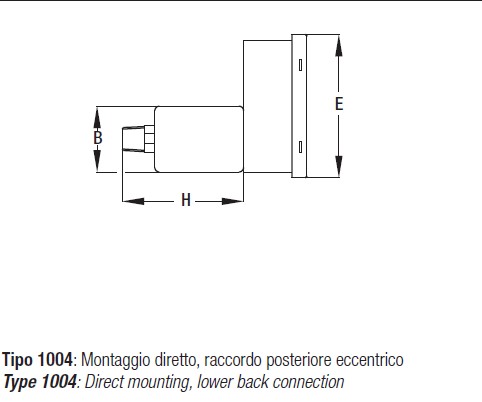

Type 1004: Direct mounting, lower back connection

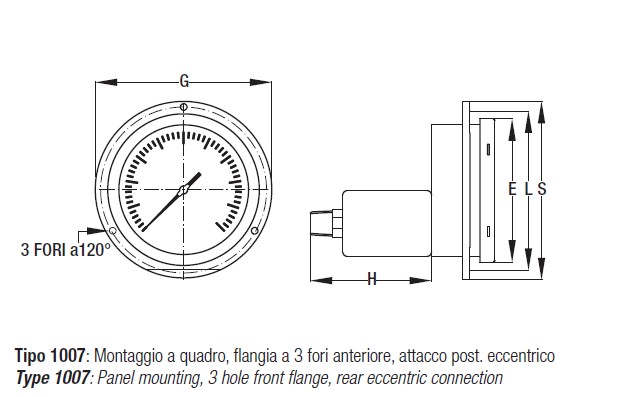

Type 1007: Panel mounting, 3 hole front flange, rear eccentric connection
Options and accessories
How to order: Please specify: model, case diameter, range, type and dimensions connection, options if any.
Example: model MS1001, DN100, 0/250mBar, ½”NPTM
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MS1000 using the special form.
