TE.MA. MM900

Photo TE.MA. MM900 Specifications TE.MA. MM900 Model Chart TE.MA. MM900 User Manual for TE.MA. MM900 Related instruments to TE.MA. MM900

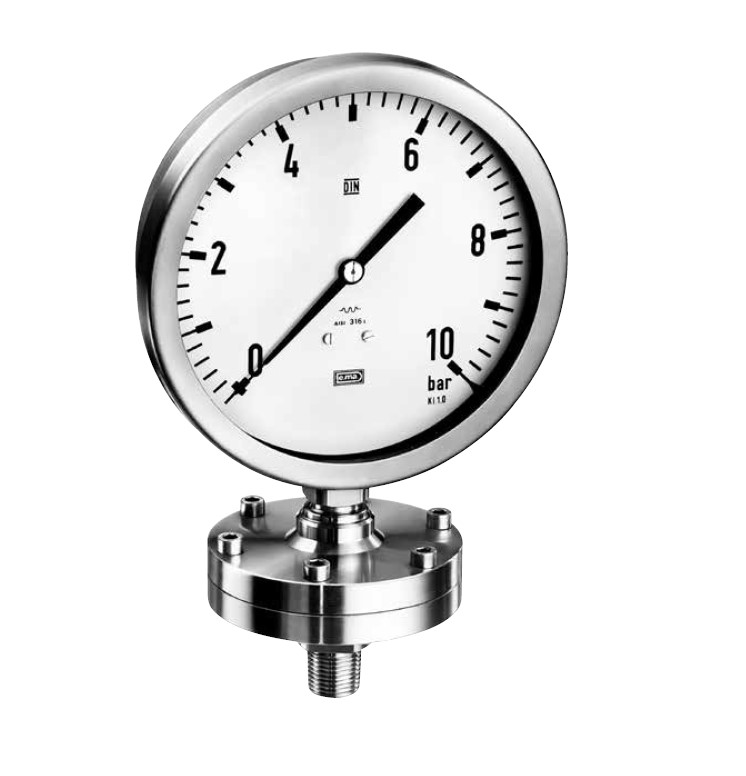

TE.MA. MM900 All st. st. Pressure gauge diaphragm type

TE.MA. MM900 All st. st. Pressure gauge diaphragm type
TE.MA. MM900 All st. st. Pressure gauge diaphragm type
In the pressure gauges series MM900, the sensing element is a diaphragm with concentric corrugations actuating the amplifying mechanism through a pivot. Designed for the measurement of pressure, vacuum of viscous fluids, crystallizing or polluted process fluids. These instruments are more reliable ane easy to protect against overpressure than the Bourdon tube type according to EN837-3
			int(23623)
NULL

Made in Italy. brand TE.MA., model MM900

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. MM900

Diameters 100-150 mm
Case and ring st. st. 304, bayonet type ring
Protection degree IP55/IP65 (EN60529/IEC529)
Window glass, thickness 4 mm, gasket in neoprene
Movement st. st.
Dial aluminium with black numerals on white background
Pointer aluminium, black painted, micrometric adjustable
Blow out plug neoprene, back
Upper part material forged in st. st. 316
Socket st. st. 316
Sensing element diaphragm with concentric corrugations in st. st. 316 for ranges ≤ 2,5 Bar. Zinc plated steel for ranges ≥ 4 Bar
Gasket material PTFE or VITON
Lower part material forged st. st. 316
Connection dimension threaded ½”NPTM or BSP/M suitable for flange UNI, ANSI
Mounting direct, lower connection type 901
Ranges see table
Overpressure +25% F.S. for range up to 60 Bar
Accuracy class 1,6 acc. to EN837 at 20°C
Ambient temperature limit -25/+65°C
Fluid temperature limit max 100°C
Construction acc. to ATEX 2014/34/EU CE Ex II 2G Ex h IIC T6..T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request)
Construction according to PED 2014/68/EU (on request)
Expand Table

Ranges
Pressure

Bar 0÷0,6 0÷1 0÷1,6 0÷2,5 0÷4 0÷6 0÷10 0÷16 0÷25
mBar 0÷4 0÷10 0÷16 0÷25 0÷40 0÷60 0÷100 0÷160 0÷250 0÷400
Expand Table

Available on request double scale: Bar/psi – Bar/kPa – psi/kg/cm2 – kPa/psi

Vacuum and compound

Bar -1÷0 -1÷0,6 -1÷1,5 -1÷3 -1÷5 -1÷9 -1÷15 -1÷24
KPa -10÷0 -16÷0 -25÷0 -40÷0 -60÷0 -100÷0 -160÷0 -250÷0 -400÷40 -40÷20 -60÷40 -100÷60 -150÷100 -250÷150
Expand Table

Available on request double scale: Bar/in Hg-psi – Bar/kPa – in Hg-psi/kg/cm2 – kPa/in Hg-psi

Model Chart MM900

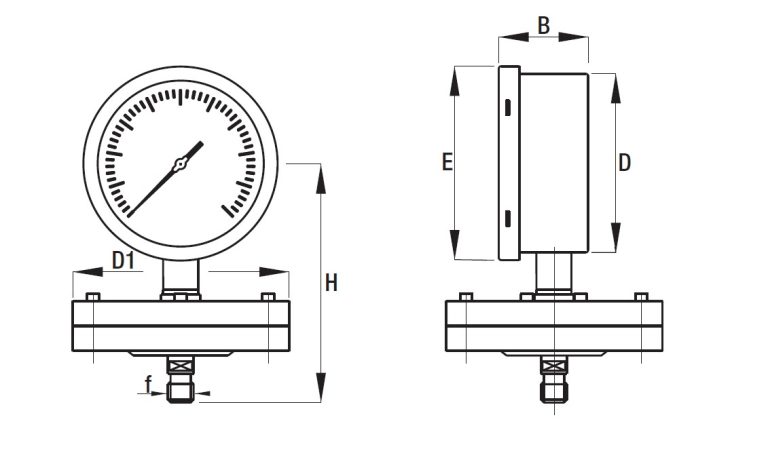

Type and dimensions with threaded connection

Range Type DN B D E H f Weight / kg
0/25÷60mBar 901/A 100 53 101 113 155 1/2″BSPM/NPT 2,8
901/A 150 53 150 162 180 1/2″BSPM/NPT 3,0
0/100÷400mBar 901/B 100 53 101 113 155 1/2″BSPM/NPT 2,8
901/B 150 53 150 162 180 1/2″BSPM/NPT 3,0
0/0,6÷25Bar 901 100 53 101 113 160 1/2″BSPM/NPT 2,0
901 150 53 150 162 190 1/2″BSPM/NPT 2,2
Expand Table

Type and dimensions with flanged connection

UNI flanges ANSI flanges
DN PN DN PN
15 6 1/2” 150
15 10/16 1/2” 300
15 25/40 1/2” 600
20 6 3/4” 150
20 10/16 3/4” 300
20 25/40 3/4” 600
25 6 1” 150
25 10/16 1” 300
25 25/40 1” 600
40 6 1”1/2 150
40 10/16 1”1/2 300
40 25/40 1”1/2 600
50 6 2” 150
50 10/16 2” 300
50 25/40 2” 600
Expand Table

Options and accessories

  • Special overpressure
  • Case and ring st. st. 316
  • Tropicalization
  • Acrylic or laminated safety glass window
  • Wetted parts coated with PTFE
  • Diaphragm coated with special material: monel, hastelloy B or C, tantalum, nickel
  • Absolute pressure version
  • Over and underload stop
  • Acrylic window with max value pointer
  • Electrical contacts (see dedicated leaflet)
  • Glycerine filling at 98% for T.amb.0÷65°C
  • Glycerine filling at 90% for T.amb.-15÷65°C
  • Silicon oil filling for T.amb.-50÷65°C
  • Fluorinated oil filling for use with Oxygen or for T.amb –60÷65°C
  • Degreasing for use with Oxygen
  • Pulsation dampener, exthernal overpressure protector, pig-tails, syphons, valves.

How to order: Please specify: model, case diameter, range, type and dimensions connection, options if any.
Example: model MM901, DN100, 0/25Bar, ½”NPTM
