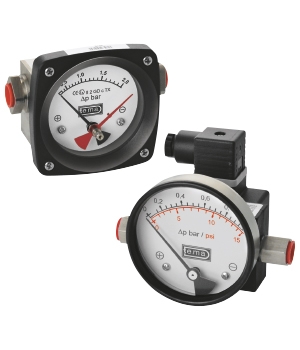

TE.MA. MDP200 Differential pressure gauge piston type

The differential pressure gauges series MDP200, with or without electric contact, are simple and suitable to be installed in all the applications where is necessary an indication or alarm of differential pressure at low cost.
			int(23610)
NULL


Made in Italy. brand TE.MA., model MDP200

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. MDP200

Diameters 50-63-80-100-115-150 mm (2”,2.5”,3.5”,4”,4.5”,6”)
Case and ring st. st. 304
Protection degree IP65 / NEMA 4
Window Float glass (std.), toughened glass & acrylic on request, thickness ¼”
Dial aluminium with black numerals on white background
First mark at 20% of fsv
Blow out plug EPDM, upper

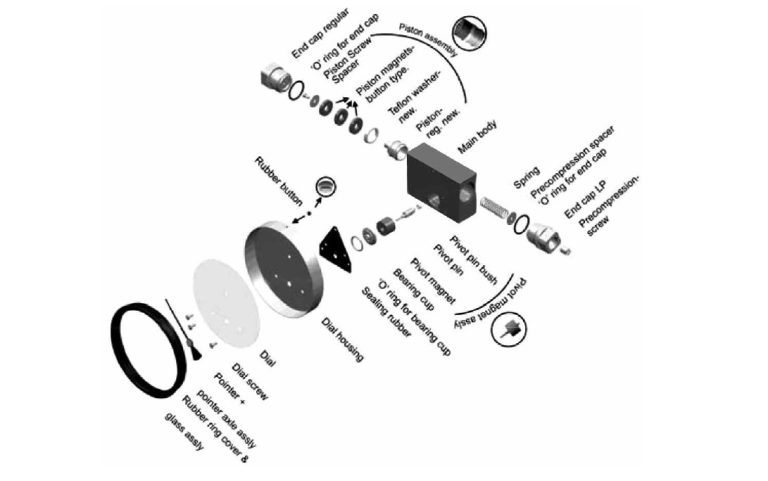

Sensing element piston
Wetted parts material spring in st. st. 302, teflon & ceramic magnet
Seals material Buna-N, Viton & EPDM ‘0’ rings
Body material aluminium, brass, st. st. 316, Monel
Connection dimension ¼ ”NPTF (standard) or BSP
Mounting in line type 201
Flush mounting, 3 holes front flange type 207
Connection position in line, rear
Ranges from 0-0,25 Bar to 0/70 Bar
Max pressure 200 Bar for aluminium, brass body
400 Bar for st. st. body
Standard accuracy 2% fsv
Overpressure protection max working pressure on one side and on both side.
Fluid temperature limit max 80°C
Electric contact 1 or 2 SPST contact
Wiring DIN connector or terminal strip
Contact adjustment range 20-100% fsv.
Expand Table

Model Chart TE.MA. MDP200

Mounting Type

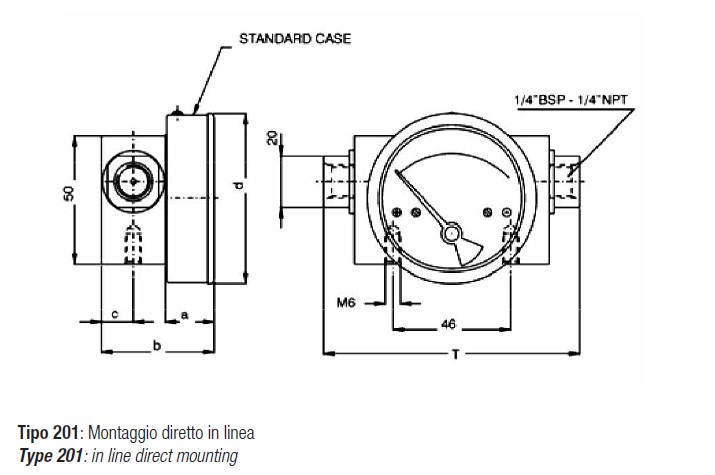

Type 201: in line direct mounting

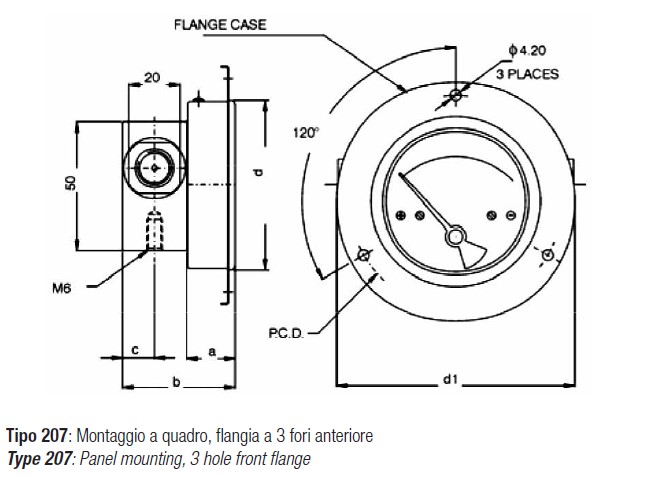

Type 207: Panel mounting, 3 hole front flange

Options and accessories

  • “U” bracket suitable for 2” pipe mounting
  • Glycerine filling
  • Red drag pointer (exept case diam. 2” and 6”)
  • Double scale
  • Colour band
  • Filter mesh on “+”connection
  • Reverse port (Pointer moves from right to left).

How to order: Please specify: model, material, range, type and dimensions connection, options if any.
Example: model MDP205, Alluminio, 0/2,5Bar, 2x ¼”NPTFc
