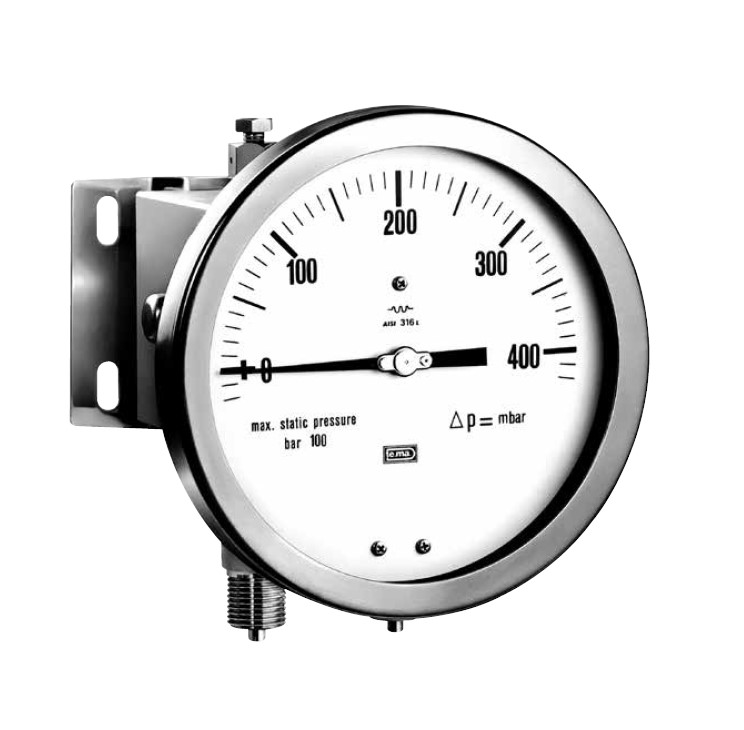

TE.MA. MDM1200 Differential pressure gauge diaphragm type

The differential pressure gauges series MDM1200, with or without filling fluid, are simple and suitable to be installed in presence of low static pressure on every chemical, petrochemical plants, onshore and offshore applications and machinery, food and pharmaceutical industry
			int(23604)
NULL


Made in Italy. brand TE.MA., model MDM1200

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. MDM1200

Diameters 100-150 mm
Case and ring st. st. 304, bayonet type ring
Protection degree IP55 (EN60529/IEC529)
Window glass, thickness 4 mm, gasket in neoprene
Movements st. st., reinforced
Dial aluminium with black numerals on white background
Pointer aluminium, black painted, micrometric adjustable
Blow out plug EPDM, upper
Sensing element diaphragm
Element material st. st. 316L – Monel – Hastelloy C276
Flanges and process connection material st. st. 316
Drain and venting tap st. st. 316
Shaft st. st. 316 with O-Ring gasket in VITON
Connection dimension ½”NPTM or GAS
Mounting surface mounting with bracket type 1205
Flush mounting, 3 holes front flange type 1207
Ranges see table
Standard accuracy class 2,5 acc. to EN837
Accuracy on request class 1,6 acc. to EN837
Scale amplitude 180°
Ambient temperature limit -25/+65°C (-60/+60°C for filled version see options)
Fluid temperature limit max 100°C
Temperature drift 0,08%/°C in range 10/30°C
Construction acc. to ATEX directive 2014/34/EU CE Ex II 2G Ex h IIC T6.. T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request)
Construction according to PED directive 2014/68/EU (on request)
Expand Table

Ranges

Differential pressure mBar 0-100 0-160 0-250 0-400 0-600
Static pressure on side “-” Bar 25 25 25 50 50
Static pressure on both side or only on side “+” Bar 100 100 100 100 100
Expand Table

Model Chart TE.MA. MDM1200

Mounting Type

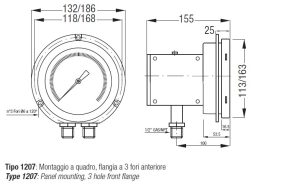

Type 1207: Panel mounting, 3 hole front flange

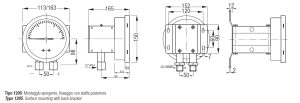

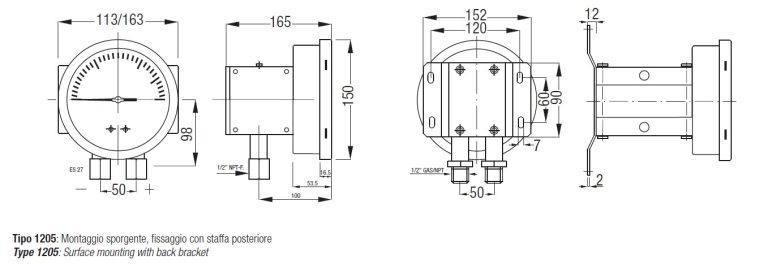

Type 1205: Surface mounting with back bracket

Options and accessories

  • Distance centre to centre process connection 54 mm
  • Scale lower than 0/100m Bar (0-16; 0-25; 0-40; 0-60 mBar)
  • Static and one side pressure 250 Bar
  • Static and one side pressure 400 Bar
  • Safety glass type thickness 4 mm
  • Glycerine filling at 98% for T.amb.0÷65°C
  • Glycerine filling at 90% for T.amb.-15÷65°C
  • Silicon oil filling for T.amb.-50÷65°C
  • Filling with fluorinated oil suitable for use on Oxygen and for ambient temperature -60÷60°C
  • Tropicalization
  • Mounting of chemical seals direct or remote (see relative leaflets)
  • Pulsation dampener, external overpressure protector, cooling towers, syphon, manifold at 3 or 5 valves.

How to order: Please specify: model, range, type and dimensions connection, options if any.
Example: model MDM1205, 0/2,5Bar, 2x½”NPTM
