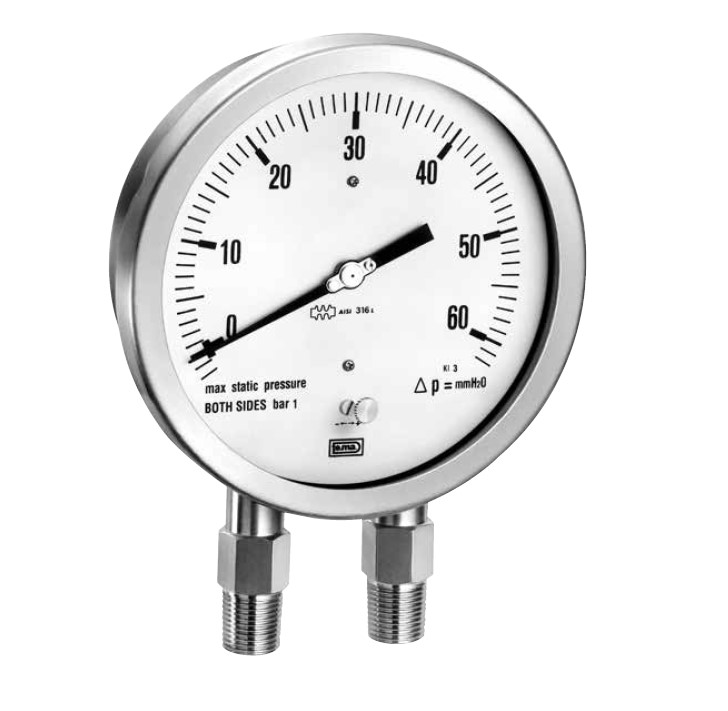

Made in Italy. brand TE.MA., model MDC1200
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Diameters | 150 mm |
| Case and ring | st. st. 300, bayonet type ring |
| Protection degree | IP55 (EN60529/IEC529) |
| Window | acrylic, gasket in neoprene |
| Movements | nickel-plated brass |
| Dial | aluminium with black numerals on white background |
| Pointer | aluminium, black painted, micrometric adjustable |
| Sensing element | capsule |
| Element material | st. st. 316 |
| Connection material | st. st. 316L |
| Connection dimension | ½”NPTM or BSPM |
| Mounting | wall, rear flange lower connection type 1205 panel front flange eccentric back connection type 1207 |
| Ranges | see table |
| Standard accuracy | class 2,5 acc. to EN837 |
| Accuracy on request | class 1,6 acc. to EN837 |
| Scale amplitude | 270° |
| Ambient temperature limit | -25/+65°C |
| Fluid temperature limit | max 50°C |
| Thermal Drift | 0,08%/°C in range 10/30°C |
| Construction acc. to ATEX directive 2014/34/EU | CE Ex II 2G Ex h IIC T6..T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request) |
| Construction according to PED directive 2014/68/EU | (on request) |
Ranges
| Differential pressure | mBar | 0-4 | 0-6 | 0-10 | 0-16 | 0-25 | 0-40 | 0-60 | 0-100 | 0-160 | 0-250 | 0-400 |
| Static pressure on both sides | Bar | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

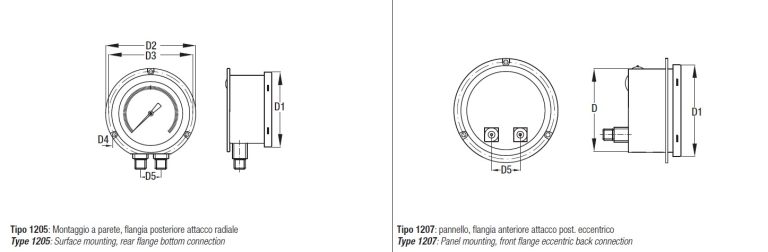

Mounting Type
Type 1205: Surface mounting, rear flange bottom connection
Type 1207: Panel mounting, front flange eccentric back connection
Options and accessories
How to order: Please specify: model, range, type and dimensions connection, options if any.
Example: model MDC1205, 0/250mBar, 2x½”NPTM
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MDC1200 using the special form.
