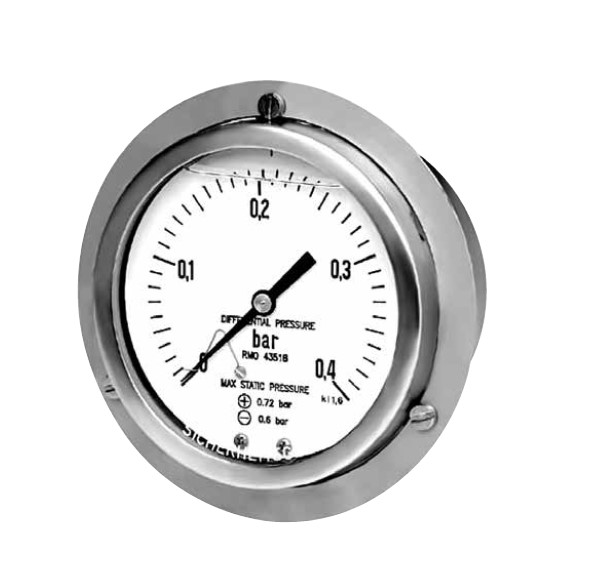

The differential pressure gauges series MDB1200, with or without filling fluid, are simple and suitable to be installed in presence of low static pressure on every chemical, petrochemical plants, onshore and offshore applications and machinery, food and pharmaceutical industry.
Made in Italy. brand TE.MA., model MDB1200
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Diameters | 100 mm |
| Case and ring | st. st. 304, bayonet type ring |
| Protection degree | IP55 (EN60529/IEC529) |
| Window | glass, thickness 4 mm, gasket in neoprene |
| Movement | st. st., reinforced |
| Dial | aluminium with black numerals on white background |
| Pointer | aluminium, black painted, micrometric adjustable |
| Blow out | plug EPDM, upper |
| Sensing element | Bourdon tube type, with “C” form |
| Element material | st. st. 316L |
| Process connection material | st. st. 316 |
| Welding | T.I.G. |
| Connection dimension | ¼” NPTM |
| Mounting | direct, lower connections type 1201 surface, rear flange bottom connections type 1205 panel front flange bottom connection type 1207 |
| Ranges | see table |
| Accuracy | class 1,6 acc. to EN837 |
| Scale amplitude | 270° |
| Ambient temperature limit | -25/+65°C (-60/+60°C for filled version see options) |
| Fluid temperature limit | max 100°C |
| Temperature drift | 0,08%/°C in range 10/30°C |
| Construction acc. to ATEX directive 2014/34/EU | CE Ex II 2G Ex h IIC T6..T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request) |
| Construction according to PED directive 2014/68/EU | (on request) |
Ranges
| Differential pressure | Bar | 0-0,4 | 0-0,6 | 0-1 | 0-1,6 | 0-2,5 | 0-4 | 0-6 | 0-10 |
| Static pressure only on side “+” | Bar | 0,72 | 1,6 | 4 | 8 | 12,5 | 16 | 24 | 40 |
| Static pressure on side “-”only | Bar | 0,6 | 1 | 1,6 | 2 | 3 | 5 | 10 | 16 |
Mounting Type

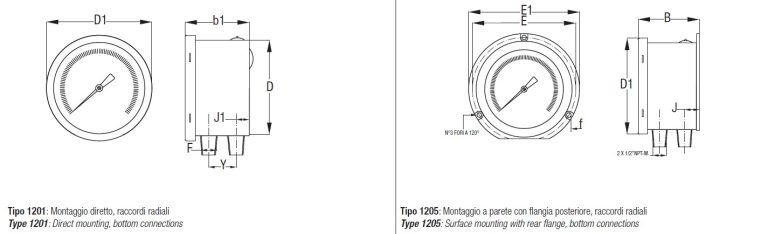

Type 1201: Direct mounting, bottom connections
Type 1205: Surface mounting with rear flange, bottom connections

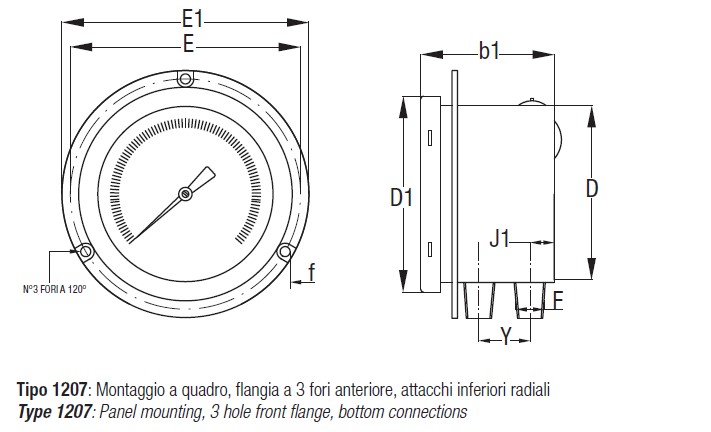

Type 1207: Panel mounting, 3 hole front flange, bottom connections
Options and accessories
How to order: Please specify: model, range, type and dimensions connection, options if any.
Example: model MDB1205, 0/2,5Bar, 2x½”NPTM
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MDB1200 using the special form.
