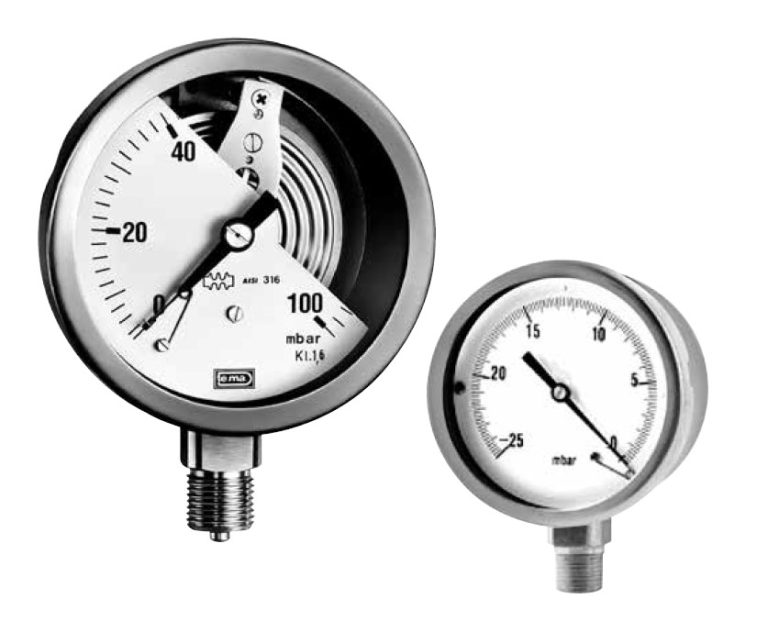

TE.MA. MC1100 Low-Pressure gauge capsule type

Realized for use in low pressure with gas or non crystallizing liquids according to EN837-3
Range: 0-600 mbar;
			int(23587)
NULL


Made in Italy. brand TE.MA., model MC1100

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. MC1100

Dimension Rectangular case (mod. 1105): 144×72 mm, black painted steel, with aluminium black painted front
Round case (mod. 1101; 1102): 100-150 mm, case and ring in st. st. 304, bayonet ring
Protection degree IP55 EN60529/IEC529 (IP44 for 144×72)
Window glass, thickness 4 mm, gasket in neoprene
Movement nichel plated brass
Dial aluminium with black numerals on white background
Pointer aluminium, black painted, micrometric adjustable
Filling plug neoprene, upper
Connection material st. st. 316, brass (for standard version)
Sensing element capsule in st. st. 316 welded TIG brass (for standard version)
Gasket to socket neoprene
Connection dimension threaded ½”NPTM or BSP/M
Mounting direct, lower connection type 1101
direct, central rear connection type 1102
panel, with bracket and central rear conn.type 1105
Ranges see table
Overpressure not allowed
Accuracy class 1,6 acc. to EN837 at 20°C
Ambient temperature limit -25/+65°C
Fluid temperature limit max 100°C (max 50°C for std. series)
Construction acc. to ATEX directive 2014/34/EU CE Ex II 2G Ex h IIC T6.. T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request)
Construction according to PED directive 2014/68/EU (on request)
Expand Table

Ranges

Pressure
0-6 mbar
0-10 mbar
0-16 mbar
0-25 mbar
0-40 mbar
0-60 mbar
0-100 mbar
0-150 mbar
0-160 mbar
0-200 mbar
0-250 mbar
0-300 mbar
0-400 mbar
0-500 mbar
0-600 mbar

Vacuum and compound
-3-3 mBar
-5-5 mBar
-10-6 mBar
-15-10 mBar
-25-15 mBar
-40-20 mBar
-6-0 mBar
-10-0 mBar
-16-0 mBar
-25-0 mBar
-40-0 mBar
-60-0 mBar
-100-0 mBar
-160-0 mBar
-250-0 mBar
-400-0 mBar
-600-0 mBar

-760-0 mmHg

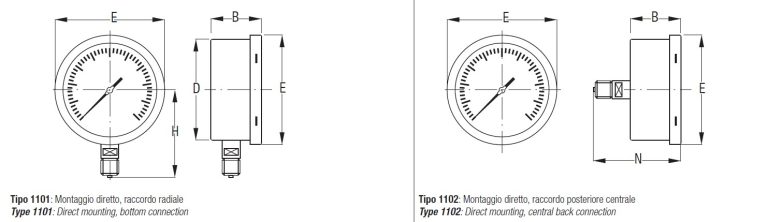

Type and dimensions connection

Type DN/DS D B E H N Weight in Kg
1101 63/2,5” 65 37 73 54 0,11
1101 100/4” 98 52 112 87 0,8
1101 150/6” 148 54 163 113 1,1
1102 100/4” 98 52 112 86 0,8
1102 150/6” 148 54 163 89 1,1
Expand Table

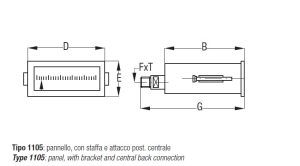

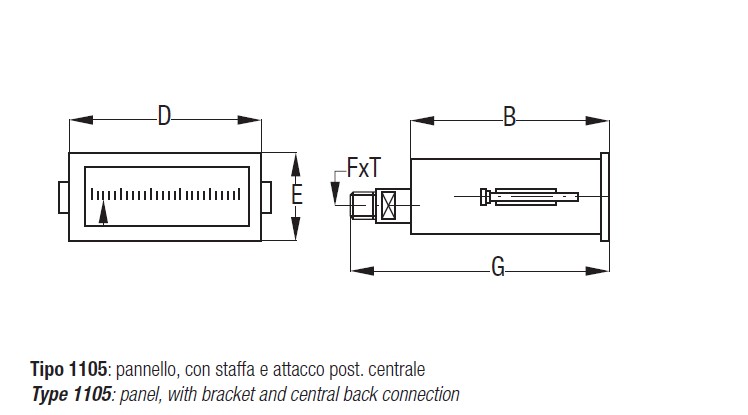

Type DS D B E G F T Peso in Kg
Weight in Kg
1105 144×72 144 146 72 183 37 37 1,3
Expand Table

Options and accessories

  • Overpressure 5 times full scale value
  • Cassa ed anello in st. st. 316
  • Absolute pressure version
  • Special scale
  • Acrylic window or laminated safety glass
  • Acrylic window with max value pointer settable from front
  • Electrical contacts (see dedicated leflet)
  • Pulsation dampener, exthernal overpressure protector, pig-tails, syphons, valves
  • Custom construction.

How to order: Please specify: model, case diameter, range, type and dimensions connection, options if any.
Example: model MC1001, DN100, 0/250mBar, ½”NPTM
