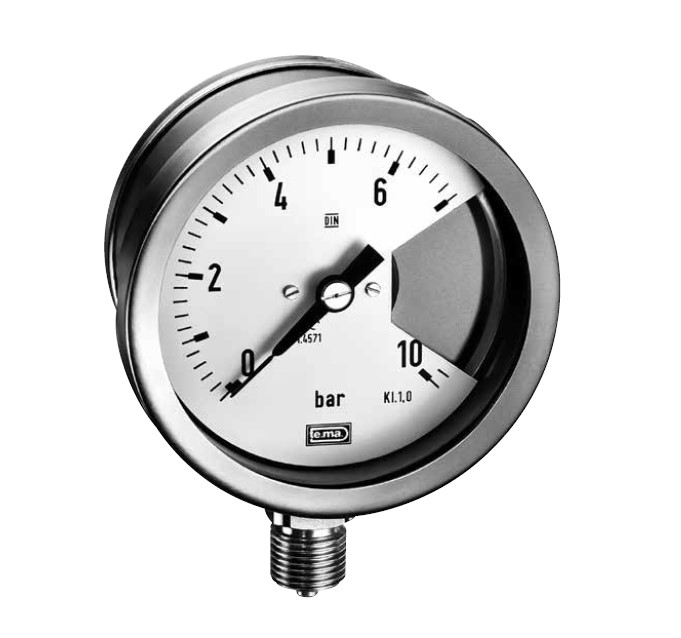

TE.MA. MBS860 Solid front type pressure gauge

TE.MA. MBS860 Solid front type pressure gauge
TE.MA. MBS860 Solid front type pressure gauge
TE.MA. MBS860 Solid front type pressure gauge

Pressure gauges series MBS860, with or without filling fluid, may be installed on every chemical, petrochemical plant, to prevent accidents according to standard EN837-1/ S3 and ANSI B40.1.1.

			int(23581)
NULL

Made in Italy. brand TE.MA., model MBS860

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. MBS860

Diameters 100-150 mm
Case and ring st. st. 304, bayonet type ring
Protection degree IP55/IP65 (EN60529/IEC529)
Safety back st. st. 304
Window laminated safety glass
Movement st. st. reinforced
Dial aluminium with black numerals on white background
Baffle wall back of the dial, in st. st., welded on the case
Pointer aluminium, black painted, micrometric adjustable
Blow out back st. st.
Sensing element Bourdon tube type, with “C” shape for pressure ≤60Bar, helical wound for pressure ≥ 60 Bar
Element material st. st. 316L, MONEL 400
Connection material st. st. 316L, MONEL 400
Welding T.I.G.
Connection dimension ½”NPT/M or BSP/M
Mounting direct, lower connection type 861
direct, back connection type 864
panel rear flange lower connection type 865 (on request)
panel front flange rear connection type 867
Ranges see table at page 2
Overpressure +30% F.S. for range up to 60 Bar
+15% F.S. for ranges from 100 to 600 Bar
+10% F.S .for ranges from 1000 Bar
Accuracy class 1, acc. to EN837-1 at 20°C
Ambient temperature limit -30/+60°C
(-60/+60°C for filled version – see options)
Fluid temperature limit -30/+120°C element in st. st. 316L
-30/+230°C element in MONEL
Thermal Drift 0,035%/°C on range 0/60°C
Construction acc. to ATEX directive 2014/34/EU CE Ex II 2G Ex h IIC T6.. T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request)
Construction according to PED directive 2014/68/EU (on request)
Expand Table

Ranges
Pressure

Bar 0÷0,6 0÷1 0÷1,6 0÷2,5 0÷4 0÷6 0÷10 0÷16 0÷25 0÷40 0÷60 0÷100 0÷160 0÷250 0÷315 0÷400 0÷600 0÷1000 0÷1600
psi 0÷15 0÷30 0÷60 0÷100 0÷160 0÷200 0÷300 0÷400 0÷600 0÷800 0÷1000 0÷1500 0÷2000 0÷5000 0÷6000 0÷10000 0÷15000 0÷20000
Expand Table

Available on request double scale: Bar/psi – Bar/kPa – psi/kg/cm² – kPa/psi

Receiver

psi 3÷15
Bar 0,2÷1
Kgc m² 0,2÷1
Expand Table

Available on request double scale: 3÷15 / 0÷10 lineare – 3÷15 / 0÷10 √

Vacuum and compound

Bar -1÷0 -1÷0,6 -1÷1,5 -1÷3 -1÷5 -1÷9 -1÷15 -1÷24
KPa -100÷0 -100÷60 -100÷150 -100÷300 -100÷500 -100÷900 -100÷1500 -100÷2400
Expand Table

Available on request double scale: Bar/in Hg-psi – Bar/kPa – in Hg-psi/kg/cm² – kPa/in Hg-psi

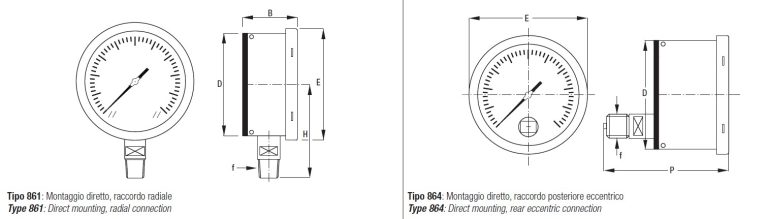

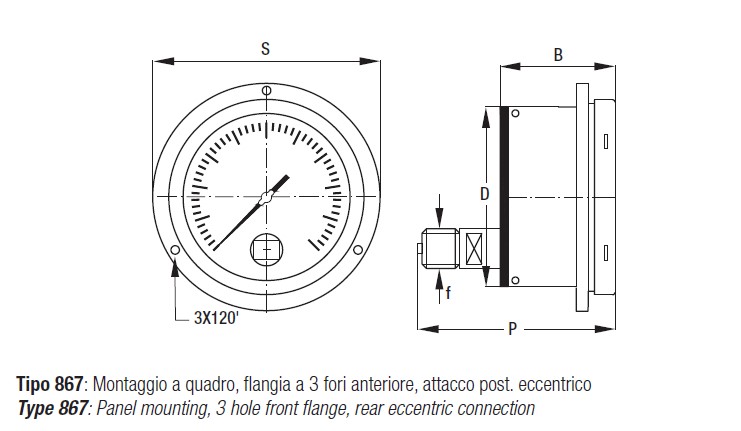

Type and dimensions connection

Model DN E B D H P S f
MBS861 63/2,5” 70 47 64 60 – – ½”G/NPT
100/4” 113 57 100 87 – – ½”G/NPT
150/6” 164 57 149 120 – – ½”G/NPT
MBS864 100/4” 113 57 100 – 117 – ½”G/NPT
150/6” 164 57 149 – 117 – ½”G/NPT
MBS867 100/4” 113 57 100 – 117 133 ½”G/NPT
150/6” 164 57 149 – 117 197 ½”G/NPT
Expand Table

Options and accessories

  • Special overpressure
  • Case in st. st. 316
  • Tropical version
  • Accuracy 0,5%
  • Special scale

    Acrylic window with max value pointer settable from front

  • Glycerine filling at 98% for T.amb.0÷65°C
  • Glycerine filling at 90% for T.amb.-15÷65°C
  • Silicon oil filling for T.amb.-50÷65°C
  • Filling with fluorinated oil suitable for use on Oxygen and for ambient temperature -60÷60°C
  • Degreasing for Oxygen service
  • Internal dampener (screw on the connection)
  • Mounting of chemical seal direct / remote (see relative leaflets)
  • Electrical Contacts (see relative leaflets)
  • Pulsation dampener, external overpressure protectors, pig-tails, syphons, manifolds.

How to order: Please specify: model, case diameter, range, type and dimensions connection, options if any.
Example: model MBS864, DN100, 0/25Bar, ½”NPTM

User Guide and Instruction manual for TE.MA. MBS860

You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MBS860 using the special form.

You can buy TE.MA. MBS860 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email . TE.MA. MBS860 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
