TE.MA. MBP800

Photo TE.MA. MBP800 Specifications TE.MA. MBP800 User Manual for TE.MA. MBP800 Related instruments to TE.MA. MBP800

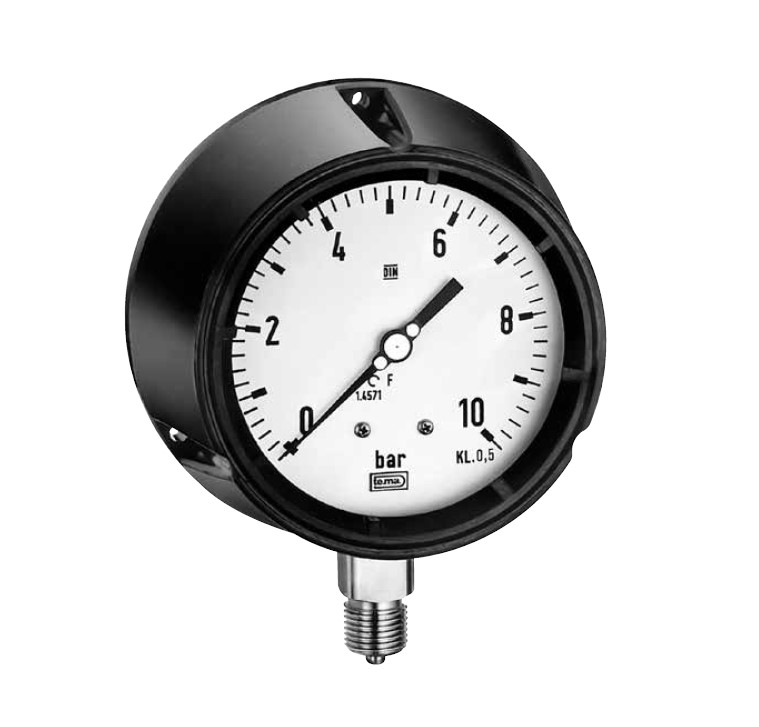

TE.MA. MBP800 Solid front type pressure gauge

TE.MA. MBP800 Solid front type pressure gauge
TE.MA. MBP800 Solid front type pressure gauge
The pressure gauges series MBP800, with or without filling fluid, may be installed on every chemical, petrochemical plants with particularly aggressive environment, to prevent accidents according to normative EN837-1/9.7.2 and ANSI B40.1.1
			int(23576)
NULL

Made in Italy. brand TE.MA., model MBP800

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. MBP800

Diameters: 4 ½”
Case and ring phenol, black
Safety back phenol, black
Protection degree IP55/IP65 (EN60529/IEC529)
Window laminated safety glass, gasket in neoprene
Movement st. st. reinforced
Dial aluminium with black numerals on white background
Pointer aluminium, black painted, micrometric adjustable
Blow out back phenolic resin
Sensing element Bourdon tube type, with “C” form for pressure ≤60 Bar, helical wound for pressure ≥ 60 Bar
Element material st. st. 316L, MONEL 400
Connection material st. st. 316L, MONEL 400
Welding T.I.G.
Connection dimension ½”NPTM or BSP/M
Mounting direct, lower connection type MBP801
Ranges see table at page 2
Overpressure +30% F.S. for range up to 60 Bar
+15% F.S. for ranges from 100 to 600 Bar
+10% F.S .for ranges from 1000 Bar
Accuracy Grade 1A as per ASME B40.1 (±1%FSV)
Ambient temperature limit -25/+60°C (-60/+60°C for filled version – see options)
Fluid temperature limit -30/+160°C element in st. st. 316L
-30/+230°C element in MONEL
Thermal Drift 0,035%/°C in range 0/60°C
Construction acc. to ATEX directive 2014/34/EU CE Ex II 2G Ex h IIC T6.. T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request)
Construction according to PED 2014/68/EU (on request)
Expand Table

Ranges
Pressure

Bar 0-0,6 0-1 0-1,6 0-2,5 0-4 0-6 0-10 0-16 0-25 0-40 0-60 0-100 0-160 0-250 0-315 0-400 0-600 0-1000 0-1600
psi 0-15 0-30 0-60 0-100 0-160 0-200 0-300 0-400 0-600 0-800 0-1000 0-1500 0-2000 0-5000 0-6000 0-10000 0-15000 0-20000
Expand Table

Available on request double scale: Bar/psi – Bar/kPa – psi/kg/cm2 – kPa/ps

Receiver

psi 3-15
Bar 0,2-1
Kg cm2 0,2-1
Expand Table

Available on request double scale: 3÷15 / 0÷10 lineare – 3÷15 / 0÷10 √

Vacuum and compound

Bar -1-0 -1-0,6 -1-1,5 -1-3 -1-5 -1-9 -1-15 -1-24
KPa -100-0 -100-150 -100-300 -100-500 -100-900 -100-1500 -100-2400
Expand Table

Available on request double scale: Bar/in Hg-psi – Bar/kPa – in Hg-psi/kg/cm2 – kPa/in Hg-psi

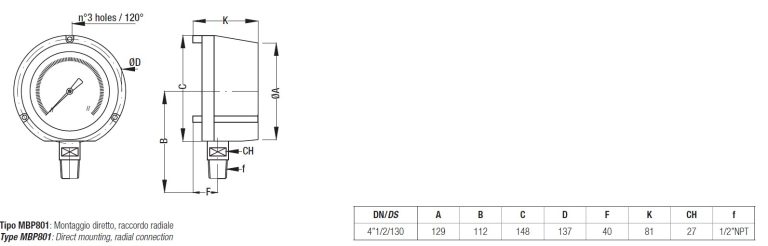

Type and dimensions connection

Type MBP801: Direct mounting, radial connection
DN – 4”1/2/130

Options and accessories

  • Overpressure 100% FSV
  • Accuracy grade 2A ASME B40.1 (±0,5% FSV)
  • Special scale
  • Spacers for wall mounting
  • Glycerine filling at 98% for T.amb.0÷65°C
  • Glycerine filling at 90% for T.amb.-15÷65°C
  • Silicon oil filling for T.amb.-50÷65°C
  • Filling with fluorinated oil suitable for use with Oxygen and for ambient temperature -60÷60°C
  • Degreasing for Oxygen service
  • Internal dampener (restrictor on the socket)
  • Mounting of chemical seal direct or remote (see relative leaflets )
  • Pulsation dampener, external overpressure protector, pig-tails, syphons, manifolds.

How to order: Please specify: model, range, type and dimensions connection, options if any.
Example: model MBP801, 0/25Bar, ½”NPTM
