Designed to be used in laboratory fer tests or calibrations and on all the plants where reliability and accuracy are important.
Diameters: 250 mm; Ranges: 0-1600 bar;
Construction acc. to ATEX directive 2014/34/EU

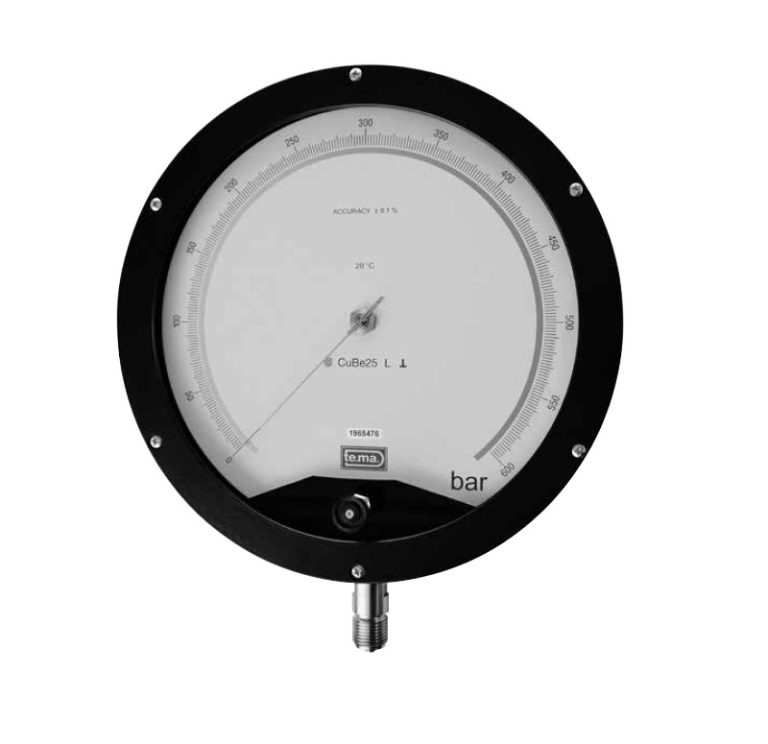

Made in Italy. brand TE.MA., model MB800CA250
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Diameters: | 250 mm |
Case and ring: | aluminium black painted |
Protection degree: | IP44 (EN60529/IEC529) |
Window: | plexiglass |
Movement: | st. st., reinforced |
Dial: | aluminium with mirror band, black numerals on light green background, scale amplitude 310°C |
Pointer: | balanced, with knife edge |
Zero adjustment: | manual, external from front |
Blow out: | neoprene, upper |
Sensing element: | Bourdon tube type, with “C” form for pressure ≤ 60 Bar, helical wound for pressure ≥ 60 Bar |
Element material: | beryllium copper |
Process connection material: | st.st. 316 |
Welding: | T.I.G. |
Connection dimension: | ½” NPTM or BSPM |
Mounting: | direct, lower connection type 801CA panel front flange eccentric rear conn. type 807CA |
Ranges: | see table |
Operating range limit: | 75% of full scale |
Overpressure: | +15% F.S. for range up to 60 Bar |
Accuracy: | class 1, acc. to EN837 (class 1,6 for DN63) at 20°C |
Ambient temperature limit: | -10/+60°C |
Fluid temperature limit: | 20°C |
Temperature drift: | 0,045%/10°C in range 0/60°C |
Internal calibration: | with dead weight tester |
Construction acc. to | ATEX directive 2014/34/EU, CE Ex II 2G Ex h IIC T6.. T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request) |
Construction according to | PED directive 2014/68/EU (on request). |
Ranges
Pressure
Bar | 0÷1 | 0÷1,6 | 0÷2,5 | 0÷4 | 0÷6 | 0÷10 | 0÷16 | 0÷25 | 0÷40 | 0÷60 | 0÷100 | 0÷160 | 0÷250 | 0÷400 | 0÷600 | 0÷1000 | 0÷1600 |
Graduation | 0,002 | 0,005 | 0,005 | 0,01 | 0,02 | 0,02 | 0,05 | 0,05 | 0,1 | 0,2 | 0,2 | 0,5 | 0,5 | 1 | 2 | 2 | 2 |
Numeration | 0,02 | 0,05 | 0,05 | 0,1 | 0,2 | 0,2 | 0,5 | 0,5 | 1 | 2 | 2 | 5 | 5 | 10 | 20 | 20 | 50 |
Vacuum and compound
Bar | -1÷0 |
Graduation | 0,002 |
Numeration | 0,02 |
Type and dimensions connection
Model | A | B | C | D | D1 | E | H | L | CH | P | F | Weighy Kg |
MB801CA | 18 | 52 | 19,5 | 280 | 250 | – | 180 | 20 | 17 | – | G1/2A-1/2-14NPT | 3,1 |
MB807CA | 18 | 52 | – | 280 | 250 | 80 | – | 20 | 17 | 105 | G1/2A-1/2-14NPT | 3,25 |
Options and accessories
How to order: Please specify: model, range, type and dimensions connection, options or SIT certification if any.
Example: model MB801CA, 0/25Bar, ½”NPTM
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MB800CA250 using the special form.
You can buy TE.MA. MB800CA250 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. TE.MA. MB800CA250 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
