Designed to be used in laboratory fer tests or calibrations and on all the plants where reliability and accuracy are important.
Diameters: 150 mm; Ranges: 0-600 bar;
Construction acc. to ATEX directive 2014/34/EU

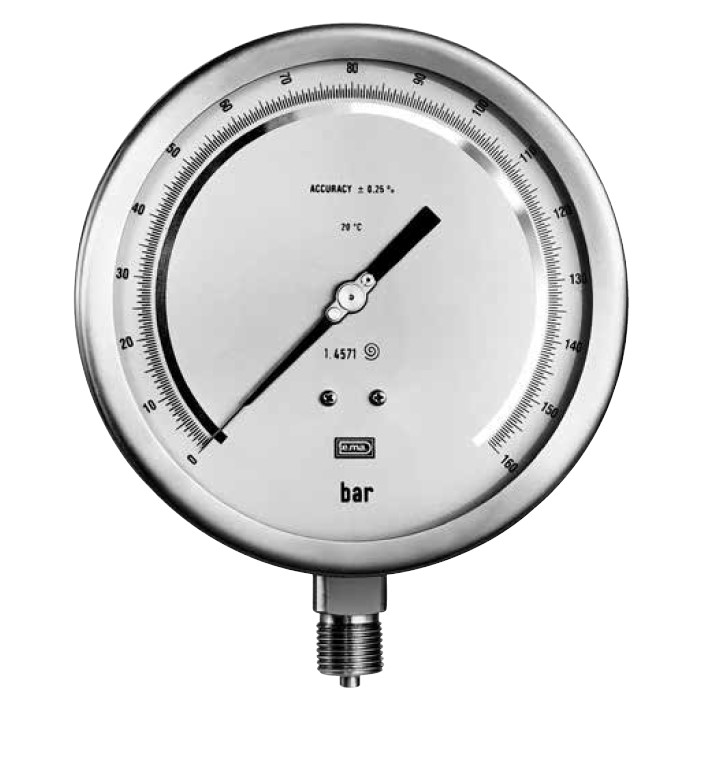

Made in Italy. brand TE.MA., model MB800CA150
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Diameters: | 150 mm |
Case and ring: | st. st. 304, bayonet type ring |
Protection degree: | IP55 (EN60529/IEC529) |
Window: | glass, thickness 4 mm, gasket in neoprene |
Movement: | st. st., reinforced |
Dial: | aluminium with mirror band , black numerals on light green background |
Pointer: | micrometric adjustable with knife edge |
Blow out plug: | plug neoprene, back |
Sensing element: | Bourdon tube type, with “C” shape for pressure ≤ 60 Bar, helical wound for pressure ≥ 60 Bar |
Element material: | st. st. 316L (as option in Beryllium copper) |
Process connection material: | st. st. 316L |
Welding: | T.I.G. |
Connection dimension: | ½”NPTM or BSPM |
Mounting: | direct, lower connection type 801CA panel front flange eccentric back conn. type 807CA panel, front flange central back connection type 808CA panel, “U” type bracket ecc.entric back conn. type 810CA |
Ranges: | see table |
Operating range limit: | 75% of full scale |
Overpressure: | +15% F.S. for range up to 60 Bar |
Accuracy: | class 0,25, acc. to EN837 at 20°C |
Ambient temperature limit: | 0/+60°C |
Fluid temperature limit: | -30/+120°C element in st.st. 316L -30/+230°C element in MONEL |
Temperature drift: | 0,005%/°C in range 0/60°C |
Internal calibration: | with dead weight tester |
Construction acc. to | ATEX directive 2014/34/EU, CE Ex II 2G Ex h IIC T6.. T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request) |
Construction according to | PED directive 2014/68/EU (on request). |
Ranges
Pressure
Bar | 0÷1 | 0÷1,6 | 0÷2,5 | 0÷4 | 0÷6 | 0÷10 | 0÷16 | 0÷25 | 0÷40 | 0÷60 | 0÷100 | 0÷160 | 0÷250 | 0÷400 | 0÷600 |
Graduation | 0,005 | 0,005 | 0,01 | 0,02 | 0,02 | 0,05 | 0,06 | 0,1 | 0,2 | 0,2 | 0,5 | 0,5 | 1 | 2 | 2 |
Numeration | 0,1 | 0,1 | 0,2 | 0,2 | 0,5 | 1 | 1 | 2 | 2 | 5 | 10 | 10 | 20 | 20 | 50 |
Vacuum and compound
Bar | -1÷0 |
Graduation | 0,005 |
Numeration | 0,1 |
Type and dimensions connection
Type | DN | b | D | E | H | N | L | S |
801CA | 150/6” | 54 | 150 | 163 | 125 | – | – | – |
807CA | 150/6” | 54 | 150 | 163 | – | 89 | 168 | 196 |
808CA | 150/6” | 54 | 150 | 163 | – | 89 | 168 | 196 |
810CA | 150/6” | 54 | 150 | 163 | – | 89 | – | – |
Options and accessories
How to order: Please specify: model, range, type and dimensions connection, options or SIT certification if any.
Example: model MB801CA, 0/25Bar, ½”NPTM
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MB800CA150 using the special form.
