TE.MA. MB800

Photo TE.MA. MB800 Specifications TE.MA. MB800 User Manual for TE.MA. MB800 Related instruments to TE.MA. MB800

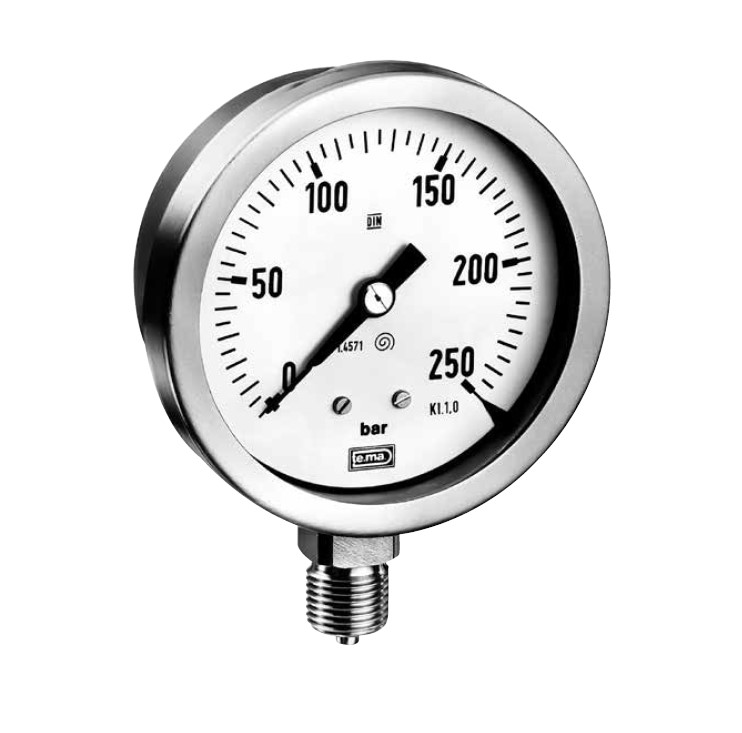

TE.MA. MB800 All St. St. Open front Bourdon type pressure gauge

TE.MA. MB800 All St. St. Open front Bourdon type pressure gauge
The pressure gauges series MB800, with or without filling fluid, may be installed on every chemical, petrochemical plants, onshore and offshore applications and machinery, food and pharmaceutical industry. Construction according to EN 837-1
Range: 0-1600 bar; 0-20000 psi; -100-2400 kPa
			int(23559)
NULL

Made in Italy. brand TE.MA., model MB800

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. MB800

Diameters: 63-80-100-125-150-200 mm
Case and ring: st. st. 304, bayonet type ring
Protection degree: IP55/IP65 (EN60529/IEC529)
Window: glass, thickness 4 mm, gasket in neoprene
Movement: st. st., reinforced
Dial: aluminium with black numerals on white background
Pointer: aluminium, black painted, micrometric adjustable
Blow out plug: neoprene, back
Sensing element: Bourdon tube type, with “C” shape for pressure≤60Bar, helical wound for pressure ≥ 60 Bar
Element material: st. st. 316L, MONEL 400
Socket material: st. st. 316L, MONEL 400
Welding: T.I.G.
Connection dimension: ½”NPTM or BSP/M (1/4” for DN63)
Mounting: direct, lower connection type 801
direct, central back connection type 802
direct, eccentric back connection type 804
wall, back flange lower connection type 805
panel front flange eccentric back connection type 807
panel, front flange central back connection type 808
panel, “U” bracket, eccentric back connection type 810
Ranges: see table at page 2
Overpressure: +30% F.S. for range up to 60 Bar
+15% F.S. for ranges from 100 to 600 Bar
+10% F.S .for ranges from 1000 Bar
Accuracy: class 1, acc. to EN837 (class 1,6 for DN63) at 20°C
Ambient temperature limit: -30/+60°C (-60/+60° C for filled
version – see options)
Fluid temperature limit: -30/+120°C element in st. st. 316L
-30/+230°C element in MONEL
Thermal Drift: 0,035%/°C on range 0/60°C
Construction acc. to ATEX directive 2014/34/EU, CE Ex II 2G
Ex h IIC T6..T2 Gb X, II 2D Ex h IIIC T85°C..T245°C Db X (on request)
Construction according to PED directive 2014/68/EU (on request).
Expand Table

Range
Pressure

Bar 0÷0,6 0÷1 0÷1,6 0÷2,5 0÷4 0÷6 0÷10 0÷16 0÷25 0÷40 0÷60 0÷100 0÷160 0÷250 0÷315 0÷400 0÷600 0÷1000 0÷1600
psi 0÷15 0÷30 0÷60 0÷100 0÷160 0÷200 0÷300 0÷400 0÷600 0÷800 0÷1000 0÷1500 0÷2000 0÷5000 0÷6000 0÷10000 0÷15000 0÷20000
Expand Table

Available on request double scale: Bar/psi – Bar/kPa – psi/kg/cm2 – kPa/psi

Receiver

psi 3÷15
Bar 0,2÷1
Kg cm2 0,2÷1
Expand Table

Available on request double scale: 3÷15 / 0÷10 lineare – 3÷15 / 0÷10 √

Vacuum and compound

Bar -1÷0 -1÷0,6 -1÷1,5 -1÷3 -1÷5 -1÷9 -1÷15 -1÷24
KPa -100÷0 -100÷60 -100÷150 -100÷300 -100÷500 -100÷900 -100÷1500 -100÷2400
Expand Table

Available on request double scale: Bar/in Hg-psi – Bar/kPa – in Hg-psi/kg/cm2 – kPa/in Hg-psi
Dimension

DN/DS b D E H L N S Thread Weight in
kg dry		 Weight in kg
glycerine filled
63 30 63 68 52 75 50 85 ¼”Gas/NPT 0,200 0,300
80 47 80 88 63 97 82 102 ½”Gas/NPT 0,400 0,600
100 53 101 113 87 118 97 133 ½”Gas/NPT 0,700 1,050
125 53 127 121 106 153 97 170 ½”Gas/NPT 1,200 1,500
150 53 150 161 125 175 97 195 ½”Gas/NPT 1,400 1,900
200 53 200 218 170 205 100 245 ½”Gas/NPT 2,100 3,000
Expand Table

Options and accessories

  • Overpressure 100% A.C.
  • Accuracy 0,5%
  • Case st. st. 316
  • Tropical version
  • Special scale
  • Acrylic window with max value pointer settable from front
  • Safety glass window type thickness .4 mm
  • Glycerine filling at 98% for T.amb.0÷65°C
  • Glycerine filling at 90% for T.amb.-15÷65°C
  • Silicon oil filling for T.amb.-50÷65°C
  • Filling with fluorinated oil suitable for use on Oxygen and for ambient temperature -60÷60°C
  • Degreasing for Oxygen service
  • Internal dampener (restrictor on socket)
  • Mounting of chemical seal direct / remote
  • Electrical contacs (see relative leaflets)
  • Microswitches (see relative leaflets)
  • Pulsation dampener, external overpressure protector, pig-tails, syphons, manifolds.

How to order: Please specify: model, case diameter, range, type and dimensions connection, options if any.
Example: model MB804, DN100, 0/25Bar, ½”NPTM
