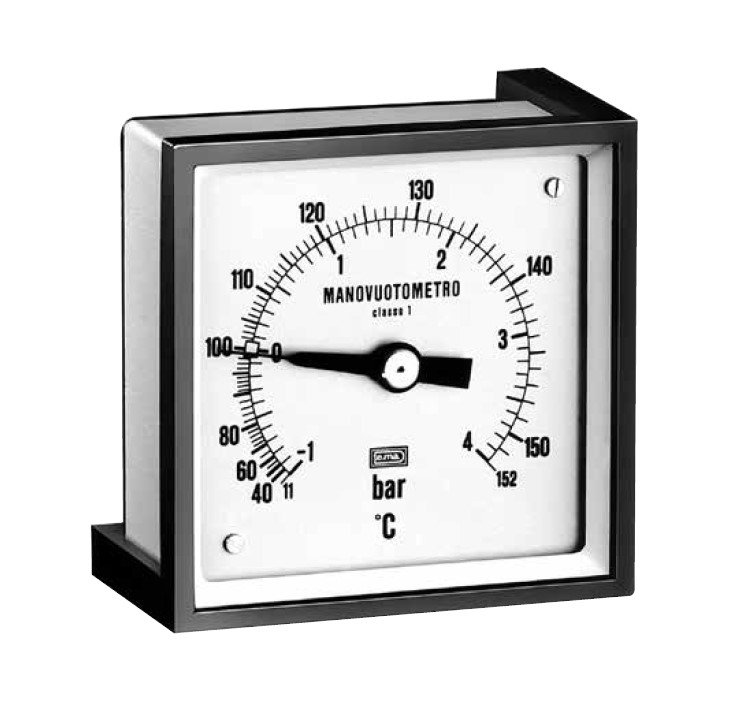

The pressure gauges series MB400 in rectangular or squared enclosure have an accurate construction and standardized dimensions for mounting in parallel with electric instrumentation in centralized control rooms.
Range: 0-1000 bar; 0-15000 psi; -100-2400 KPa;
Made in Italy. brand TE.MA., model MB400
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Diameters: | 144×144 – 144×72 – 96×96 mm DIN43700 (Option 72×72) |
| Mounting: | horizontal or vertical (only for model 403 and 403/2) |
| Case and Front: | black painted st. st., with plastic front |
| Protection degree: | IP55 (IP65 only for mod. 96×96 filled) EN60529/IEC529 |
| Window: | glass or acrylic 4 mm, gasket in neoprene |
| Movement: | st. st., reinforced |
| Dial: | aluminium with black numerals on white background |
| Pointer: | st. st., black painted, micrometric adjustable |
| Gasket socket’s: | neoprene |
| Sensing element: | Bourdon tube type, with “C” shape for pressure ≤60Bar, helical wound for pressure ≥ 60Bar |
| Element material: | st. st. 316L |
| Connection material: | st. st. 316, MONEL 400 |
| Welding: | T.I.G. |
| Connection dimension: | ½”NPTM or BSPM |
| Mounting: | panel with rear bracket and connection |
| Ranges: | see table |
| Overpressure: | +30% F.S. for range up to 60 Bar |
| Accuracy: | class 1, acc. to EN837 at 20°C |
| Ambient temperature limit: | -30/+60°C |
| Fluid temperature limit: | -30/+120°C element in st. st. 316 -30/+230°C element in MONEL |
| Thermal Drift: | 0,035%/°C in range 0/60°C |
| Construction acc. to | ATEX directive 2014/34/EU, CE Ex II 2G Ex h IIC T6. T2 Gb X , II 2D Ex h IIIC T85°C..T245°C Db X (on request) |
| Construction according to | PED directive 2014/68/EU (onrequest). |
Range
Pressure
| Bar | 0÷1 | 0÷1,6 | 0÷2,5 | 0÷4 | 0÷6 | 0÷10 | 0÷16 | 0÷25 | 0÷40 | 0÷60 | 0÷100 | 0÷160 | 0÷250 | 0÷400 | 0÷600 | 0÷1000 |
| psi | 0÷15 | 0÷30 | 0÷60 | 0÷100 | 0÷160 | 0÷200 | 0÷300 | 0÷400 | 0÷600 | 0÷800 | 0÷1000 | 0÷1500 | 0÷2000 | 0÷6000 | 0÷10000 | 0÷15000 |
Available on request double scale: Bar/psi – Bar/kPa – psi/kg/cm2 – kPa/psi
Receiver
| psi | 3÷15 |
| Bar | 0,2÷1 |
| Kg cm2 | 0,2÷1 |
Available on request double scale: 3÷15 / 0÷10 lineare – 3÷15 / 0÷10 √
Vacuum and compound
| Bar | -1÷0 | -1÷0,6 | -1÷1,5 | -1÷3 | -1÷5 | -1÷9 | -1÷15 | -1÷24 |
| KPa | -100÷0 | -100÷150 | -100÷300 | -100÷500 | -100÷900 | -100÷1500 | -100÷2400 |
Available on request double scale: Bar/in Hg-psi – Bar/kPa – in Hg-psi/kg/cm2 – kPa/in Hg-psi
| Tipo Type |
Dimensioni Dimensions |
B | P | L | M | T | F | G | U |
|---|---|---|---|---|---|---|---|---|---|
| 401 | 96×96 | 48 | 94 | 8 | – | 90 | – | 82 | 19 |
| 401 | 144×144 | 51 | 144 | 8 | – | 135 | – | 86 | 28 |
| 402 | 96×96 | 48 | 94 | 8 | – | 90 | – | 82 | 19 |
| 403 | 144×72 | 144 | 146 | 8 | 72 | 137 | 120 | 183 | – |
| 403/2 | 144×72 | 144 | 146 | 8 | 72 | 137 | 120 | 183 | – |
Options and accessories
How to order: Please specify: model, case diameter, range, type and dimensions connection, options if any.
Example: model MB403, 0/25Bar, ½”NPTM
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MB400 using the special form.
You can buy TE.MA. MB400 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. TE.MA. MB400 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
