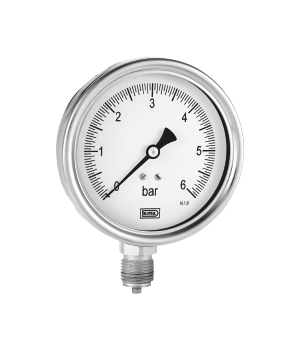

Made in Italy. brand TE.MA., model MB100
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Diameters: | 50-63-80-100 mm |
| Case and ring: | st. st. 304, with crimped ring |
| Protection degree: | IP65 (IEC529) |
| Window: | acrylic |
| Movement: | brass 59 |
| Dial: | aluminium with black numerals on white background |
| Pointer: | aluminium, black painted |
| Blow out plug: | plug EPDM, upper |
| Sensing element: | Bourdon tube in copper alloy |
| Socket material: | brass 58 |
| Welding: | copper alloy – tin |
| Connection dimension: | ½”NPTM or BSPM (1/4” for DN63) |
| Mounting: | direct, bottom connection type 101 direct, central back connection type 102 direct, eccentric back connection type 104 surface, rear flange bottom connection type 105 panel, front flange eccentric back connection type 107 panel, front flange central back connection type 108 panel, “U” bracket central back connection type 110 |
| Ranges: | see table |
| Overpressure: | +25% F.S. for range up to 60 Bar +15% F.S. for ranges from 60 Bar |
| Accuracy: | class 1,6 acc. to EN837 at 20°C |
| Ambient temperature limit: | dry execution -25/+60°C glycerine filling -15/+60°C silicon oil filling -45/+60°C |
| Fluid temperature limit: | dry execution +65°C glycerine filling +65°C silicon oil filling +90°C |
| Thermal Drift: | 0,030%/°C in range 0/60°C |
| Construction according to | PED directive 2014/68/EU (on request). |
Range
Pressure
| Bar | 0÷0,6 | 0÷1 | 0÷1,6 | 0÷2,5 | 0÷4 | 0÷6 | 0÷10 | 0÷16 | 0÷25 | 0÷40 | 0÷60 | 0÷100 | 0÷160 | 0÷250 | 0÷315 | 0÷400 | 0÷600 |
| psi | 0÷15 | 0÷30 | 0÷60 | 0÷100 | 0÷160 | 0÷200 | 0÷300 | 0÷400 | 0÷600 | 0÷800 | 0÷1000 | 0÷1500 | 0÷2000 | 0÷5000 | 0÷6000 | 0÷10000 |
Available on request double scale: Bar/psi – Bar/kPa – psi/kg/cm2 – kPa/psi
Vacuum and compound
| Bar | -1÷0 | -1÷0,6 | -1÷1,5 | -1÷3 | -1÷5 | -1÷9 | -1÷15 | -1÷24 |
| KPa | -100÷0 | -100÷150 | -100÷300 | -100÷500 | -100÷900 | -100÷1500 | -100÷2400 |
Available on request double scales: Bar/kPa – in Hg-psi/kg/cm2 – kPa/in Hg-psi
| DN | DS | d | d1 | d2 | Connections | Weight kg |
|---|---|---|---|---|---|---|
| 50 | 56 | 51 | – | – | 1/8”- 1/4” – BSPM | 0,15 |
| 63 | 69 | 85 | 75 | 3,6 | 1/4” – BSPM | 0,2 |
| 80 | 89 | 80 | 110 | 95 | 1/4” – 1/2” – BSPM | 0,3 |
| 100 | 111 | 100 | 132 | 118 | 1/4” – 1/2” – BSPM | 0,6 |
OPTIONS AND ACCESSORIES
HOW TO ORDER: Please specify: model, case diameter, range, type and dimensions connection, options if any.
Example: model MB104, DN100, 0/25Bar, ½”NPTM
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. MB100 using the special form.
You can buy TE.MA. MB100 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. TE.MA. MB100 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
