The WTU (Wireless Transmission Unit) replaces traditional wired connections between Modbus Master and Slave devices, providing a reliable wireless connection. It is the ideal solution for data transmission across compressed air networks where cabling is difficult or economically unfeasible.

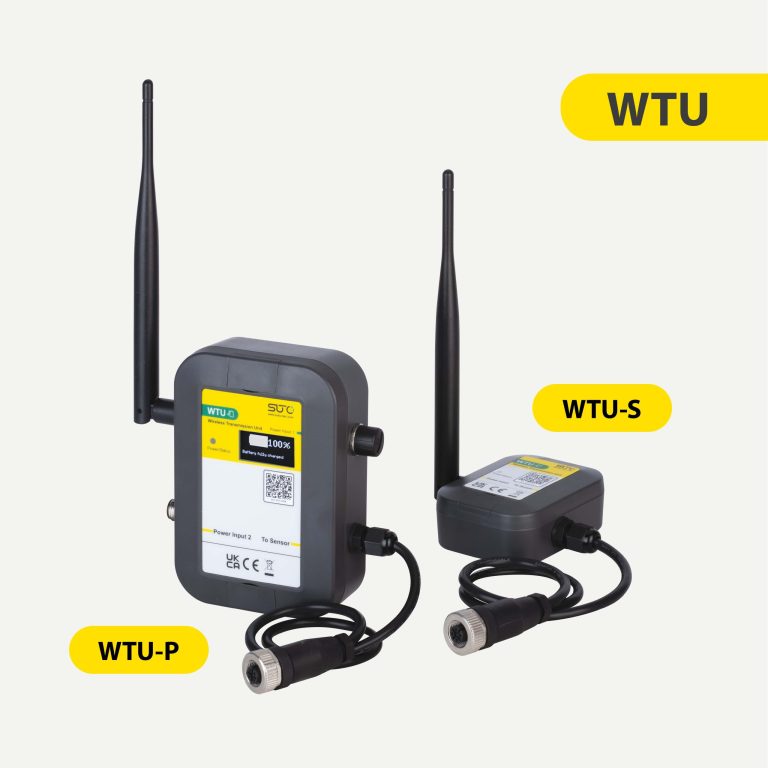

The device is available in three models: WTU‑S for stationary installation, WTU‑P with built‑in battery for portable use, and WTU‑PM for portable master devices such as the S551. Thanks to plug‑and‑play connectivity, standard connectors, and data transmission encryption, the WTU ensures secure and reliable communication between sensors, data loggers, and gateways – even over long distances or between buildings.
The WTU can operate in Master, Slave, or Repeater mode, allowing the wireless configuration to be adapted to any site conditions and infrastructure. The SUTO S4C‑WTU app provides intuitive mobile device setup: viewing system status, configuring wireless and Modbus parameters, and checking signal strength – all from a smartphone. Step‑by‑step guidance reduces installation time and simplifies scaling of the monitoring system.
One WTU Slave can connect to one or more SUTO sensors, while one WTU Master supports up to 16 devices on the master side, ensuring full coverage of measurement points. The WTU operates in the ISM band and features advanced AES 128‑bit encryption technology – a global standard for protecting sensitive information – guaranteeing the security of all transmitted data.
Three connector options are provided for connection to various SUTO iTEC devices: M12, ODU, and open wires. All necessary connectors and cables are included in the delivery.
When ordering, you must specify the required role – WTU Master or WTU Slave – by selecting the item from the order table. We will perform the necessary pre‑configuration before shipment, simplifying on‑site setup.
The WTU effectively replaces traditional wired connections between a Master and a gateway, completely eliminating the need for cables. Adding a WTU Repeater helps to address communication distance issues or excessive background noise on site.
Applications
Benefits
Features
Installation Options

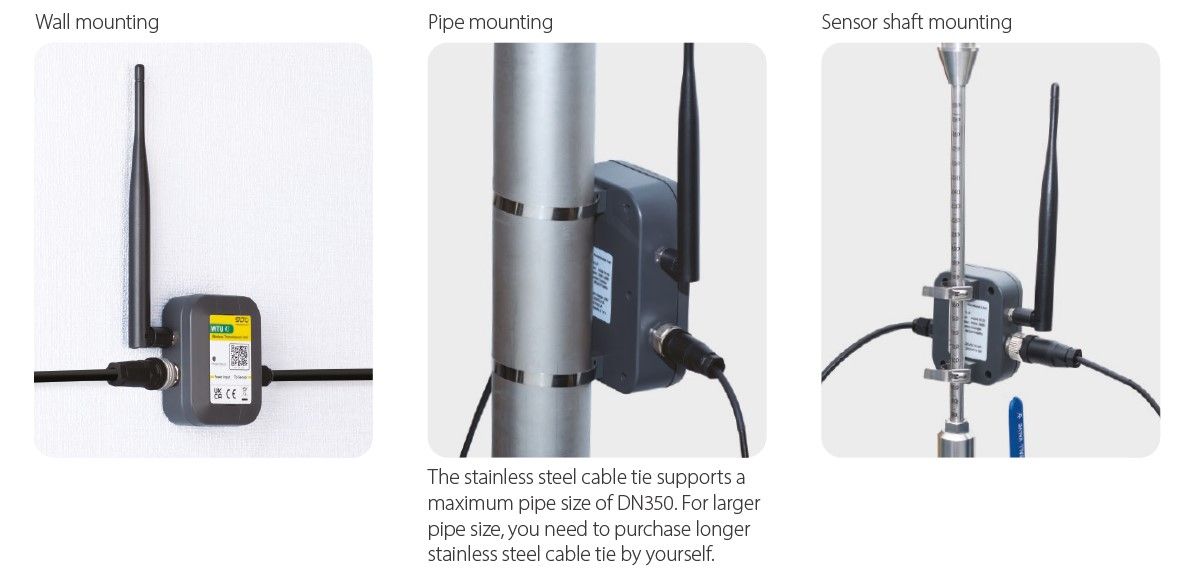

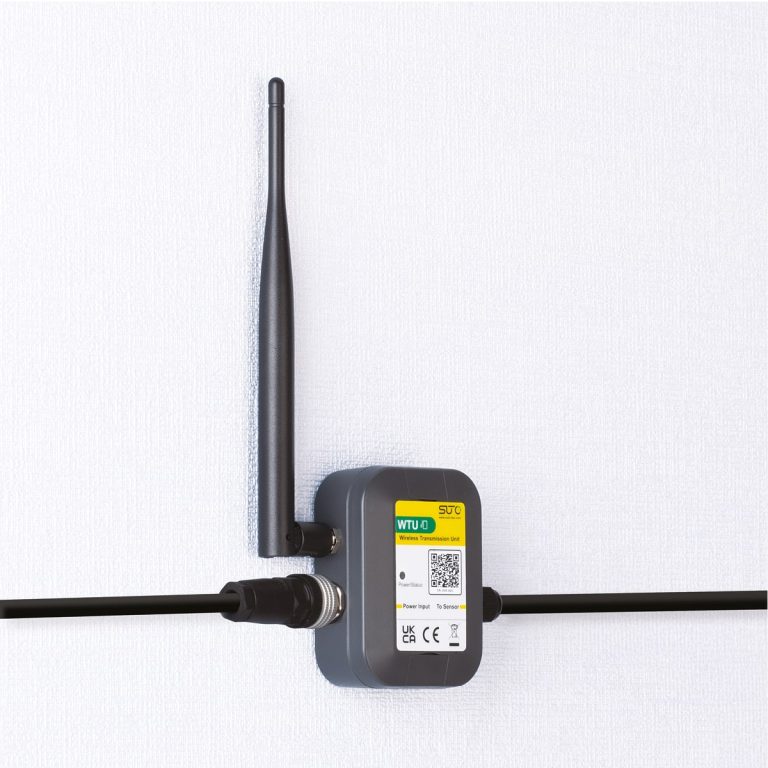

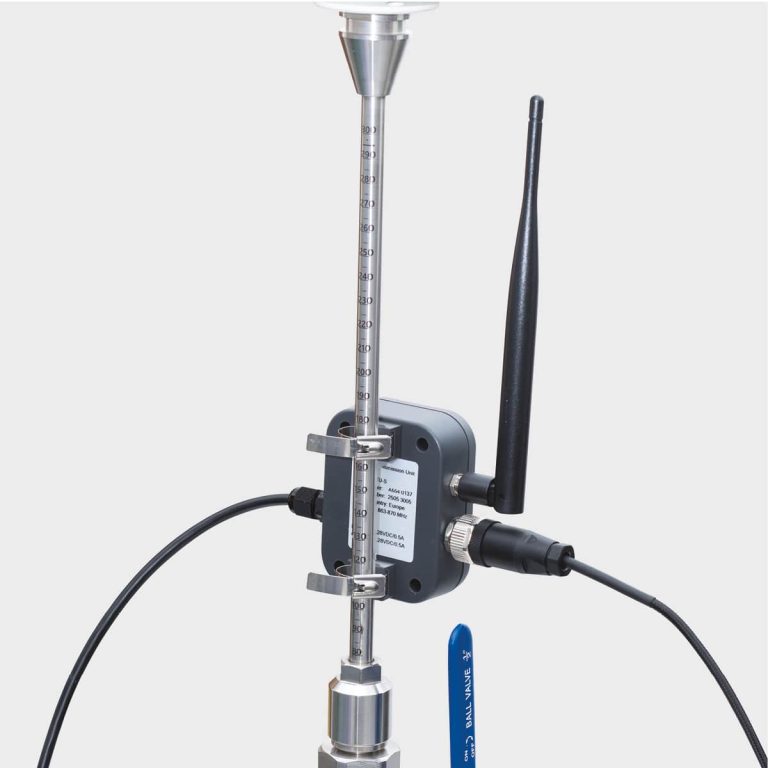

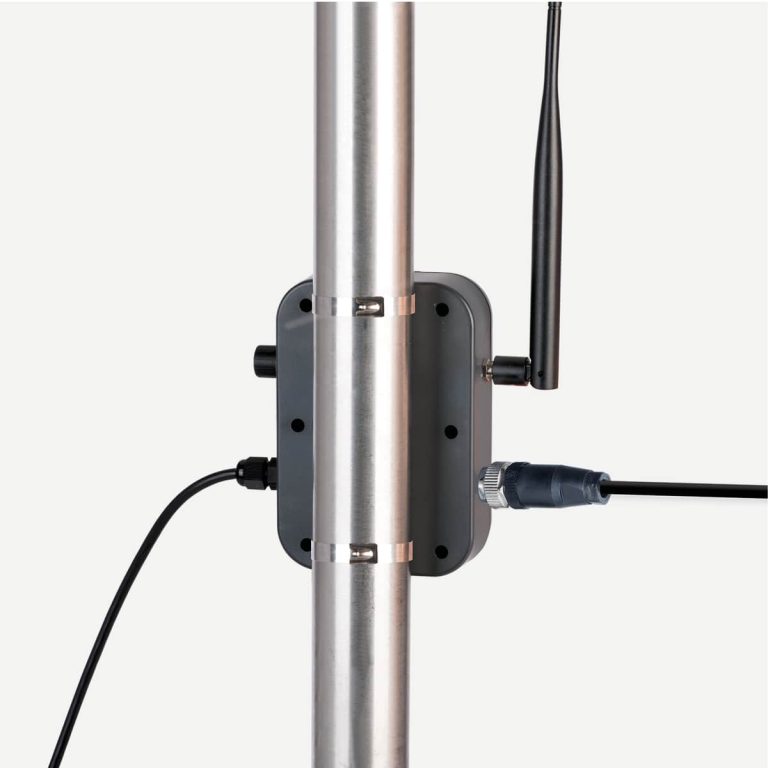

The WTU-S stationary installation version can be installed on the walls, pipes and shafts of the sensors shown in the following picture. The WTU-P portable version and WTU-PM do not require installation.
| GENERAL DATA | |
| Frequency Wireless Communication | 470-510 MHz (CN470) 863-870 MHz (EU868) 915-928 MHz (US915) |
| Housing material | Plastic casing |
| Protection class | IP65 |
| LED indicator | 1 x LED |
| Operating temperature | 0 ~ 50 °C |
| Humidity | <90%RH, no condensation |
| Dimensions | WTU-S & WTU-PM: 80 x 60 x 30.3 mm WTU-P: 130 x 90 x 40 mm |
| Weight | WTU-S & WTU-PM: 120 g WTU-P: 470 g |
| ELECTRICAL DATA | |
| Power input | WTU-S & WTU-PM: 18…28 VDC/0.5A WTU-P: 18…28 VDC/1A |
| Power output | WTU-S & WTU-PM: 18…28 VDC/0.5A WTU-P: 24 VDC/0.5A |
| Power consumption | WTU-S&WTU-PM: <= 0.3 W WTU-P: <= 0.5 W |
| Battery | WTU-P: Lithium ion battery, 3500 mAh, 11.1 V |
| INTERFACE | |
| LED | Constant green: Power on Blinking green: Receiving data Constant red: Error Blinking red: Transmitting data |
| Status screen | WTU-P: Battery level display |
| Connector | RS485 (Modbus/RTU) |
| Transmission method | Transparent data transmission |
| Encryption technology | AES 128-bit encryption for secure data transmission |
| Model | Description | Price |
| A554 0136 | WTU-S, Wireless Transmission Unit for stationary installation, Slave (default) / Repeater with 0.5 m M12 connection cable, M12 connector for power supply, all installation accessories included | On request |
| A554 0137 | WTU-S, Wireless Transmission Unit for stationary installation, Master with 1 m open ends, M12 connector for power supply, all installation accessories included | On request |
| A554 0138 | WTU-PM, Wireless Transmission Unit for portable master devices, Master with 0.5 m ODU connection cable to S551 | On request |
| A554 0139 | WTU-P, Wireless Transmission Unit, portable version with battery, Slave(default) /Repeater with 0.5 m M12 connection cable, M12 connector for charger, USB-C connector for charger, including charger | On request |
| A554 3310 | RS-485 splitter T, with 3 x M12 connectors to connect RS-485 devices to a bus | On request |
You can request the necessary certificates, documentation, instructions and user guide for SUTO WTU using the special form.
You can buy SUTO WTU in Latvia at a price starting from price by request € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. SUTO WTU price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
