The SUTO S601 Compressed Air Purity Monitor permanently measures and monitors compressed air contaminants like Dew Point, Oil Vapor, Particle Concentration and Pressure in real time. In doing so, the S601 brings together state-of-the-art technology in one easy to use package.
Made in Germany. brand SUTO, model S601
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

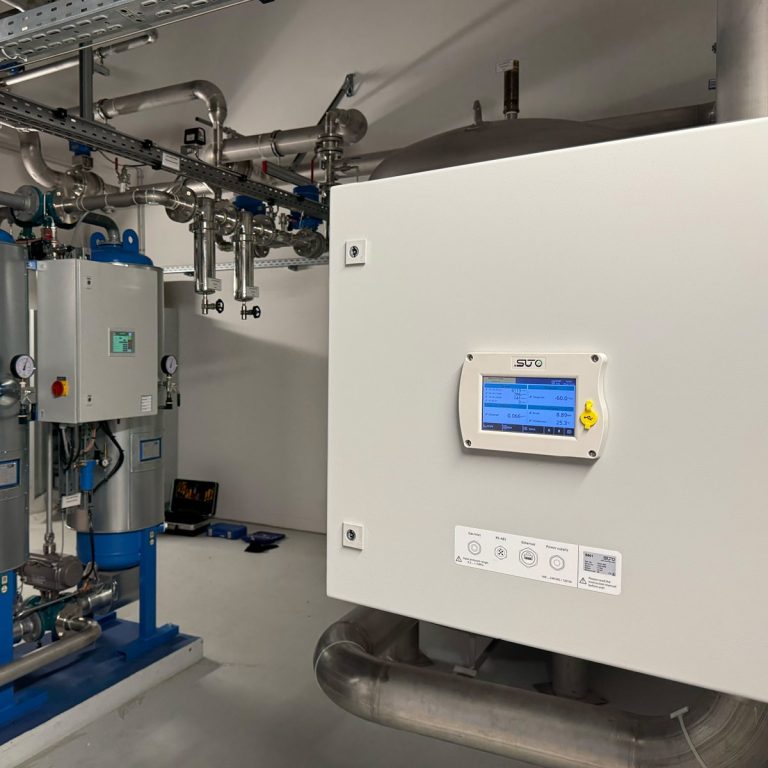

24/7 Compressed Air Quality and Purity Monitoring
Product contamination can ruin a business and harm its customers. The typical approach of spot checks and random testing of compressed air systems does not allow businesses to quickly react to contamination events. It also does not provide continual assurance that contamination levels are being kept under control. In the ever-changing world of production, real-time and permanent monitoring is crucial to protect your products’ integrity. The SUTO S601 monitors contaminants, giving businesses piece of mind that its products and customers are protected.
Compliance with the ISO 8573-1 Standard
With the advancement in technology and SUTO´s revolutionary sensors, the S601 is perfectly suited to monitor the air purity parameters in accordance to ISO 8573-1. Particle, dew point and oil vapor contamination are all continuously monitored and stored for later reporting. And this is all done in one single device.
Integrated Data Logger for Data Analysis

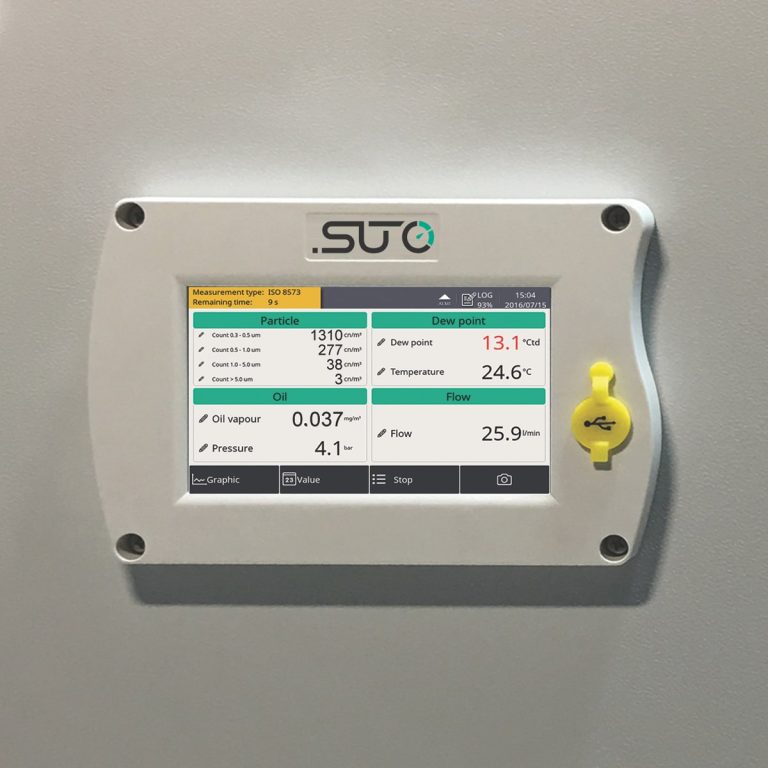

The data logging function ensures records are kept intact and stored. Real-time information can be then retrieved from the S601 by SCADA systems via Modbus outputs. The integrated color touch screen display also allows users to view all information locally.
Alarm Indication
Alarm points can be set to trigger if contaminants hit the selected limits. An optional external light or siren can be added to the alarm.
All Measurement Ranges at a glance
Easy Installation and Connection

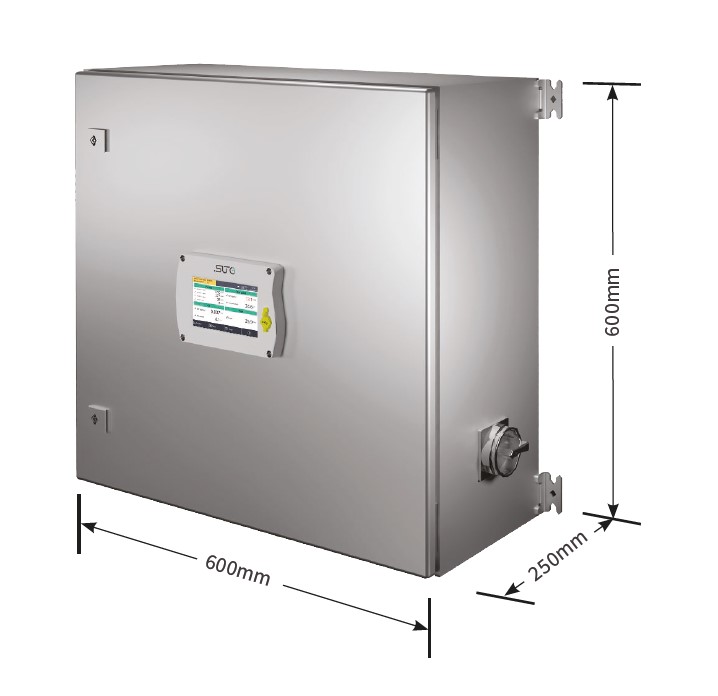

The S601 Stationary Compressed Air Purity Monitor is quick and easy to install, just connect the unit to power and the compressed air supplies with a user-friendly 6 mm quick connector. The Robust IP54 wall mountable casing provides high protection in industrial environments.
SUTO Exchange Service
The exchange calibration service eliminates downtime of the S601. It enables users to have a seamless record of their compressed air quality measurements.
Aplication
MEASUREMENT |
|
| Particle concentration | |
| Accuracy | Option A1263: 30 … 70 % von d > 0.1 μm 90 … 110 % von d ≥ 0.3 μm |
| Option A1260: 50 % @ 0.1 < d ≤ 0.15 μm 100 @ d > 0.15 μm |
|
| Selectable units | cn/m³, cn/ft³ |
| Measuring range | Option A1263: 0.1 < d ≤ 0.5 μm 0.5 < d ≤ 1.0 μm 1.0 < d ≤ 5.0 μm 5.0 μm < d |
| Option A1260: 0.3 < d ≤ 0.5 μm 0.5 < d ≤ 1.0 μm 1.0 < d ≤ 5.0 μm 5.0 μm < d |
|
| Sensor | Laser optical particle counter |
| Sampling rate | 1 min. |
| Flow rate | 2.83 l/min |
| Pressure Dew Point | |
| Accuracy | ± 1 °C Td (0 … 20 °C Td) ± 2 °C Td (-70 … 0 °C Td) ± 3 °C Td (-100 … -70 °C Td) |
| Selectable units | °C, °F |
| Measuring range | -100 … +20 °C Td |
| Sensor | QCM + Polymer |
| Response time (t90) | -20 °C Td -> -60 °C Td = < 240 sec -60 °C Td -> -20°C Td = < 30 sec @ 4 l/min |
| Oil vapor | |
| Accuracy | 5 % of value +/- 0.003 mg/m³ |
| Detection limit | 0.003 mg/m³ |
| Resolution | 0.001 mg/m³ |
| Selectable units | mg/m³ |
| Measuring range | 0.001 … 5.000 mg/m³ |
| Sensor | PID (Photoionisation detector) |
| UV lamp lifetime | 1 year or 6000 working hours, whichever comes first |
| Sampling rate | 1 sec. |
| Pressure | |
| Accuracy | 0.5 % FS |
| Measuring range | 0.1 … 1.6 MPa(g) |
| Sensor | Piezo resistive sensor |
| Temperature | |
| Accuracy | ± 0.3 °C |
| Measuring range | -30 … +70 °C |
| Sensor | Pt100 |
| Reference conditions | |
| Selectable conditions | ISO1217 20 °C 1000 mbar |
SIGNAL INTERFACE & SUPPLY |
|
| Fieldbus | |
| Protocol | Modbus/TCP |
| Update rate | 1 / sec. |
| Alarm output | |
| Relay | 2 x Changeover Relay (freely programmable) |
| Rating | 230 VAC, 3A |
| Power Supply | |
| Voltage supply | 100 … 240 VAC, 50/60 Hz |
| Current consumption | 50 VA |
| Interface | |
| USB | USB Micro with OTG support |
GENERAL DATA |
|
| Configuration | |
| Others | Device comes pre-configured Configuration can be done via on-screen touch |
| Display | |
| Integrated | Touchscreen, Size: 5“, Resolution: 800 x 480 px |
| Data Logger | |
| Storage | Up to 3 million recorded data sets (10 channels each) |
| Material | |
| Process connection | Brass nickel-plated, FKM |
| Housing | Sheet steel, powder coated cabinet |
| Miscellaneous | |
| Electrical connection | AC Clamp Terminals, M12, RJ45 |
| Protection class | IP54 (cover lid closed) |
| Approvals | CE |
| Prozessanschluss | Micro quick connector, full passthrough, male (1.5 m hose with coupling included) |
| Weight | 15 kg |
| Operating conditions | |
| Medium | Compressed Air, Nitrogen N₂, Carbon dioxide CO₂ (software setting) |
| Medium quality | ISO 8573-1: 4.4.4 or better |
| Medium temperature | 0 … + 40 °C |
| Medium humidity | Medium humidity < 40 % rH, no condensation |
| Operating pressure | 0.3 … 1.5 MPa(g) |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | 0 … 90 % rH |
| Storage temperature | -10 … +70 °C |
| Transport temperature | -10 … +70 °C |
You can request the necessary certificates, documentation, instructions and user guide for SUTO S601 using the special form.
