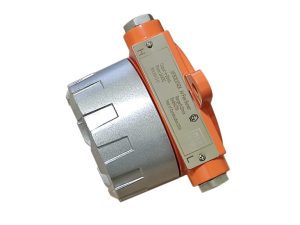

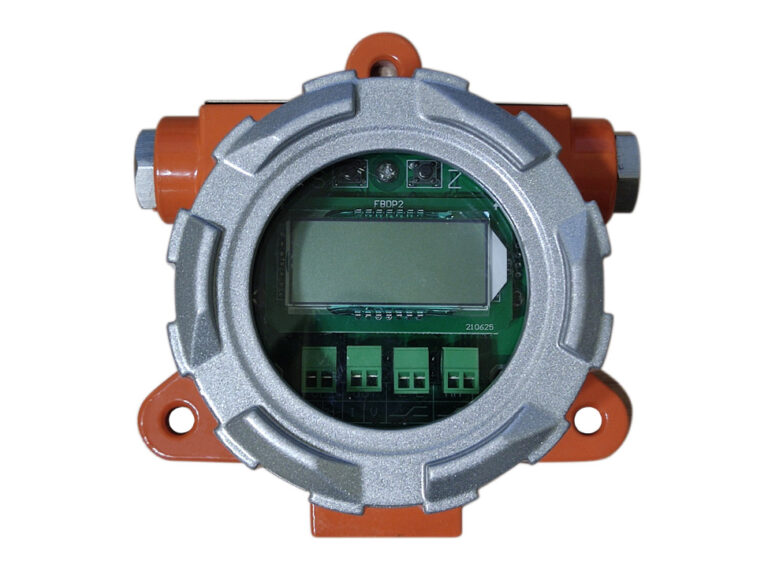

The air velocity meters are based on the innovative Pitot tube principle, which provides measurement accuracy at low air velocities and superior performance at high temperatures. They are resistant to dust and dirt and feature an explosion-proof housing.
The MIRKIP MFSGE374EX air velocity meters have been tested in the exhaust ventilation system of a production area where the following corrosive substances are used: hydrogen peroxide, sodium hydroxide, aqueous ammonia (NH₄OH), nitric acid, hydrochloric acid, and acetic acid.
Measurement ranges: 0–5 to 0–200 m/s; outputs: 0–5 V, 4–20 mA, 0–10 V, 0–20 mA, RS‑485, Modbus, relay; temperature compensation: from 10°C to 70°C. Enclosure rating: IP65, NEMA 4.
Made in China. brand MIRKIP, model MFSGE374EX
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 1 786 €
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

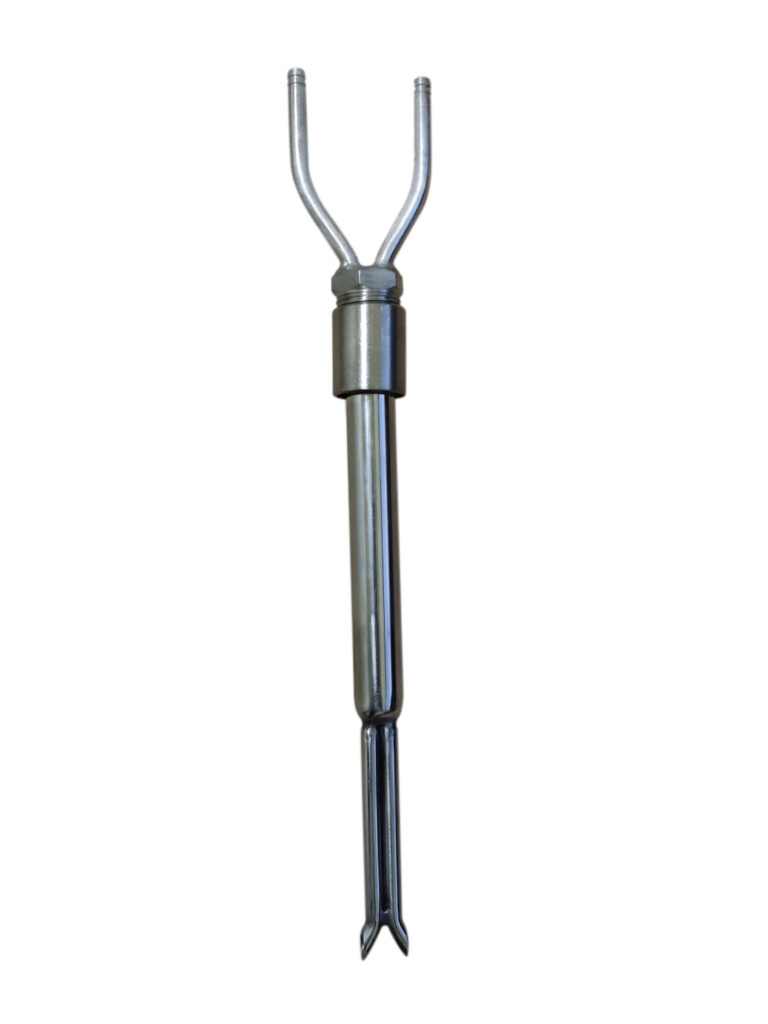

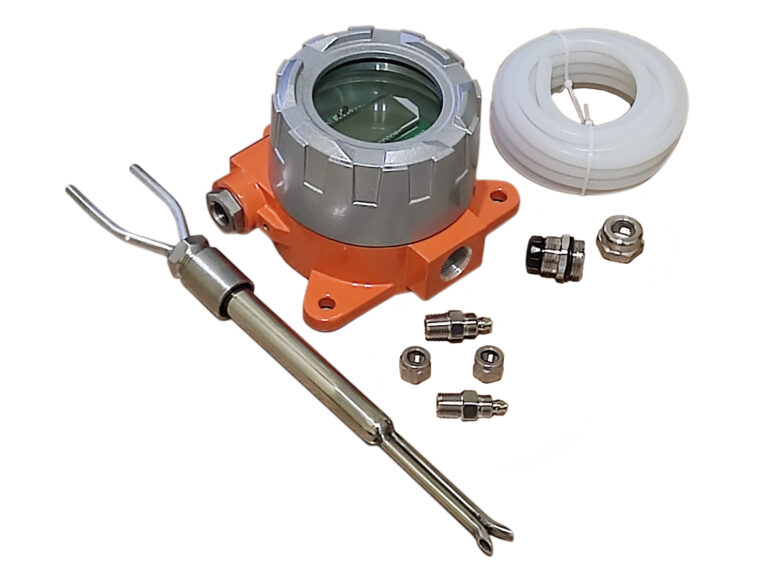

Unlike conventional anemometers with temperature sensors or hot film, GE-374-Ex air Velocity sensors operate on the innovative pitot tube principal, which guarantees accuracy at low air velocity, and better performance at high temperature. Additionally, this pitot sensor is less sensitive to dust and dirt than all other anemometer principles.
The MIRKIP MFSGE374EX air velocity meters have been tested in the exhaust ventilation system of a production area where the following corrosive substances are used: hydrogen peroxide, sodium hydroxide, aqueous ammonia (NH₄OH), nitric acid, hydrochloric acid, and acetic acid. During exhaust fan operation, droplets of solutions of these substances enter the air duct. The meters operate successfully under the specified conditions.
Option function:
GE-374-EX-SC: Explosion Proof Air Flow Switch, will have 2 relay switch signal, high and low limit alarm.
The objection of the declaration is in conformity with the relevant EU harmonization legislation: ATEX directive 2014/34/EU, Machinery directive 2006/42/EC. The ATEX grade is Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃) IP65; or Ex II 3GD Ex dc IIC T6 Gc (-20℃≤Ta≤+80℃) and Ex tc IIIC T85℃ Dc (-20℃≤Ta≤+80℃) IP65 for gas and dust explosion prevention
| Velocity Flow Range | 0~5m/s~15m/s~20m/s~25m/s~30m/s~40m/s~70m/s……..200m/s max |
| Accuracy | <(0.2m/s+3% measuring value) @1~20m/s, 25 C, 55%RH 1013hPa |
| Response Time | 2 s |
| Temperature Compensation | 10°C~70°C |
| Ambient temperature | -20°С to +80°С |
| Output | 0-5V, 4-20mA, 0-10V, 0-20mA, RS-485, Modbus, relay |
| Power | 18~30VAC/DC, 24VDC is standard |

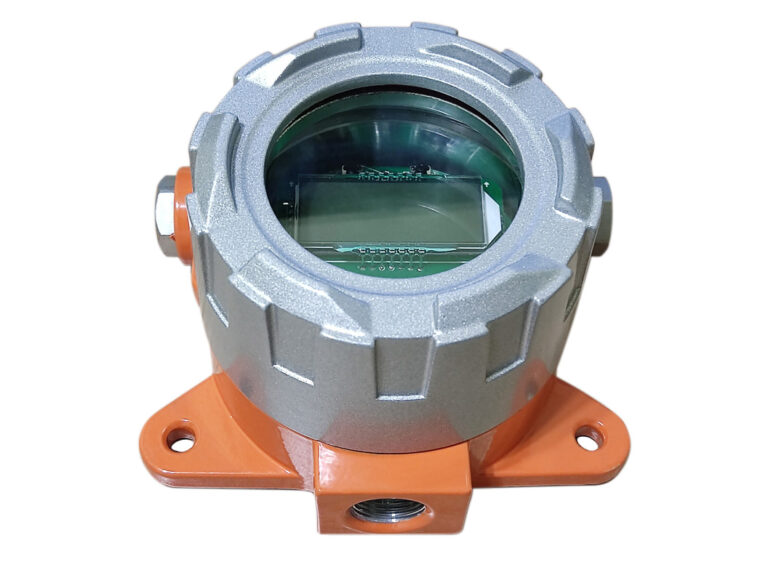

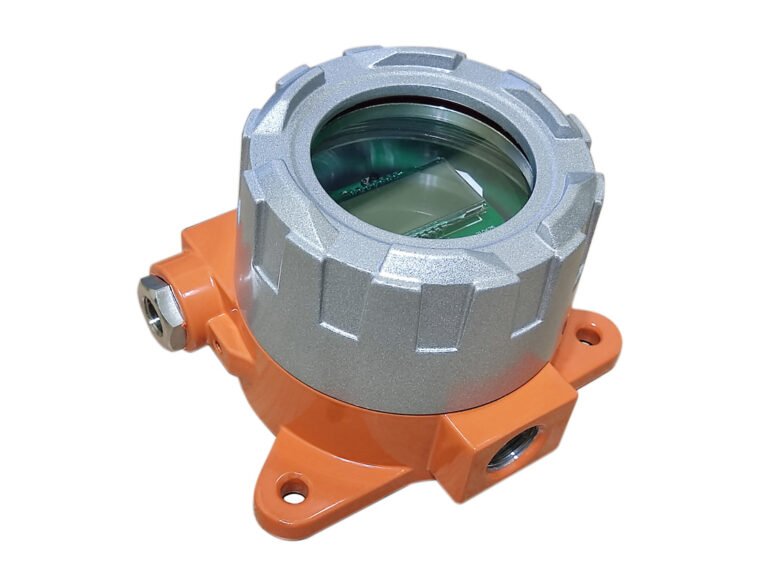

| Housing | Ex-proof Aluminum |
| Protection | IP65, NEMA4 |
| Explosion-Proof Grade | 2Ex db IIC T6 Gc, Ex tc IIIC T85°C Dc, -20°C to +80°C |
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MFSGE374EX using the special form.
You can buy MIRKIP MFSGE374EX in Latvia at a price starting from 1786 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MIRKIP MFSGE374EX price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
