Thermocouples type B, S, R, W. Operating temperature range 1500-1700°C, maximum temperature 1800°C. Permissible error ±5°C/±3°C, response time 4-6 sec.
Disposable and reusable thermocouples are available for order, including for continuous temperature measurement of melted metal. <strong>Analogue of immersion thermocouples Heraeus Positherm and Supertemp.</strong>
Made in Russia. brand MIRKIP, model 602/604
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retailprice from $2
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The company manufactures a wide range of immersion thermocouples platinum-platinum/rhodium (Pt-Pt/Rh) and WRe3/25, used for measuring the full temperature range of melted metal in metallurgy and foundry applications. The immersion thermocouples are produced in accordance with YB/T163-2008 and IPTS 68 and ITS 90 standards.
Example of use with portable lance WK-100.
Immersion thermocouples for melting furnaces are manufactured in accordance with the quality standard ISO 9001:2000. They are compatible and interchangeable with the most common connection and instrumentation systems on the market.
We recommend connecting disposable immersion thermocouples to a compatible portable temperature indicator WK-100 for accurate temperature measurement of liquid steel, melted iron, and copper.
To order disposable liquid metal thermocouples, select the thermocouple type (S, B, R, W), tip (aluminum or steel) and tube length (up to 1000 mm).
The MIRKIP 604 disposable immersion thermocouple is compatible with the WK-100 portable liquid metal temperature measuring rod.
Model 602 can be used with other manufacturers’ rods (please send a photo of the contact block when ordering)
Head selection depends on what metals/melts you will be working with. Fe – steel head, AL – aluminum, Cu – copper.
 |
 |
 |

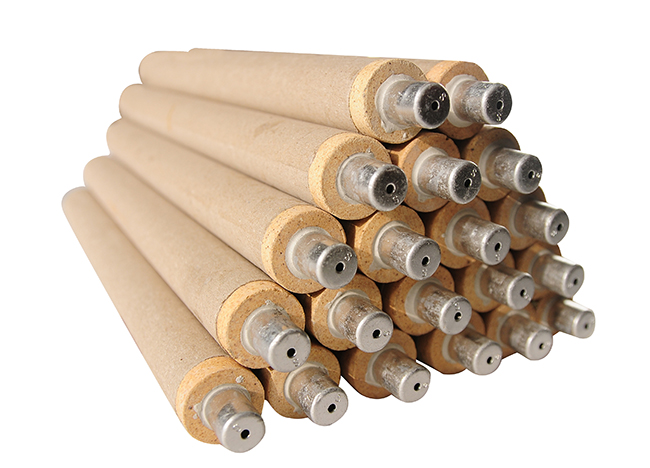

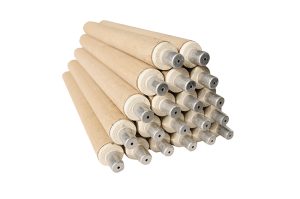

| Thermocouple 602 | Thermocouple 604 | Thermocouple with splash protection |
| Type | Permissible Deviation | Temperature range | Maximum temperature | Response time |
| B-602/604 | ±5℃/±3℃ | 1500-1700℃ | 1800℃ | 4-6 s |
| S-602/604 | ±5℃/±3℃ | 1500-1700℃ | 1800℃ | 4-6 s |
| R-602/604 | ±5℃/±3℃ | 1500-1700℃ | 1800℃ | 4-6 s |
| W-602 | ±5℃/±3℃ | 1500-1700℃ | 1800℃ | 4-6 s |
 |
 |
 |

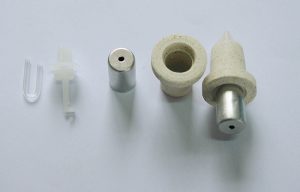

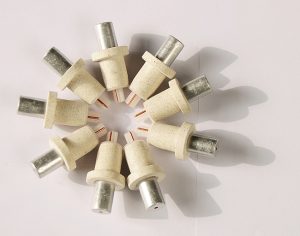

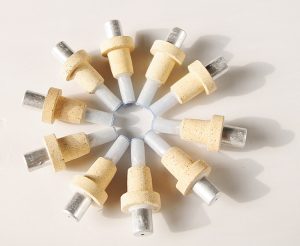

| Thermocouple head 602 | Thermocouple head 604 | Thermocouple tip with triangular base |
 |
 |
 |

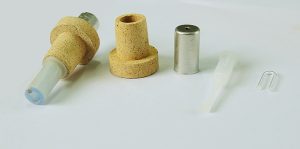

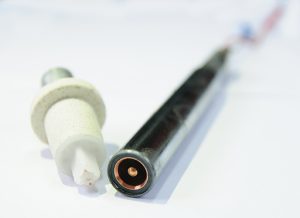

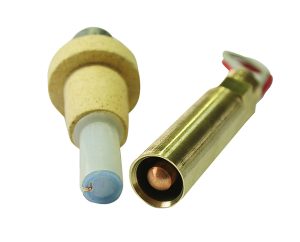

| Thermocouple tip with round base | Thermocouple head and contact block 602 | Thermocouple head and contact block 604 |
 |
 |
 |

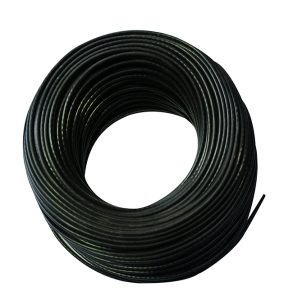

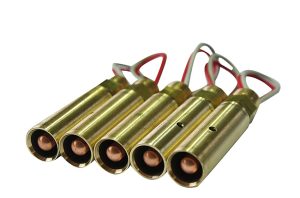

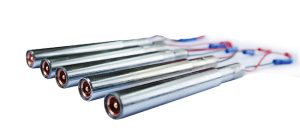

| Contact block 602 | Contact block 604 | External compensation cable |
 |
 |
|

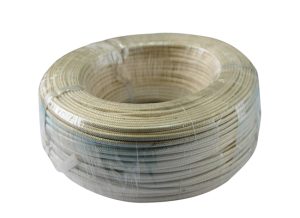

| Internal compensation cable | Temperature measurement lance |
| Photo | Model | Description |
 |

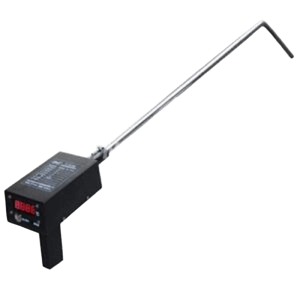

MIRKIP WK-100 | The rod is compatible with five kinds of thermocouples: S (0 – 1750℃), R (0 – 1750℃), B (5 – 1800℃), WRe3/25 (0 – 2000℃), K (0 – 1000℃) . Accuracy ≤±0.2％±1℃. Temperature resolution (℃): 1. Response time (s): 1. Power supply: rechargeable batteries |
 |

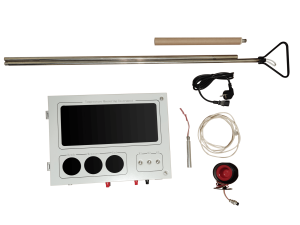

MIRKIP WK-220A | Temperature indicator. Wall mounting in any convenient place away from the object of temperature measurement. Includes a 2 meter long lancet. Cable 20 meters from the indicator device to the lancet, which allows you to approach the object at a distance of 15-20 meters, measure, and get the measurement result on the indicator |
 |

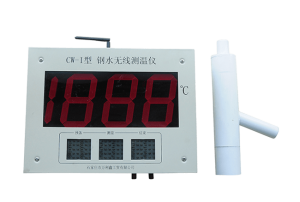

MIRKIP CW-1 | Wireless temperature indicator. Wall mounting, supplied with starter unit |
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP 602/604 using the special form.
You can buy MIRKIP 602/604 in Latvia at a price starting from2 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MIRKIP 602/604 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
