Leitenberger LDM 80

Photo Leitenberger LDM 80 Description of LR-Cal LDM 80 Specifications LR-Cal LDM 80 Accessories for LR-Cal LDM 80 Prices for LR-Cal LDM 80 User Manual for Leitenberger LDM 80 Related instruments to Leitenberger LDM 80

LR-Cal LDM 80 Precision pressure reference instrument

LR-Cal LDM 80 Precision pressure reference instrument
LR-Cal LDM 80 Precision pressure reference instrument
LR-Cal LDM 80 Precision pressure reference instrument
  • Precision digital pressure gauge
  • Accuracy ±0.1% FS or ±0.2% FS
  • 0…100 mbar to 0…3,000 bar
  • Measurement and indication of the medium temperature
  • -10…+70°C ±1°C
  • USB interface
  • Chargeable Li-Ion battery
			int(24650)
NULL

Made in Germany. brand Leitenberger, model LDM 80

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

Retail price from $786

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Description of LR-Cal LDM 80

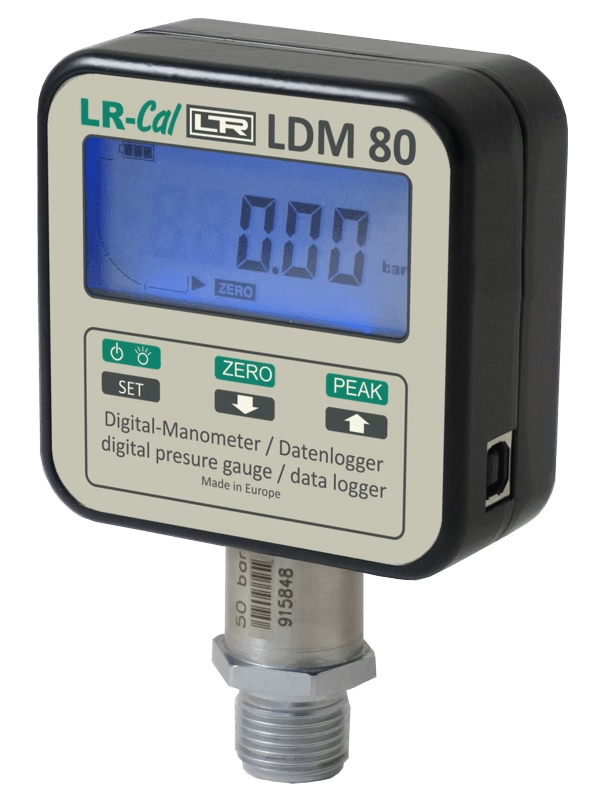

The LR-Cal LDM 80 digital reference pressure gauge and data logger features outstanding long-term stability, a 16-bit A/D converter and advanced microprocessor control. It is ideal for reference pressure measurements, as well as testing and calibration tasks.

Features

  • Accurate pressure measurements from 0…100 mbar to 0…3,000 bar
  • Accuracy ±0.2% FS or ±0.1% FS
  • Data recording (data logger) up to 60,000 values
  • Measurement and display of the medium temperature range -10…+70°C, accuracy ±1°C, resolution 0.1°C
  • Large, excellent readable LCD display, incl. bargraph display, background illumination
  • USB interface as standard
  • 10 different pressure units selectable
  • Programmable digital filter
  • Zeroing at the touch of a button (“Zero function”)
  • Min. and max. value storage (“PEAK function”)
  • Pressure connection 1/2″ BSP bottom male thread (from 1,000 bar with 60° sealing cone)

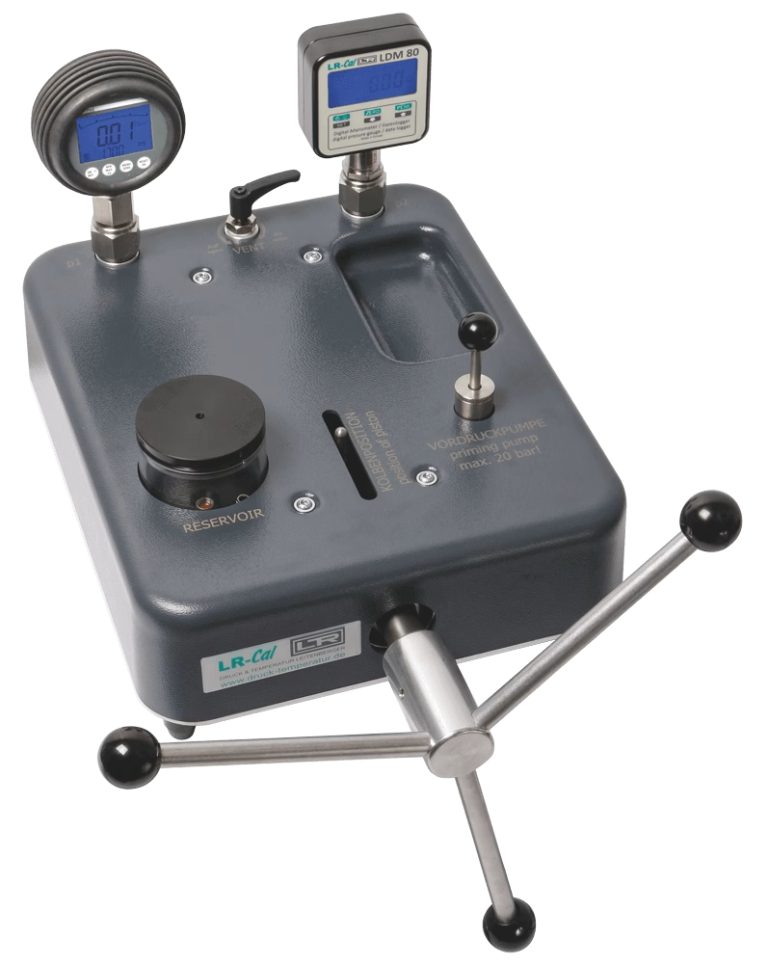

  • The LR-Cal LDM 80 precision digital manometer, together with the LR-Cal LPP 10, LR-Cal LPP 40 and LR-Cal LPP 60 (pneumatic) and LR-Cal LPP 700 and LR-Cal LPP 1000 (hydraulic) calibration hand test pumps, is ideally suited for on-site use. In conjunction with the LR-Cal LSP comparative test equipment (spindle pumps), it is also very well suited for operation in the
  • laboratory and in the workshop.

The device measures not only the pressure but also the medium temperature. The data logger function stores up to 60,000 measured values (either 60,000 pressure values or 30,000 pressure values plus 30,000 temperature values). The user can select or switch between ten pressure units, change the display resolution, and program a digital filter. This makes the LR-Cal LDM 80 digital fine-measurement manometer particularly well suited for measurement and calibration tasks of all kinds.

A practical carrying case, a USB connection cable, a plug-in charger for the built-in rechargeable battery and a traceable factory calibration certificate are included as standard.

As standard, the LR-Cal LDM 80 digital reference pressure gauge and data logger is equipped with a USB interface. Optionally, the data can be transmitted wirelessly, to a PC or laptop. An optional version with pressure switch test function and connection is also available.

Optionally, the LR-Cal LDM 80 precision digital manometer can be featured with

  • with connection socket and connection cable for pressure switch tests

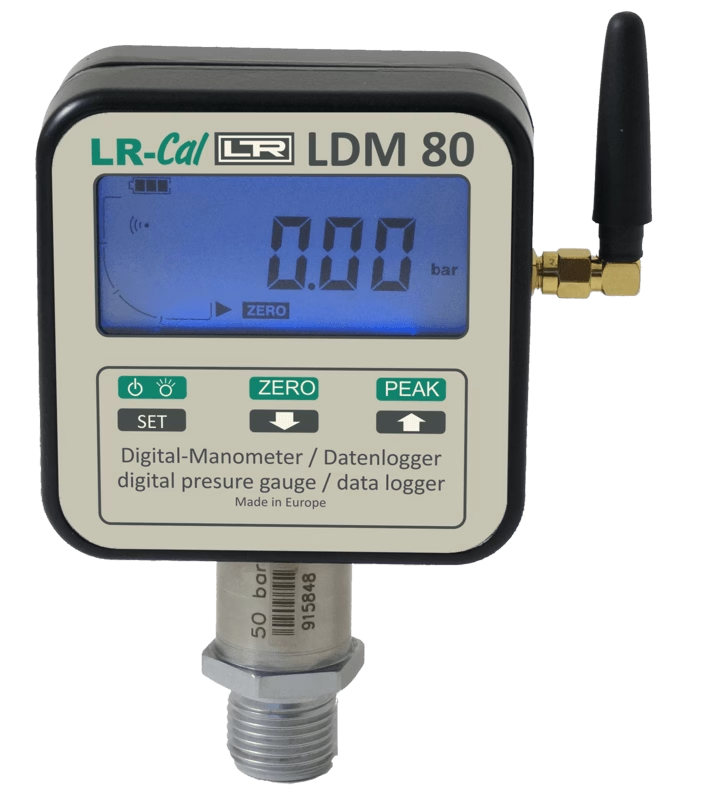

  • with antenna for wireless data transmission

For gentle application, we recommend the rubber protective cap, code LDM80-GK, which is available as an accessory.

Technical specifications of LR-Cal LDM 80

Accuracy ±0.1% FS with option LDM80-KL01;  ±0.2% without this option
Internal resolution 65,000 digits
Measuring rate (if digital filter is set to zero) 10 per second (every 100 ms a measurement)
Filter Programmable digital filter (for stabilisation of displayed values also at fluctuating pressure values etc.)
Temperature measurement Resolution 0.1°C, Accuracy ±1°C (Range -10…+70°C, ambient temp. 0…50°C, temperature units °C + °F)
Reference temperature +23°C
Working temperature -10…+70°C
Storage temperature -10…+80°C
Temperature influence ≤±0.002°C / 1°C
Display LCD, figures height 13 mm, programmable backlight
Programmable resolution 1, 2, 5, 10
Interface USB 2.0 (on PC side virtual COM port, adjustable baud rate 19200, 9600 or 4800)
OPTIONAL: WIRELESS 433 MHz, RF transmission 200 m in free air, max. 10 transmissions per sec.
ZEROing Via key press, up to 50% FS
Maximal/minimal values PEAK-functions, active for positive or negative pressure, 10 measurements per sec.
Pressure units (selectable) bar, mbar, psi, kPa, kg/cm², mHg, mmHg, mmH2O, mH2O
Temperature units (selectable) °C, °F
Data logger max. storage frequency 1 value per second; Capacity max. 60,000 values
(60,000 pressure values or 30,000 pressure values plus 30,000 temperature values)
Supply Built-in Lithium-Ion battery 3.7 V (size 14500, up to about 3 months autonomy without charging, if backlight is set to zero and without data transmissions. Charging time apporox. 8 hours (via PC/Laptop or supplied USB charger)).
Pressure port 1/2″ BSP male thread, recommended seal: USIT A 63-18
Pressure ranges ≥ 1,000 bar: with one of the supplied sealing cones 60°
Optional: 1/2″ NPT male, or for pressure ranges up to 700 bar also 1/4″ BSP male or 1/4″ NPT male
Pressure limits Static pressure 100% FS, max. permissible pressure up to 150% FS, burst pressure >300% FS; at highly dynamic pressure max. 75% v.E.
Pressure port mounting Tightening wrench 27 mm, tightening torque 28 Nm
Protection degree IP 40
Materials Indicator housing: black coated aluminium, pressure sensor and port: stainless steel
Expand Table

Accessories for LR-Cal LDM 80

Photo Model Description

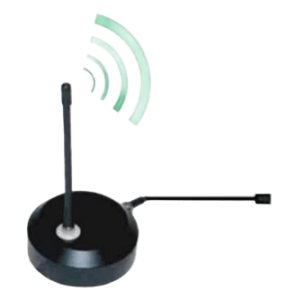

PC-WIRELESS WIRELESS receiving antenna for connection to PC/laptop via USB.
The device option art.no. LDM80-WF is required.
LDM80-GK Protective rubber cap (yellow)
VRS-G12 Reduces the internal volume of the pressure port, only required when used with LR-Cal pneumatic pressure test pumps
LHM-LDM80-LADEGERAET Plug-in charger 110…240 VAC
Connection to USB socket of the device
(Note: 1 charger is already included in the scope of delivery of the device).
TLDMM-DK Sealing cone 60°
for insertion into the 1/2″ BSP pressure connection for pressure ranges of 1,000 bar and above
(2 pieces already included in the standard scope of delivery)
Expand Table

Prices for LR-Cal LDM 80

Model Description Price
LDM80-8010 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…100 mbar 852 $
LDM80-8025 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…250 mbar 852 $
LDM80-8050 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…500 mbar 852 $
LDM80-0001 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…1 bar 786 $
LDM80-0002 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…2,5 bar 786 $
LDM80-0005 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…5 bar 786 $
LDM80-0010 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…10 bar 786 $
LDM80-0020 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…20 bar 786 $
LDM80-0050 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…50 bar 786 $
LDM80-0100 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…100 bar 786 $
LDM80-0250 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…250 bar 786 $
LDM80-0350 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…350 bar 786 $
LDM80-0500 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…500 bar 786 $
LDM80-0700 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…700 bar 786 $
LDM80-1000 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…1000 bar 836 $
LDM80-1500 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…1500 bar 836 $
LDM80-2000 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…2000 bar 836 $
LDM80-2500 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…2500 bar 990 $
LDM80-3000 Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…3000 bar 1356 $
LDM80-1010 Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+1 bar 877 $
LDM80-1025 Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+2,5 bar 877 $
LDM80-1050 Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+5 bar 877 $
LDM80-1020 Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+20 bar 877 $
LDM80-1040 Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+40 bar 962 $
LDM80-1060 Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+60 bar 962 $
LDM80-8050-ABS Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…0,5 bar abs. 1067 $
LDM80-0001-ABS Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…1 bar abs. 1067 $
LDM80-0002-ABS Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…2,5 bar abs. 1067 $
LDM80-0005-ABS Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…5 bar abs. 1067 $
LDM80-0010-ABS Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…10 bar abs. 1067 $
PC-WIRELESS Wireless receiver for PC/Laptop (via USB), for up to 5 LR-Cal WIRELESS devices 377 $
TLDMM-DK SPARE PART: Sealing cone 60°, for the pressure port, for ranges from 1000 bar 31 $
VRS-G12 Volume reducer, to be used with test pump LR-Cal LPP 40 40 $
LDM80-GK ACCESSORY: Rubber cup, yellow, for LR-Cal LDM 80 22 $
LHM-LDM80-LADEGERÄT SPARE PART: battery charger (battery charger) 132 $
Expand Table

User Guide and Instruction manual for Leitenberger LDM 80

You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LDM 80 using the special form.

You can buy Leitenberger LDM 80 in Latvia at a price starting from786  $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email . Leitenberger LDM 80 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
