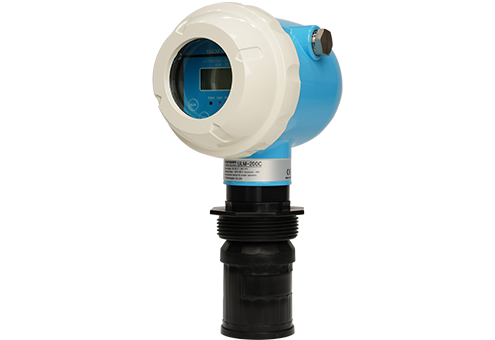

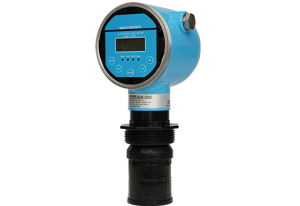

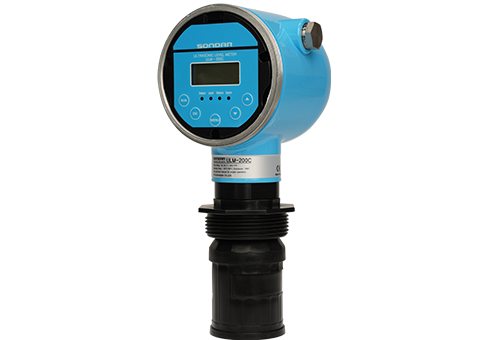

ULM-200C is a non-contact ultrasonic water level meter with an integrated sensor and controller design. The user-centered design makes it easy to operate and requires less installation time.
Made in South Korea. brand ISTEC, model ULM-200C
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

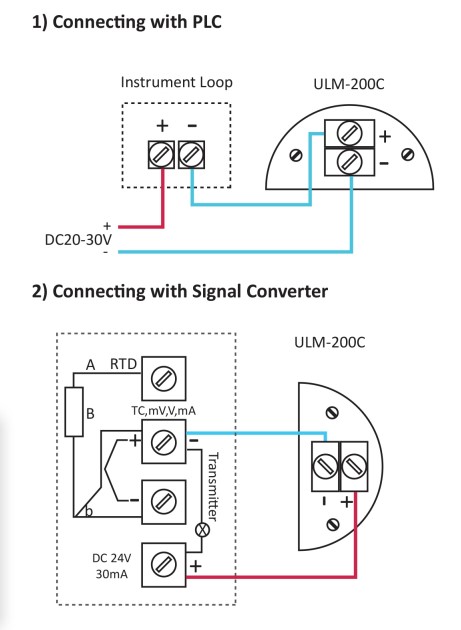

The ULM-200C is a non-contact ultrasonic level meter with an integrated sensor and controller design. It has a measuring range of 8 meters and operates on a 2-wire DC 24V loop system. The ULM-200C is designed with explosion-proof construction, featuring an aluminum die-cast housing. Its user-centered design ensures easy operation and reduced installation time. Equipped with advanced signal processing technology, the ULM-200C provides reliable level information and is an optimal solution for various industrial applications.
Product Features
| Dimension | 117(D)×209(H) mm |
| Mounting Specification | 2-1/2″ NPT |
| Weight | Approx 3.5 kg |
| Housing Material | Aluminum Die Casting |
| Protection Rating | IP67 |
| Operating Temperature | -20℃ to 70℃ |
| Measuring Range | 0.3~8 m |
| Accuracy | 0.2% of measured range |
| Resolution | 1 mm |
| Beam Angle | 8° |
| Response Speed | 0.1 m/min – 100 m/min, Adjustable |
| Temperature Compensation | Built-in temperature sensor |
| Analog Output Display | 4~20mA, 550Ω at DC24V, 5 Digit Numeric LCD |
| Power Supply | DC20~30V |
| Current Consumption | 0.022A max |
| Certification | CE |
| * Product specifications are subject to change without notice | |
| ULM-200C Ordering Code | |
| Measuring Distance | |
| 1 | 8 meters |
| Power Supply | |
| B | DC 20 to 30V (Standard) |
| Communication Type | |
| N | None (Standard) |
| Flange | |
| 0 | none |
| 1 | 80A |
| 2 | 100A |
| 3 | 150A |
| 4 | 200A |
| T* | Custom value |
| Flange Standard | |
| D | DIN |
| A | ANSI |
| J | JIS |
| Extension Pipe Standard | |
| N | none |
| T* | Custom value |
| ULM20C- | |
You can request the necessary certificates, documentation, instructions and user guide for ISTEC ULM-200C using the special form.
