Hot-swappable module for TestPro & NSA. Enables Tier-2 fiber certification and precise fault location without powering down the tester.
Made in USA. brand AEM, model AD-OTDR-U-1310_1625
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 2 600 €
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

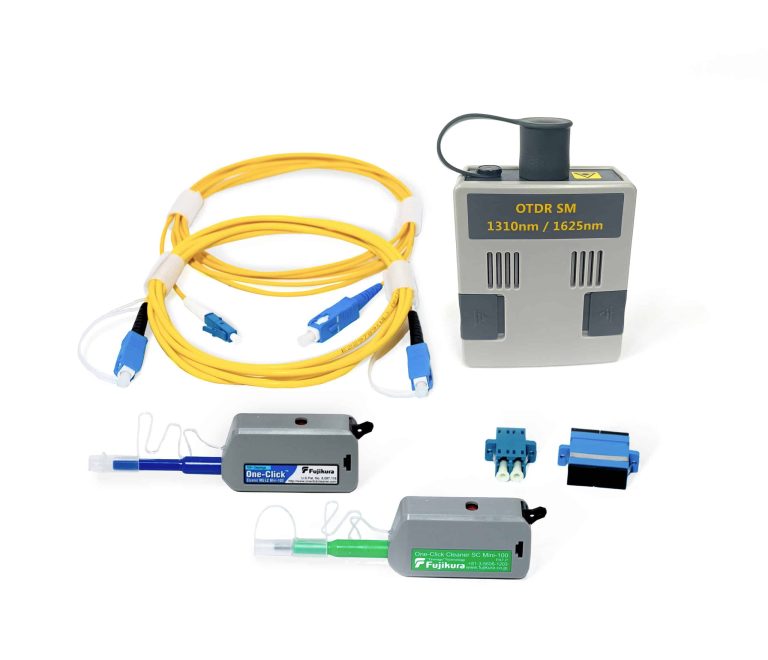

The AEM AD-OTDR-U-1310_1625 is a singlemode OTDR test adapter for TestPro and Network Service Assistant (NSA) platforms. It operates at 1310 nm and 1625 nm and uses an SC/UPC interface. The adapter is hot-swappable, allowing connection without powering down the test equipment. It is used to locate broken fibers and loss events and, when combined with TestPro Tier-1 optical loss certification, supports Tier-2 certification.
Key Features
| Parameter | Specification |
|---|---|
| Product Name | Singlemode OTDR Test Adapter |
| Part Number | AD‑OTDR‑U‑1310_1625 |
| Compatibility | TestPro CV100, Network Service Assistant (NSA) |
| Wavelengths | 1310 nm ±25 nm; 1625 nm ±30 nm |
| Fiber Type | Singlemode |
| Connector Interface | SC/UPC |
| Event Dead Zone | 1310 nm: 0.6 m typical; 1625 nm: 0.6 m typical |
| Attenuation Dead Zone | 1310 nm: 3.6 m typical; 1625 nm: 3.7 m typical |
| Dynamic Range | 1310 nm: 29 dB; 1625 nm: 27 dB |
| Max Distance Range Setting | 130 km |
| Distance Measurement Range | 1310 nm: 80 km; 1625 nm: 130 km |
| Reflectance Range | –14 to –65 dB (both wavelengths) |
| Pulse Width | 3 … 25 000 nsec (programmable) |
| Hot‑swappable | Yes |
| Tier‑2 Certification | Supported (when combined with Tier‑1 optical loss test, TestPro only) |
| Kit Contents |
Note: OTDR launch cords are not included (ordered separately) |
You can request the necessary certificates, documentation, instructions and user guide for AEM AD-OTDR-U-1310_1625 using the special form.
You can buy AEM AD-OTDR-U-1310_1625 in Latvia at a price starting from 2600 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. AEM AD-OTDR-U-1310_1625 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
