TRIO.BAS MONO FILTER Portable Microbial Active Air Sampler

Description of TRIO.BAS MONO FILTER

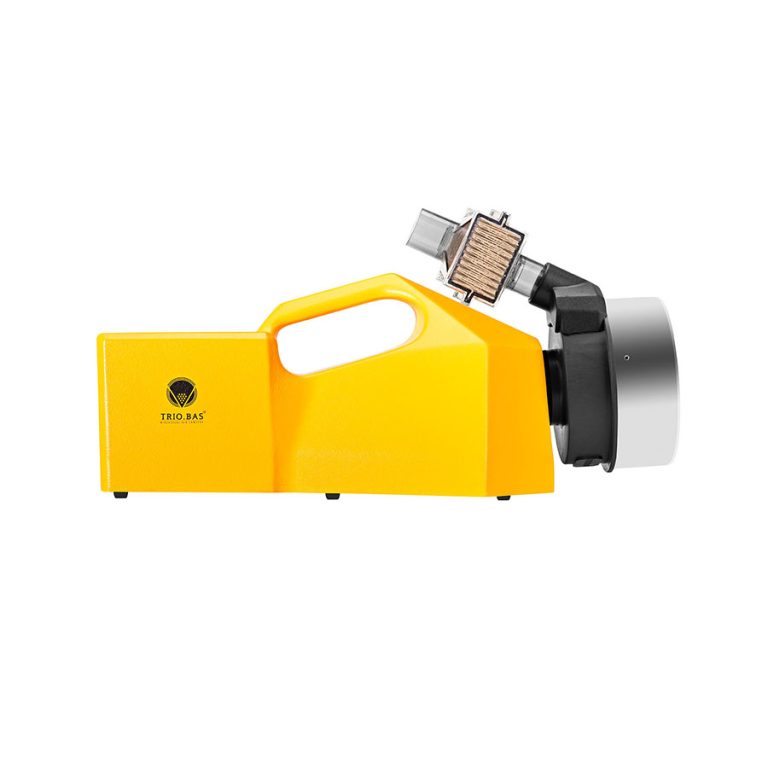

The sampler features a light weight and ergonomic balanced design to facilitate handling with or without gloved hands. The model is equipped with a HEPA filter installed at the outlet of the aspirating head. This solution prevents the potential transfer of particles from the interior of the instrument when moving between zones with different levels of microbial contamination (e.g., from Grade C to Grade A). The HEPA filter is located externally, which simplifies its replacement. The electric motor of TRIO.BAS microbial air samplers does not generate particles after the cleaning procedure.

Features:

• The barcode module with a Bluetooth scanner automatically records the operator, place and plates used for sampling. The data collected by the barcode reader is transmitted directly to the instrument. This solution is useful for those who already use culture plates with barcode or 2-D barcode (QR Quick Response Code). The data collected is transferred via Bluetooth from the air sampler to a PC or laptop. PC or laptop requires dedicated software installed.
• The data are transferred via Bluetooth between the air sampler and a smartphone or tablet (Android), and then to a PC or laptop.
• The data may be transferred via cable, too. This is helpful for all companies that, due to internal policy, are not allowed to use wireless transfer.
• It is possible to work either in manual or automatic mode.
• Manual and automatic passwords (cascade access levels)
• LED on the left side of visual display shows sampling status according to different numbers of flashes (Waiting delay time, Sampling in progress, Sampling pause)
• Automatic next calibration reminder
• Delayed, remote, simultaneous start or interval sampling
• Data integrity CFR 21 Part 11 and GAMP5 compliant
• The sampler is IP65 certified for protection from dust and water.

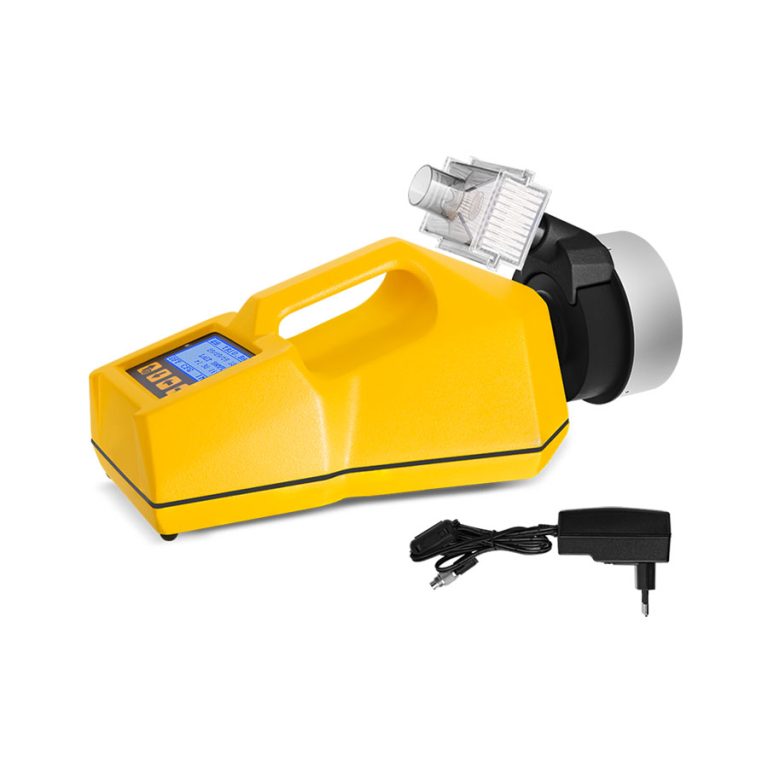

• The battery is recharged by a power cable connected directly to the air sampler.
• The use of sterile Daily Shift aspirating heads reduces the risk of contamination.
• Production in ISO 9001 certified premises

Applications: Pharmaceuticals, cleanrooms, and biotech industries.

Technical specifications of TRIO.BAS MONO FILTER

Accessories for TRIO.BAS MONO FILTER

Photo	Model	Description
	520	Ultra-lightweight and compact portable Bluetooth printer with high printing autonomy. Equipped with a paper end sensor and supports printing of the most common barcodes.
	421	TRIO printer paper roll, 57 mm (10 pcs/pack)
	423	Thermal paper rolls, size 57 mm (10 pcs/pack). Indelible thermal paper for TRIO printers.
	294	Bluetooth barcode scanner — dimensions 60x35x15 mm (H), weight 45 g. 1D/2D barcode scanner module (optional, for use in GMP/GLP)
	291	Barcode labels for identifying sampling locations, size 85×55 mm (10 pcs/pack)
	340	Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
	341	Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
	395	These Carrying cases have very performing characteristics. They ensure the safe transport of the instruments.
	381	Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room
	175	Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP.
	180	IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device’s aspiration heads.

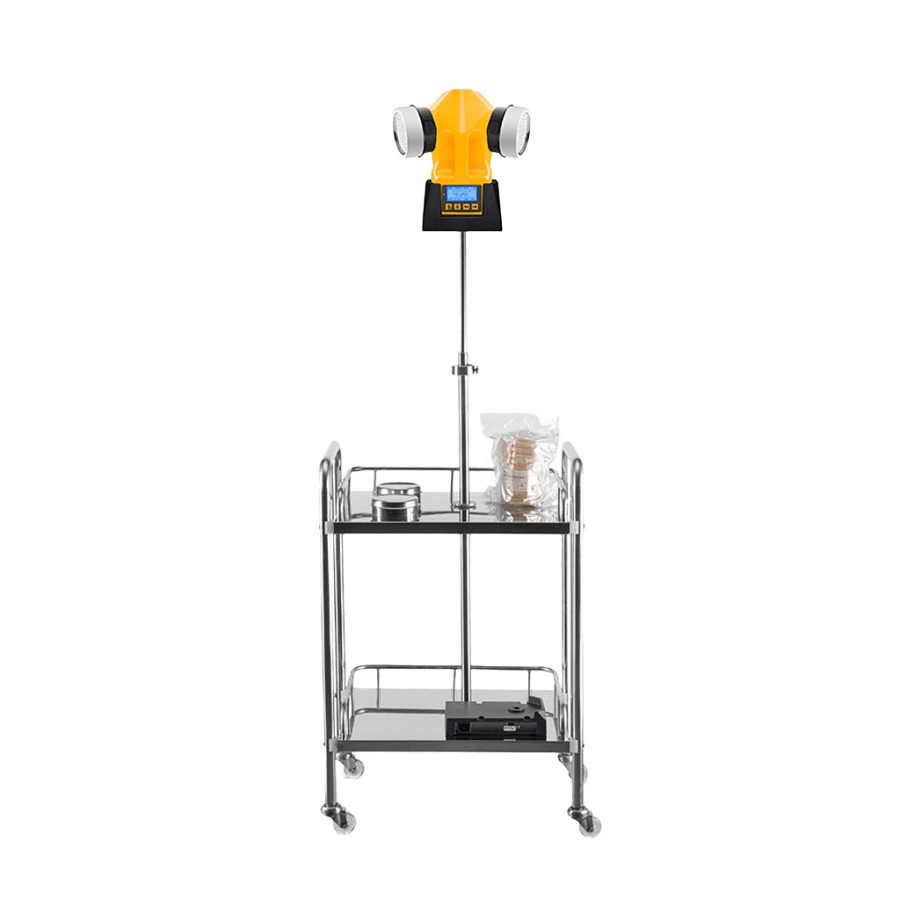

	371	Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use.
	372	MAXI cart with multifunctional holder — stainless steel cart on wheels, complete with table holder and vertical pull-out support with hook. Dimensions: 25x35x70 cm (H) (height adjustment range: 100 to 210 cm). Designed for MONO, DUO, and TRIO models.
	387	The floor tripod is designed for convenient and safe sampling at medium and high heights. Lightweight and height-adjustable up to 366 cm, it ensures a stable setup of the air sampler and facilitates operator activity with quick fixation without screwing. Ideal for mobile use in areas with hard-to-reach sampling points.
	523	Stainless steel floor stand. Adjustable height from 150 to 200 cm ensures convenient sampling at medium height. Supports direct attachment of the sampler or installation of a holder-stand (optional). A ball joint allows you to fix the device and adjust its position.
	521	Vertical stainless steel hook with handle — for mounting on a table, trolley, or floor stand. Compatible with MINI, MONO, DUO, and TRIO models. Dimensions: 12x15x25 cm (H*).
	530	Wall/desk mount. Can be placed on any work surface or mounted on a wall to hold the air sampler in the direction of the air flow coming out of the supply vent.
	376	MAXI stand holder. Made of durable high-density technopolymer. Allows for vertical installation of the sampler with one hand. Compatible with any work surface, tripods, and the MINI trolley. Allows for easy charging of the device and replacement of cups without removing them from the mount.
	501	IQ (installation qualification) and OQ (operational qualification) documents for: MONO
	506	PQ (performance qualification) documents for: MONO

Expand Table

Prices for TRIO.BAS MONO FILTER
