TRIO.BAS DUO ATEX Explosion proof Portable Microbial Active Air Sampler

Description of TRIO.BAS DUO ATEX

ATEX refers to the hazard of explosive atmosphere caused by the presence of combustible gases or flammable dust mixed with air, which can lead to explosion risk. ATEX air samplers with induction are designed to comply with ATEX certification.

In some pharmaceutical and food production facilities, sampling and analytical instruments may be operated in production zones and warehouses where flammable materials are present in the form of gas, vapor, mist or aerosol. In the presence of such substances, an explosive atmosphere can form, creating a flammable mixture in case of ignition source occurrence.

Explosive atmosphere can occur in the presence of combustible dust, flammable gases (fuel for furnaces), flammable liquids and vapors (alcohol-containing flavorings, cooking/coating oils), as well as solvents in analytical laboratories. Dangerous explosion occurs when combustible dust comes into contact with an ignition source, such as electrostatic discharge, mechanical overheating, chemical reactions or heat from surrounding surfaces.

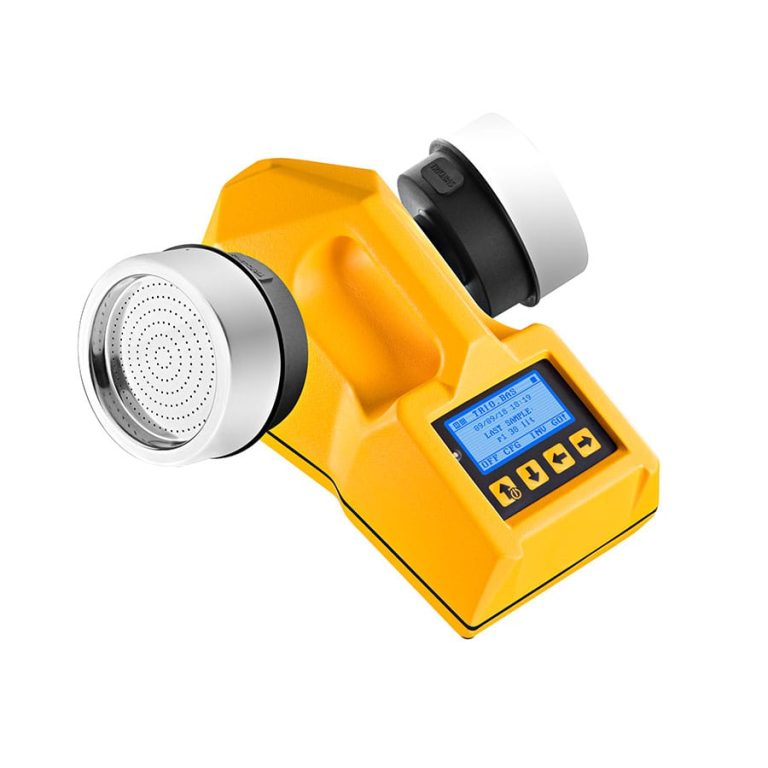

TRIO.BAS Duo ATEX is a portable air sampler with two aspiration chambers, designed for microbiological control in zones with intensive personnel rotation and high quality requirements according to QM/GMP. TRIO.BAS ATEX microb

Features:

• Two aspirating heads allow simultaneous use of different culture media and significantly reduce total sampling time.
• Automatic microbial monitoring in accordance with regulatory requirements.
• Wireless data transfer module (Bluetooth): data transfer between the instrument and Android devices (smartphone/tablet), with subsequent transfer to a PC or laptop.

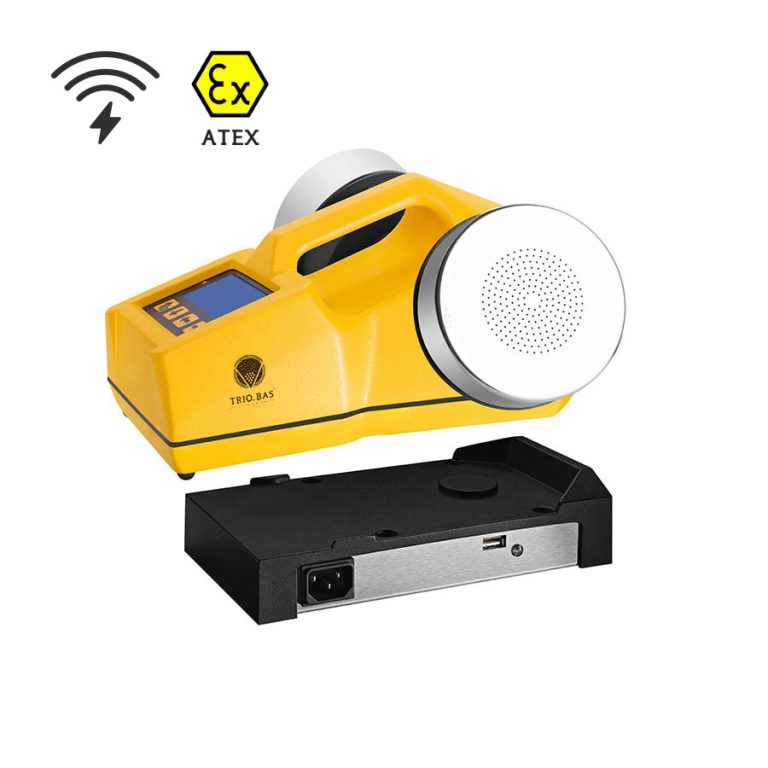

• Induction charging: the battery is recharged by a base station without any cable connection.
• Air flow up to 200 L/min reduces operator time and sampling time.
• IP65 protection class guarantees resistance to dust and moisture.
• Compatibility with barcode systems: use of Bluetooth scanner for automatic registration of operator, sampling location, and plates used (including 1D/2D codes), with data transfer directly to the device.
• Sterile disposable Daily Shift aspirating heads reduce the risk of cross-contamination and ensure ease of operation.

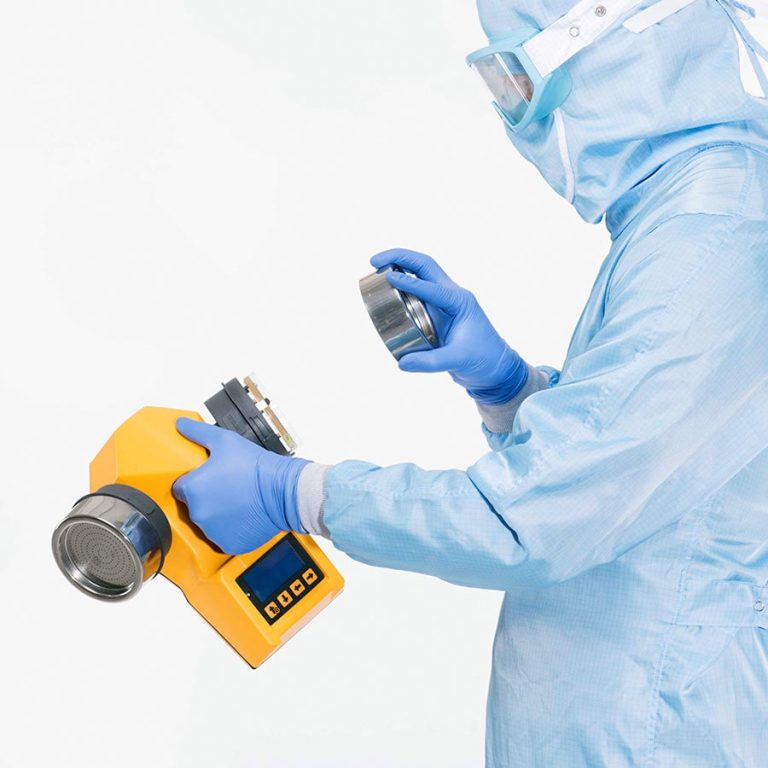

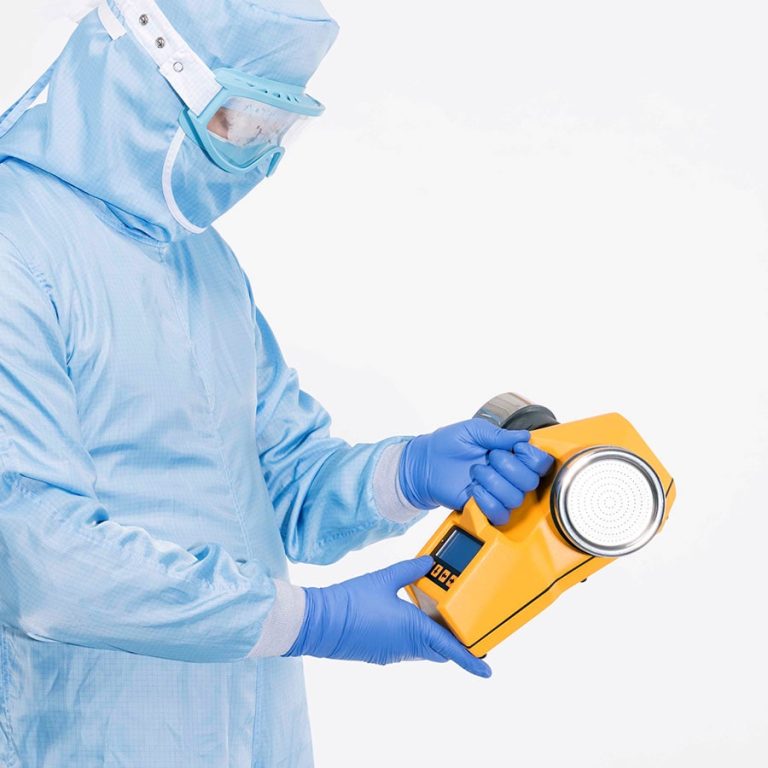

• The sampler features a light weight and ergonomic and balanced design to facilitate handling with or without gloved hands.

Sampling Mode Programming:

• SEQUENTIAL: The second head starts after the first stops.
• SIMULTANEOUS: Both heads operate synchronously.
• INTERVAL: Sampling at set time intervals.
• CONTINUOUS: The next head activates immediately after the previous one completes.

Additional Functions:

• LED indicator on the display shows the current device status (delay, active sampling, pause) via different flash types.
• It is possible to work either in manual or automatic mode.
• Data can be exported for analysis or inspection verification.

Applications: Pharmaceutical production, cleanrooms, biotechnology, fermentation, medical device production, cell technologies (Stem Cell), IVF clinics, operating rooms, hospital pharmacies, blood banks, clinics, microbiological and environmental laboratories, building HVAC systems, healthcare environment monitoring, sanitary supervision authorities, food and beverage production, warehouses with flammable materials, analytical laboratories with solvents, production zones with dust explosion risk.

Technical specifications of TRIO.BAS DUO ATEX

Accessories for TRIO.BAS DUO ATEX

Photo	Model	Description
	520	Ultra-lightweight and compact portable Bluetooth printer with high printing autonomy. Equipped with a paper end sensor and supports printing of the most common barcodes.
	421	TRIO printer paper roll, 57 mm (10 pcs/pack)
	423	Thermal paper rolls, size 57 mm (10 pcs/pack). Indelible thermal paper for TRIO printers.
	294	Bluetooth barcode scanner — dimensions 60x35x15 mm (H), weight 45 g. 1D/2D barcode scanner module (optional, for use in GMP/GLP)
	291	Barcode labels for identifying sampling locations, size 85×55 mm (10 pcs/pack)
	340	Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
	341	Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs

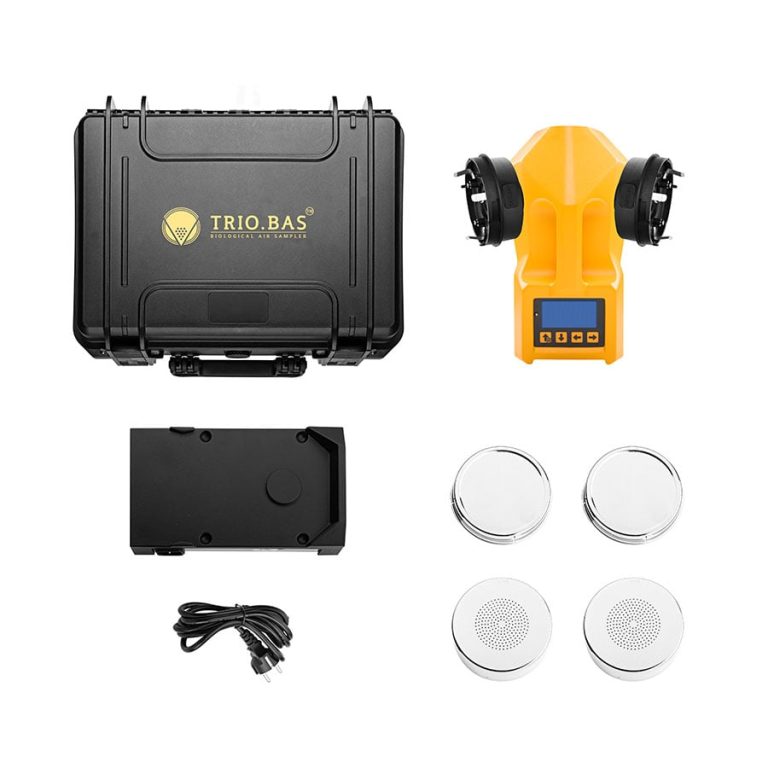

	395	These Carrying cases have very performing characteristics. They ensure the safe transport of the instruments.
	381	Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room
	175	Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP.
	180	IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device’s aspiration heads.
	371	Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use.
	372	MAXI cart with multifunctional holder — stainless steel cart on wheels, complete with table holder and vertical pull-out support with hook. Dimensions: 25x35x70 cm (H) (height adjustment range: 100 to 210 cm). Designed for MONO, DUO, and TRIO models.
	387	The floor tripod is designed for convenient and safe sampling at medium and high heights. Lightweight and height-adjustable up to 366 cm, it ensures a stable setup of the air sampler and facilitates operator activity with quick fixation without screwing. Ideal for mobile use in areas with hard-to-reach sampling points.
	523	Stainless steel floor stand. Adjustable height from 150 to 200 cm ensures convenient sampling at medium height. Supports direct attachment of the sampler or installation of a holder-stand (optional). A ball joint allows you to fix the device and adjust its position.
	521	Vertical stainless steel hook with handle — for mounting on a table, trolley, or floor stand. Compatible with MINI, MONO, DUO, and TRIO models. Dimensions: 12x15x25 cm (H*).
	530	Wall/desk mount. Can be placed on any work surface or mounted on a wall to hold the air sampler in the direction of the air flow coming out of the supply vent.
	376	MAXI stand holder. Made of durable high-density technopolymer. Allows for vertical installation of the sampler with one hand. Compatible with any work surface, tripods, and the MINI trolley. Allows for easy charging of the device and replacement of cups without removing them from the mount.
	502	IQ (installation qualification) and OQ (operational qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO
	507	PQ (performance qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO

Expand Table
