Handheld particle counter TRIO.BAS CONT.AIR designed for cleanroom monitoring, air quality control and industrial applications.
Airflow rate: 2.83 l/min; 6 size channels; Particle size range: from 0.3 µm to 25 µm; 4.3’’ WQVGA color touchscreen; Up to 45,000 records stored.
Made in Italy. brand TRIO.BAS, model CONT.AIR
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

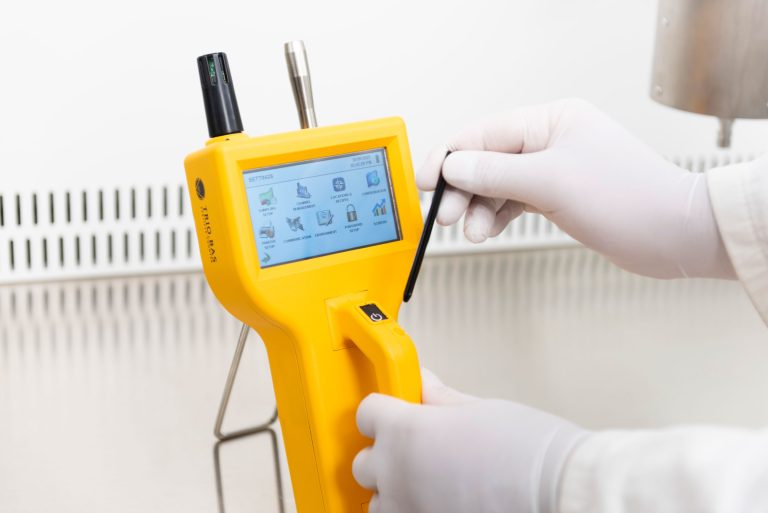

The new CONT.AIR is a handheld particle counter designed for cleanroom monitoring, air quality control, industrial applications, occupational health and safety, and scientific research.
This instrument is used to detect, count and size the aerosol particles present in the air. Unlike a microbial air sampler, which gives the number and the type of micro-organism captured on the agar plate, the particle counter gives the number and the size of the non-viable particles present in the air. These particles can be the transport agents for viable ones (micro-organisms).
The instrument detects particles in a range from 0.3 to 25 µm across 6 pre-set channels (generally 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm). It operates at a flow rate of 0.1 CFM (2.83 l/min). It provides data output both in standard cleanroom formats and in mass concentration (µg/m³).

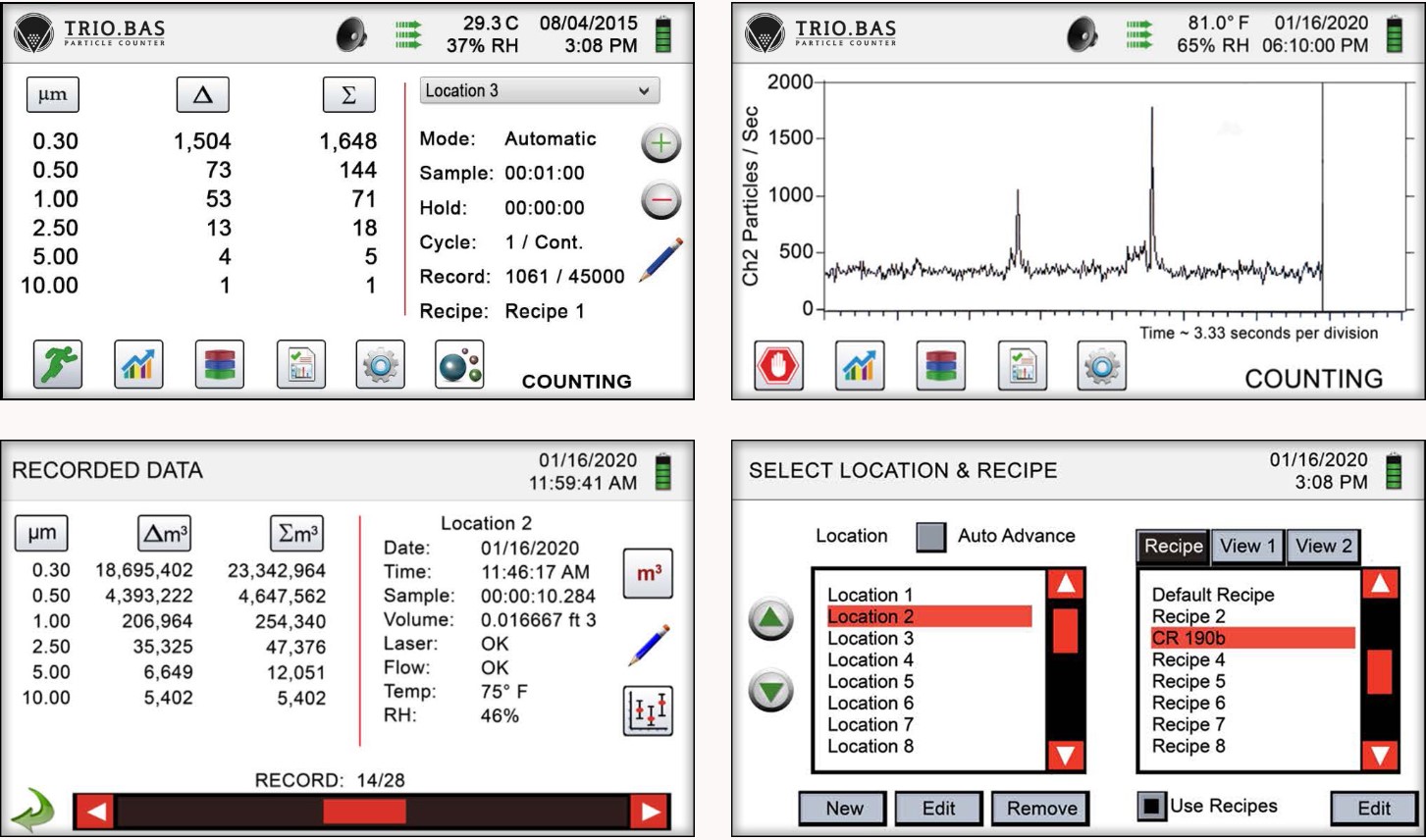

The firmware is user friendly, and the presence of a pen facilitates the use of the touchscreen keyboard. The possibility to integrate the instrument with temperature and relative humidity probes generates more detailed environmental assessments. Light, ergonomic and easy to use as a portable device. The instrument is patented.
Applications
The most common applications for the handheld particle counter are:
Performances
| Flow rate: | 0.1 CFM (2.83 l/min) |
| Particle size range: | From 0.3 µm to 25 µm (diameter) |
| Size channels: | Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm |
| Concentration limits: | 15,000,000 particles/ft³ @ 10% coincidence (ISO 21501-4) 30,000,000 particles/ft³ @ 10% coincidence (tested and validated) |
| Battery: | 10 hours in continuous operation with a full charge |
| Light source: | Long-life laser diode |
| Count alarms: | 1 to 9,999,999 counts |
| Zero count: | < 1 count/60 minutes |
| Counting efficiency: | 50% at 0.3 µm – 100% at 0.5 µm |
| Counting modes: | Particles/second, real time meter, cumulative/differential (count/m³ and count/ft³) and mass concentration |
| Display: | 4.3’’ WQVGA color touchscreen |
| Vacuum source: | Internal pump with automatic flow control |
| Filtered exhaust: | Internal HEPA filter |
| Audible alarms: | Customizable |
| Certification: | CE mark |
| Battery: | Removable Li-ion – recharge time 4 hours or less than 2 hours with external battery charger |
| Exportable data reports: | ISO 14644-1, EU GMP Annex 1, FS 209E |
| Communication: | Ethernet, USB, Modbus RS485 – RS232 |
| Environmental sensors: | Temperature and relative humidity probes |
| Standards: | ISO 21501-4 and JIS B9921 |
| Calibration: | Suggested minimum 1 per year |
| External body: | ABS in technopolymer |
| Dimensions: | 130x110x310H mm including handle |
| Weight: | 1 kg |

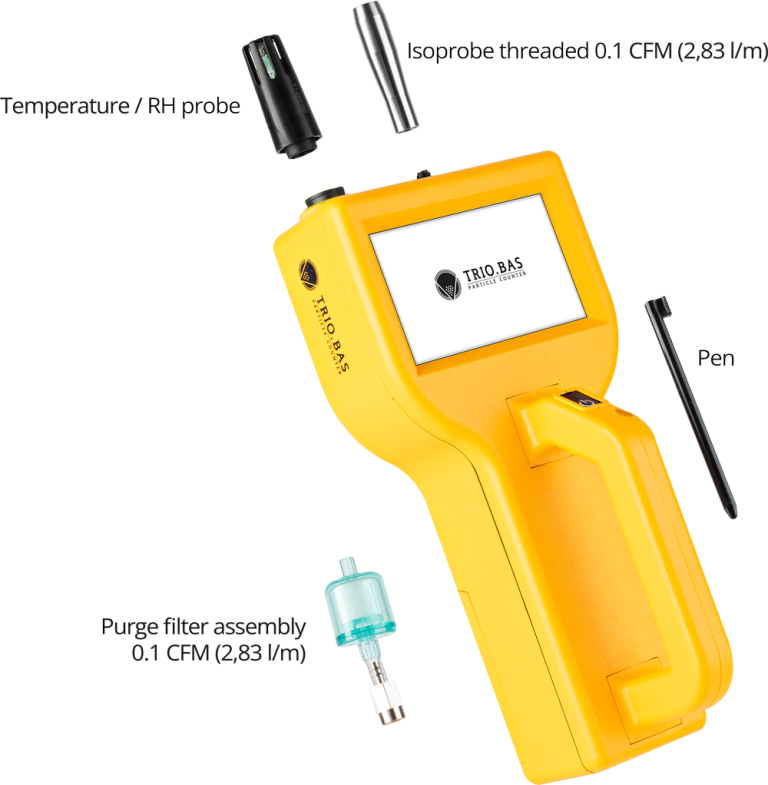

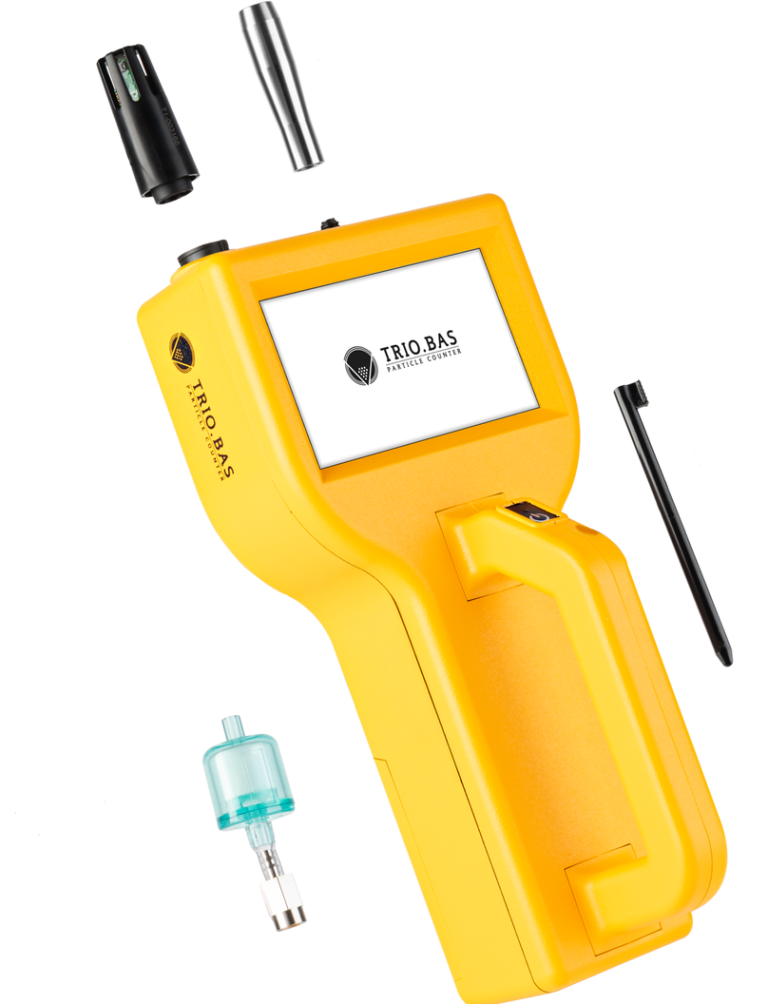

| Accessories: | User manual, Management Software on USB key, isokinetic probe, temperature and relative humidity sensor, zero-count filter, battery, USB cable and power supply |
| Optional accessories: | Printed user manual, carrying case, spare, external battery charger, thermal printer |
| Language: | English |
| Sample time: | From 1 second to 99 hours |
| Power supply: | 110 to 240 VAC 50/60 Hz |
| Operating conditions: | 5-40 °C / humidity 20%-90% |
| 977 | Handheld Particle Counter with isoprobe 0.1 CFM (2.83 l/min), power supply, temperature and humidity probe, calibration certificate and light carrying case |
You can request the necessary certificates, documentation, instructions and user guide for TRIO.BAS CONT.AIR using the special form.
You can buy TRIO.BAS CONT.AIR in Latvia at a price starting from price by request € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. TRIO.BAS CONT.AIR price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
