TE.MA. SEP539

Photo TE.MA. SEP539 Specifications TE.MA. SEP539 User Manual for TE.MA. SEP539 Related instruments to TE.MA. SEP539

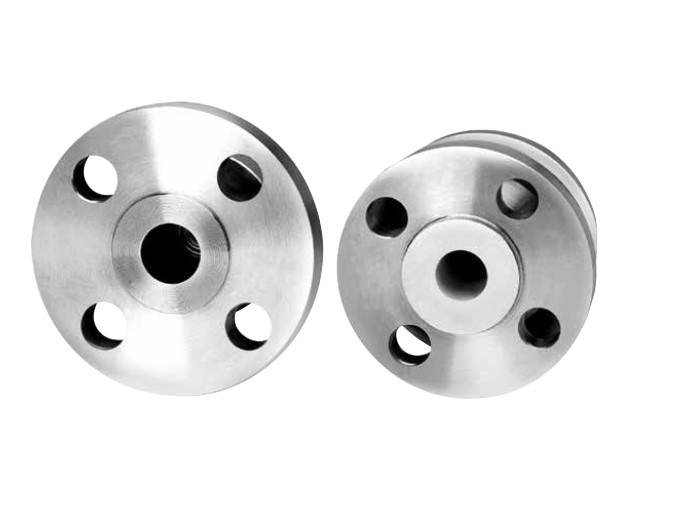

TE.MA. SEP539 Flanged diaphragm seal

TE.MA. SEP539 Flanged diaphragm seal
TE.MA. SEP539 Flanged diaphragm seal

Compact chemical seal with process connection suitable for ASA or DIN flanges, internal welded diaphragm suitable for dismounting and internal washing of the chemical seal

			int(23724)
NULL

Made in Italy. brand TE.MA., model SEP539

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. SEP539

Process connection: st. st. 316 UNI-DIN or ANSI flanged
Diaphragm: st. st. 316L
Welding: T.I.G.
Ranges: from –1/0 to 0/40 Bar and from 0/60 up to 0/250 Bar
Temperature limits: -40 / +200°C
Accuracy: at 20°C or a temperature stated when ordering:
±0,5% for direct line, ±1% for flexible line
Expand Table

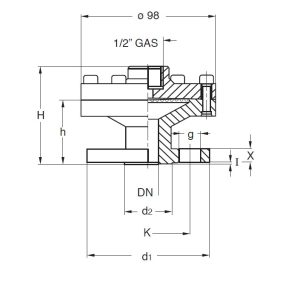

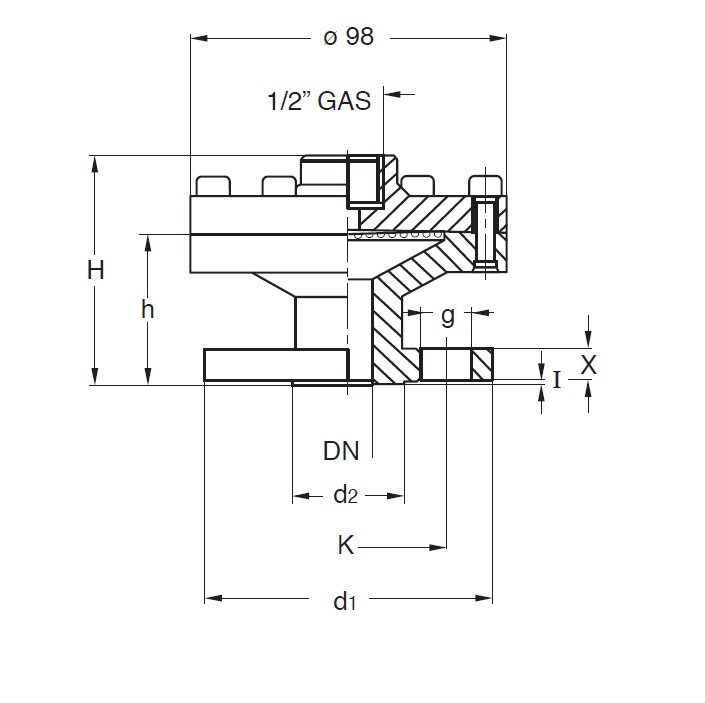

Flanges Connections ANSI Specifications

DN PN-psi (1) h H d1 d2 I K X g N (2)
1/2” 150 48,1 73,1 89 34,9 1,6 60,3 10 16 4
1/2” 300 53,6 78,6 95 34,9 1,6 66,7 13 16 4
1/2” 600 59,8 84,8 95 34,9 6,3 66,7 14,5 16 4
3/4” 150 49,6 74,6 98,5 42,9 1,6 69,8 11,5 16 4
3/4” 300 57,1 82,1 117,5 42,9 1,6 82,5 14,5 19 4
3/4” 600 63,3 88,3 117,5 42,9 6,3 82,5 16 19 4
1” 150 51,1 76,1 108 50,8 1,6 79,4 13 16 4
1” 300 60,1 85,1 124 50,8 1,6 88,9 16 19 4
1” 600 66,3 91,3 124 50,8 6,3 88,9 17,5 19 4
1-1/2” 150 53 78 127 73 1,6 98,4 15,9 16 4
1-1/2” 300 65,1 90,1 155,5 73 1,6 114,3 19 22 4
1-1/2” 600 73,3 98,3 155,5 73 6,3 114,3 22,5 22 4
2” 150 55,6 80,6 152,5 92,1 1,6 120,6 17,5 19 4
2” 300 60 85 165 92,1 1,6 127 20,9 19 8
2” 600 69,3 94,3 165 92,1 6,3 127 25,5 19 8
Expand Table

Flanges Connections UNI-DIN Specifications

DN PN-bar(1) h H d1 d2 I K X g N (2)
15 6 46 71 80 40 2 55 10 11 4
15 10-16 50 75 95 45 2 65 12 14 4
15 25-40 52 77 95 45 2 65 14 14 4
20 6 48 73 90 50 2 65 12 11 4
20 10-16 52 77 105 58 2 75 14 14 4
20 25-40 54 79 105 58 2 75 16 14 4
25 6 48 73 100 60 2 75 12 11 4
25 10-16 52 77 115 68 2 85 14 14 4
25 25-40 54 79 115 68 2 85 16 14 4
40 6 50 75 130 80 3 100 11 14 4
40 10-16 56 81 150 88 3 110 13 18 4
40 25-40 58 83 150 88 3 110 15 18 4
50 6 50 75 140 90 3 110 11 14 4
50 10-16 58 83 165 102 3 125 15 18 4
50 25-40 60 85 165 102 3 125 17 18 4
Expand Table

Options

  • Process material: carbon steel+PTFE; st. st. 316+PTFE; monel-400, hastelloy-C276
  • Diaphragm material: st. st. 316L+PTFE; nickel; monel-400; hastelloy-C276; titanium, tantalum. st. st. 316
  • Capillary tube: st. st. 316 or covered st. st. flexible max length 6 m.

How to order: Please specify: code and dimensions, range, process temperature, materials, options if any.
Example: model SEP 539 1” – 0/16Bar – 200°C – AISI 316L

User Guide and Instruction manual for TE.MA. SEP539

You can request the necessary certificates, documentation, instructions and user guide for TE.MA. SEP539 using the special form.

You can buy TE.MA. SEP539 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email . TE.MA. SEP539 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.

See also: Diaphragm Seals
