TE.MA. SEP535 Chemical diaphragm seal

TE.MA. SEP535 Chemical diaphragm seal
TE.MA. SEP535 Chemical diaphragm seal
TE.MA. SEP535 Chemical diaphragm seal

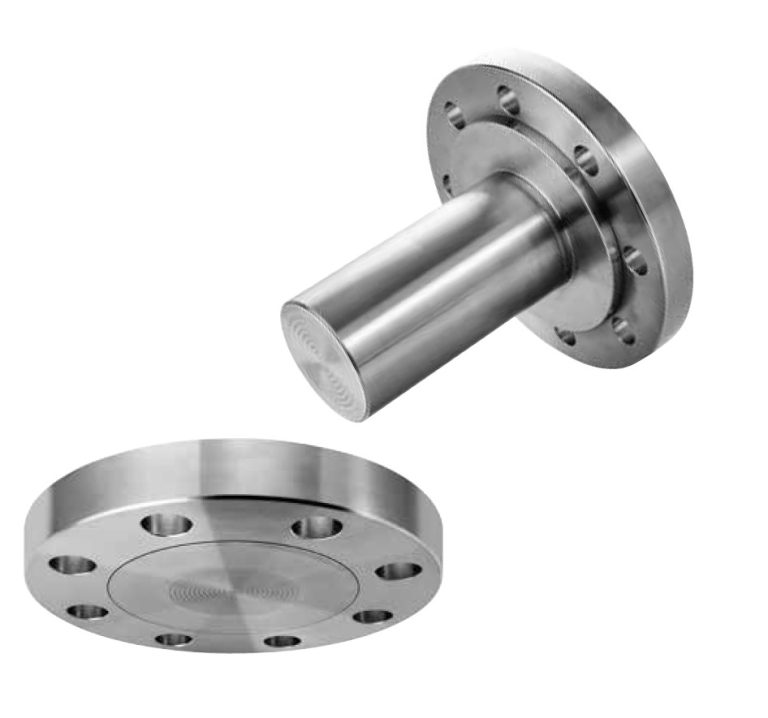

Flanged diaphragm seal with flush welded diaphragm are used for contaminated solidifing, hot or highly viscous media, when flange connections are required
			int(23677)
NULL

Made in Italy. brand TE.MA., model SEP535

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. SEP535

Bottom housing: st. st. 316 flanged UNI ANSI or DIN specifications with or without extension
Diaphragm: st. st 316L
Welding: TIG
Ranges: 0/6 – 0/400 Bar, according flange rating
Temperature limits: -40 / +200°C
Accuracy: at 20°C or at temperature stated when ordering: ±0,5% for direct line, ±1% for flexible line.
Expand Table

Types and dimensions

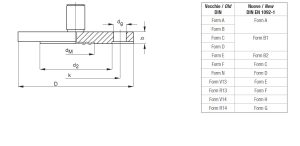

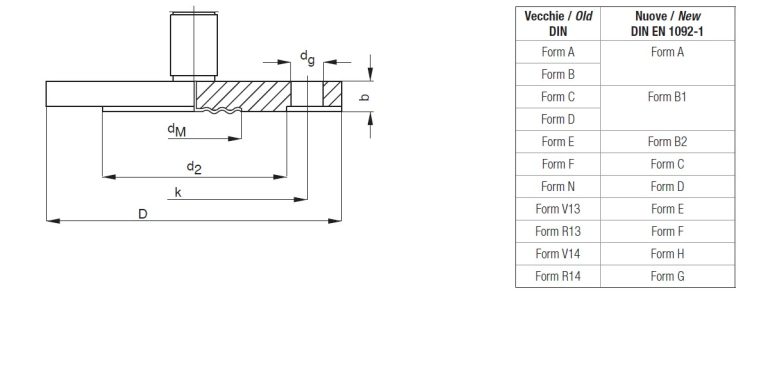

Flanges’ dimensions according to DIN EN 1092-1

DN PN dM d₂ K D dg b
40 10/40 41,5 88 110 150 4xØ18 18
50 41,5 73 114,3 156 4xØ22 20,6
63/100 41,5 88 125 170 4xØ22 28
50 25/40 45 102 125 165 4xØ18 20
50 48 92,1 127 165 4xØ19 22,4
100 48 102 145 195 4xØ26 30
80 10/16 75,5 138 160 200 8xØ18 20
25/40 75,5 138 160 215 8xØ18 24
50 75,5 127 168,3 230 8xØ22 28,4
100 75,5 138 180 255 8xØ26 36
100 10/16 75,5 158 180 200 8xØ18 20
25/40 75,5 158 190 200 8xØ22 24
50 75,5 157,2 200 210 8xØ22 31,8
100 75,5 162 210 230 8xØ30 40
Expand Table

Flanges’ dimensions according to DIN 2501

DN PN dM d₂ K D dg b
40 10/40 41,5 88 110 150 4xØ18 18
64/160 41,5 88 125 170 4xØ22 28
250 41,5 88 135 185 4xØ26 34
320 41,5 88 145 195 4xØ26 38
400 41,5 88 165 220 4xØ30 48
50 10/40 48 102 125 165 4xØ18 20
64 48 102 135 180 4xØ22 26
100/160 48 102 145 195 4xØ26 30
250 48 102 150 200 8xØ26 38
320 48 102 160 210 8xØ26 42
400 48 102 180 235 8xØ26 52
80 10/40 75,5 138 160 200 8xØ18 24
64 75,5 138 170 215 8xØ22 38
100/160 75,5 138 180 230 8xØ26 36
250 75,5 138 200 255 8xØ30 46
320 75,5 138 220 275 8xØ30 55
400 75,5 138 240 305 8xØ33 68
100 10/40 75,5 162 190 235 8xØ22 24
64 75,5 162 200 250 8xØ26 30
100/160 75,5 162 210 265 8xØ30 40
250 75,5 162 235 300 8xØ33 54
320 75,5 162 265 335 8xØ36 65
400 75,5 162 295 370 8xØ39 80
Expand Table

Flanges’ dimensions according to ANSI ASME 16.5

DN PN dM d2 K D dg b
1½” 150# 34,5 73,2 98,5 127,0 4xØ16 17,5
300# 34,5 73,2 114,3 155,4 4xØ22 20,6
600# 34,5 73,2 114,3 155,4 4xØ22 28,8
900# 34,5 73,2 123,9 177,8 4xØ28 38,1
1500# 34,5 73,2 123,9 177,8 4xØ28 38,1
2500# 34,5 73,2 146,1 203,2 4xØ31 50,9
2″ 150# 41,5 91,9 120,7 152,4 4xØ19 19,1
300# 41,5 91,9 127,0 165,1 8xØ19 22,4
600# 41,5 91,9 127,0 165,1 8xØ19 31,8
900# 41,5 91,9 165,1 215,9 8xØ25 44,5
1500# 41,5 91,9 165,1 215,9 8xØ25 44,5
2500# 41,5 91,9 171,5 235,0 8xØ28 57,2
3″ 150# 75,5 127,0 152,4 190,5 4xØ19 23,9
300# 75,5 127,0 168,1 209,5 8xØ22 28,4
600# 75,5 127,0 168,1 209,5 8xØ22 38,2
900# 75,5 127,0 190,5 241,3 8xØ25 44,5
1500# 75,5 127,0 203,2 266,7 8xØ32 54,1
2500# 75,5 127,0 228,6 304,8 8xØ35 72,9
4″ 150# 75,5 157,2 190,5 228,6 8xØ19 23,9
300# 75,5 157,2 200,1 254,0 8xØ22 31,7
600# 75,5 157,2 215,9 273,1 8xØ25 44,5
900# 75,5 157,2 234,9 292,1 8xØ25 50,2
1500# 75,5 157,2 241,3 311,1 8xØ35 50,8
2500# 75,5 157,2 273,1 355,6 8xØ41 82,6
Expand Table

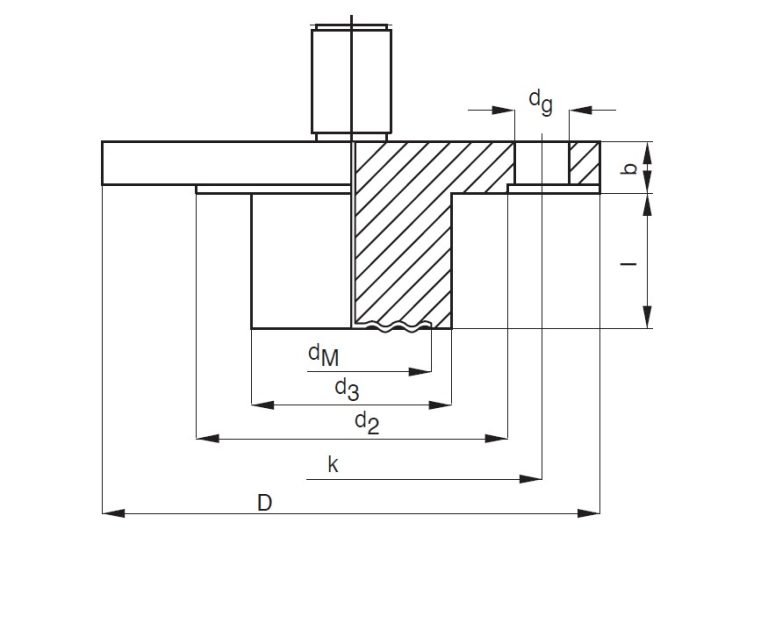

Flanges’ dimensions according to DIN 2526 Form C

DN PN dM d2 d3 K D I dg b
40 10/40 34,5 88 38 110 150 50 4xØ18 18
34,5 88 38 110 150 100 4xØ18 18
34,5 88 38 110 150 150 4xØ18 18
34,5 88 38 110 150 200 4xØ18 18
50 10/40 48 102 48,3 125 165 50 4xØ20 20
48 102 48,3 125 165 100 4xØ20 20
48 102 48,3 125 165 150 4xØ20 20
48 102 48,3 125 165 200 4xØ20 20
80 40 75,5 138 76 160 200 50 8xØ24 24
75,5 138 76 160 200 100 8xØ24 24
75,5 138 76 160 200 150 8xØ24 24
75,5 138 76 160 200 200 8xØ24 24
100 16 75,5 158 94 180 220 50 8xØ20 20
75,5 158 94 180 220 100 8xØ20 20
75,5 158 94 180 220 150 8xØ20 20
75,5 158 94 180 220 200 8xØ20 20
100 40 75,5 162 94 190 235 50 8xØ24 24
75,5 162 94 190 235 100 8xØ24 24
75,5 162 94 190 235 150 8xØ24 24
75,5 162 94 190 235 200 8xØ24 24
Expand Table

Flanges’ dimensions according to ANSI / ASME B16.5 specifications

DN PN dM d2 d3 K D I dg b
1½” 150# 34,5 73 38 98,5 127 50 4xØ16 18
34,5 73 38 98,5 127 100 4xØ16 18
34,5 73 38 98,5 127 150 4xØ16 18
34,5 73 38 98,5 127 200 4xØ16 18
2″ 300# 41,5 92 48,3 127 165 50 8xØ20 22,5
41,5 92 48,3 127 165 100 8xØ20 22,5
41,5 92 48,3 127 165 150 8xØ20 22,5
41,5 92 48,3 127 165 200 8xØ20 22,5
3″ 300# 75,5 127 76 168,5 210 50 8xØ23 29
75,5 127 76 168,5 210 100 8xØ23 29
75,5 127 76 168,5 210 150 8xØ23 29
75,5 127 76 168,5 210 200 8xØ23 29
4″ 150# 75,5 158 94 190,5 230 50 8xØ20 24
75,5 158 94 190,5 230 100 8xØ20 24
75,5 158 94 190,5 230 150 8xØ20 24
75,5 158 94 190,5 230 200 8xØ20 24
4″ 300# 75,5 158 94 200 255 50 8xØ23 32
75,5 158 94 200 255 100 8xØ23 32
75,5 158 94 200 255 150 8xØ23 32
75,5 158 94 200 255 200 8xØ23 32
Expand Table

Options

Flange material with or without extension different from st. st. 316.
St. st. 316 Ti, titanium, monel, nickel, hastelloy-C, tantalum diaphragm are also available.

St. st. 316 capillary tube, or covered st. st. flexible max length 6 m.
Manufacture on request.

Flanges with others UNI, ASME / ANSI or DIN dimension are available upon customer request.

How to order: Please specify: type, connection dimension, extension if any, range, process temperature.
Example: model SEP535 – 2” ANSI150 – 100mm – 0/25Bar – 50°C
