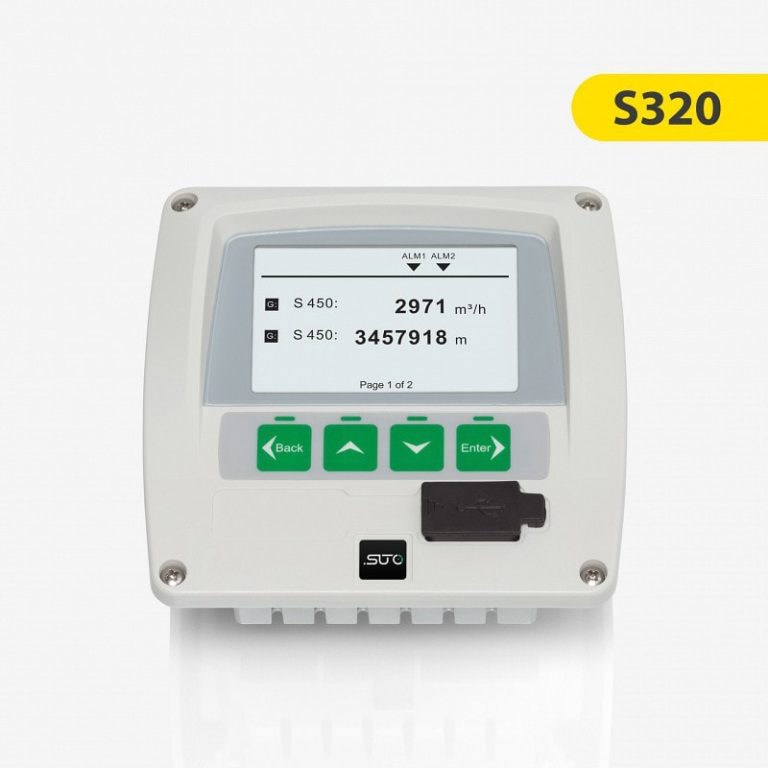

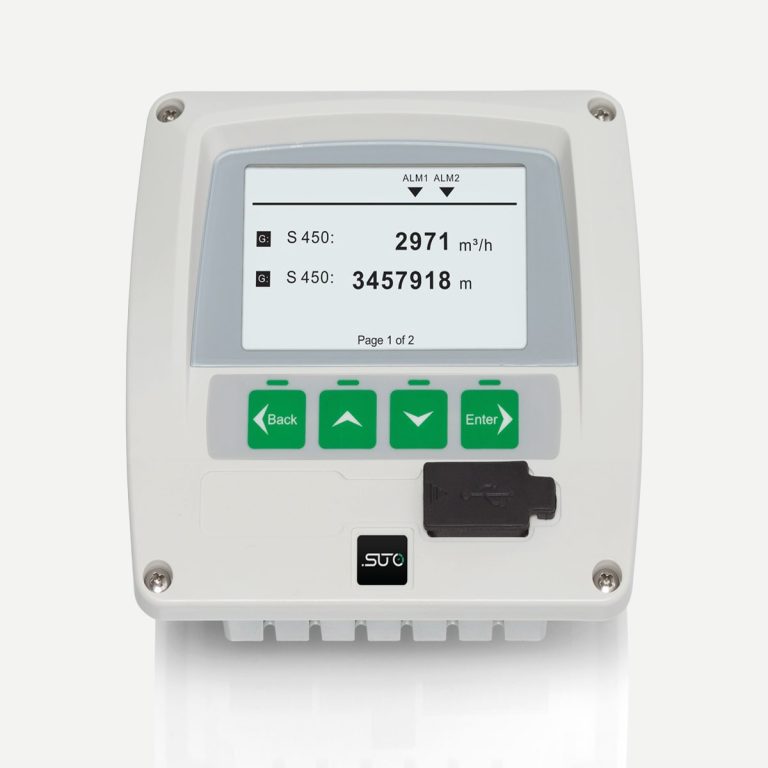

The S320 Display for compressed air and gas sensors provide a cost-efficient display solution for industrial applications. The display has an input for SUTO flow meters and dew point sensors. It also comes with an analog sensor input (0… 20 mA, 0… 10 V).
It helps operators the easily view measurement data of sensors that are placed in hard-to-reach locations.
Made in Germany. brand SUTO, model S320
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The S320 display is a cost‑effective solution for data visualization in industrial applications, particularly where displaying information from a single difficult‑to‑access sensor is required. The device features an input for connecting SUTO flow meters or dew point sensors, providing convenient local monitoring without the need to access the remote sensor installation location.

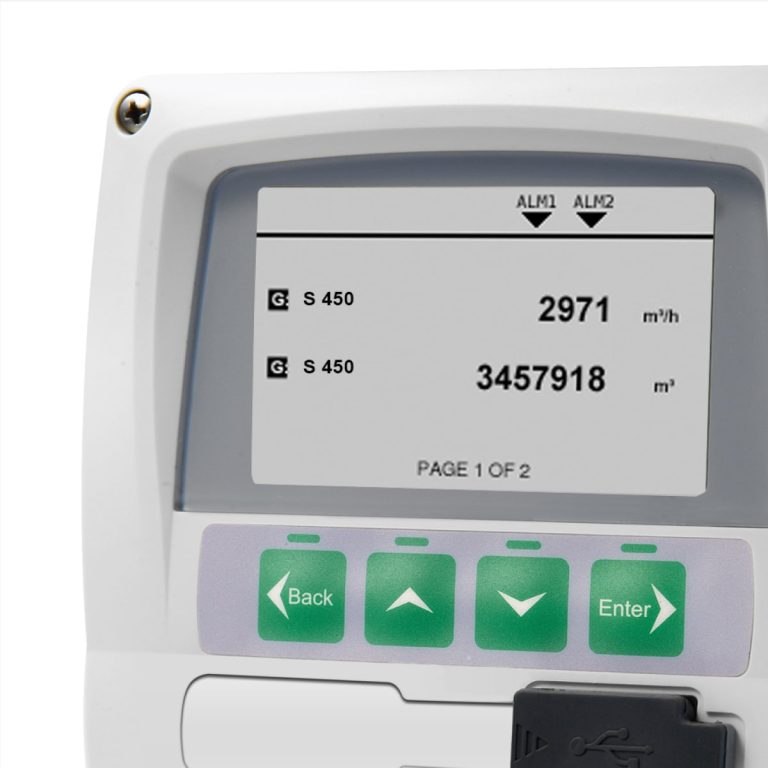

The display shows all key parameters of a compressed air system: flow rate, dew point, pressure, temperature, power consumption, compressor status, and other values. This allows operators to instantly assess the system condition and respond quickly to changes.
The S320 provides convenient and clear access to measurement data from sensors installed in remote, elevated, or hard‑to‑reach points, reducing maintenance time and increasing monitoring efficiency.
Features
| SIGNAL / INTERFACE & POWER SUPPLY | |
| Input signals | |
| Digitaler Eingang | 1 x SDI for dew point and flow sensors |
| Analoger Eingang | 1 x 0 … 20 mA or 1 x 4 … 20 mA or |
| Impulseingang | 1 x 0 … 10 V |
| Output signals | |
| Alarm-Ausgang | 2 Relais, 230 VAC, 3 A |
| Electrical data | |
| Power supply | 100 … 240 VAC, 15 VA (Option A1640) 18 … 30 VDC, 15 VA (Option A1641) |
| Sensor supply | 24 V, 10 W |
| Data interface | |
| Connection | USB to PC |
| Operation | Keyboard, 4 keys |
| GENERAL DATA | |
| Configuration | |
| PC Software | S4C-Display software |
| Display | |
| Integrated | Size: 5″ high-resolution graphic display Resolution: 800 x 480 pixels touch screen |
| Material | |
| Housing | PC + ABS |
| Miscellaneous | |
| Protection class | IP65 |
| Approvals | CE |
| Housing | Panel, wall mountable |

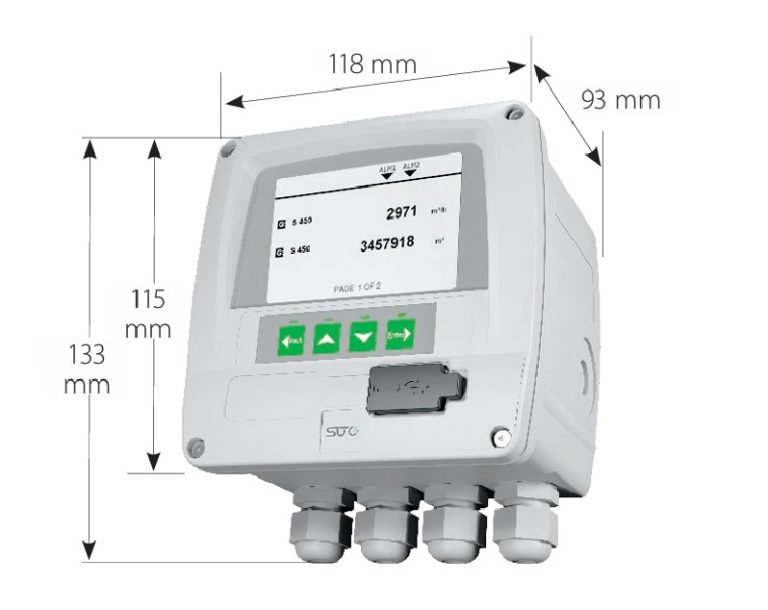

| Dimensions | See dimensional drawing |
| Cable entry diameter | 4.5 … 8 mm |
| Cable | Supply: AWG 12 … AWG 24, 0.2 … 2.5 mm²; Signals: AWG 16 … AWG 28, 0.14 … 1.5 mm² |
| Weight | 0.52 kg |
| Operating conditions | |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | < 90 % |
| Storage temperature | -20 … +70 °C |
| Transport temperature | -30 … +70 °C |
| Model | Description | Price |
| D500 0320 | S320 Display, base unit, panel version, 1 SDI input for dew point/flow sensors, 1 analog input | On request |
| A1640 | S320: Power supply 100 … 240 V AC, 15 VA, 2 Relay outputs for S320 | On request |
| A1641 | S320: Power supply 18 … 30 V DC, 20 W, 2 Relay outputs for S320 | On request |
| A1645 | S320: Wall mountable casing with 4 cable glands | On request |
| A1649 | S320: No wall casing (panel mount) | On request |
| A553 0104 | Sensor cable 5m with M12 connector, open wires, AWG24 (0.2 mm2) | On request |
| A553 0105 | Sensor cable 10m with M12 connector, open wires, AWG24 (0.2 mm2) | On request |
| A553 0106 | Power cable with mains plug, 1.8 m | On request |
You can request the necessary certificates, documentation, instructions and user guide for SUTO S320 using the special form.
