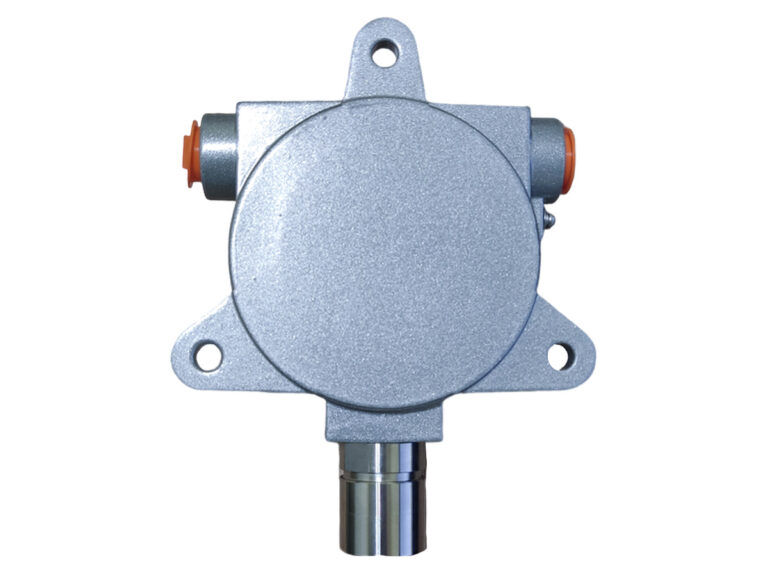

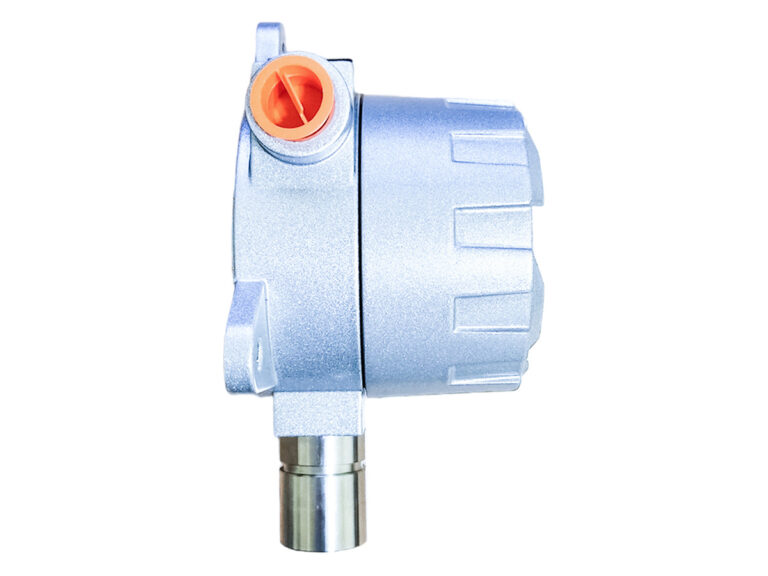

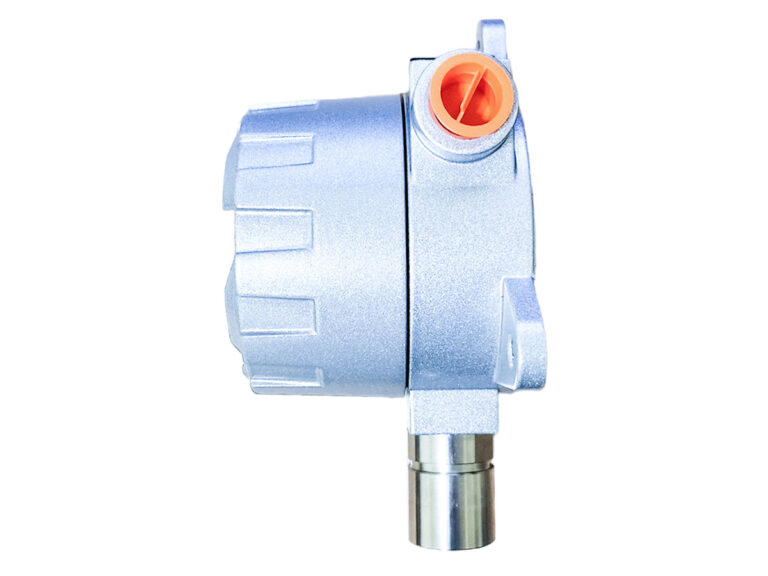

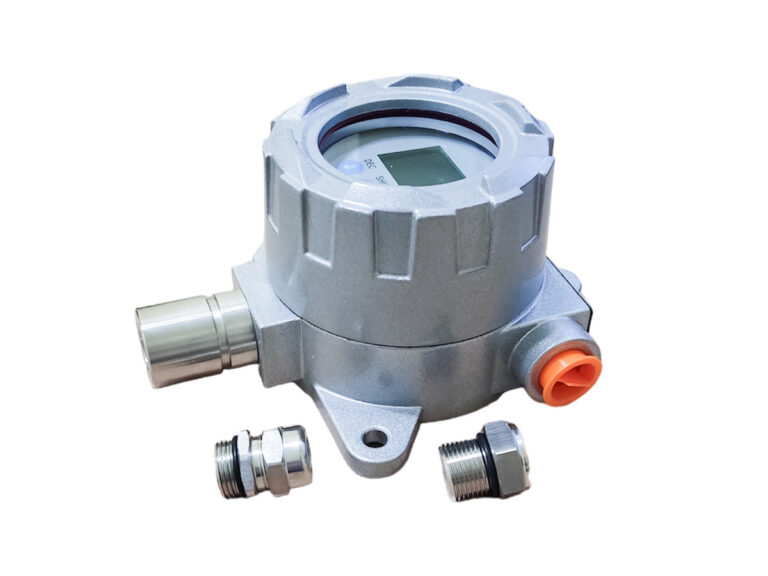

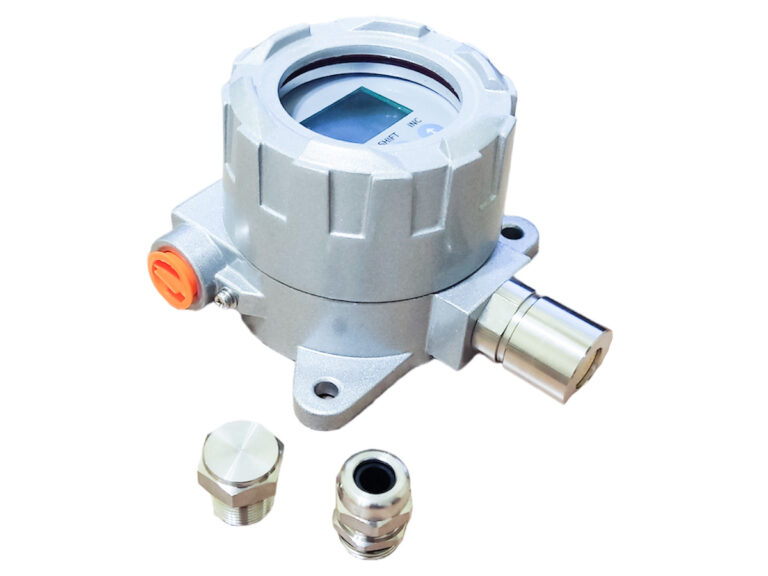

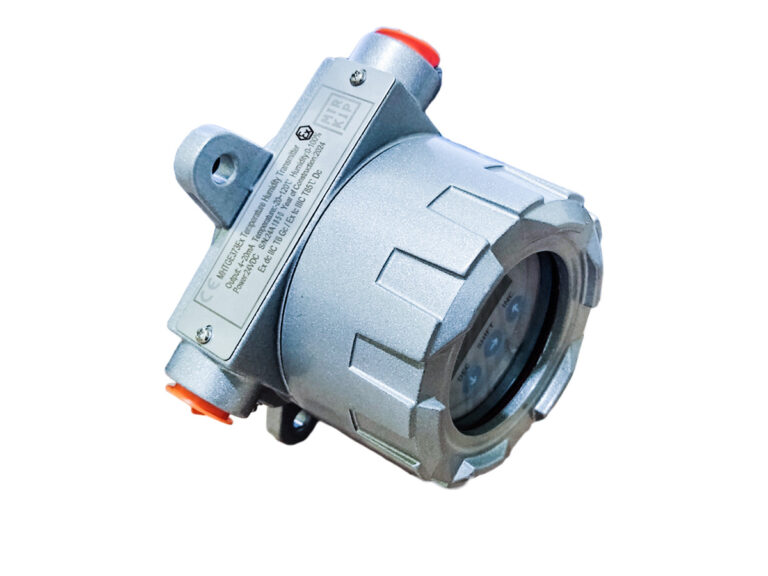

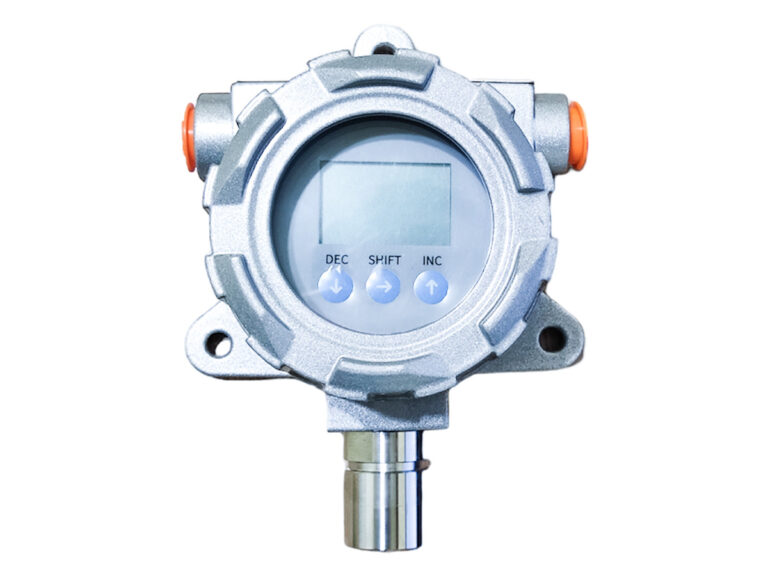

The MHTGE373Ex explosion-proof hygrometer can be used to monitor indoor temperature and humidity in various industrial plants, clean rooms, laboratories, machine rooms, offices, airports, train stations, libraries, stadiums, etc.
Made in Russia. brand MIRKIP, model MHTGE373Ex
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retailprice from $1791
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
GE-373-Ex Explosion Proof Temperature Humidity Sensor adopts a stabilized Ex-proof shell to isolate the flammable point from external gas and dust, achieve the Ex grade to Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃). It has domestic and international ATEX explosion-proof certificates. There are a variety of range options, and the signal output can be 4-20mA or RS-485. At the same time, it meets the requirements of gas explosion-proof and dust explosion-proof. These transmitters can be used for indoor air temperature and humidity monitoring in various industrial plant, clean room, lab, machine room, office and airport, station, library and stadium, etc.
Features：
Type：
GE-373-EX wall mount type for room or outside area
GE-373-EX insert type for duct or pipe air flow
The objection of the declaration is in conformity with the relevant EU harmonization legislation: ATEX directive 2014/34/EU, Machinery directive 2006/42/EC. The ATEX grade is Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃) IP65; or Ex II 3GD Ex dc IIC T6 Gc (-20℃≤Ta≤+80℃) and Ex tc IIIC T85℃ Dc (-20℃≤Ta≤+80℃) IP65 for gas and dust explosion prevention。
| Relative Humidity: | |
| Sensor: | Capacitance polymer |
| Range: | 0~100%RH |
| Output: | 4~20mA / 0~10VDC / RS485 |
| Accuracy: | 2%, 3% and 4.5%RH(25°C, 20~80%RH) |
| Hysteresis: | ﹤±1%RH |
| Response time: | ﹤10s ( 25 C, in slowly flow air) |
| Drift: | ﹤±0.5%RH/year |
| Temperature: | |
| Sensor: | Solid state band gap, RTD or thermistors |
| Range: | 0~50°C 0~100°C or -40~120°C or other |
| Output: | 4~20mA/0~10V/RS485, RTD or thermistors |
| Accuracy: | ﹤±0.2 C @ 25 C |
| Electronic: | |
| Power: | Voltage 24V DC |
| Output Load: | <500Ω (current), >2KΩ (voltage) |
| Display: | Large LCD screen digital display, optional |
| Display Accuracy: | 0.1°C, 0.1%RH |
| Display Resolution: | 0.1°C, 0.1%RH |
| Note on TR CU 012/2011 Certificate | |
| EX marking according to GOST 31610.0-2019 | 1Ex db IIC T6 Gb, Ex tb IIIC T85°C Db |
| Ambient temperature range | from minus 20°C to plus 80°C |
| Supply voltage, V | 24 DC |
| Degree of protection according to GOST 14254-2015 | IP65 |
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MHTGE373Ex using the special form.
You can buy MIRKIP MHTGE373Ex in Latvia at a price starting from1791 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MIRKIP MHTGE373Ex price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
