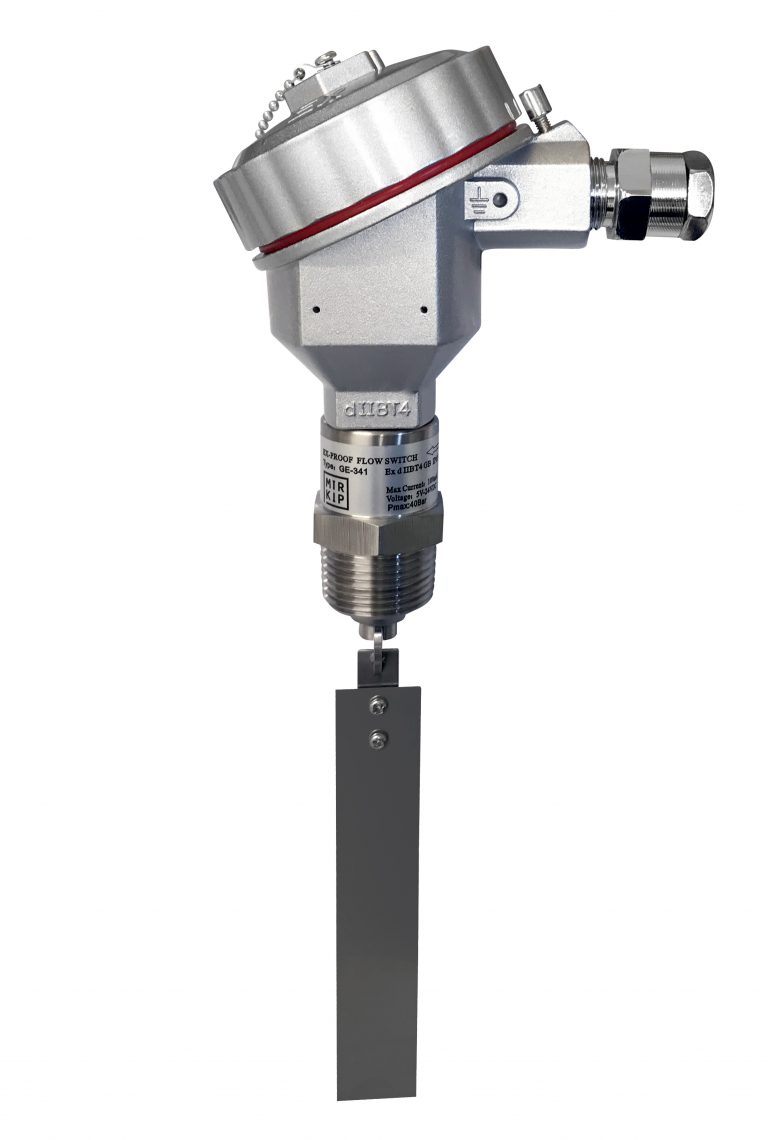

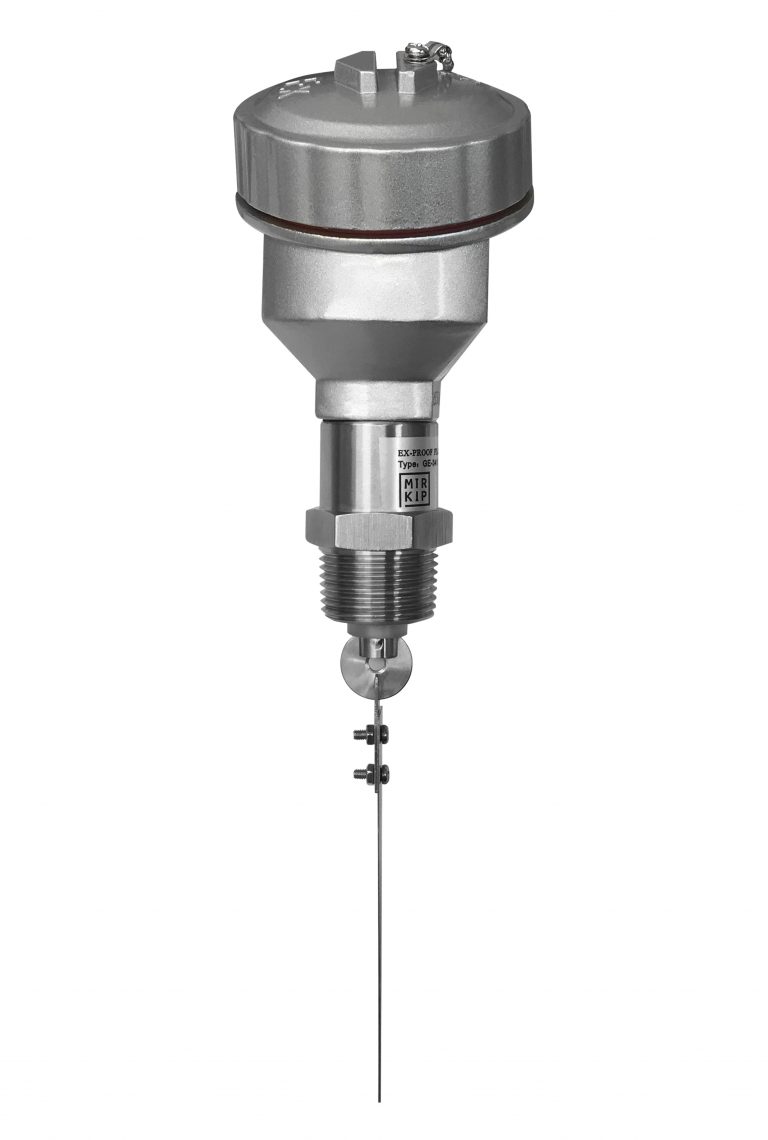

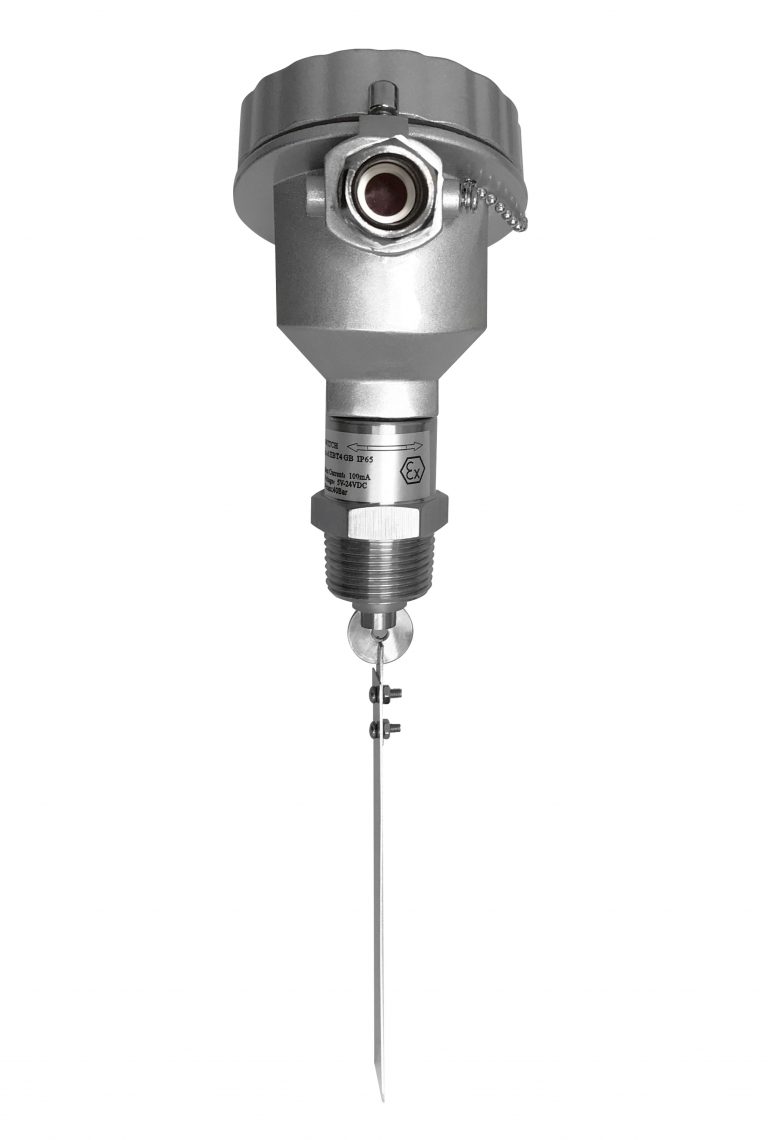

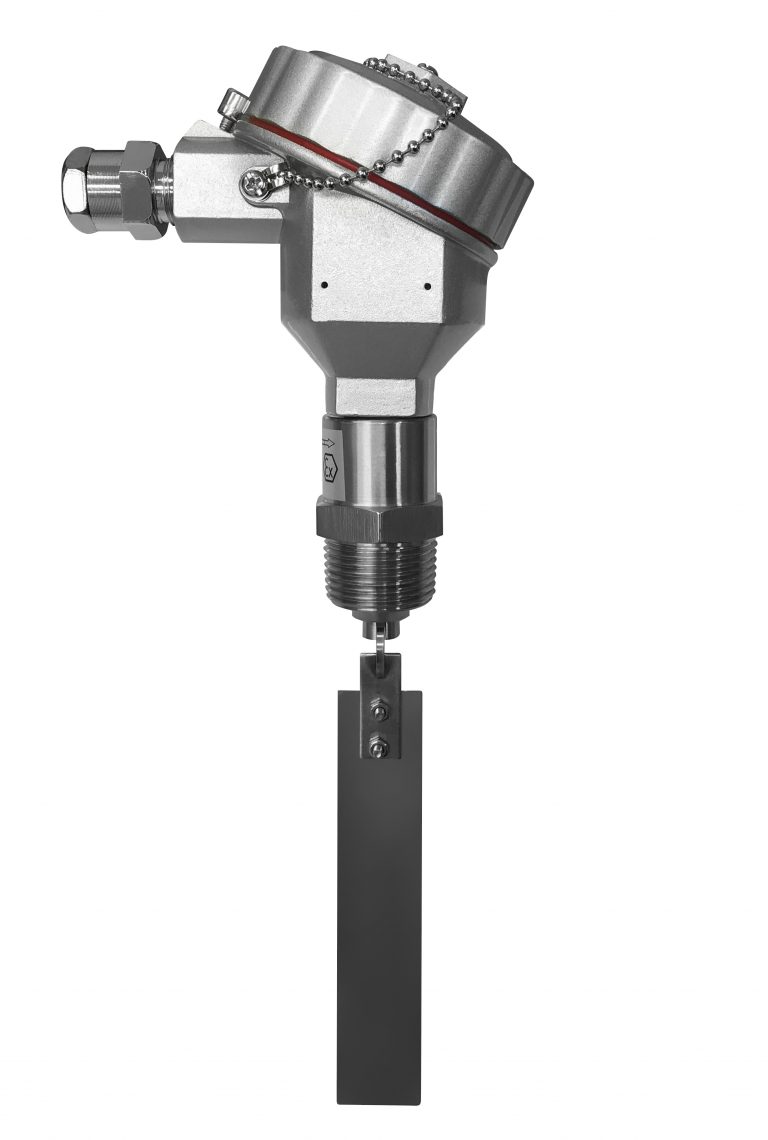

GE-341 flow switch use new structure, could monitor the flow by Two-way. It is operate by micro magnetic reed switch, it is normal Open, when flowing water push the paddle, the transfer structure change the switch condition, it close. It could be Anti Explosion-proof, ExdbIICT6 or ExdIIBT4. ATEX SIL2 SIL3 certificate for the flow switch, UL certificate for micro switch.
Made in Russia. brand MIRKIP, model MFSGE-341
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retailprice from $1343
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The flow switch is actuated by the force of the liquid moving the paddle, thereby detecting the presence of flow in the pipe. In the absence of liquid or when the liquid is stationary, a spring returns the paddle to the no-flow position. The reed switch contact is normally open.
When flow occurs and the paddle is deflected by an angle of 20 to 30 degrees (or more), it lifts the magnet, which in turn actuates the reed switch, closing the circuit. The length of the paddle can be adjusted to match the pipe diameter. The 1″ size can be used only with metal pipes.
Installation is simple.
Cut the paddle to the required size for the pipe. DO NOT use with metal pipes under 1″ diameter.DO NOT use with 1″ plastic pipes (1 1⁄4″ — minimum allowable diameter for plastic pipes). Before installing the device into the tee, apply thread seal tape to the threads and tighten securely. The FLOW marking on the screw’s hex must be parallel to the pipe and ground.
Regardless of water flow direction (left-to-right or right-to-left): with flow present, the switch signals and contacts close; with no flow, contacts remain open.
| Operation Temp | -30°C ~ 150°C |
| Max Pressure | 40 bar |
| Contact Capacity: | 70W 250VAC/DC max; SPST Normal Open |
| Work Voltage | 12V, 24V |
| Work Media | Water and oil |
| Pressure Loss | Less than 0.01 bar |
| Installation | 1″; Insert, 1/2″ 3/4″ could be customized |
| Pipe Size | DN20 ~ DN400 |
| Housing Material | Aluminum alloy, NEMA 4 (IP65) |
| Paddle Material | SUS304 (Similar to 304 SS) |
| Set Point Tolerance | ± 25% |
| Repeatability Tolerance: | ± 5% |
| Maximum viscosity: | 200 SSU or 43 centistokes |
| Protect Grade | IP65 |
| Explosion-Proof Grade | ExdIICT6 or BT4 BT6 (ATEX Certificate) |
TR CU 012/2011 certificate specifies ambient temperature range -20°C ~ 80°C
Standard Actuation and De-Actuation Setpoints
| Pipe Line Size | ||||||||||||
| 1″ | 1 ¹⁄₄” | 1 ¹⁄₂” | 2″ | 2 ¹⁄₂” | 3″ | |||||||
| Approximate Actuation and De-Actuation Flow Rates–GPM Water | ||||||||||||
| Paddle Length | Act. | De-Act. | Act. | De-Act. | Act. | De-Act. | Act. | De-Act. | Act. | De-Act. | Act. | De-Act. |
| 1″ | 5 | 4 | 8.5 | 6.5 | 12 | 9 | 17 | 15 | ||||
| 1 ¹⁄₄” | 6.5 | 4.5 | 9 | 7 | 15 | 12 | 23 | 20 | ||||
| 1 ¹⁄₂” | 14 | 10 | 23 | 16 | 32 | 25 | ||||||
| 2″ | 18 | 12 | 24 | 17 | 33 | 27 | ||||||
| 2 ¹⁄₂” | 20 | 13 | 27 | 22 | ||||||||
| 3″ | 22 | 16 | ||||||||||
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MFSGE-341 using the special form.
You can buy MIRKIP MFSGE-341 in Latvia at a price starting from1343 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MIRKIP MFSGE-341 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
