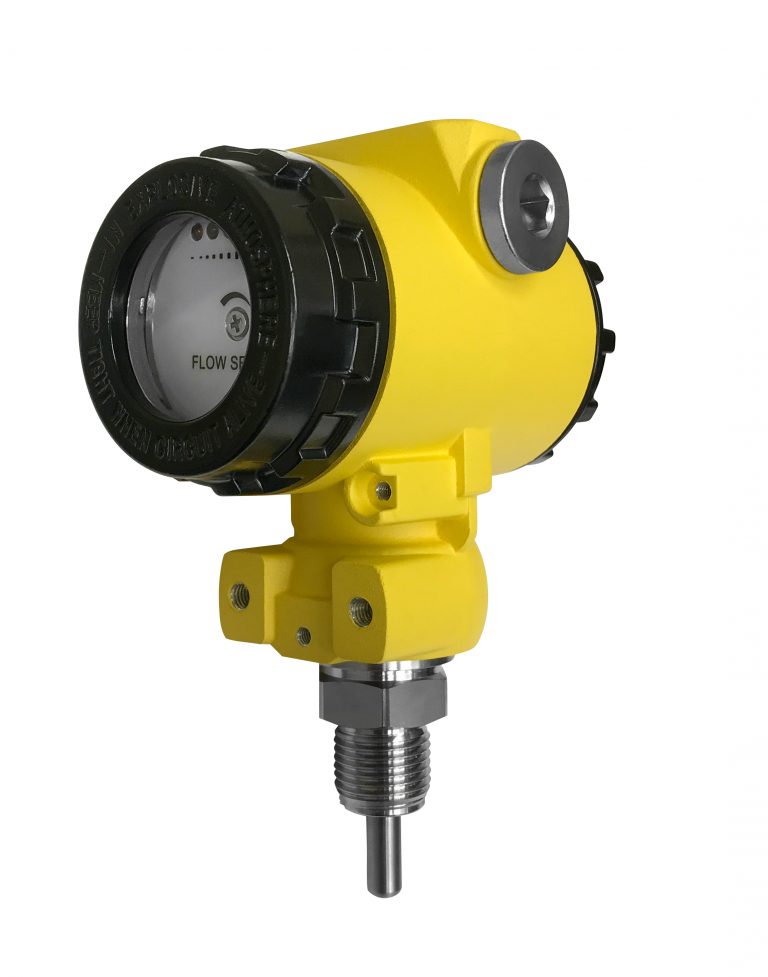

Flow switch for gas and liquid flow measurement and control, available in ExdIIBT4 or ExdIICT6 explosion-proof housing. This reliable and sensitive device is widely used in the petrochemical industry.
Made in Russia. brand MIRKIP, model MFSGE-325
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retailprice from $1455
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

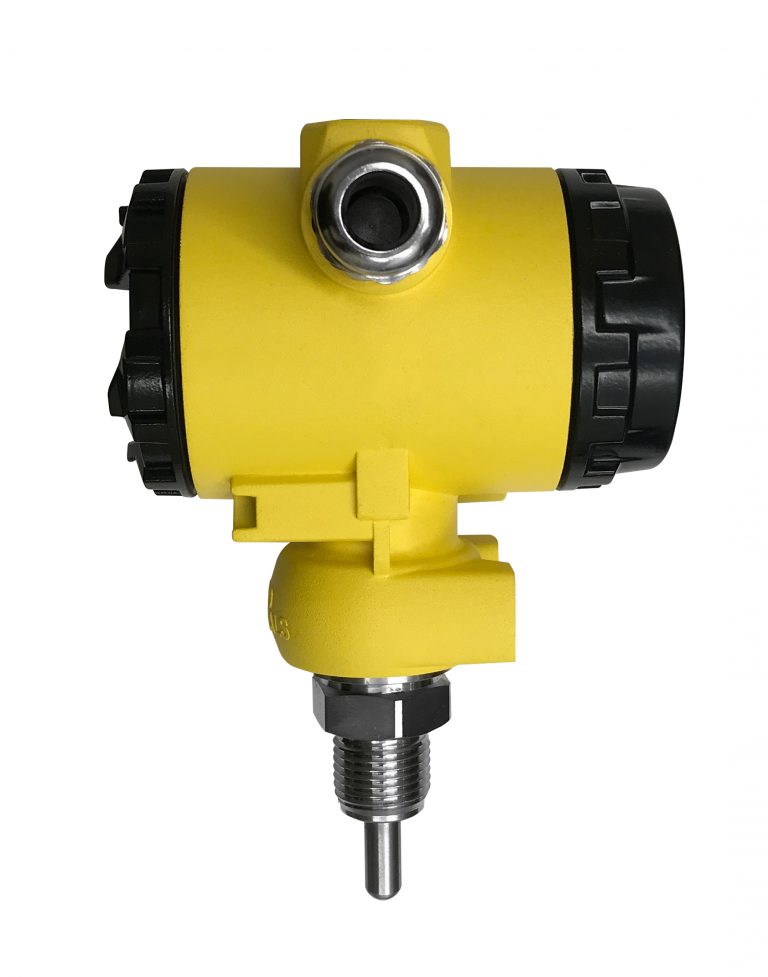

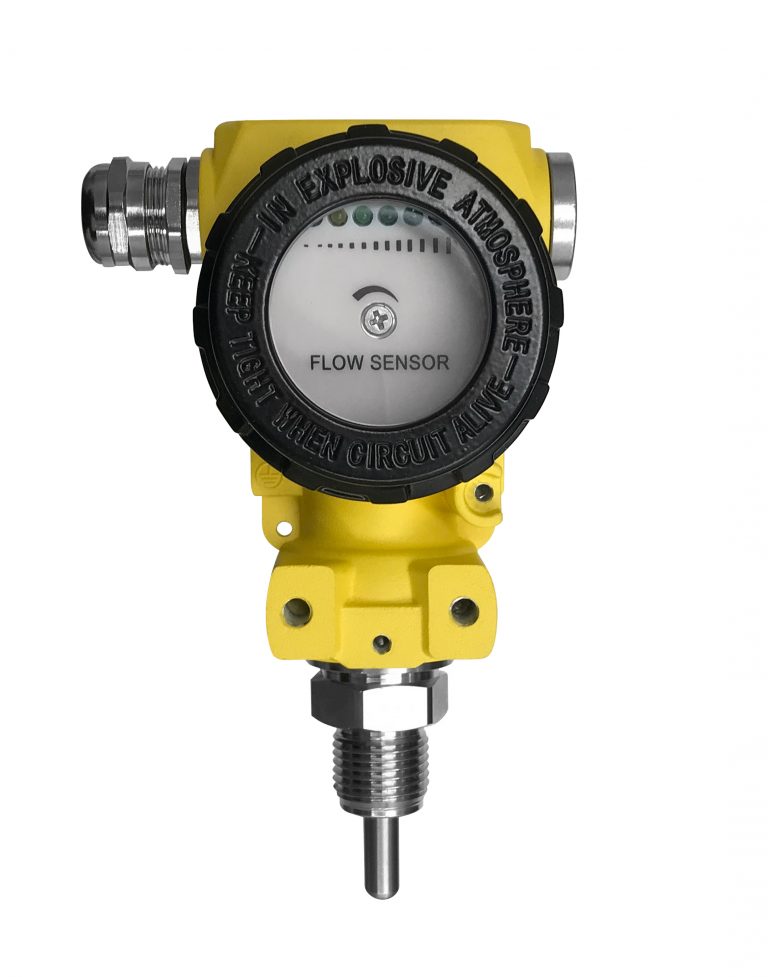

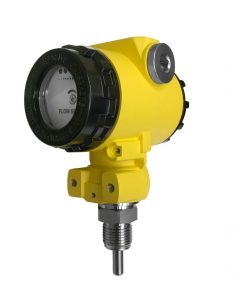

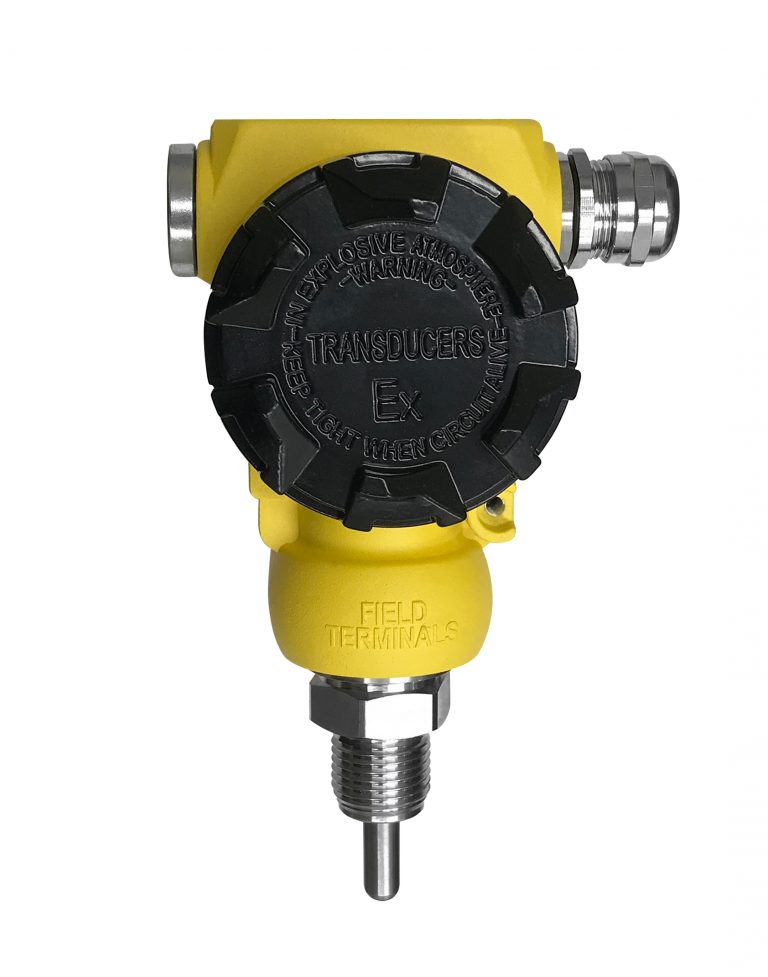

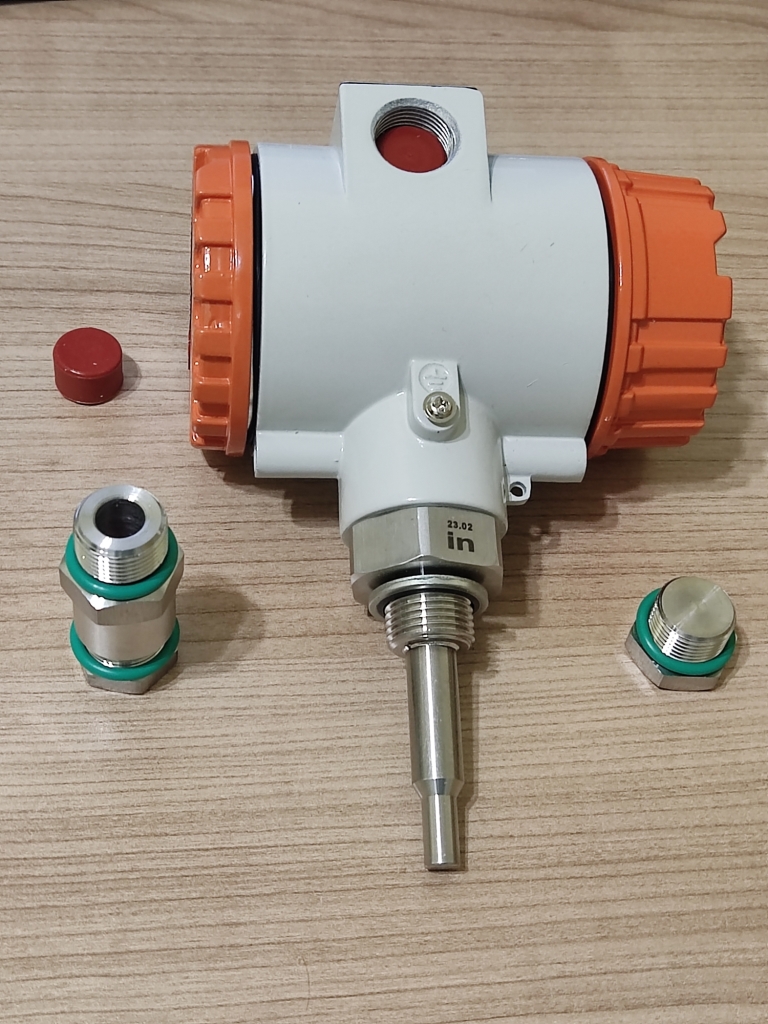

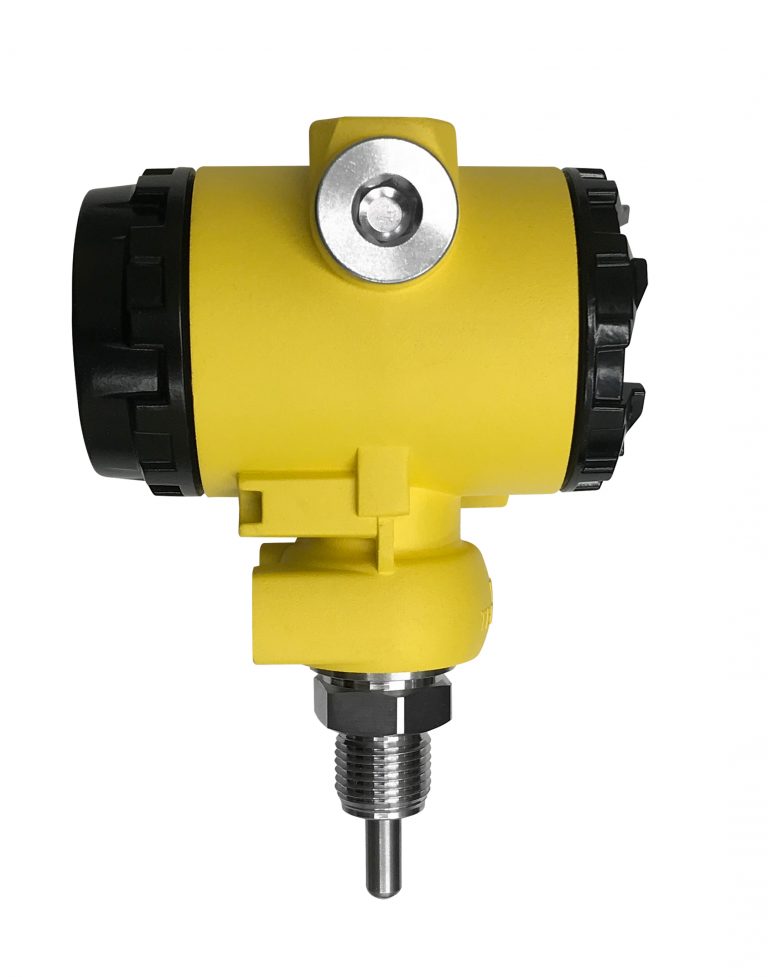

This Calorimetric Flow Sensor is also known as Thermal Dispersion flow switch, it is produced with Explosion proof shell, achieved ExdIIBT4 or ExdIICT6 grade, with ATEX certificate. it could be used to measure and monitor the Gas Flow and Liquid Flow, as a stability and sensitive flow switch, widely used in Petroleum Chemical Industry.
Modifications
| MFSGE325-Digital | 4 digital LED displays showing flow rate values from 0.00% to 100% |

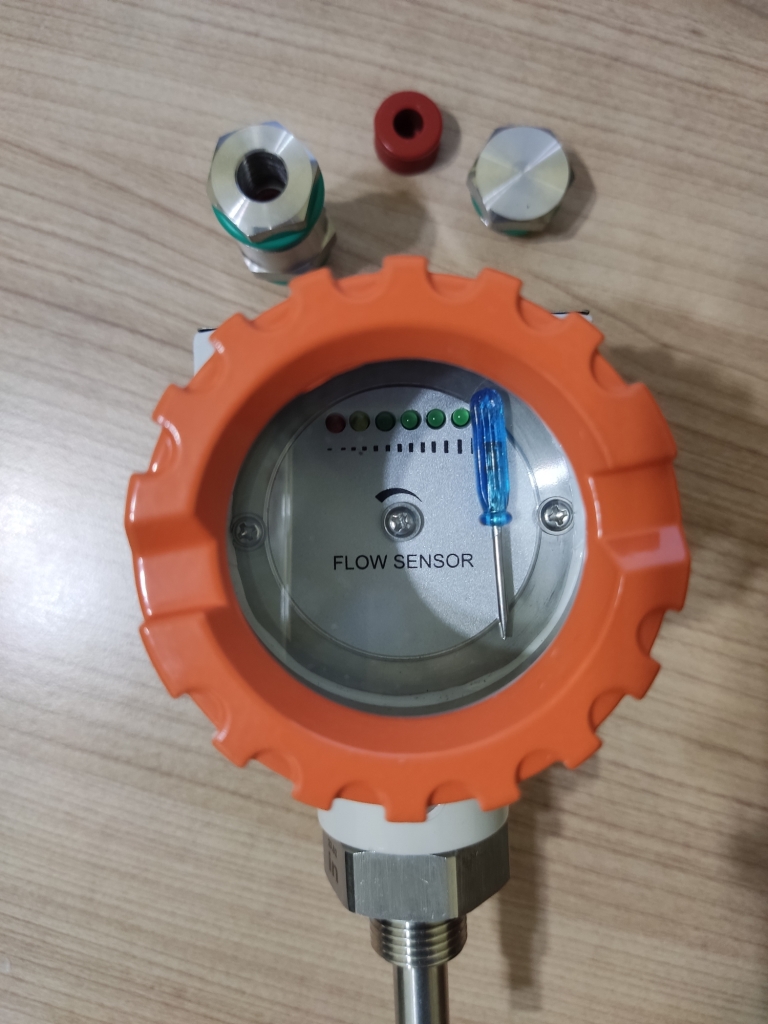

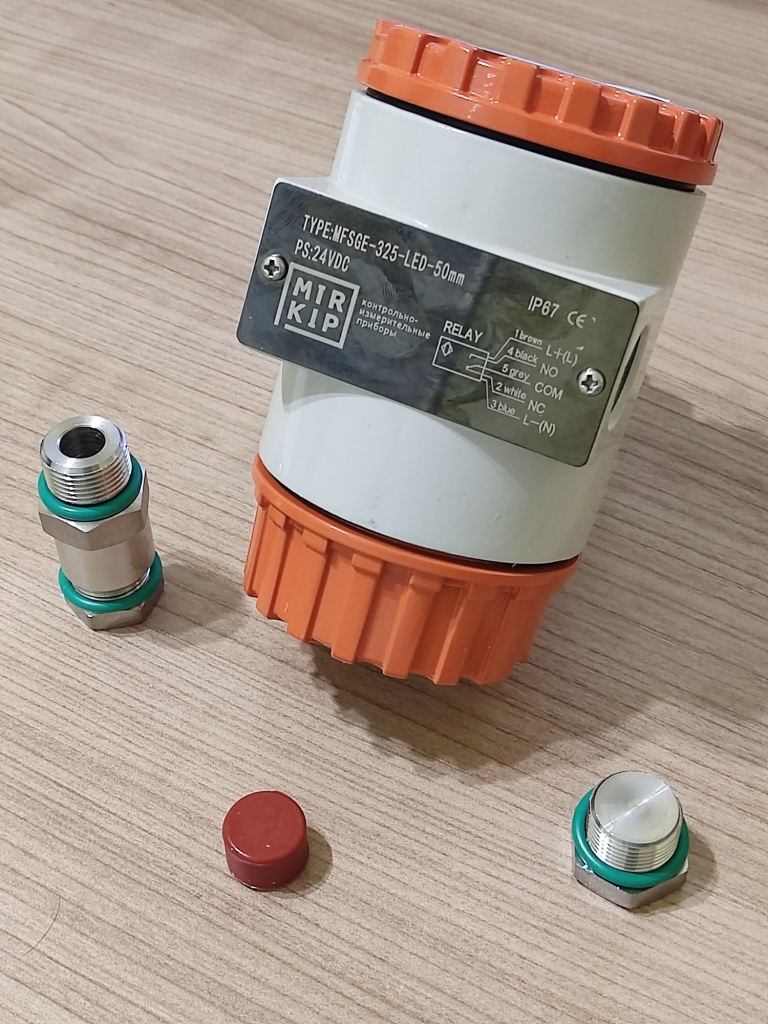

| MFSGE325-LED | 6 LED indicators displaying approximate flow rate; DPDT switch signal can be connected if required |
MFSGE325-Digital features only G1″ thread with 50mm probe. Low quantity prevents custom configurations.
MFSGE325-LED can be configured to customer specifications.
| Connection size | 1/2” or 3/4″ or 1″ male thread, Flange or other |
| Probe Material | standard SUS304, SUS316 or PTFE is available |
| Probe Length | 15mm to 100mm 150mm or more (specify in the order!) |

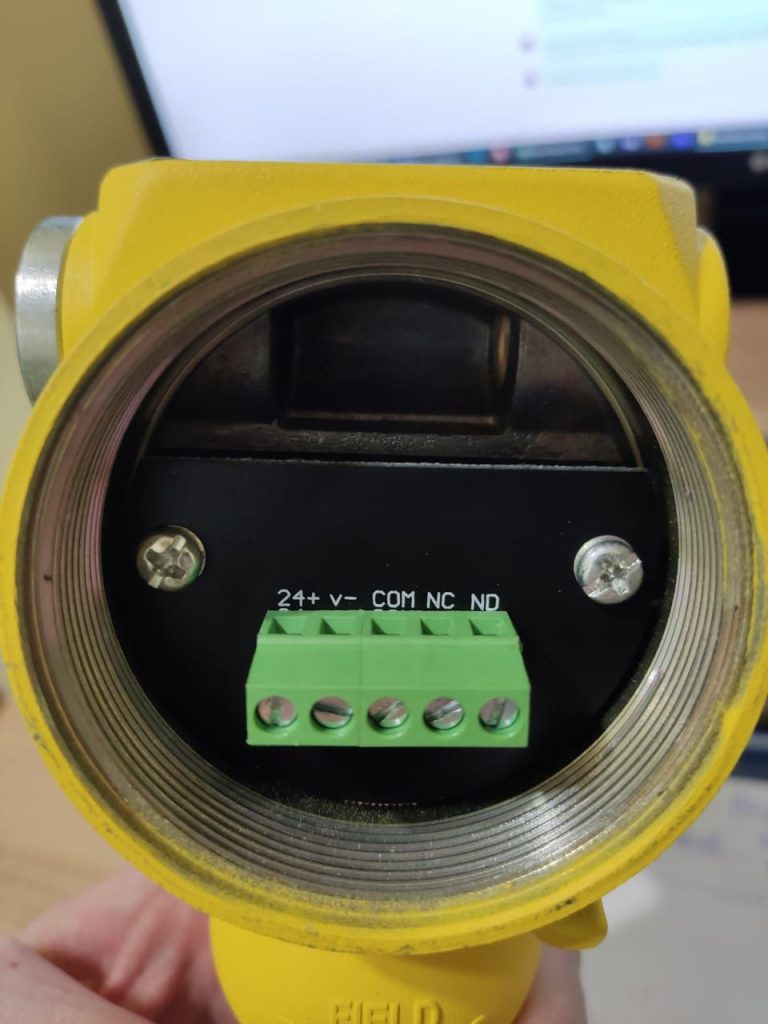

| Output | SPDT NO or NC , or NPN, PNP |
| Power Supply | DC 24V as standard, AC 220V optional |
| Ex Grade | ExdIIBT4 or ExdIICT6 |
| Protect Grade | IP65, IP67 |
| Electronic Connection | M20x1.5 |
| Max Pressure | 100 bar |
| Media Temperature | -40C ~ 80C |
| Flow Speed | 0.1m/s ~ 30m/s (Gas, Air); 0.01m/s ~ 10m/s (Liquid) |
TR CU 012/2011 certificate specifies ambient temperature range -20°C ~ 80°C
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MFSGE-325 using the special form.
You can buy MIRKIP MFSGE-325 in Latvia at a price starting from1455 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MIRKIP MFSGE-325 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
